Class TD Schematic

[kartino]

Folks,

I post class TD schematic. It is based on the only famous class TD.
This is not yet trial. Layout is not yet available. I bring new idea for gate supply, and more simple design suitable for DIY audio pro enthusiast, dreamer for big muscle amp.
Sorry small mistake, R126 is not 27K. but 18K

Regards,
Kartino



[kartino]

Sorry, it was wrong not the latest file.
Below is the correct one.
ltspice file is always attached in the PDF.



[andrewlebon]

TD CLASS

Hello Kartino

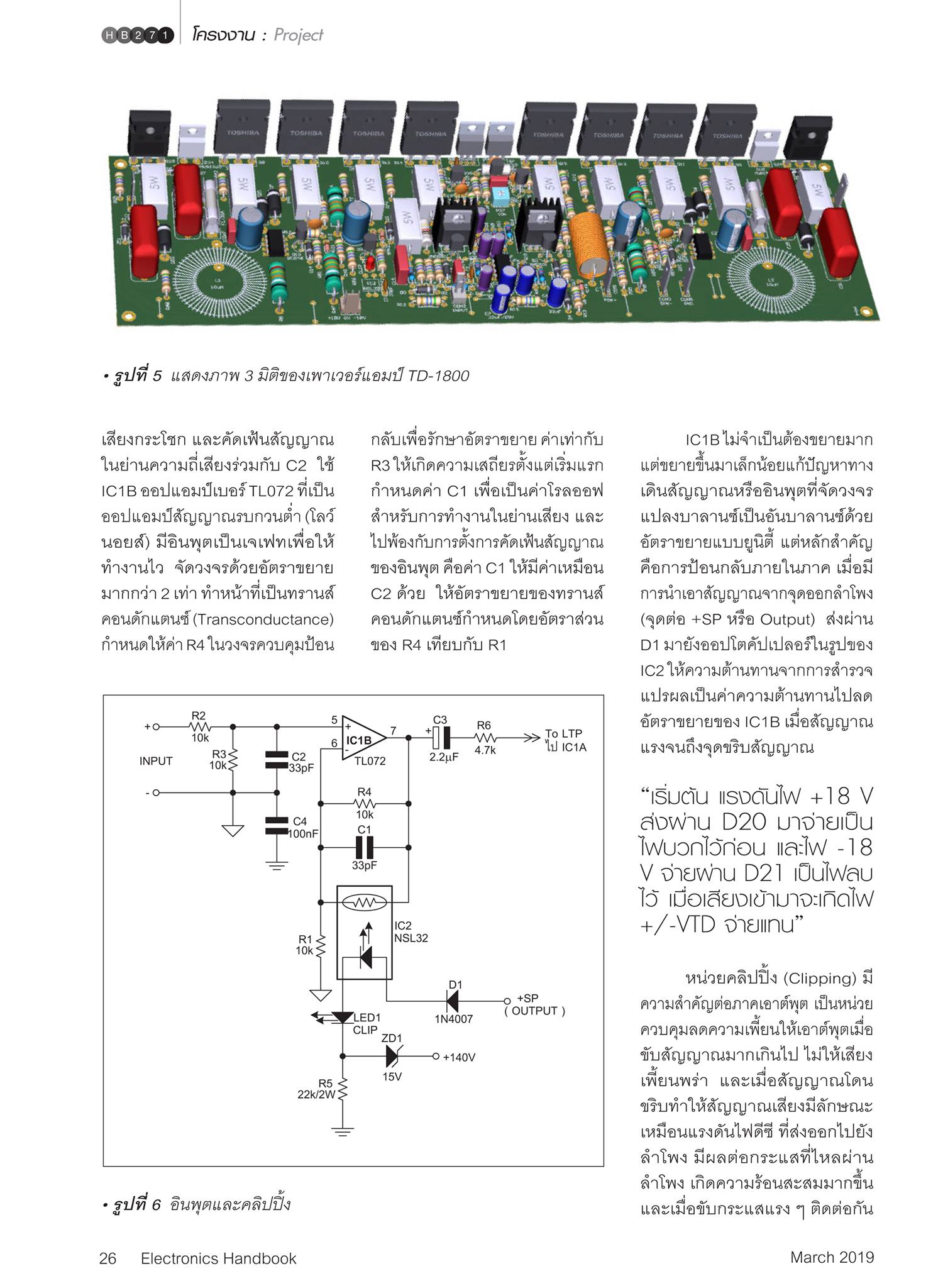

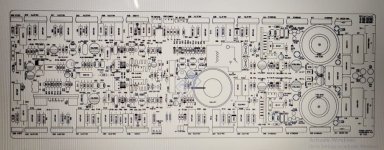

greetings do you have this layout schematic
warm regards
Andrew😉😉



[kartino]

Hi Andrew,

Nice to see you healthy.
Yours is 100% Lab version. I do not have it



[andrewlebon]

Hello Kartino
greetings after long time almost 18 months after surgery i copied a very
reliable TD class but now i cannot get pcb from china anymore i will chat
on FB
warm regards
Andrew



[kartino]

TD design decoded 😀
You will understand from the PWM card. See my PDF, I put converter in one page. It is a self oscillation in a LTP. Comparing the amp out and prefilter signal.



[kartino]

If you use ltspice just open the file attached to the PDF.



[kartino]

I post simulation files in complete pack



[kartino]

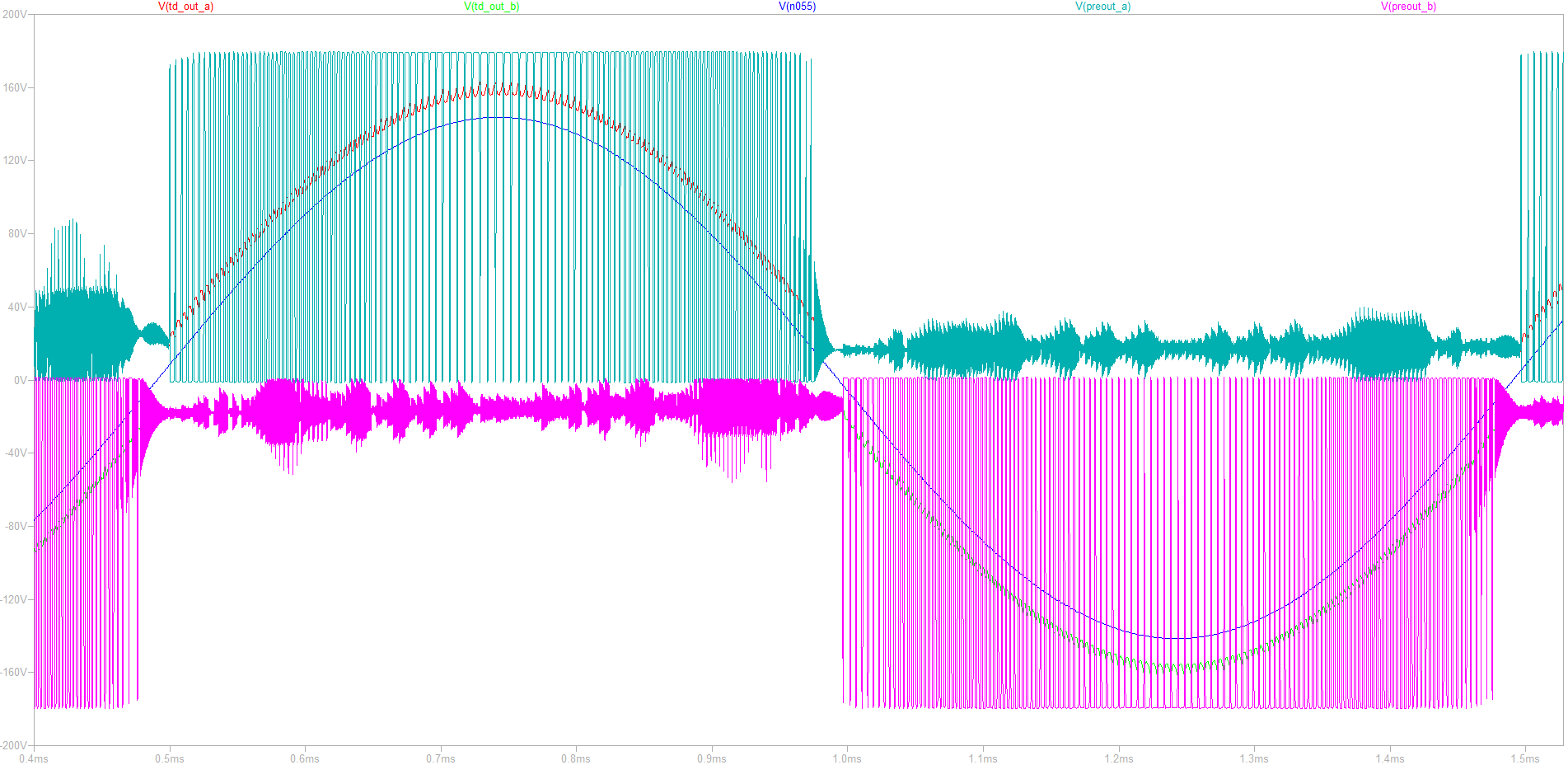

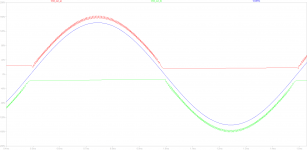

Signals plot



[kartino]

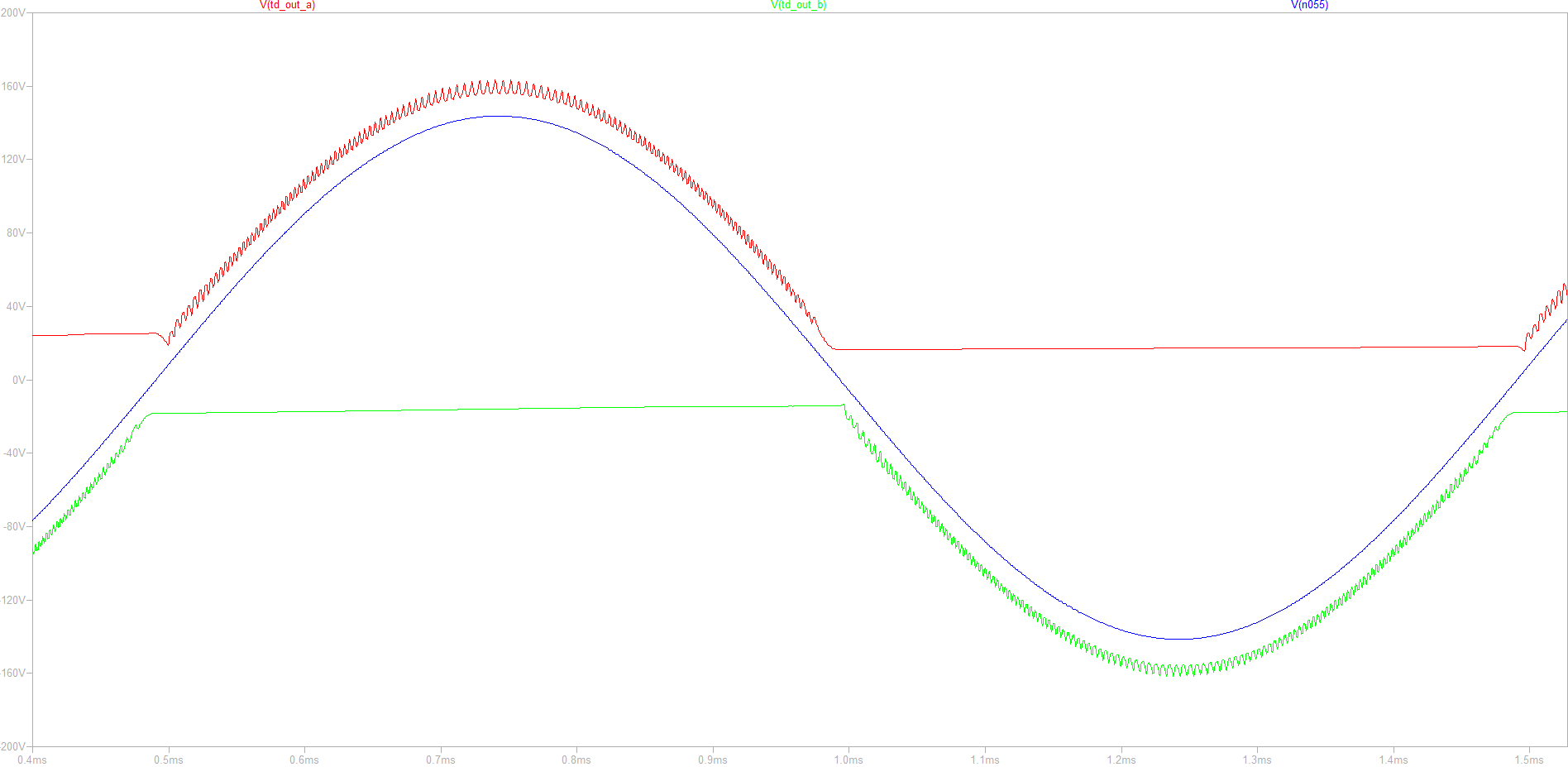

Without Switching



[teslar]

Nice sir.



[kASD]

Kartino how about 12-15k signal condition near clipping both loaded and unloaded?



[stewin]

hi all

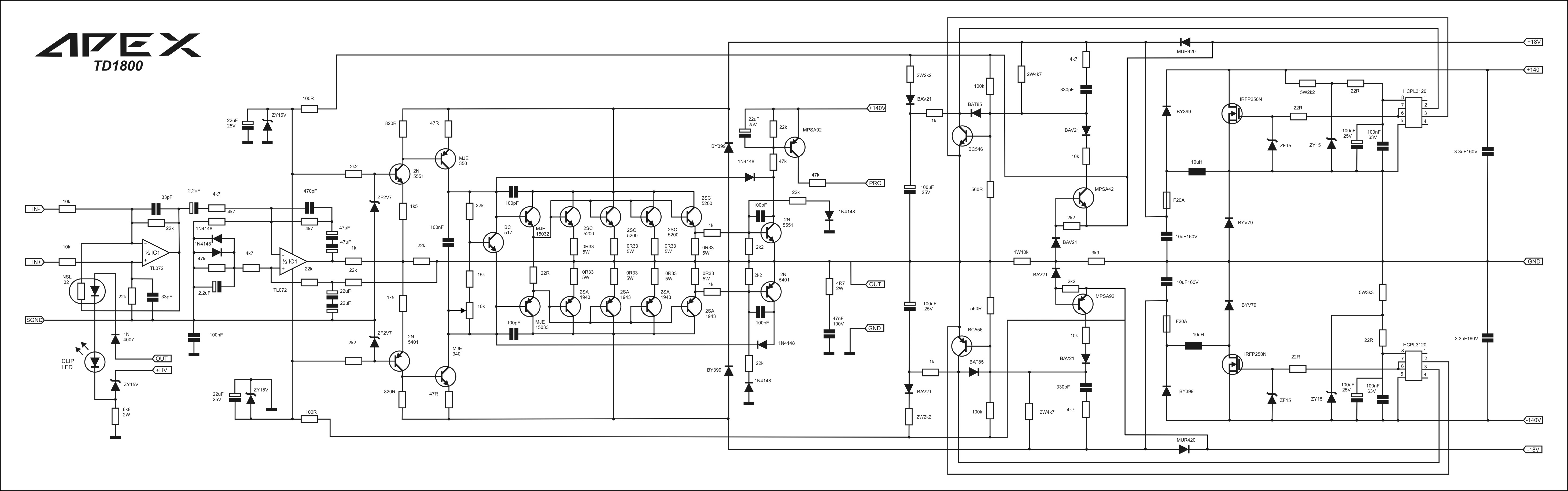

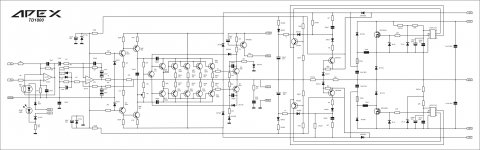

Mr kartino is your amp similar to apex td1800? 900W H-class PA Amp with Limiter



[asdktl]

Hello Kartino

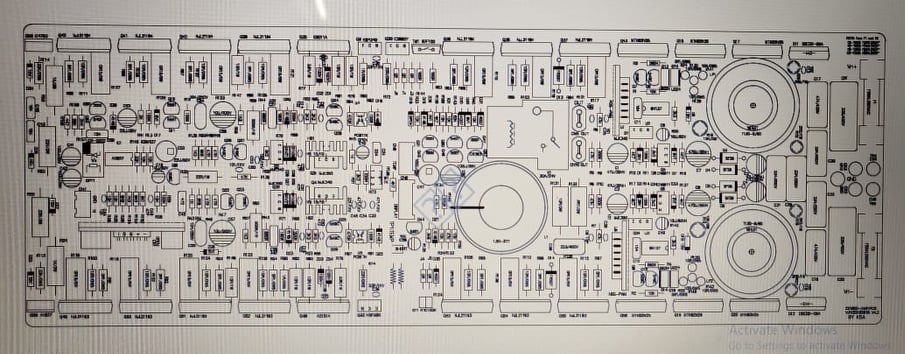

greetings do you have this layout schematic
warm regards
Andrew😉


Dear sir can you share this layout my email id is techhry@gmail.com



[HoanThanh audio]

Help mi



[Mooly]

What are you trying to do?
