With no outputs installed in the amp..

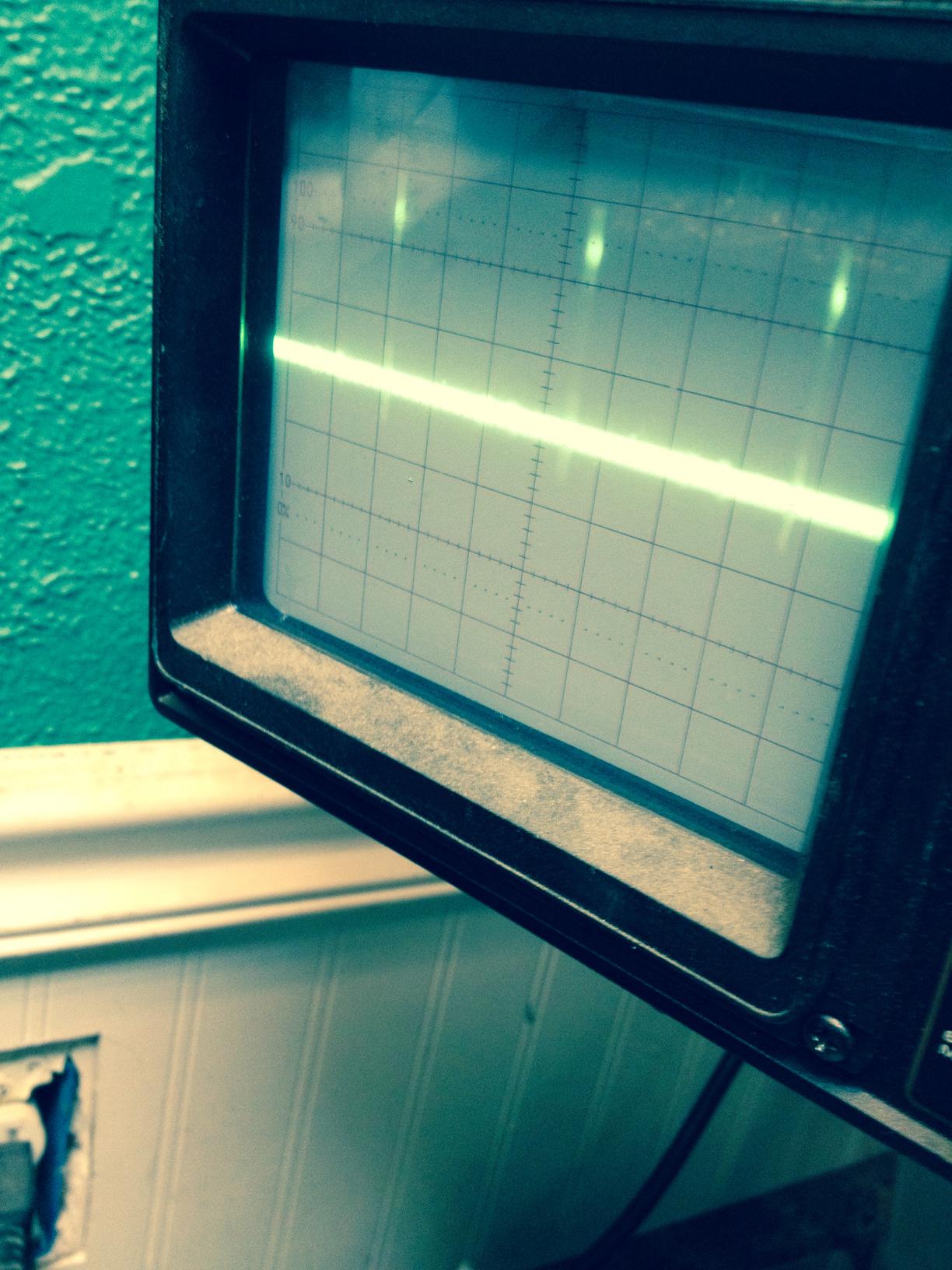

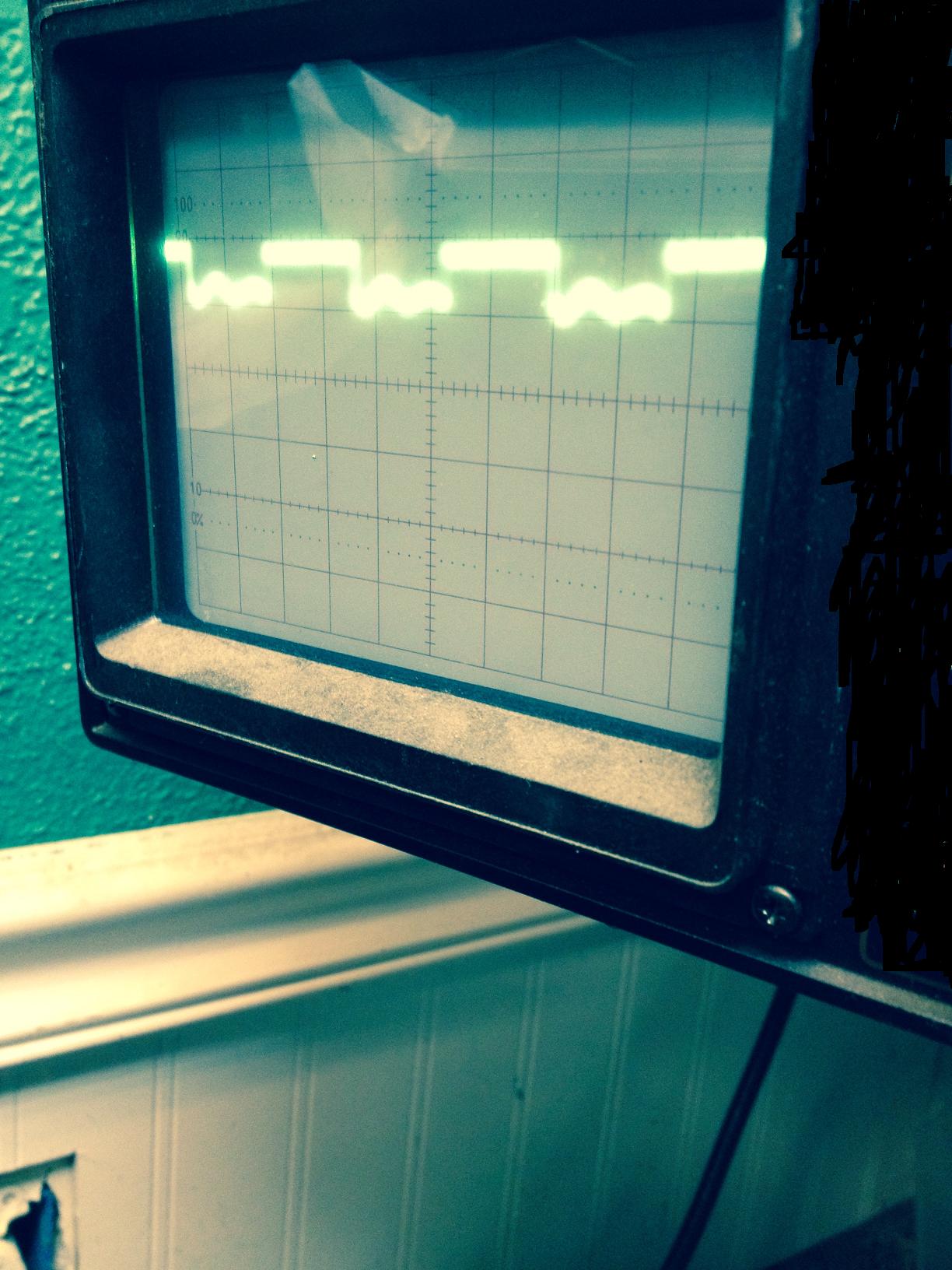

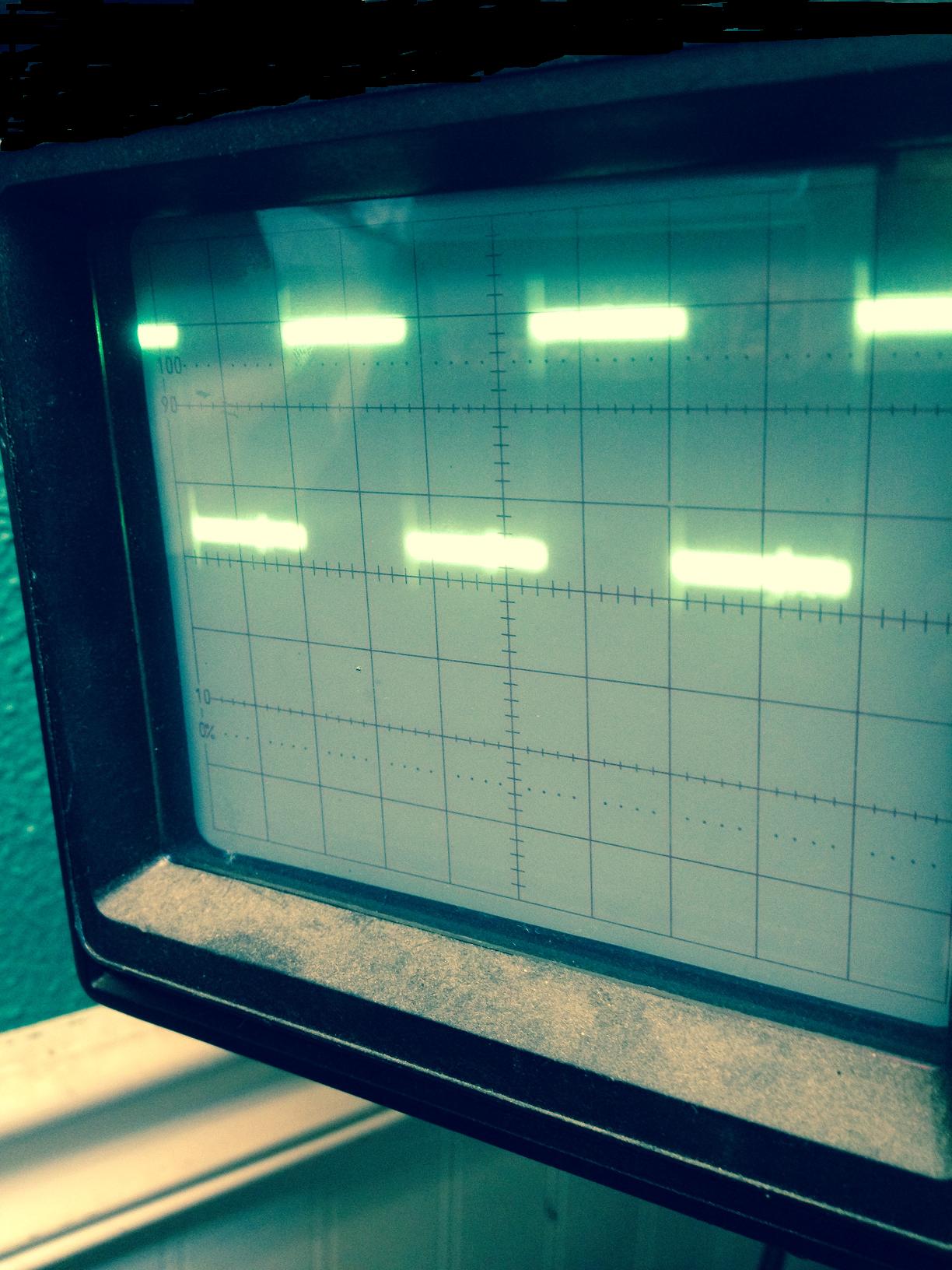

Heres what i get on the gate pads for the outputs..
Scope settings are : 5us 2 volts/div

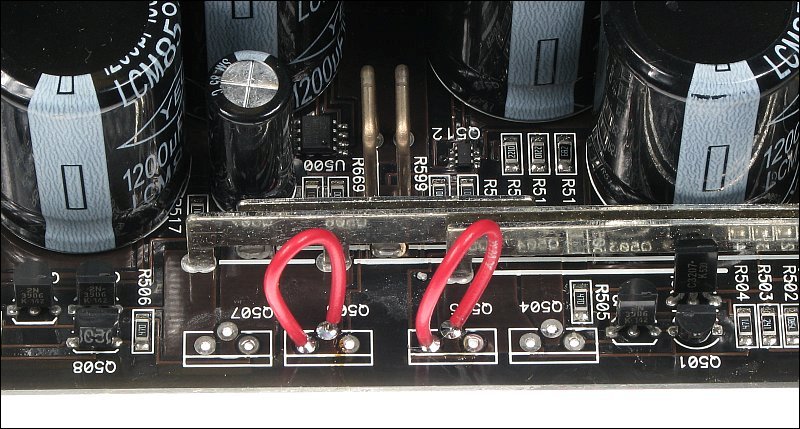

Q505,Q506 is in pic 1

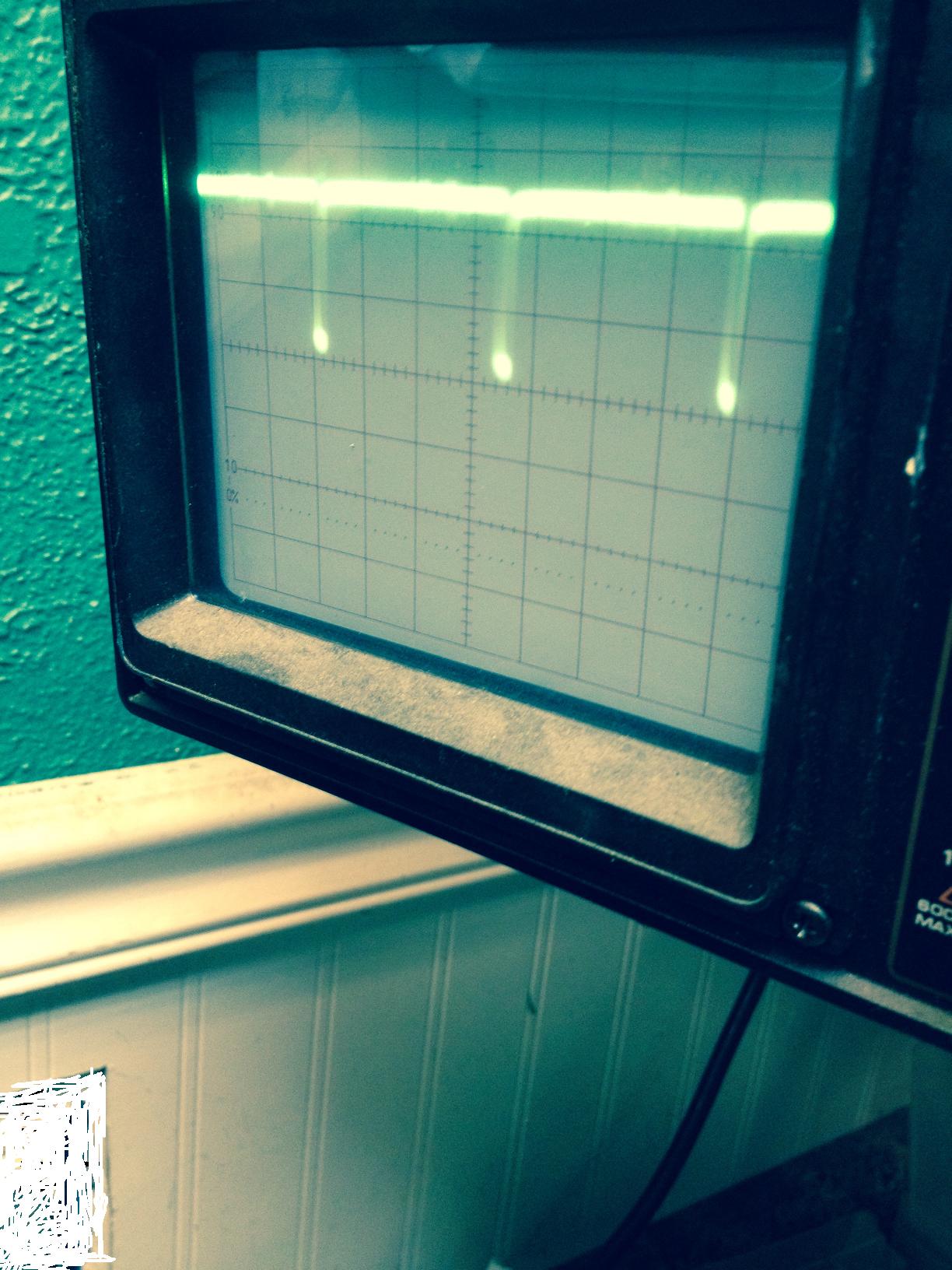

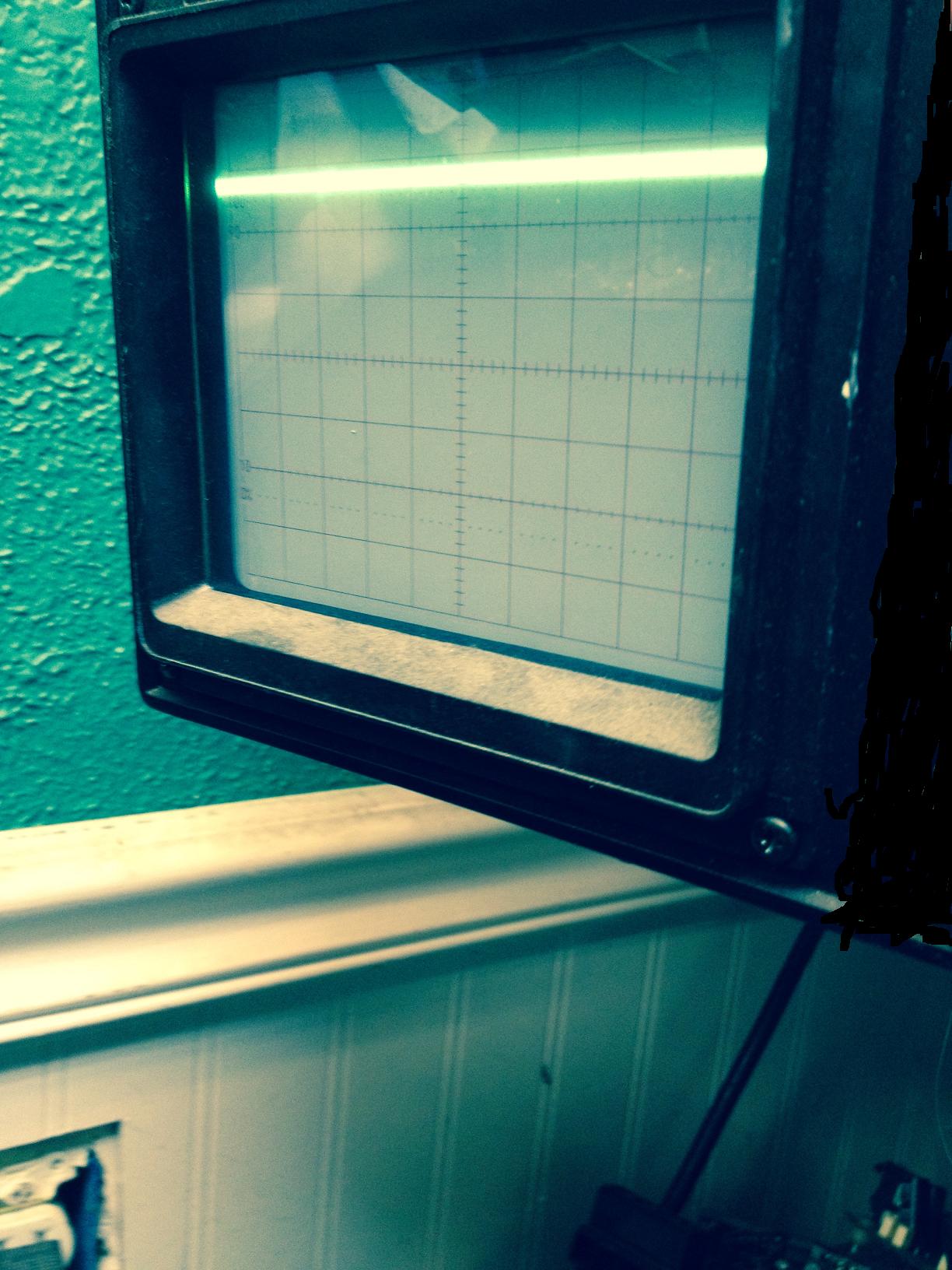

Q504,Q507 scope settings are 5us .5 volts div
Do these drive signals appear correct or do i have a problem somewhere?
Heres what i get on the gate pads for the outputs..
Scope settings are : 5us 2 volts/div
Q505,Q506 is in pic 1
Q504,Q507 scope settings are 5us .5 volts div
Do these drive signals appear correct or do i have a problem somewhere?
