L12-2 kits

[Tarasque]

Have a couple of L12-2 kits. Have constructed quite a number of these kits over the last years and all worked flawlessly.

Have some kits left and willing to sell these for 12 euro each channel. That is PCB + ALL components.

Shipping and paypal fee is extra.



[baggerbole]

What are the specs?



[Tarasque]

Parameters:
Ingangsspanningsbereik: DC +/- Dual Voltage +/- 12V - +/- 55V
Vermogen: 120W / 8R +/- 50V spanning
200W / 4R +/- 50V spanning
THD: <0,0005% 1KHz 10W
SR: 35V/US
Dempingsfactor: > 200, 8ohm belasting
Ingangsgevoeligheid: 1,6 V Output 120W 8R
Frequentiebereik: 15Hz - 50KHz (-3DB)

Spanningsvergroting: 31 keer

PCB-grootte: 144mm * 45mm



[baggerbole]

Sounds good!
Can you use 2 of them for balanced input?



[Tarasque]

Yes! 2 amplifiers driven via ballanced input works well when wired correctly. This doubles the output power as well. It also cancels distortion by a factor of 5 to 10.



[baggerbole]

Ok, if you tell me the correct wiring for balanced I´m in for 4 kits



[Tarasque]

Just minimize the area inside power traces/ cables and keep away from ground loops. Reduce the supply voltage to 30v or less when driving 4ohms or less in ballanced mode.



[Tarasque]

Shipping to germany is 9 euro and paypal fee is 2 euro.



[Tarasque]

Bernd, James...Your shipments should arrive any day now



[JRKO]

Arrived! Many thanks



[baggerbole]

Hi Marc,
parcel arrived yesterday. Thanks!
Interestingly packaged
Can you post a schematic and a small hand sketch how to connect the amps balanced please?

Cheers
Bernd



[meanman1964]

How does this amp perform soundwise ?



[Tarasque]

With the power supply I used, I like the sound very mutch. I've build and listened to quite a lot of amps and this one really delivers. I dare to say you won't find a better amp for this kind of money.



[baggerbole]

Yes! 2 amplifiers driven via ballanced input works well when wired correctly. This doubles the output power as well. It also cancels distortion by a factor of 5 to 10.

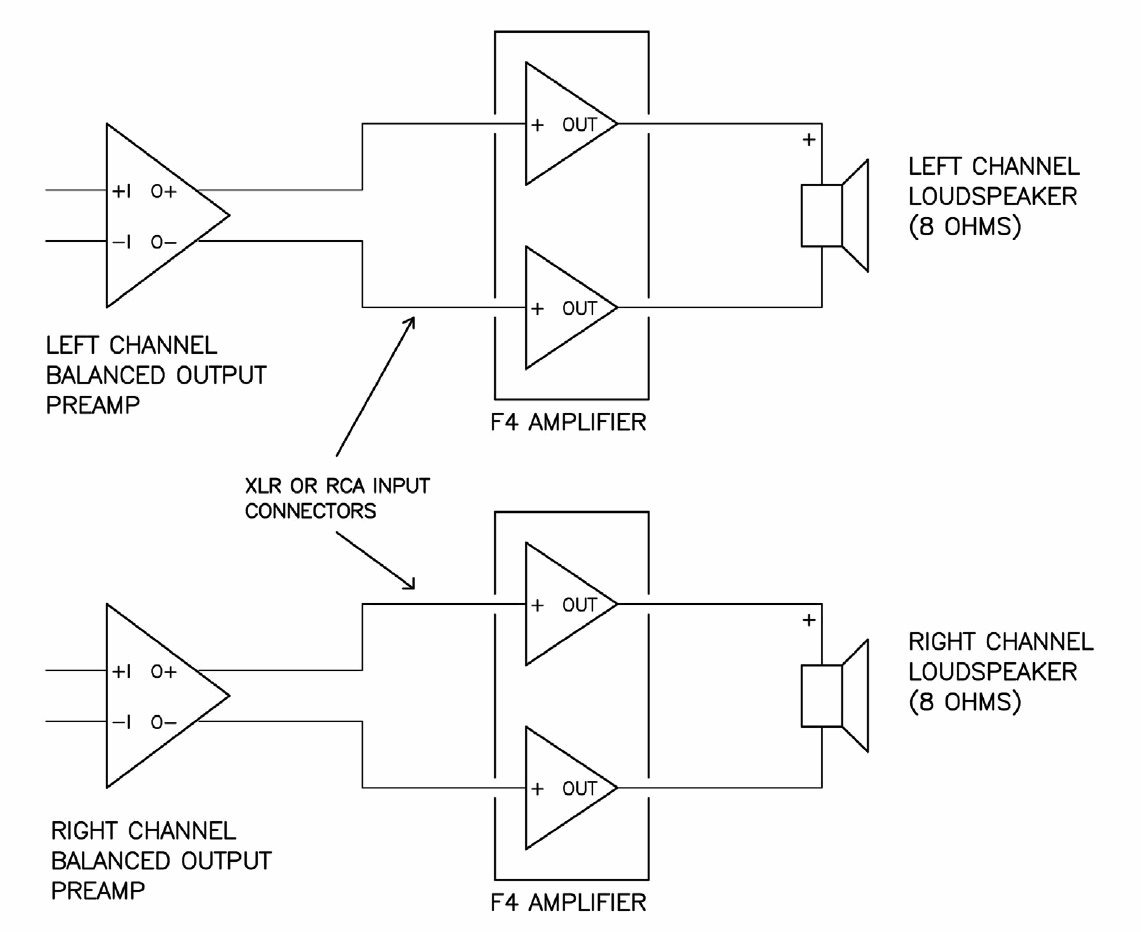

wired like this?
How to cennect the in/out grounds?



[Tarasque]



[Tarasque]

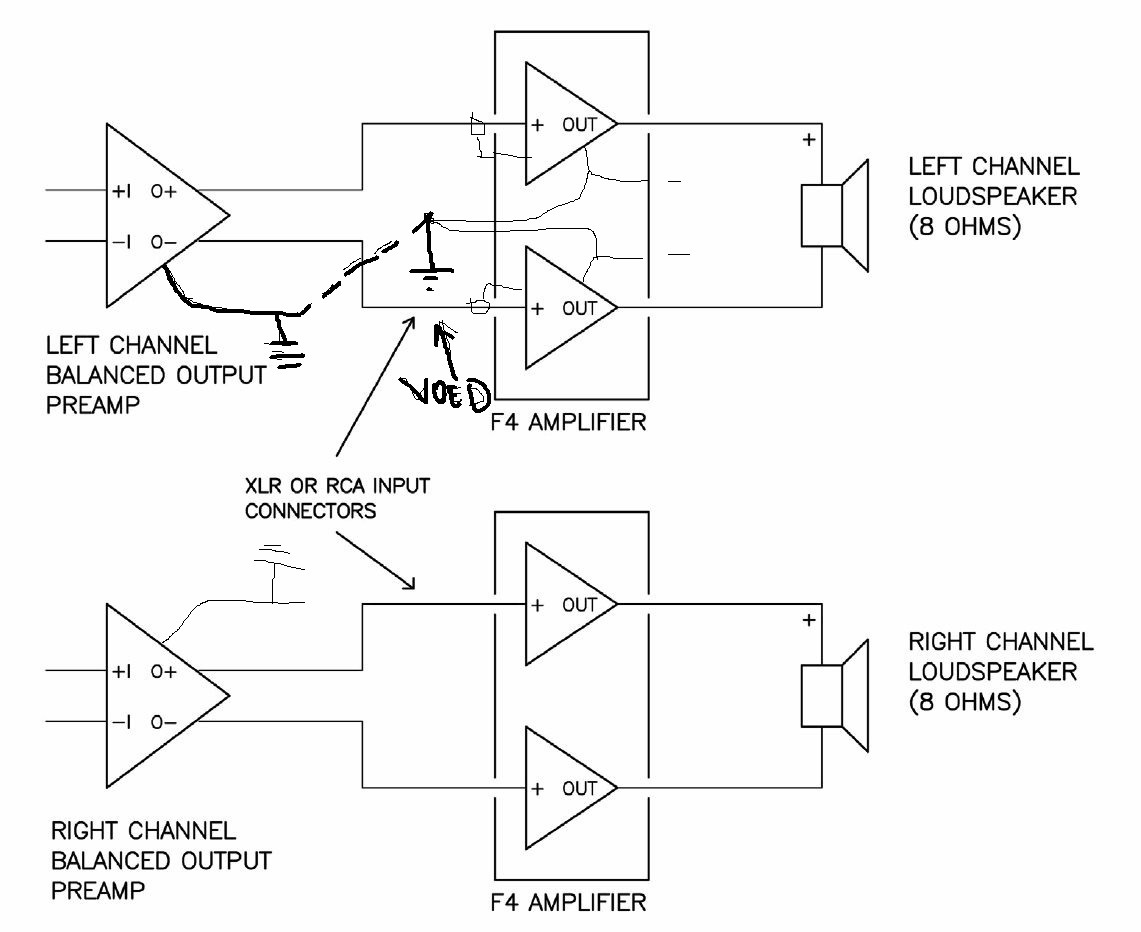

Within the amplifier the grounds are connected (VOED). The ground of the XSLR CAN be connected but is not required as the output of each half is regulated against the connected grounds. I have inserted ground lift in the XLR ground as well as one of the Cinch connecters. when the unit is in use as stereo amp you need to connect al least ine of the grounds of the cable.



[Oracle1]

Hello,
Is there a couble of kits left?
Thank you in advance



[Tarasque]

There are 28 kits left. How many would you like?



[Oracle1]

2 for a stereo amp



[RTBNL]

Over a year old,are there still some left?
