Need Toxic TX-1600n service manual

[c08bm]

I have this auto amplifier in protection status.It is not in thermal protection.
It has 4 channels, one pair of tip35C/36C, 2 pairs of 2SB631/sd600 an some small to92 transistors per channel.
Has +/-30V on secondary caps.
I need schematics.



[Perry Babin]

If no one has the SM, post a photo of the board. It may be similar to another amp.



[c08bm]

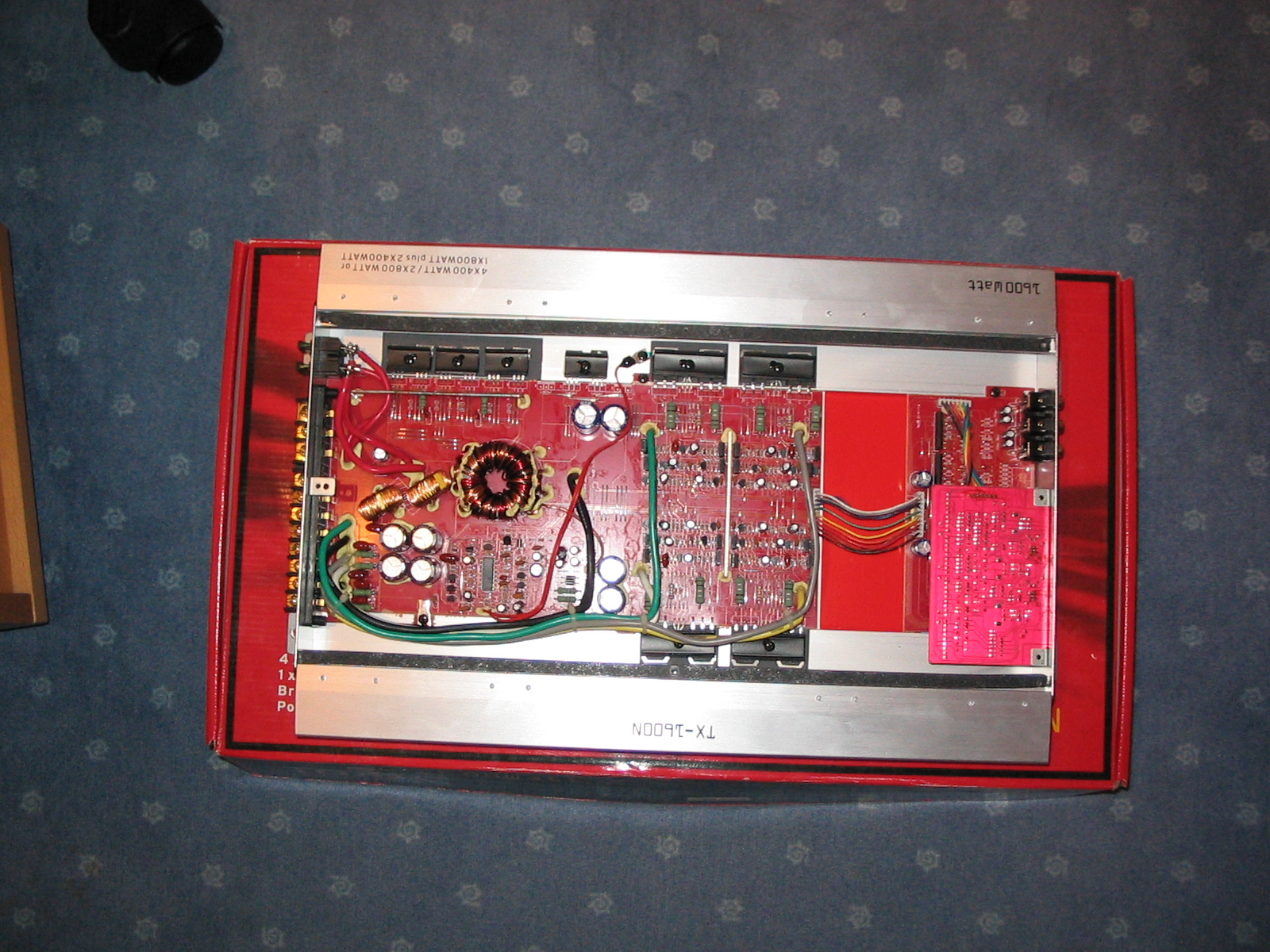

Picture from net but same as mine



[rrae]

These amps are garbage. Usually protection just dont work.
Have You checked for shorts?



[c08bm]

Yes, I removed and tested output transistor, they are ok.
PSU is also working and there is no dc on output



[rrae]

Does it powers on without output transistors?
U can remove rectifiers to see if its going in protection without them - to see problem is on power supply side or output.
If it does, post voltages of 494
