Ultra-High Performance Stereo RCA to True Balanced XLR Converter

All,

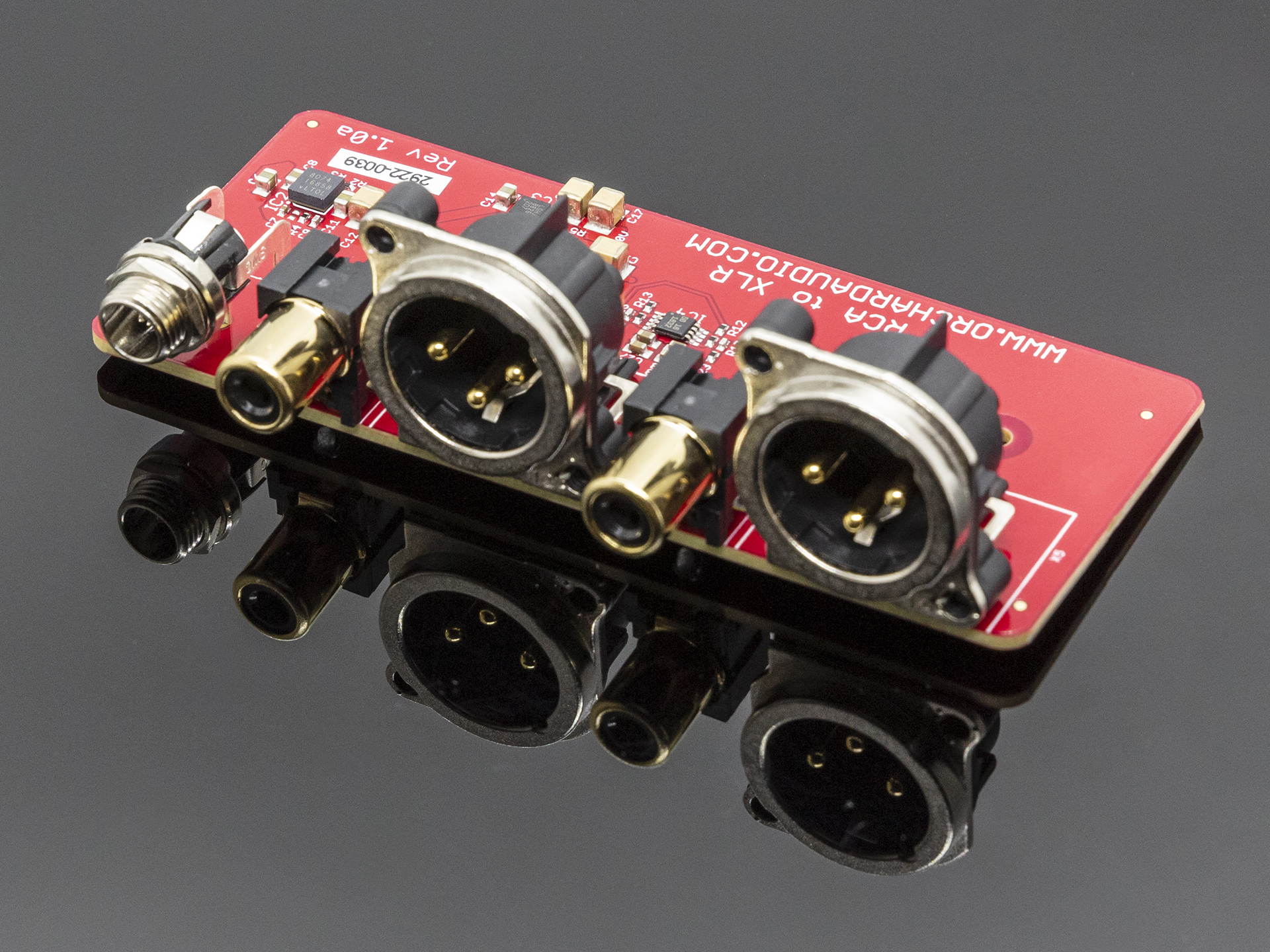

I have designed a stereo RCA (single-ended) to XLR (balanced) converter.

I will have both fully assembled and bare boards available.
Fully Assembled boards: 150 to 180 USD + shipping depending on interest
Bare boards: 12 to 18 USD + shipping depending on interest, see BOM in attachments.

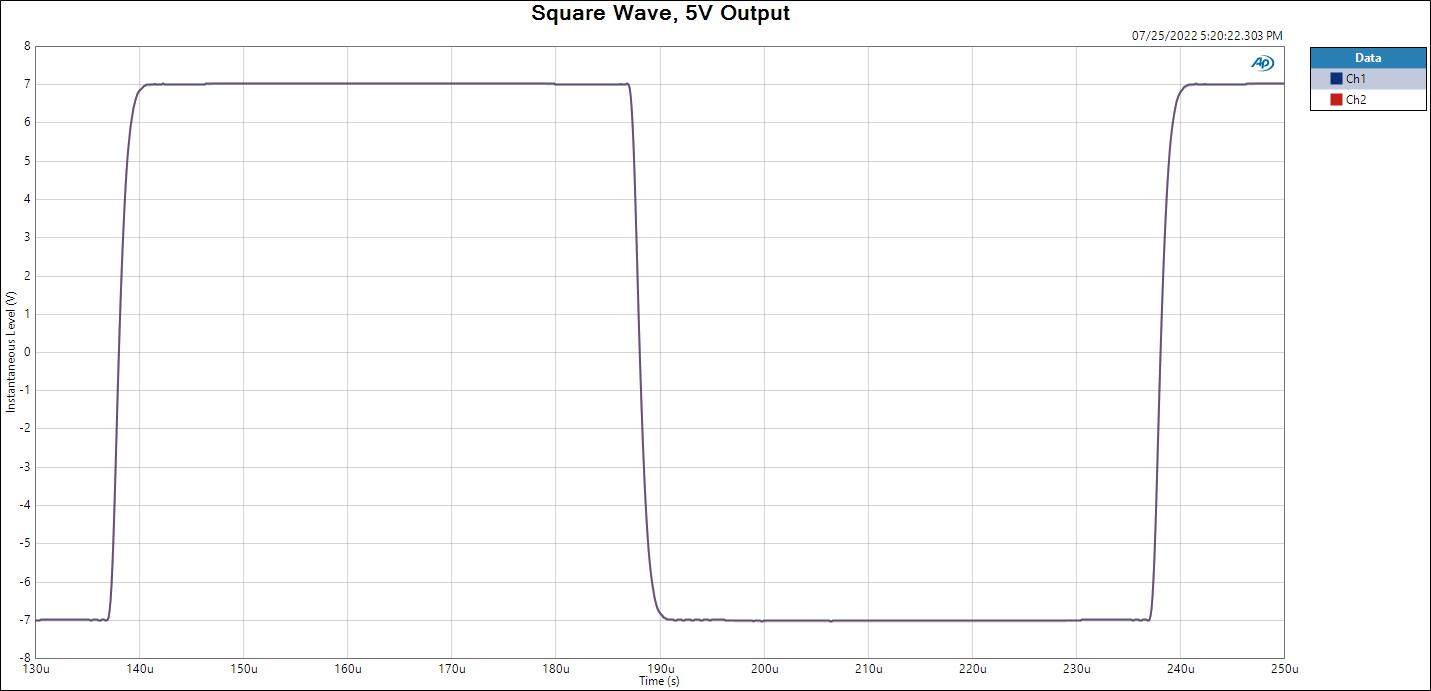

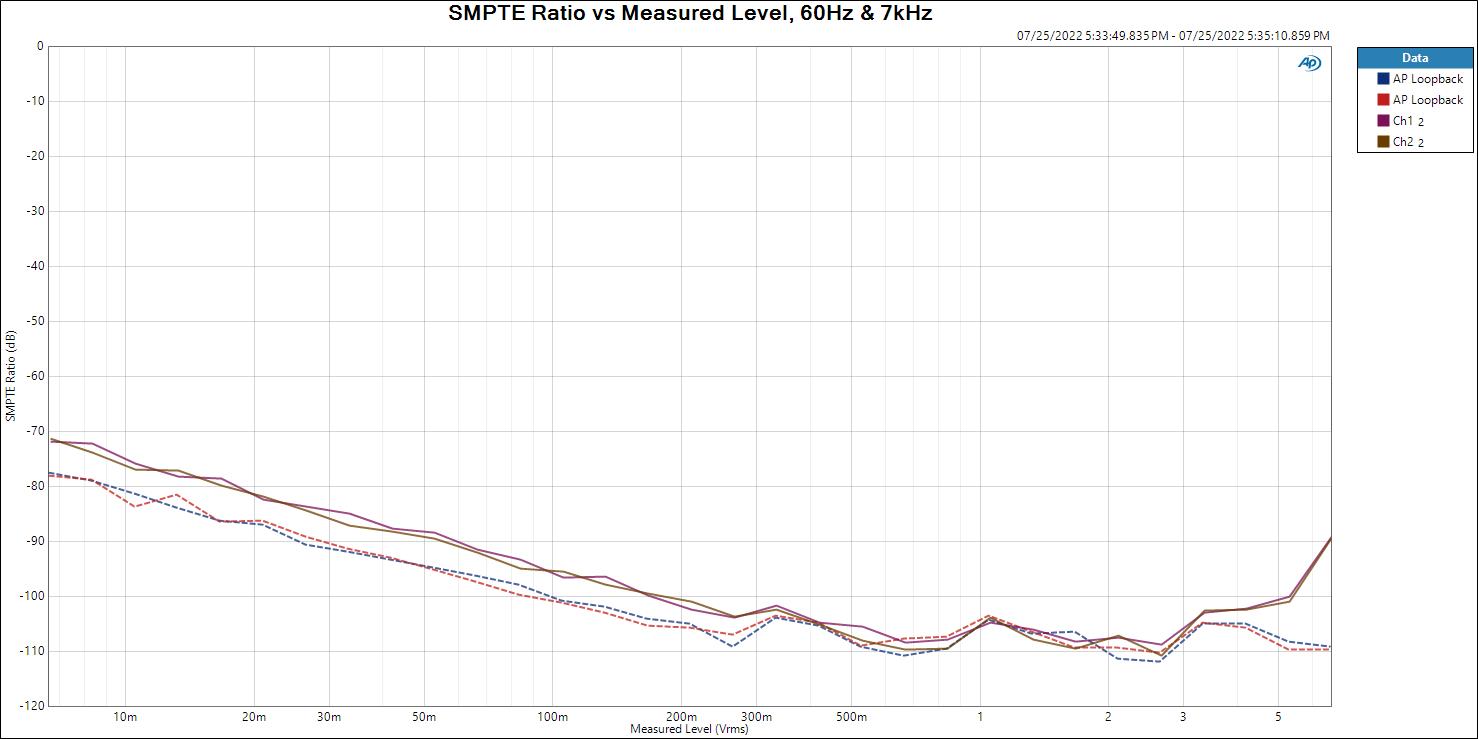

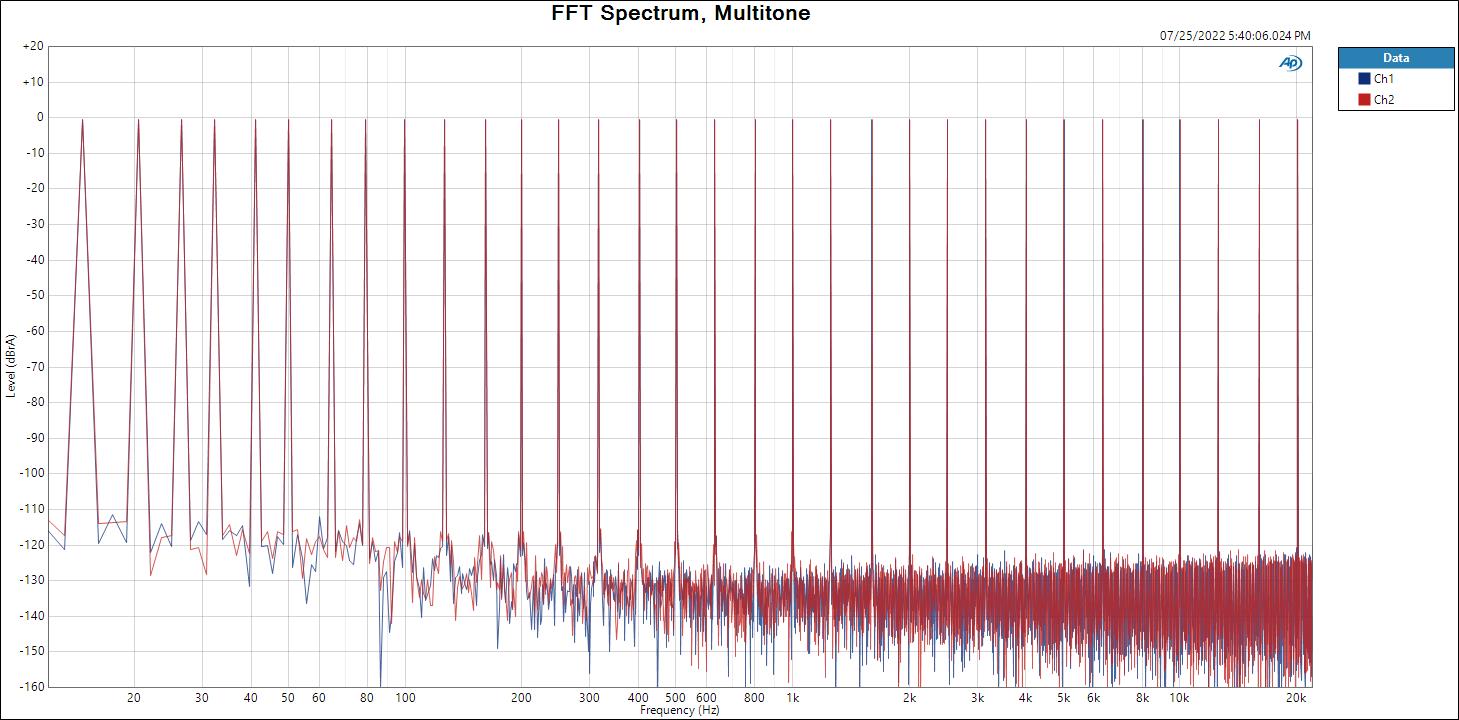

Parts used are OPA1622 as initial buffer to OPA1632 for SE to balanced conversion.

Input impedance: is 47k
Output impedance: is 100 ohm.

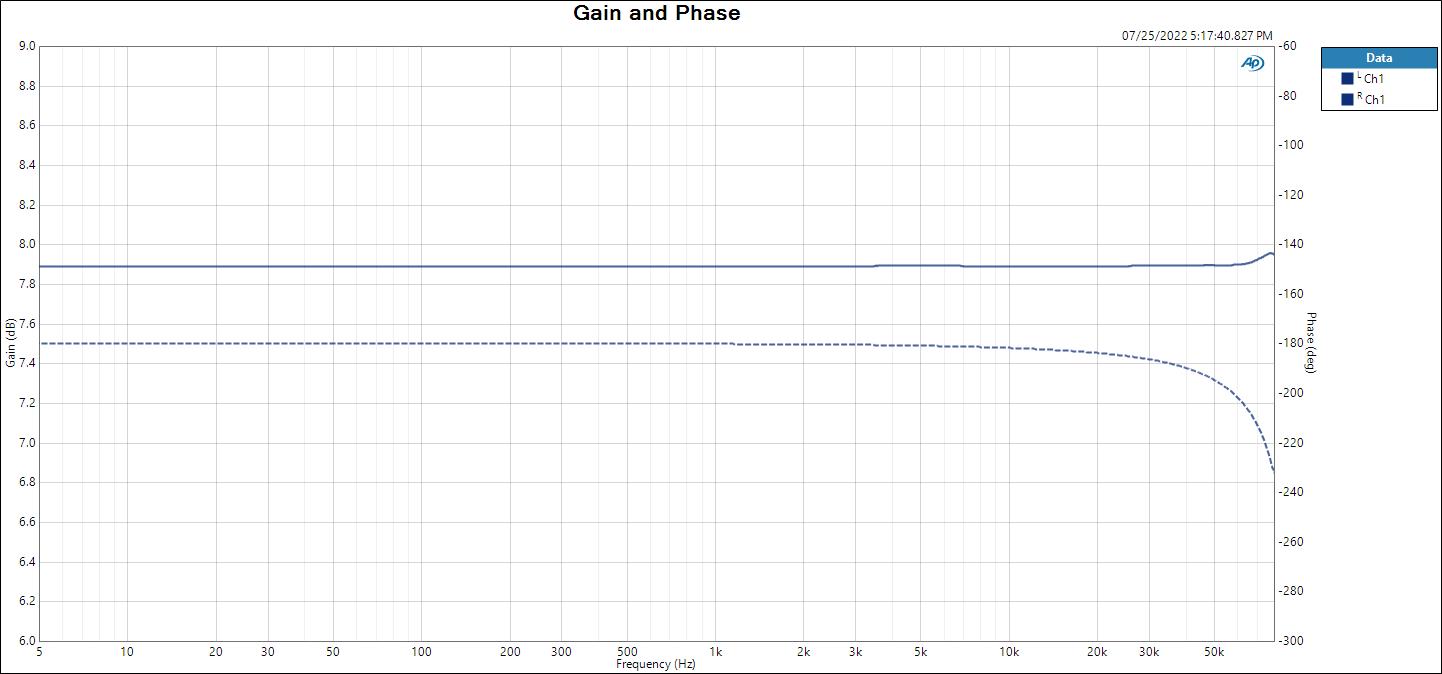

Gain: 2.5V/V or 8dB (can easily be adjusted if you get the bare boards with resistor values)
Input Voltage: 9V
Onboard very low noise LDOs: LT3090 and LT3042

Can be ordered at link below, with 20% off, coupon code is "rcaxlr". Delivey in June/July.
https://orchardaudio.com/product/rca-to-xlr-converter-module/

Thanks;
Leo


Attachments

  • RCA_toXLR.JPG
    99.4 KB · Views: 269
  • RCA_to_XLR_BOM_Rev1.0.zip
    9.6 KB · Views: 136

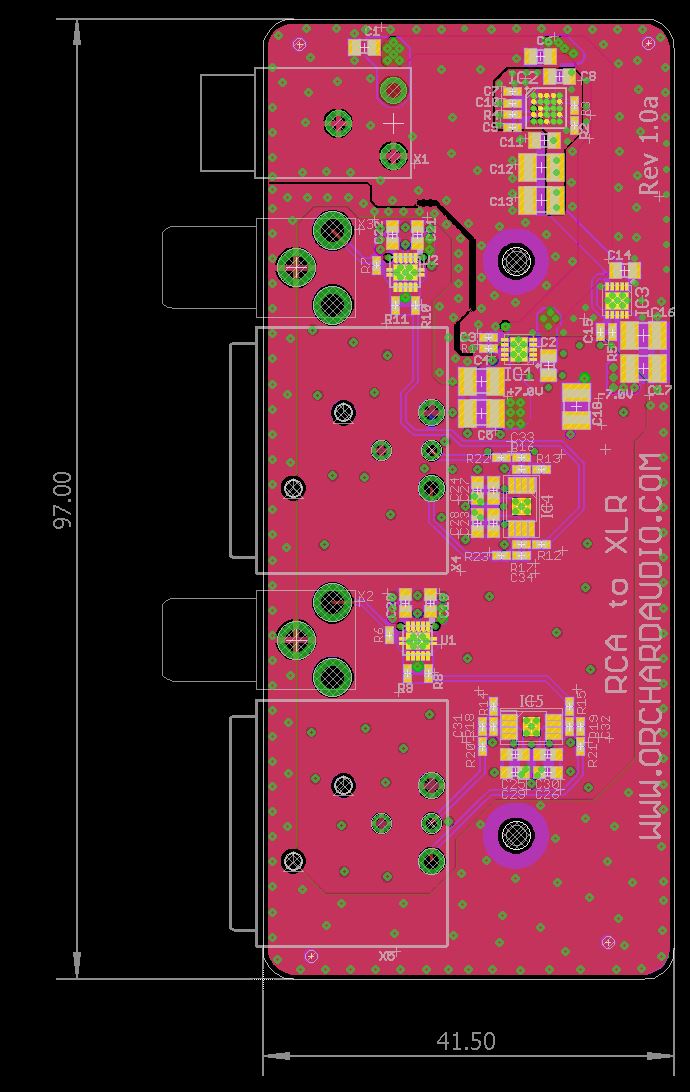

  • RCA_XLR_Dimentions.pdf
    89.3 KB · Views: 89
Last edited:
  • Like
Reactions: 1 user
I see that this has a Switchcraft 722RA power connector. What is the recommended power supply with the proper connector for this converter?
I do not see anything on the BOM.

I use the 9V one from the series below because this is what I already use with my streamer, however, 24W is not needed for the RCA to XLR adapter, you can get any of the lower power ones that CUI makes.
https://www.cui.com/product/external-ac-dc-power-supplies/desktop/sdi24-u-series

You can also use the ifi power 9V ones, more expensive though, and not needed as the board already has LDO built in.

  • Like
Reactions: 1 user
