Internal overview
Click on image to view larger image

Previous image   Next image


Photo Details
dvb projekt


diyAudio Member

Registered: February 2009
Location: Willich, Germany
Posts: 1,481
users gallery

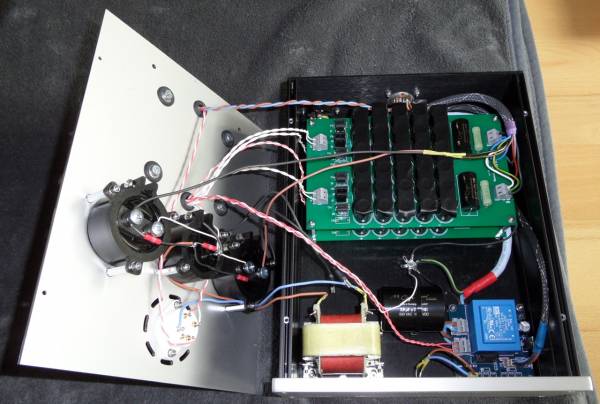

On the upper side the two +/- Power Supply Modules,
in the lower left corner the 10H choke on amorphous cores from AE-Europe,
in the middle the 1st cap (3,9µF Mundorf supreme silver in oil) of the HV-PSU line,
in the lower right corner the Power Switch Module with onboard solid state relays.
