H&H Amplifier schematics wanted

andomando · 2024-06-28 2:45 pm

I am looking for schematics for H&H valve sound amp and also MA100 PA Amp.
regards for any help.Andomando

cumbb · 2024-06-28 3:17 pm

Galu · 2024-06-28 3:28 pm

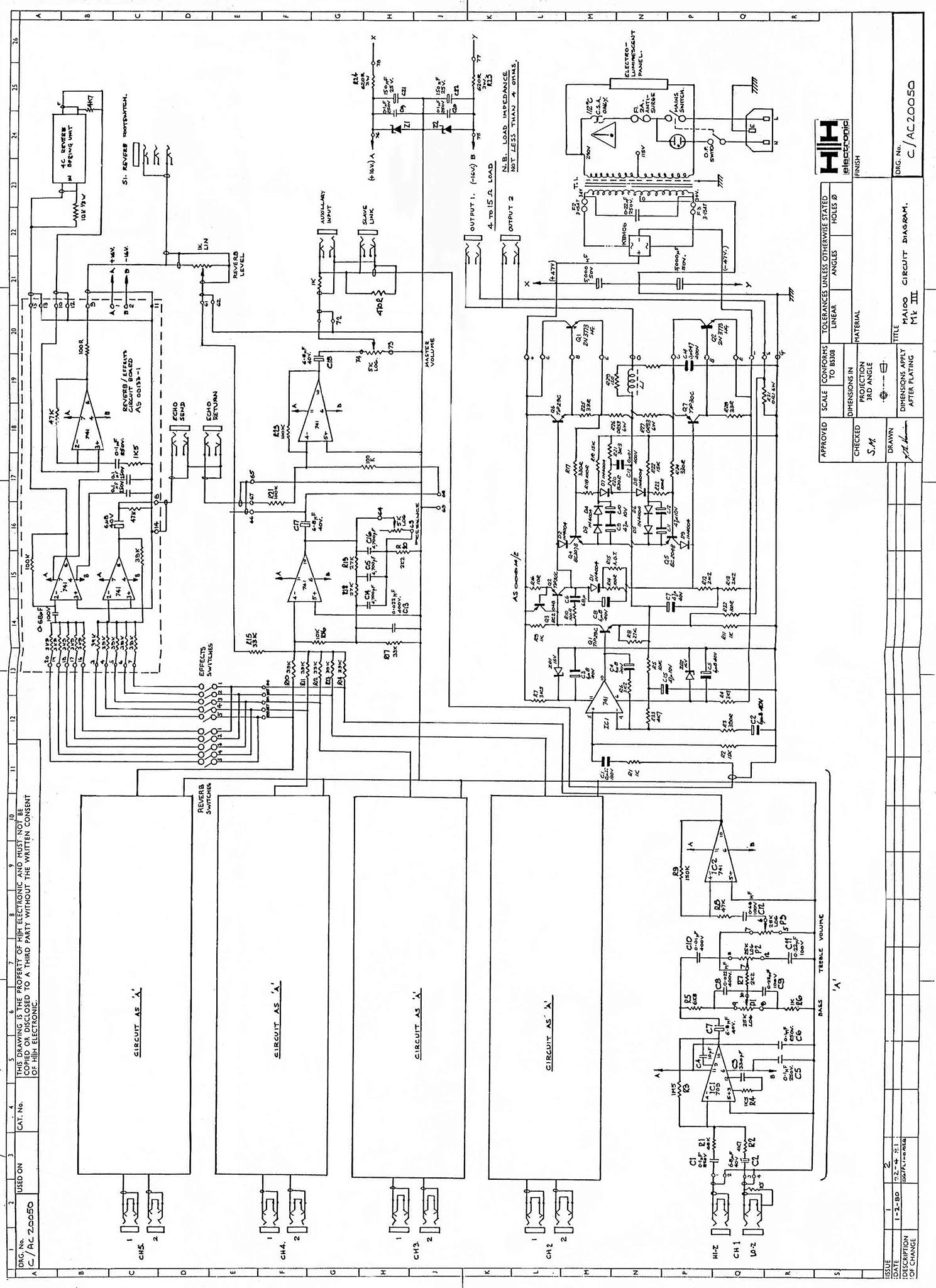

I've found the attached schematic of the MA100 (supplied by member @Tarzan) which may be helpful.

Galu · 2024-06-28 3:38 pm

There are schematics for the Valve Sound Musician (Reverb), as well as the V-S MUSICIAN Tone Correction Module AS00015/A itself here:

https://www.diyaudio.com/community/threads/hh-guitar-combo-2-12-schematic.194198/

Again, I can only hope they will be helpful.
