Hi,

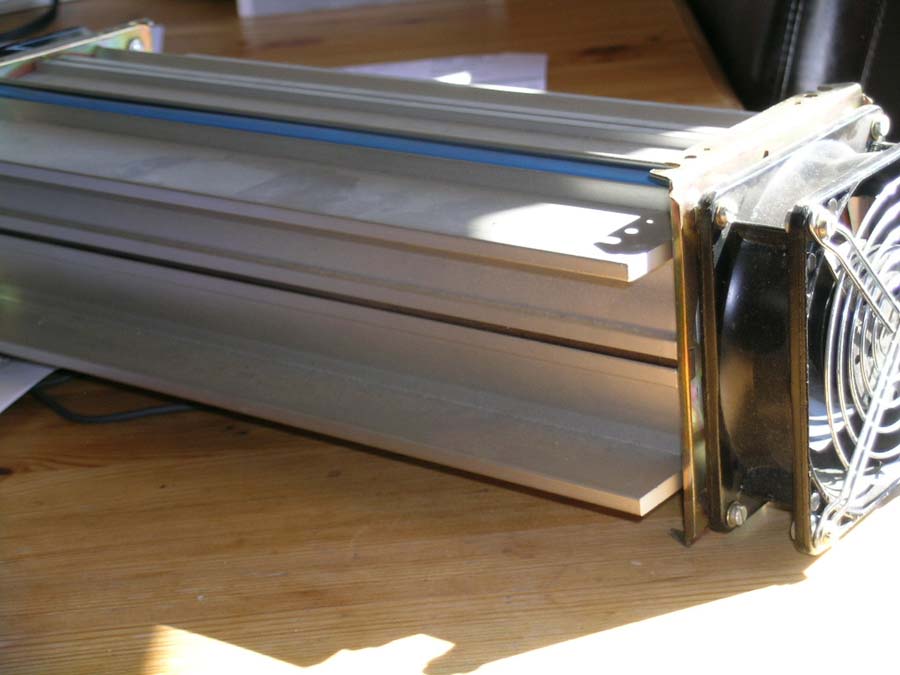

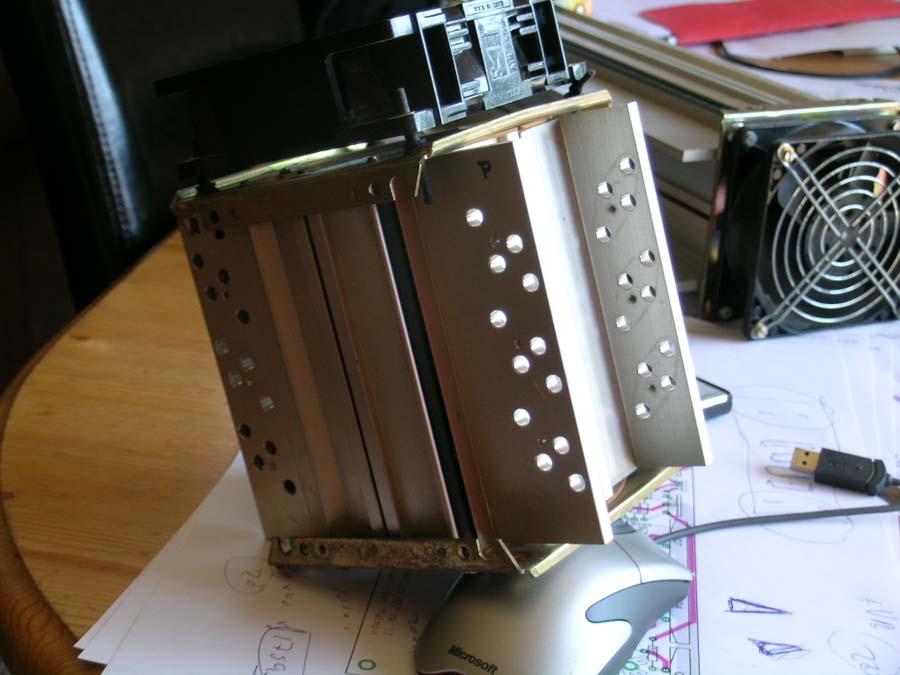

I have one small heatsink, drilled for 12 x TO3, complete with Rotron Whisper fan, 230V. The cooling elements are of the A-type,lenght 144mm. I also have three big ones, total lenght 363mm, with one fan in each end, one pushing, one sucking. They are Papst 230V, model 4658.
€100 for the small one, €250 for the big ones. P&P at cost.
Regards
Roar
I have one small heatsink, drilled for 12 x TO3, complete with Rotron Whisper fan, 230V. The cooling elements are of the A-type,lenght 144mm. I also have three big ones, total lenght 363mm, with one fan in each end, one pushing, one sucking. They are Papst 230V, model 4658.
€100 for the small one, €250 for the big ones. P&P at cost.
Regards
Roar
Attachments
Tarasque:
Guess we can order both drilled and not drilled.
Or even if possible drilled for both T0-3 and TO-247
Since we need atleast 10pcs to get a fair price, we then have
Fix @ 2
Tarasque @ 4
Samloko @ 4
So basicly we reach the goal... Don't think we can get 25pcs
But maybe we get a little bit lucky.
Guess we can order both drilled and not drilled.
Or even if possible drilled for both T0-3 and TO-247
Since we need atleast 10pcs to get a fair price, we then have
Fix @ 2
Tarasque @ 4
Samloko @ 4
So basicly we reach the goal... Don't think we can get 25pcs
But maybe we get a little bit lucky.
Fix, I am Interested at 4 only with the clofis.nl price of EUR 40
did they reply to you
With another supplier If the price Is expensive I will get 2
what Is going on with the x-formers
did they reply to you
With another supplier If the price Is expensive I will get 2
what Is going on with the x-formers
jacco vermeulen said:
Hi Jacco,
Would you know what the thermal properties are of these units?
I want to use tham for an X250
Marcel,
the 3-unit size does about 400W under standard operating conditions, 900W if noise is not an issue.
Derated, it's able to handle the 250-300W dissipation level of an X-250.
Only But is that a CLX-250 requires a 4-deck heatsink, doesn't it have a 16-device output stage ?
An oldy Seifert catalogue can be downloaded from the Clofis site, it contains a separate section on forced airflow assemblies around P-90, including a simplified description of how to calculate dissipation and various temperatures of blown heatsinks.
the 3-unit size does about 400W under standard operating conditions, 900W if noise is not an issue.
Derated, it's able to handle the 250-300W dissipation level of an X-250.
Only But is that a CLX-250 requires a 4-deck heatsink, doesn't it have a 16-device output stage ?
An oldy Seifert catalogue can be downloaded from the Clofis site, it contains a separate section on forced airflow assemblies around P-90, including a simplified description of how to calculate dissipation and various temperatures of blown heatsinks.
Thanks Jacco!
I use 20 devices in the output stage (2x5) and a slightly higher bias
Do you expect any issues in difference in device temperature along the sink (single sink like you described)?
What kind of fan noise do you have?
I use 20 devices in the output stage (2x5) and a slightly higher bias
Do you expect any issues in difference in device temperature along the sink (single sink like you described)?
What kind of fan noise do you have?
You'll always have temperature differences between output devices, unless there's no discontinuity in the heatsink.
An example of the latter would be a concentric heatsink arrangement , something like Morten's (Magura) carbon fibre mega amp project.
Audio magazine in Germany made thermal pictures of a Threshold SA/1 model during the warm-up stage, the article appeared somewhere around 1990. The sequential pictures showed a disharmonious temperature elevation, and relatively large differences in temperature between various areas in the "stasis quo" condition.
Vertically mounted output devices on natural convection heatsinks are subject to local differences in heatsink temperature. The air flowing from the bottom of the heatsink also heats up as it moves to the top edge, mounting devices asymmetrically can somewhat eleviate it but just think how many have used the symmetrical dual mounting flange MF30-2F Conrad heatsinks for their PL power amps.
Vertically stacking 3 or more output devices on a blown heatsink means the temperature difference between the ones furthest apart will be larger than e.g. the 2-row Conrad heatsink set-up. On the other hand, the fan cooled ducted heatsink is thermally homogenous in the horizontal plane and a natural convection heatsink is not. While the 4 output devices on each horizontal plane of the fan duct have close to identical temperatures, the natural convection one will show a difference between the center and the outer edge of the heatsink. A forced-air or natural convection set-up will hardly make a difference in the thermal equilibrium stage, it'll show as DC-offset during warm-up.
The noise level totally depends on the selected fan model, type and rev number.
The stereo SKA50D i assembled has a total dissipation level of 220W, with a derated fan it can hardly be heard at 12ft distance.
My mono KSA50 clones each have six 80mm Papst fans on dual thyristor heatsinks, similar to the KL-182 in the Seifert catalog.
At 250cbm/h (~150cfm) they do close to 50dB, but they're in the "kruipruimte" under the living.
Inaudible unless you hold an ear to the floor, 2" dual layer oak on a concrete floor, the level underneith is fully insulated with expanded polystyrene foam and pearls.
Notta badda for a close to 75 year old home. (it was built as a dedicated private foster home and has a number of special features)
Not exactly service friendly though, i've been contemplating of making 2 openings in the living room floor for elevator modules.
An example of the latter would be a concentric heatsink arrangement , something like Morten's (Magura) carbon fibre mega amp project.
Audio magazine in Germany made thermal pictures of a Threshold SA/1 model during the warm-up stage, the article appeared somewhere around 1990. The sequential pictures showed a disharmonious temperature elevation, and relatively large differences in temperature between various areas in the "stasis quo" condition.
Vertically mounted output devices on natural convection heatsinks are subject to local differences in heatsink temperature. The air flowing from the bottom of the heatsink also heats up as it moves to the top edge, mounting devices asymmetrically can somewhat eleviate it but just think how many have used the symmetrical dual mounting flange MF30-2F Conrad heatsinks for their PL power amps.
Vertically stacking 3 or more output devices on a blown heatsink means the temperature difference between the ones furthest apart will be larger than e.g. the 2-row Conrad heatsink set-up. On the other hand, the fan cooled ducted heatsink is thermally homogenous in the horizontal plane and a natural convection heatsink is not. While the 4 output devices on each horizontal plane of the fan duct have close to identical temperatures, the natural convection one will show a difference between the center and the outer edge of the heatsink. A forced-air or natural convection set-up will hardly make a difference in the thermal equilibrium stage, it'll show as DC-offset during warm-up.
The noise level totally depends on the selected fan model, type and rev number.
The stereo SKA50D i assembled has a total dissipation level of 220W, with a derated fan it can hardly be heard at 12ft distance.
My mono KSA50 clones each have six 80mm Papst fans on dual thyristor heatsinks, similar to the KL-182 in the Seifert catalog.
At 250cbm/h (~150cfm) they do close to 50dB, but they're in the "kruipruimte" under the living.
Inaudible unless you hold an ear to the floor, 2" dual layer oak on a concrete floor, the level underneith is fully insulated with expanded polystyrene foam and pearls.
Notta badda for a close to 75 year old home. (it was built as a dedicated private foster home and has a number of special features)
Not exactly service friendly though, i've been contemplating of making 2 openings in the living room floor for elevator modules.
Attachments
******************************************
I totally forgot about another option....
My girlfriends father have all tooling needed to drill, cut etc for the heatsinks.
I talked to him yesterday and he promised to help out for a small amount $
Then we can buy raw length of the heaksink (1m) for apx: €50 / unit
1m is good for 2 units.
This will lower the cost to €25 heatsink + fan + work = ~45-60 per unit instead of ~€100
So my question is:
Is this a better solution ?
Then we also can pre-drill exactly what you want.
I totally forgot about another option....
My girlfriends father have all tooling needed to drill, cut etc for the heatsinks.
I talked to him yesterday and he promised to help out for a small amount $
Then we can buy raw length of the heaksink (1m) for apx: €50 / unit
1m is good for 2 units.
This will lower the cost to €25 heatsink + fan + work = ~45-60 per unit instead of ~€100
So my question is:
Is this a better solution ?
Then we also can pre-drill exactly what you want.
Hi
This is perfect for what I want.
To mount the heatsinks, you would also need mounting brackets and insulator pad's. Are you going to order those as well?
This is perfect for what I want.
To mount the heatsinks, you would also need mounting brackets and insulator pad's. Are you going to order those as well?
I could make complete kits, but I think I prefer to just handle the "heatsink" all other parts free to get for your self.
If I don't get any response next two weeks then I'll just order 1m heatsink for myself.
If I don't get any response next two weeks then I'll just order 1m heatsink for myself.
I would need approx 4m of heatsink in order to build 2 tunnels of approx 40cm and 1 tunnel of approx 20cm.
I can drill my own holes and cut the sinks to the correct length.
I might be interested in another 2 m if we can get a discount.
I can drill my own holes and cut the sinks to the correct length.
I might be interested in another 2 m if we can get a discount.
Atlast.... summer is gone..
I will order the tunnel next week.
If someone want to order with me, let me know.
Will get the "raw" length and make it my self.
Will make the order: 2008-10-13 ( This Monday )
Then I'll close this GB
I will order the tunnel next week.
If someone want to order with me, let me know.
Will get the "raw" length and make it my self.
Will make the order: 2008-10-13 ( This Monday )
Then I'll close this GB
OPTION #1
LA 1 A
1 € 48,37 ea.
5 € 41,62 ea.
10 € 35,99 ea.
2 weeks leadtime - 1000 mm
Then you drill and make the tunnel your self.
1000 mm = 2 tunnels
OPTION #2
This model is 108mm long Heatsink + fan.
Special model for better cooling.
LA 1A 03 8 X TO 3 230V - With 8 x TO 3
H 108mm (Heatsink)
1 € 116,50 ea.
10 € 97,20 ea.
25 € 86,35 ea.
50 € 77,70 ea.
+ drawing costs / once € 40,00
Leadtime: about 6 – 7 weeks after receipt of order
Send PM if you want to have more information or order.
LA 1 A
1 € 48,37 ea.
5 € 41,62 ea.
10 € 35,99 ea.
2 weeks leadtime - 1000 mm
Then you drill and make the tunnel your self.
1000 mm = 2 tunnels
OPTION #2
This model is 108mm long Heatsink + fan.
Special model for better cooling.
LA 1A 03 8 X TO 3 230V - With 8 x TO 3
H 108mm (Heatsink)
1 € 116,50 ea.
10 € 97,20 ea.
25 € 86,35 ea.
50 € 77,70 ea.
+ drawing costs / once € 40,00
Leadtime: about 6 – 7 weeks after receipt of order
Send PM if you want to have more information or order.
UPDATE 2008-10-16
If you're not listed below, MAIL ME ASAP.
Fix @ 1 ( 2 if we reach 35.99 )
Samoloko @ 1
Tarasque @ 4
Total: 6 pcs
10pcs = € 35,99 ea
if we reach 10pcs price, I will take one extra myself.
So we need 3 more for it.
VAT + FREIGHT IS NOT CALCULATED IN ABOVE.
If you're not listed below, MAIL ME ASAP.
Fix @ 1 ( 2 if we reach 35.99 )
Samoloko @ 1
Tarasque @ 4
Total: 6 pcs
10pcs = € 35,99 ea
if we reach 10pcs price, I will take one extra myself.
So we need 3 more for it.
VAT + FREIGHT IS NOT CALCULATED IN ABOVE.
