In an endeavor, for the of the group and myself, to start a Multisim primer thread similar to Mooly's exceptional and successful "Installing and using LTspice. From beginner to advanced." help me out with a poll. How many users of this forum use NI's Multisim? For those not familiar with Multisim, here is a link: What is Multisim? - National Instruments
Last edited:
You can download, as I have, Multisim with Ultiboard. Check this video out: Ultiboard - National Instruments
They both use the same engine. Check out this link and let me know if it answers your question. Importing a SPICE Netlist for Simulation in NI Multisim - National Instruments
Hi Chris,
I am currently using ver. 14. Will it be possible to measure slew rate on an amplifier circuit under simulation?
Kind Regards,
Albert
I am currently using ver. 14. Will it be possible to measure slew rate on an amplifier circuit under simulation?
Kind Regards,
Albert
Yes. Read section 1.39 from this version 8 introduction. I will look for some updated information from 14 as that is what I am learning, as well.
http://inst.eecs.berkeley.edu/~ee40/su08/HW/MultiSim8.pdf
Also checkout this: http://zone.ni.com/reference/en-XX/help/372062L-01/multisim/5terminalvirtualopamp/
Last edited:
My pleasure. I am in the middle of a Multisim course. I will pass on new information as I learn it.

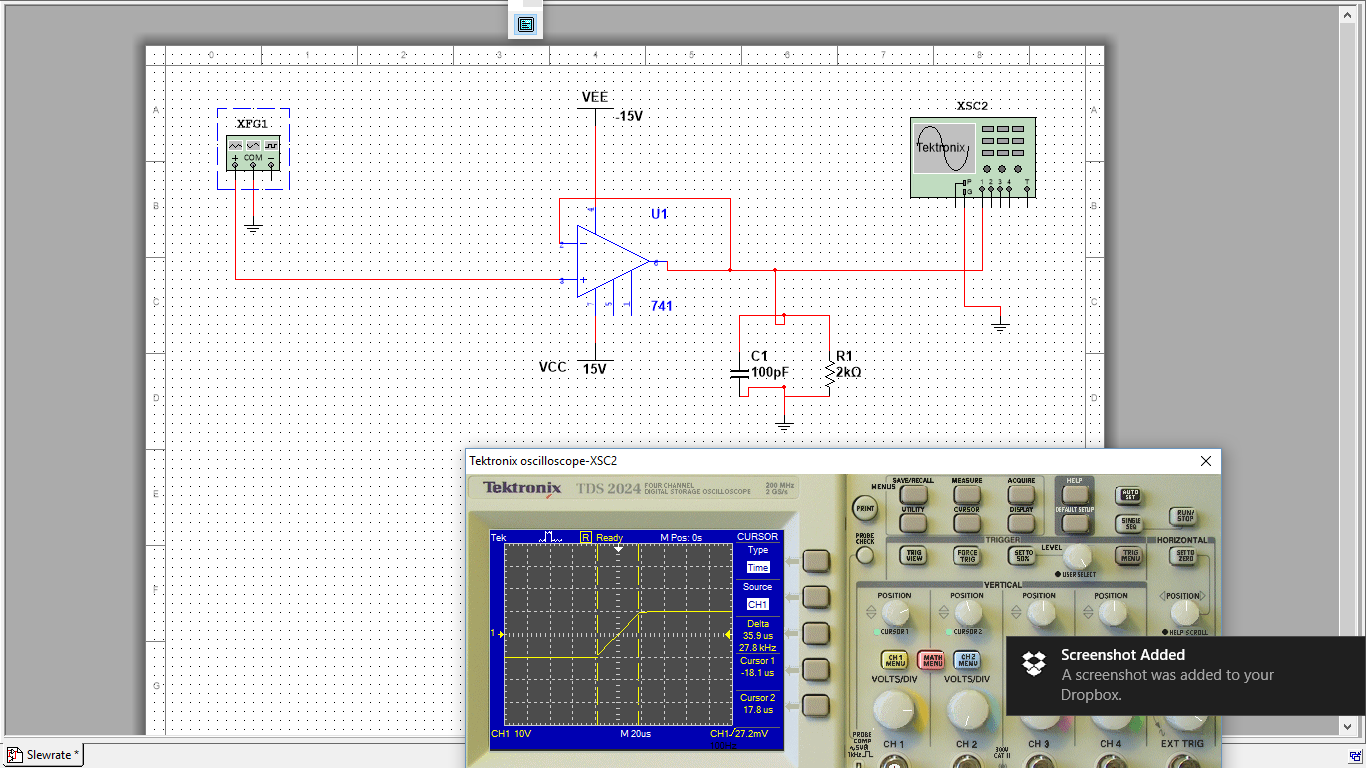

Check out the attachment. Made simple slew rate measurement with the Tek TDS-2024. Take your Delta V and divide by Delta T. I come up with ~.551 V/us on a uA741 with data sheet test conditions.
Attachments
Have a very good free version:
https://www.mouser.com/multisimblue/support/downloads/download-multisim
https://www.mouser.com/multisimblue/support/downloads/download-multisim
