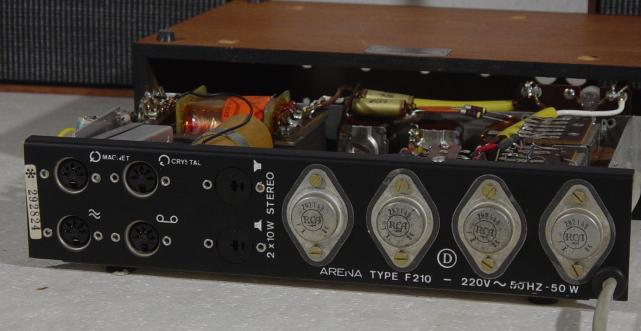

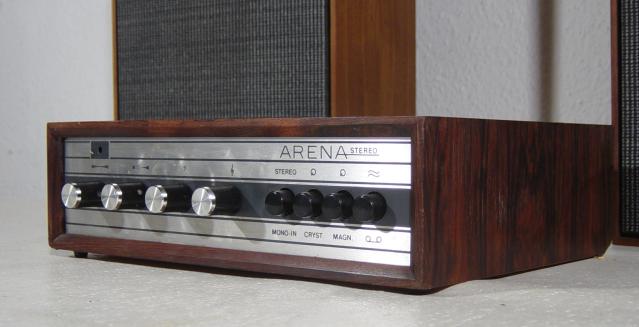

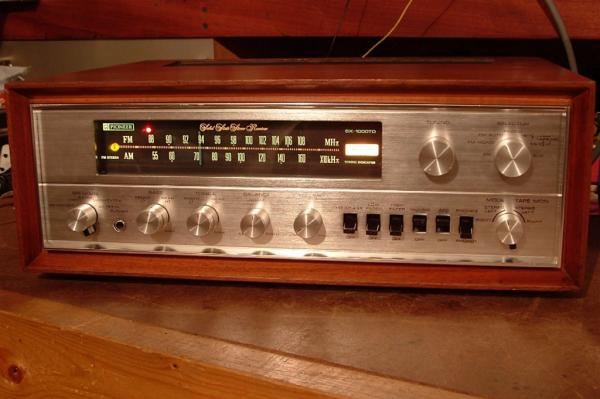

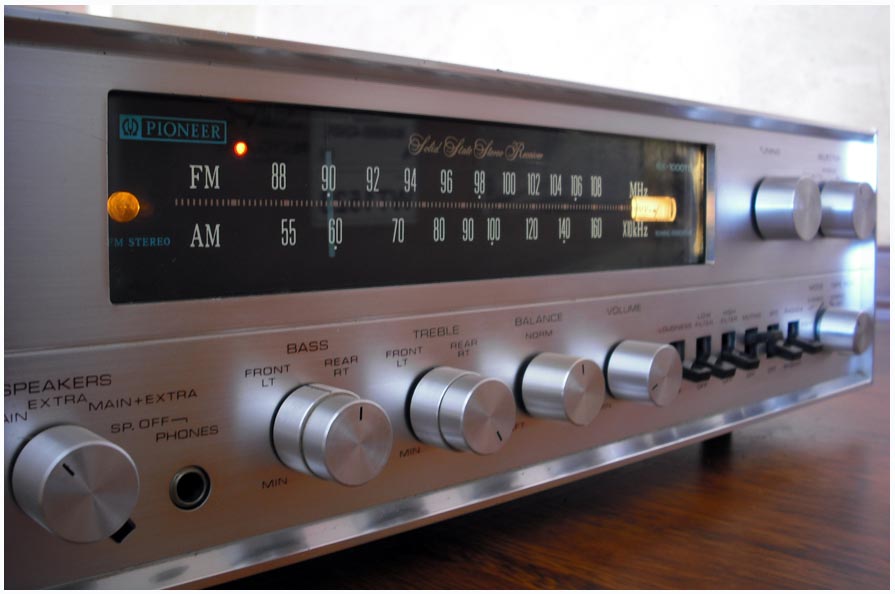

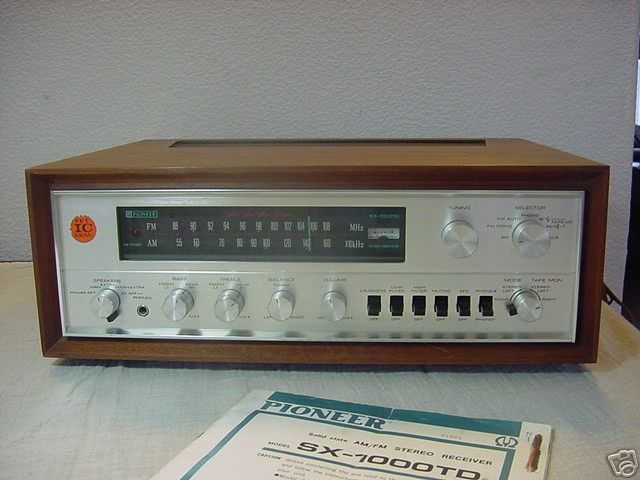

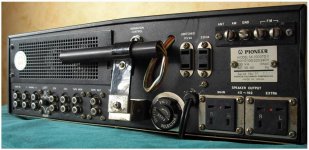

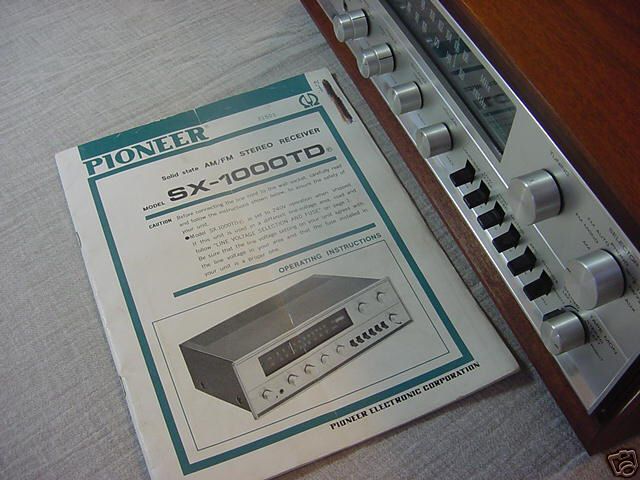

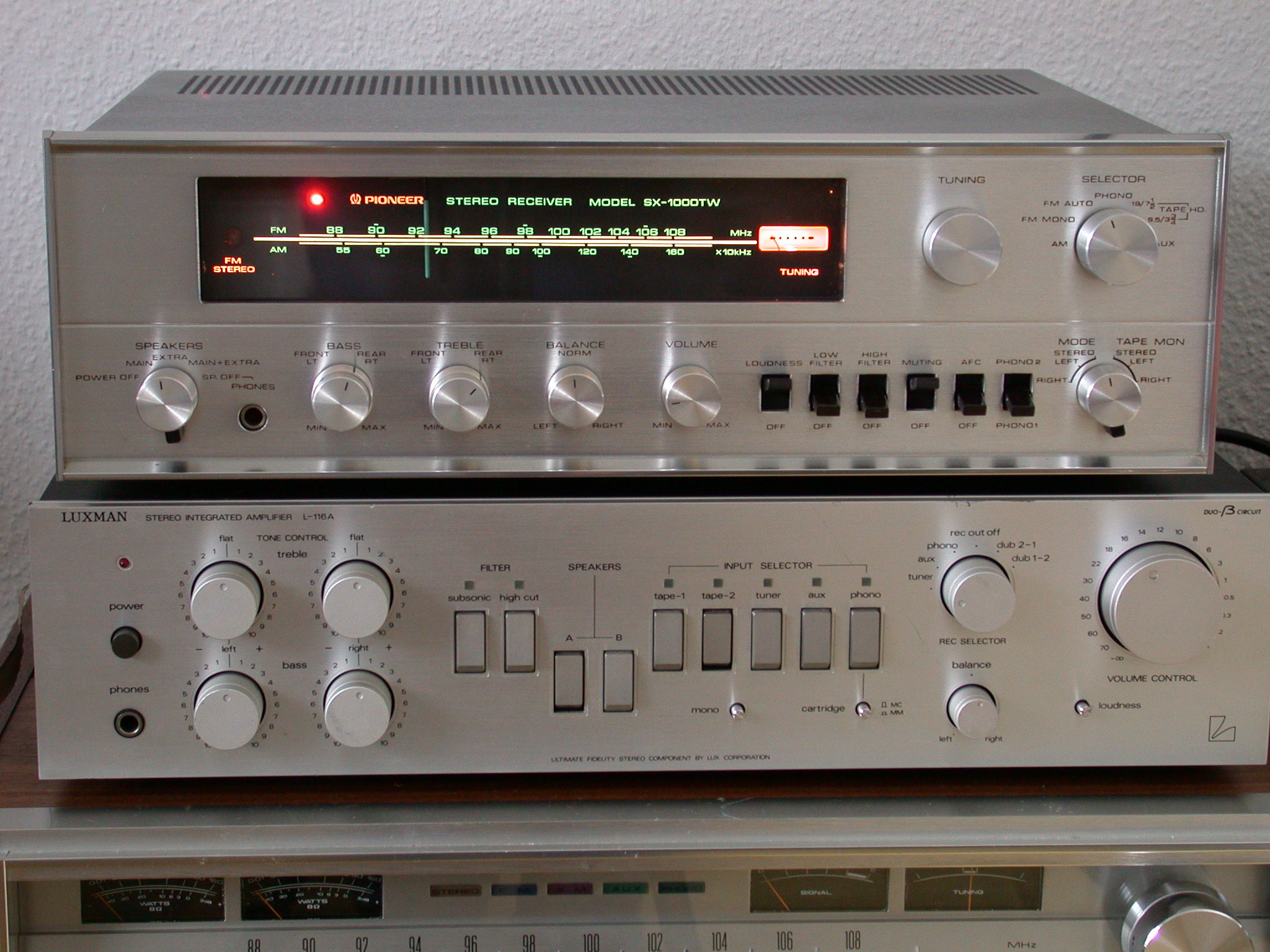

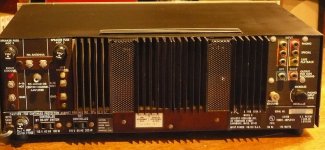

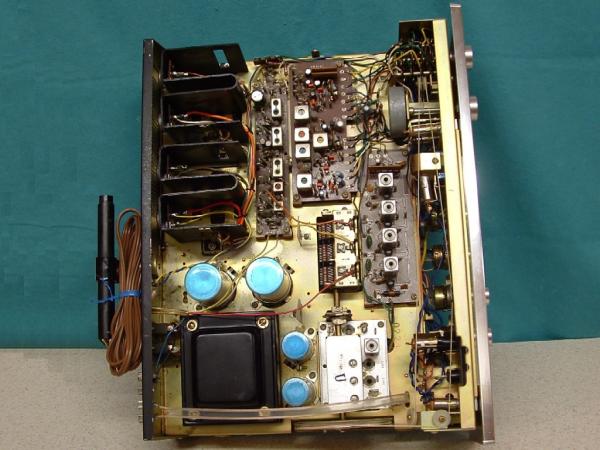

Pioneer's first solid state receiver ever - introduced in the 1960s
Pioneer SX-1000TW first SS Receiver? - AudioKarma.org Home Audio Stereo Discussion Forums

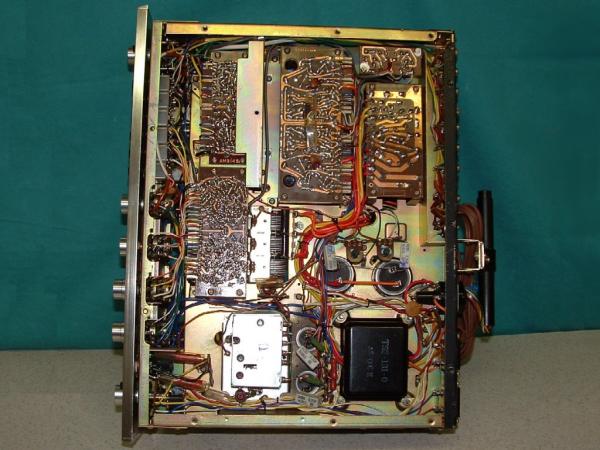

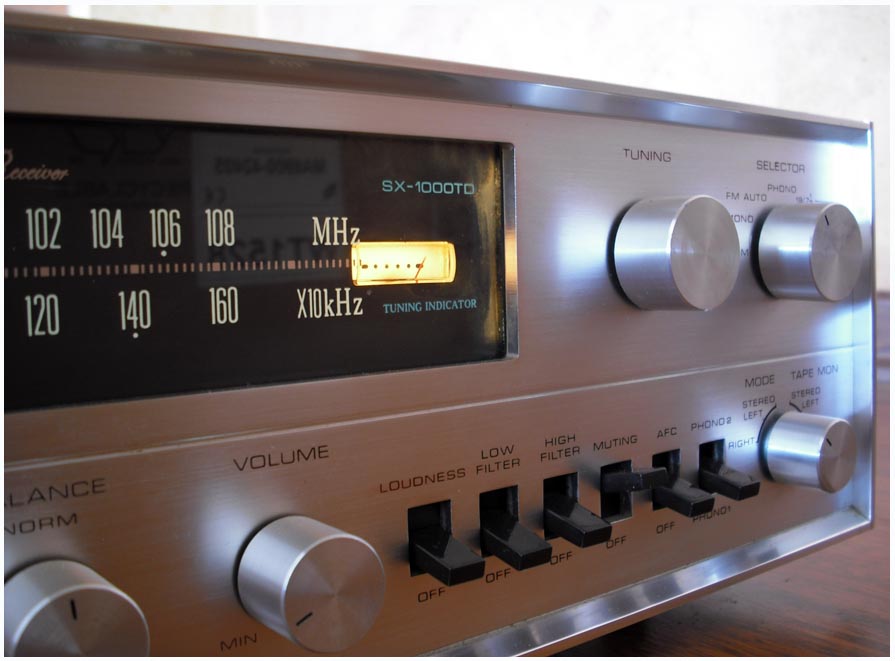

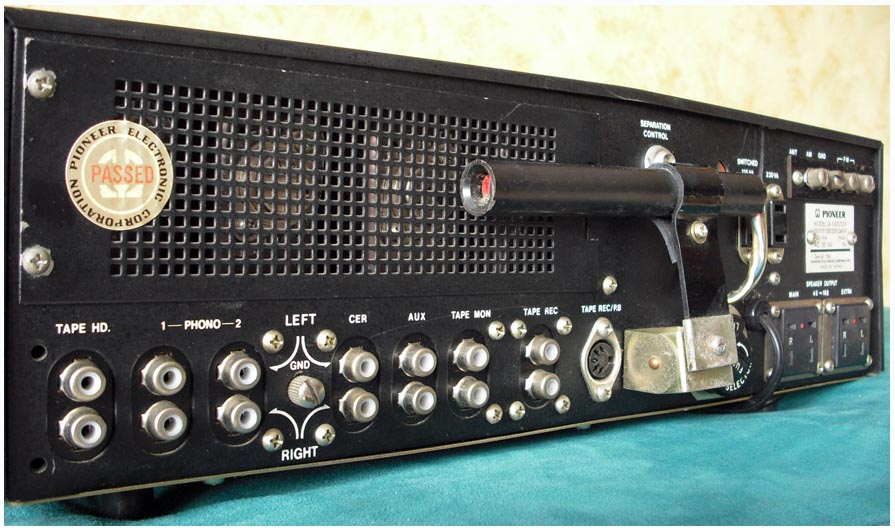

Pioneer Stereo Receiver Model SX-1000TW
Help with a SX-1000TW Short - AudioKarma.org Home Audio Stereo Discussion Forums
Pioneer SX-1000 TA - kein Ton, Hifi-Klassiker - HIFI-FORUM
Pioneer SX-1000TW first SS Receiver? - AudioKarma.org Home Audio Stereo Discussion Forums
Pioneer Stereo Receiver Model SX-1000TW
Help with a SX-1000TW Short - AudioKarma.org Home Audio Stereo Discussion Forums
Pioneer SX-1000 TA - kein Ton, Hifi-Klassiker - HIFI-FORUM
Attachments

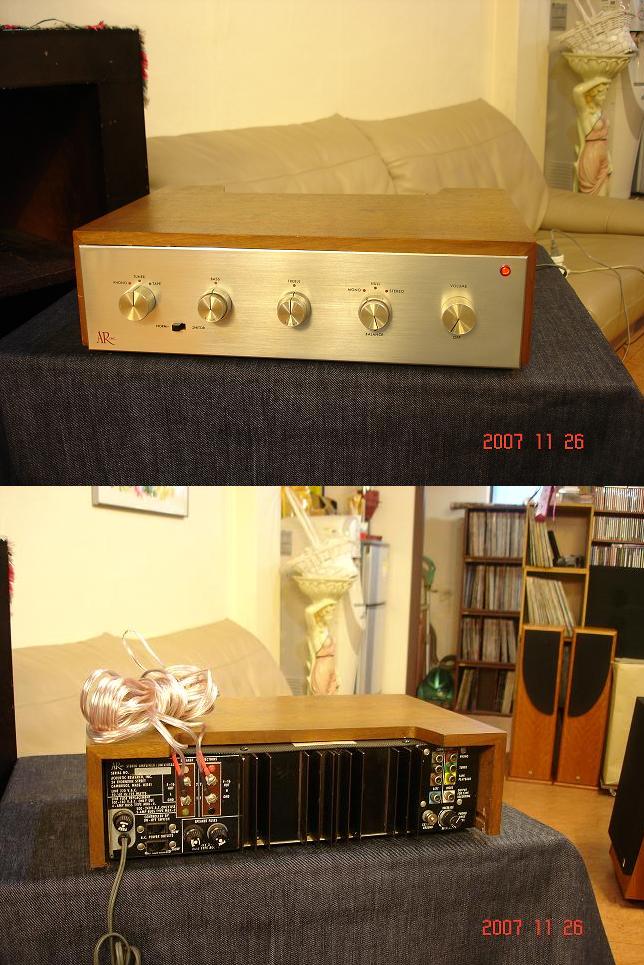

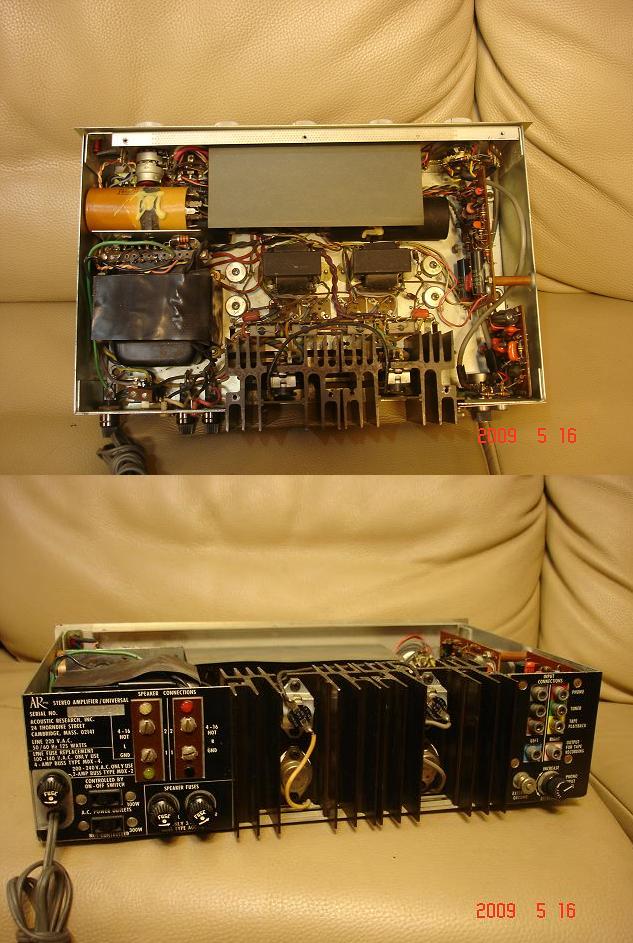

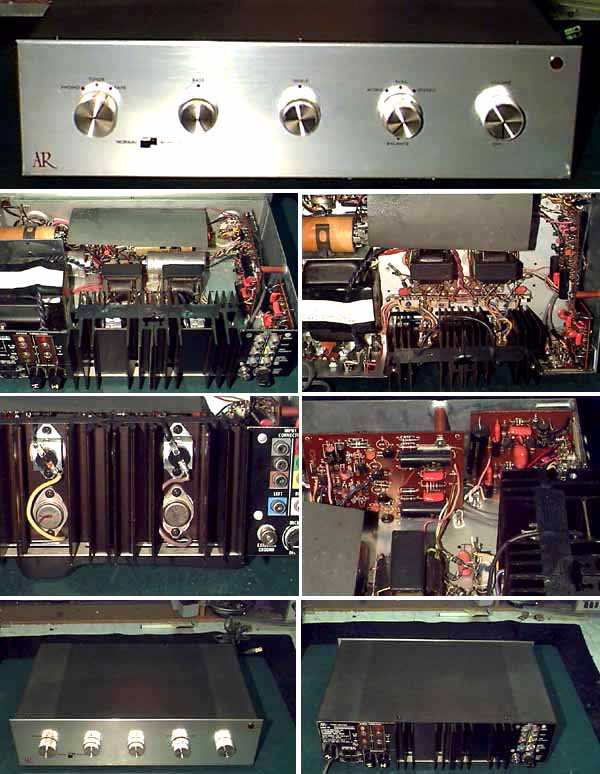

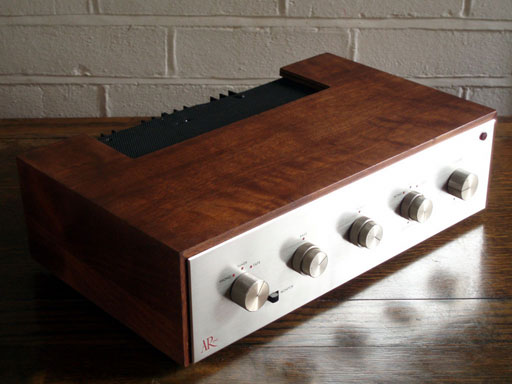

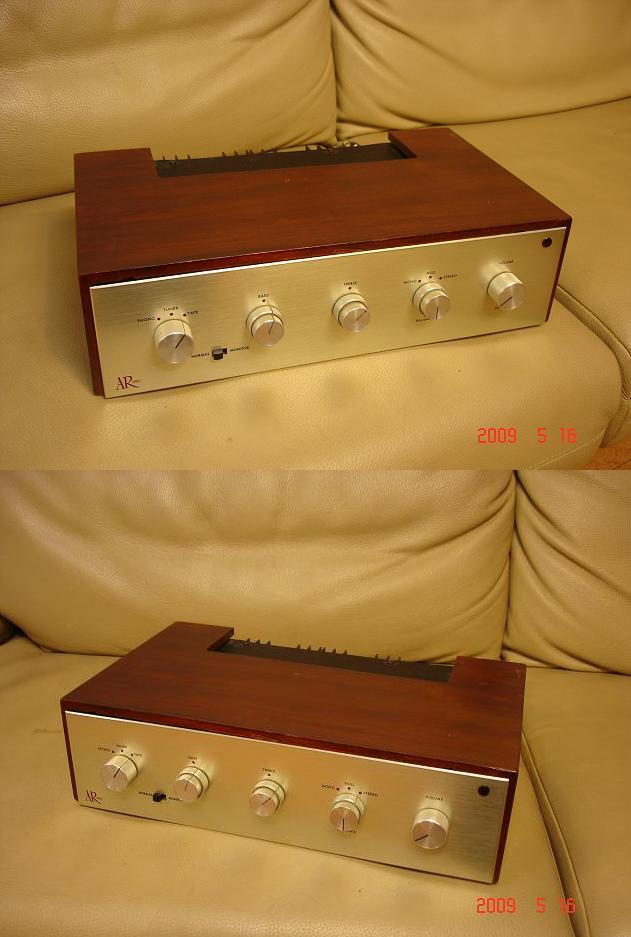

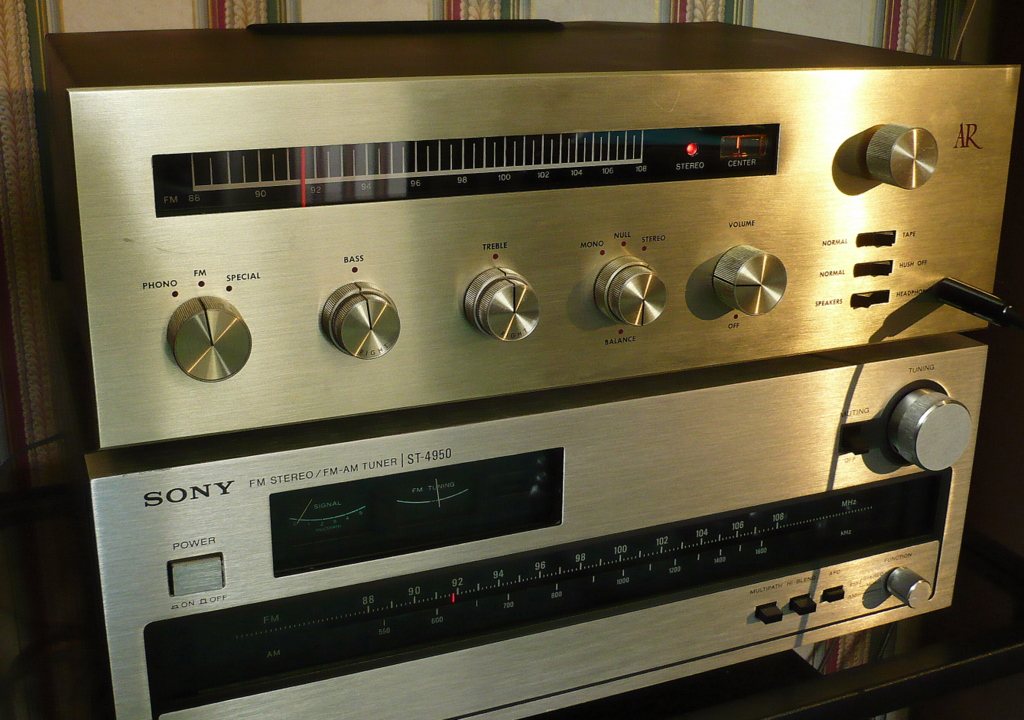

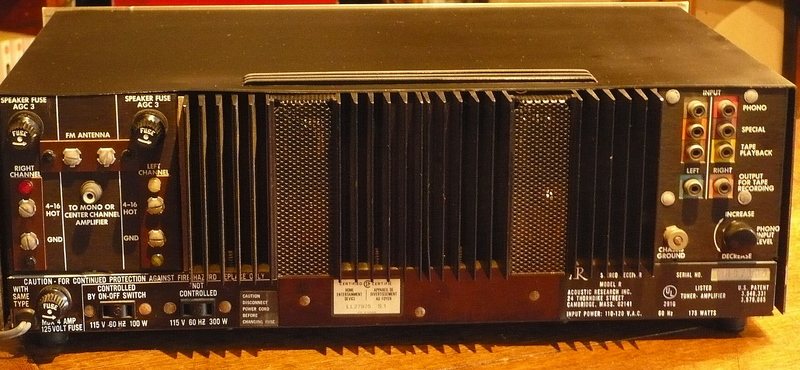

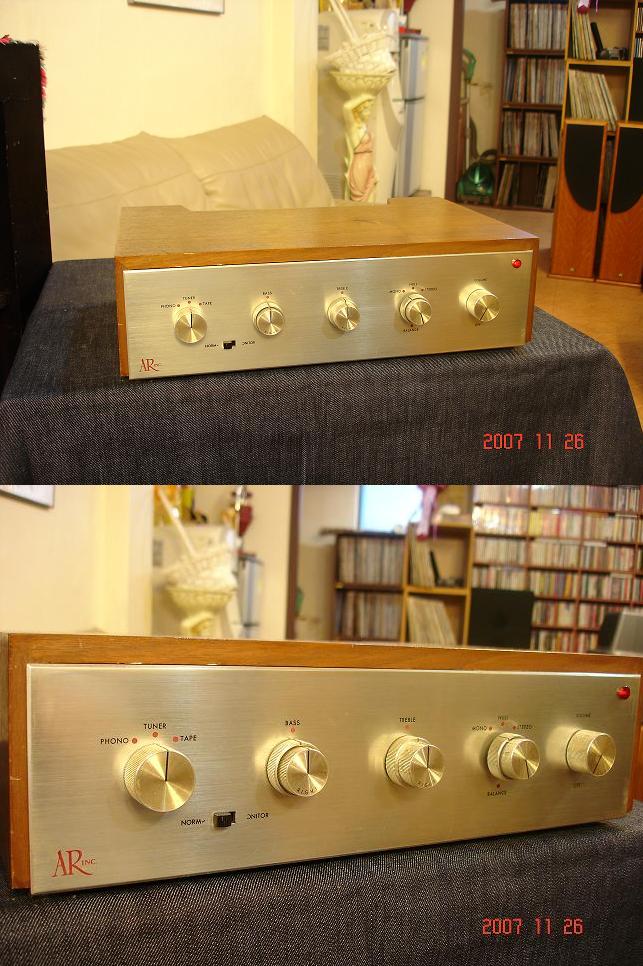

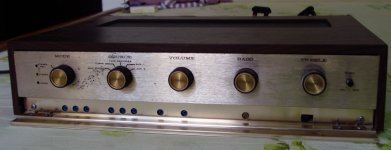

Acoustic Research AR amp
Acoustic Research AR amp
ARSOUND
ARSOUND
AR(Acoustic Research) AR Amp
AR/Acoustic Research ƒvƒŠƒ�ƒCƒ“ƒAƒ“ƒvAR amp‚ÌŽd—l ƒAƒR�[ƒXƒeƒBƒbƒNƒŠƒT�[ƒ`
All about Antique Home Audio :: AR( Acoustic Research) ???? ???.(????)
???? > ???? > (Acoustic Reserch) AR ???? ??? -???? -
Acoustic Research amplifier - AudioKarma.org Home Audio Stereo Discussion Forums
Acoustic Research AR amp
ARSOUND
ARSOUND
AR(Acoustic Research) AR Amp
AR/Acoustic Research ƒvƒŠƒ�ƒCƒ“ƒAƒ“ƒvAR amp‚ÌŽd—l ƒAƒR�[ƒXƒeƒBƒbƒNƒŠƒT�[ƒ`
All about Antique Home Audio :: AR( Acoustic Research) ???? ???.(????)
???? > ???? > (Acoustic Reserch) AR ???? ??? -???? -
Acoustic Research amplifier - AudioKarma.org Home Audio Stereo Discussion Forums
Attachments

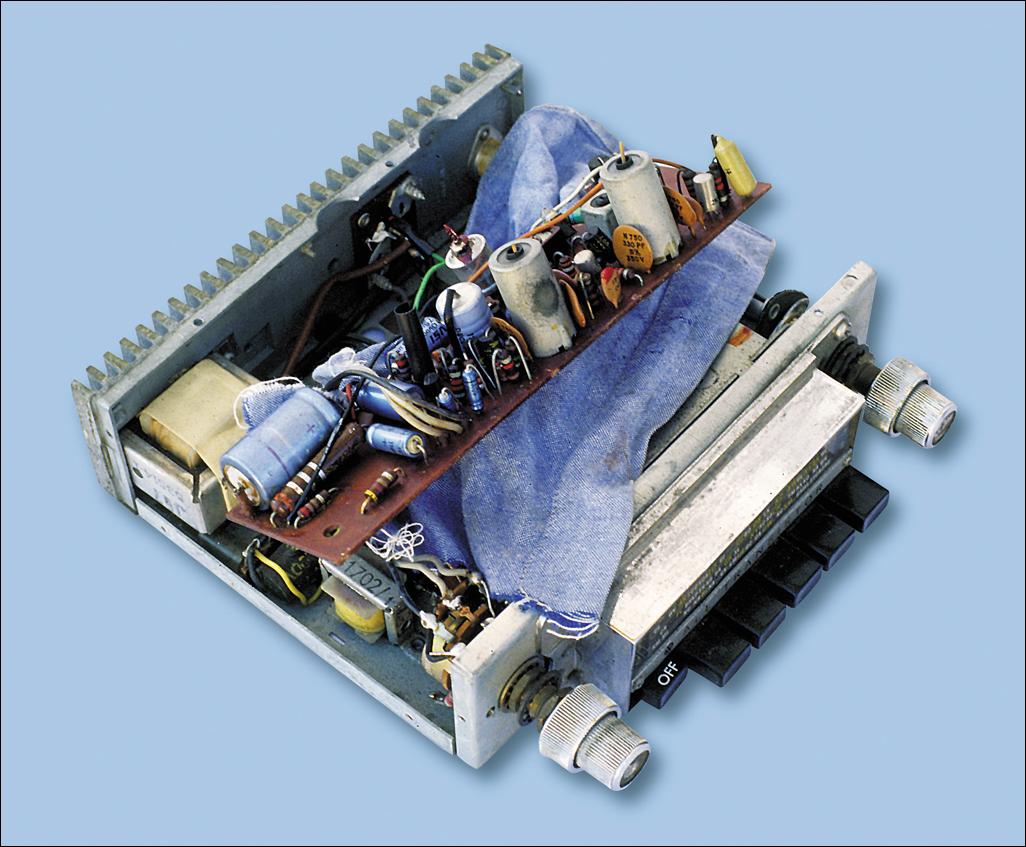

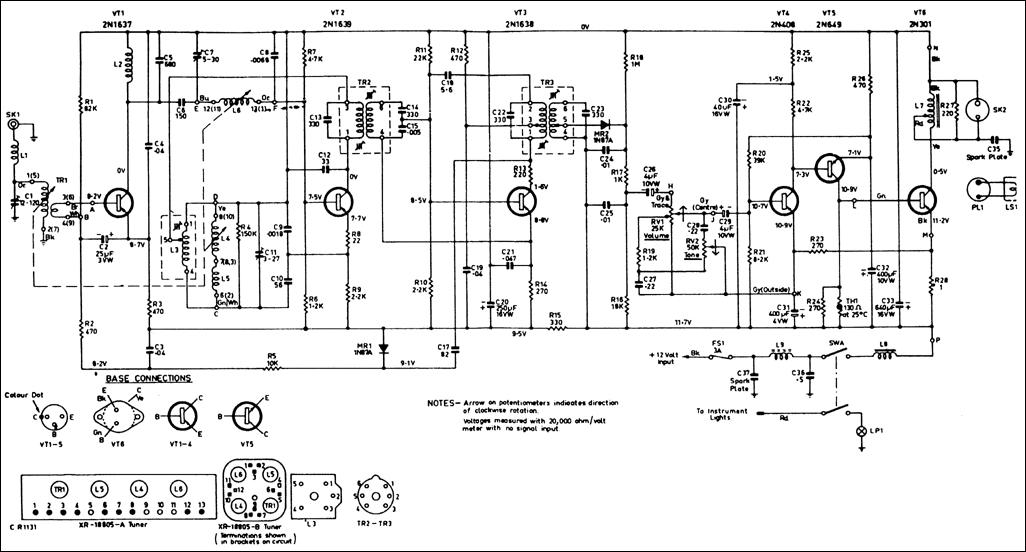

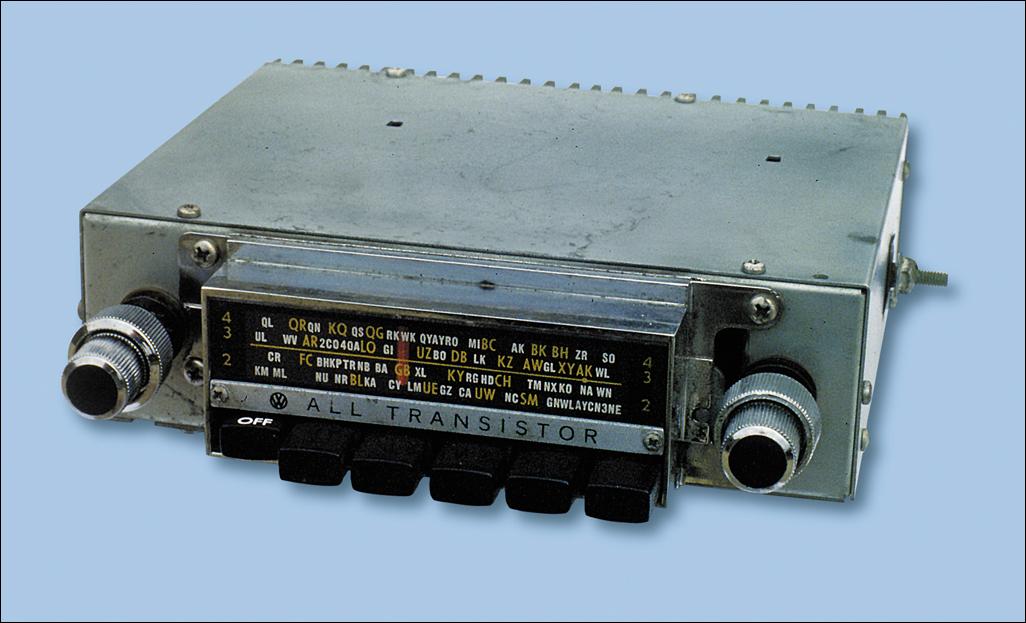

Car Radio used 2N301 Single Ended Solid State Power stage

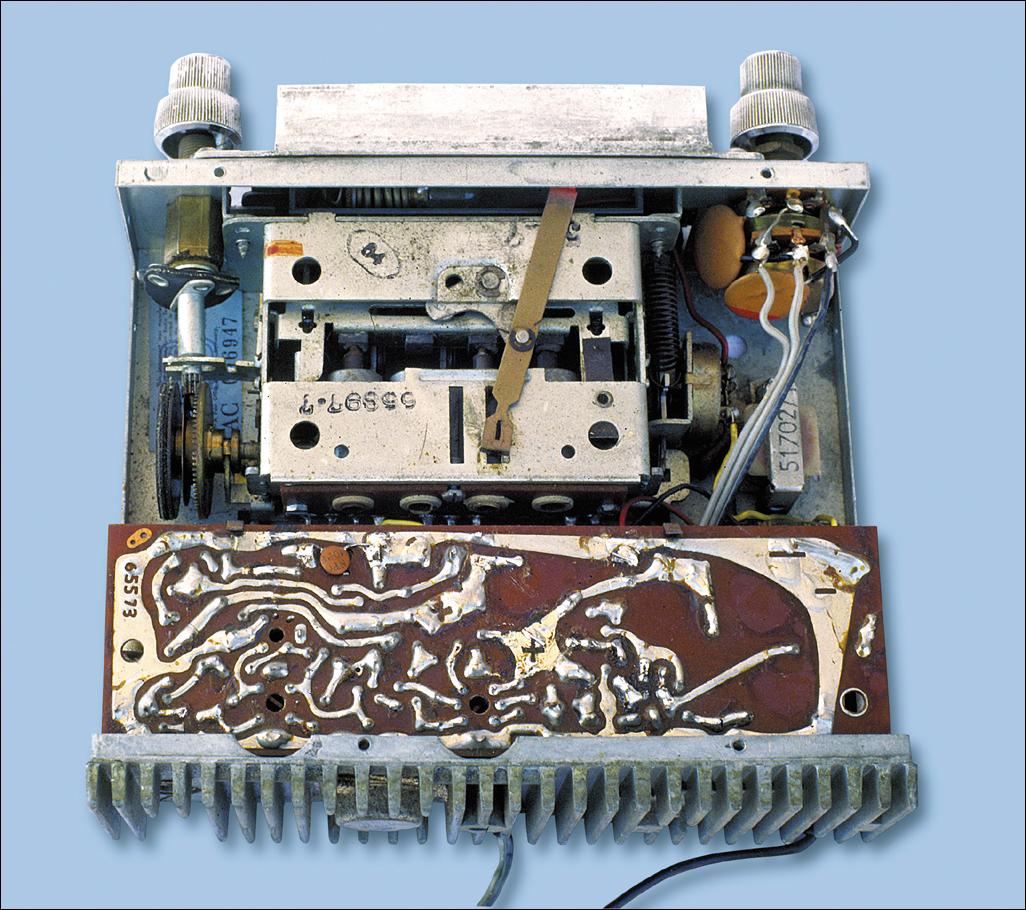

The AWA PF 11B-6V car radio
Silicon Chip Online - Vintage Radio

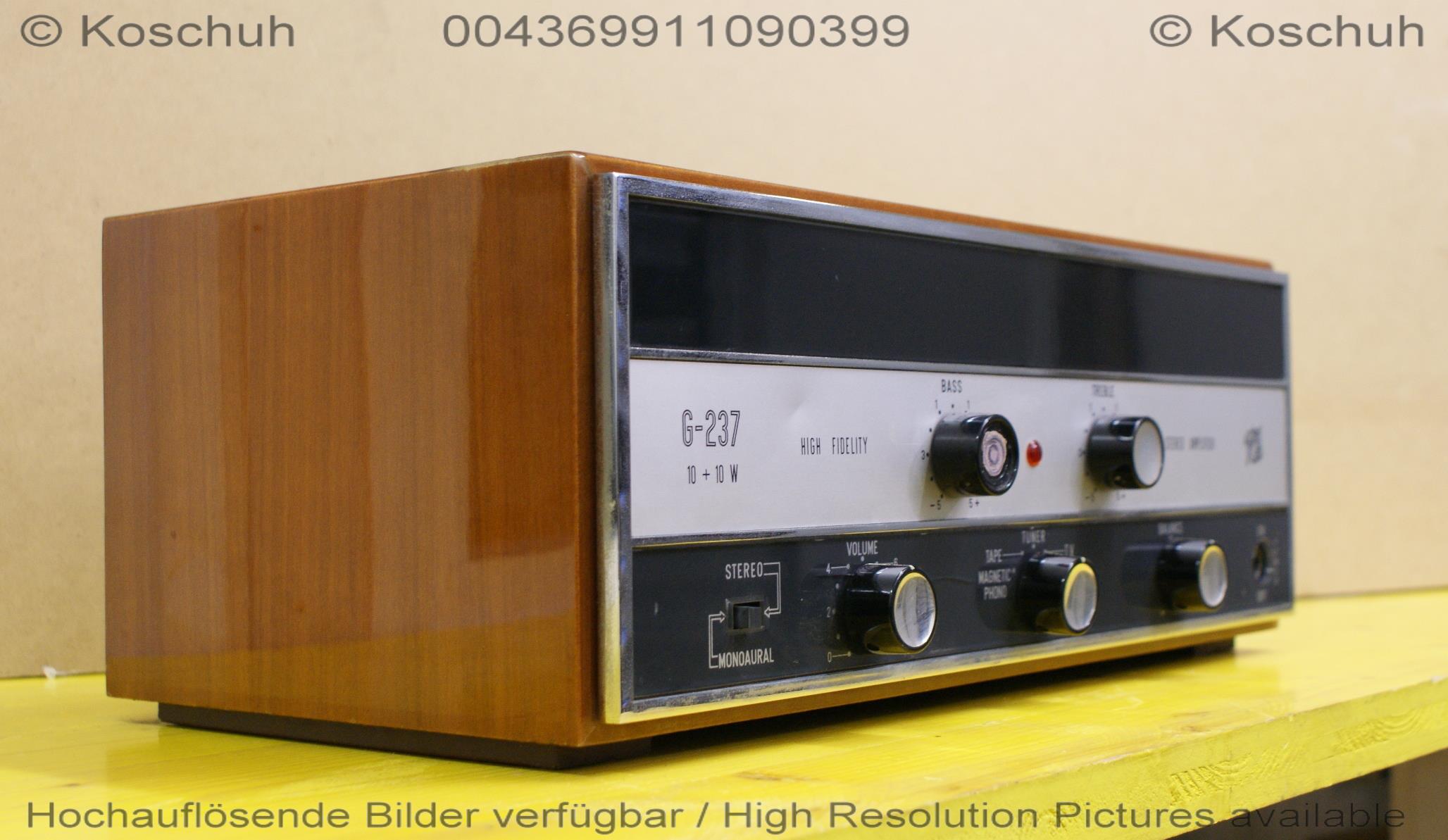

BTW - here you can order schematics from a wide range of Italian products from those days:
http://www.leradiodisophie.it/
http://www.leradiodisophie.it/BTG.html
The AWA PF 11B-6V car radio
Silicon Chip Online - Vintage Radio
BTW - here you can order schematics from a wide range of Italian products from those days:
http://www.leradiodisophie.it/
http://www.leradiodisophie.it/BTG.html
Attachments
Last edited:

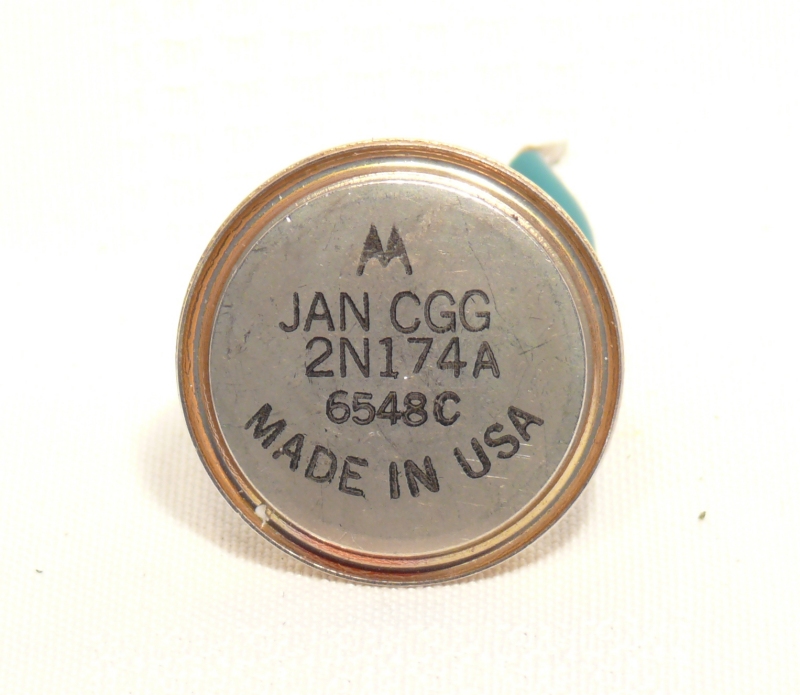

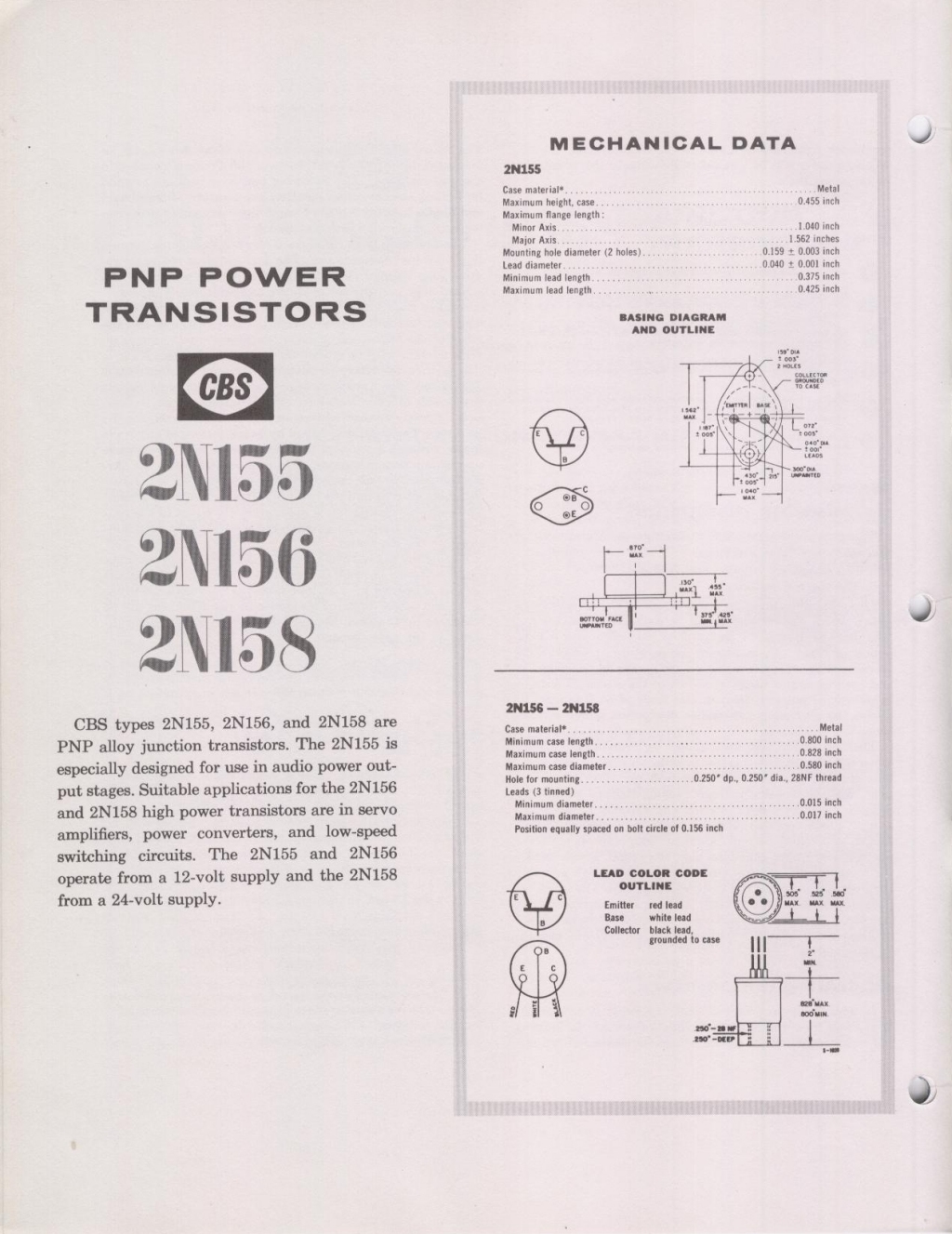

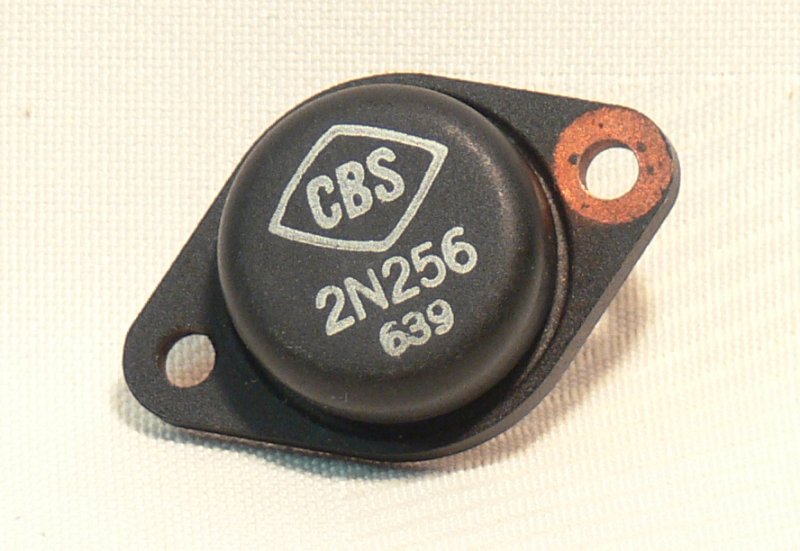

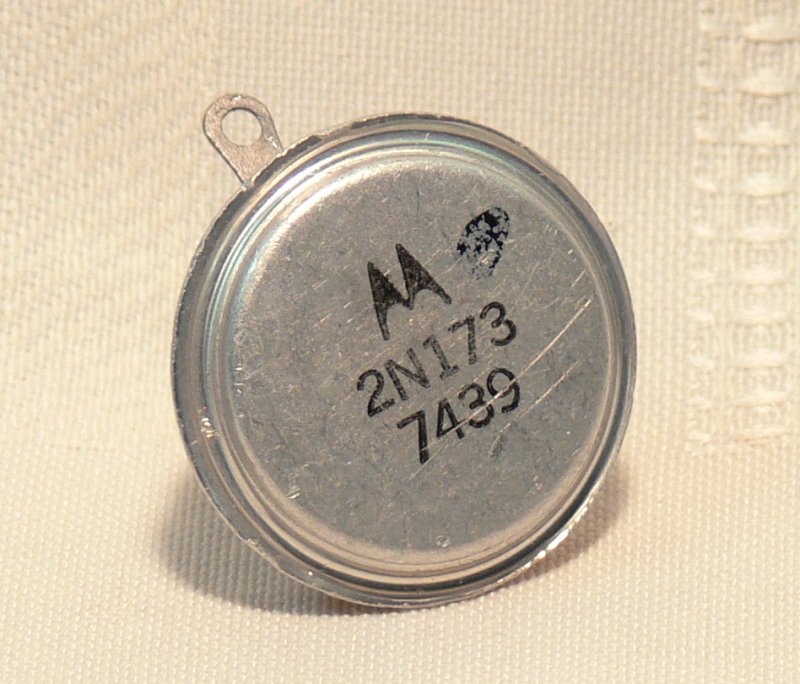

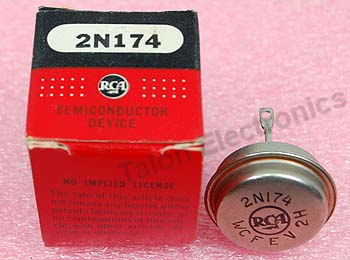

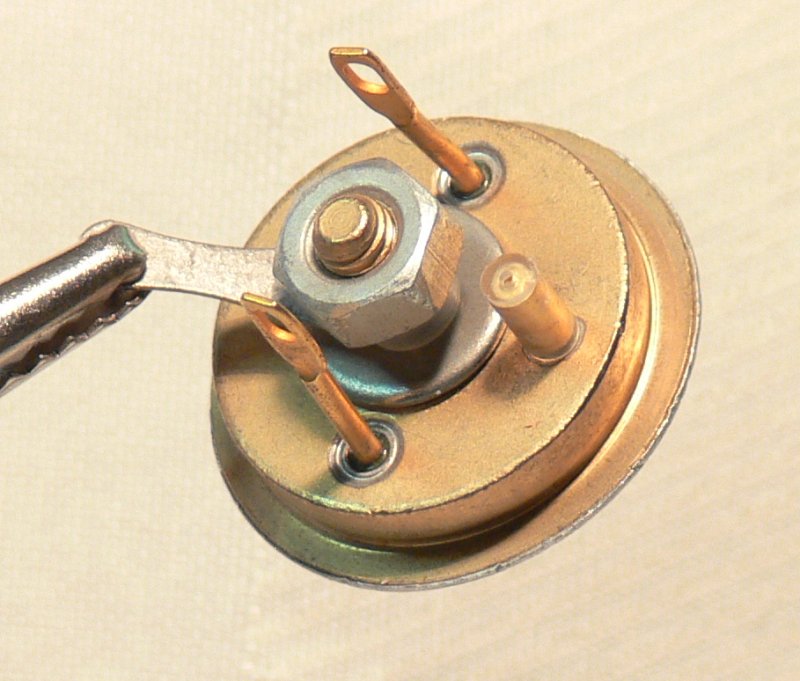

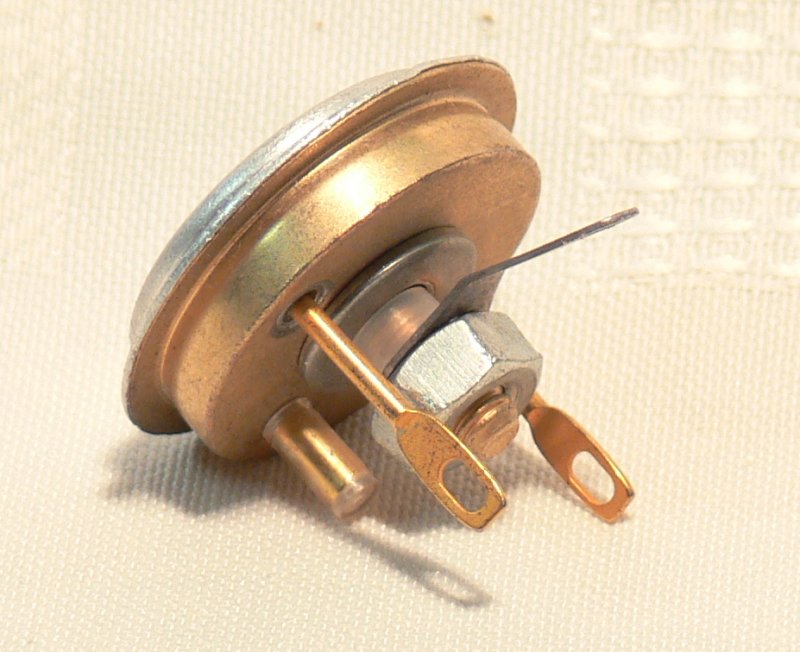

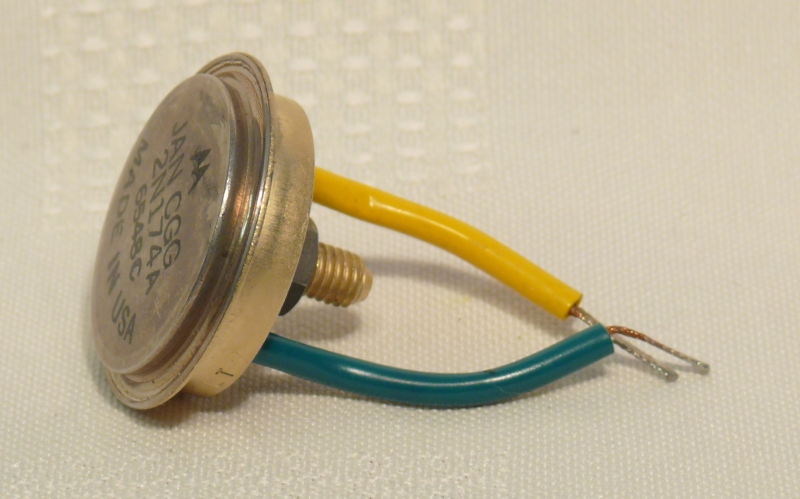

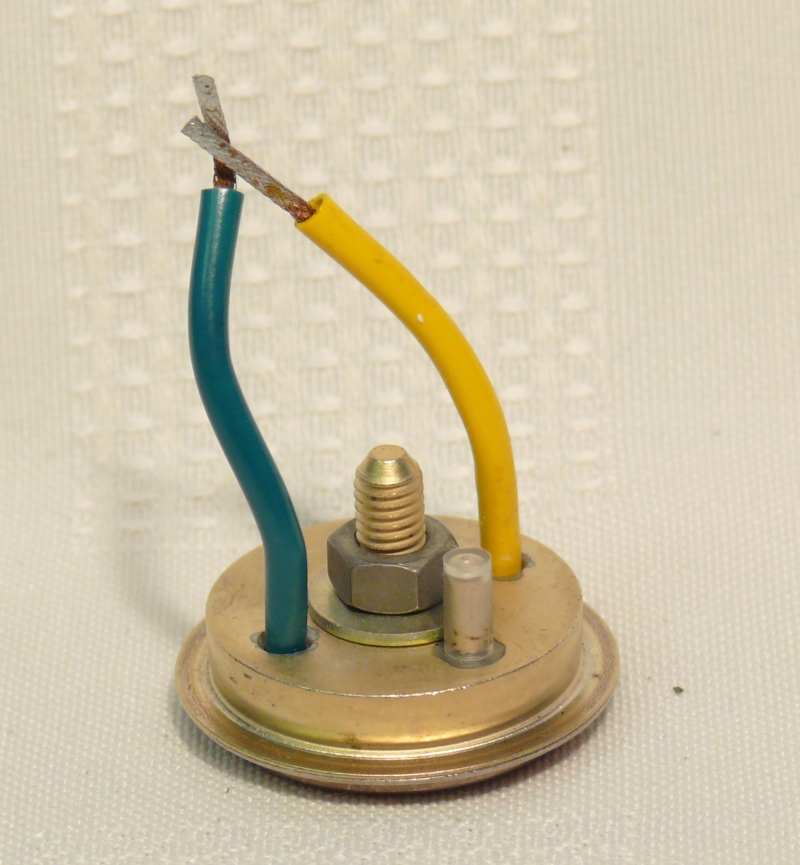

In which commercial amplifiers the follow transistors in use?
Vintage Transistors (click on the button "Book" to see the complete data sheets)
Vintage Transistors (click on the button "Book" to see the complete data sheets)
Attachments
Last edited:
Hello Andreas
Here is what a Sony fan has to say:
The 1967 Sony STR-6060F was the first Japanese all-Silicon Receiver.
The All-Silicon Sony TA-1120 integrated amp pre dates the Trio Supreme 1 (1965), but is certainly not Japan's first solid state amp.
Sonys first Home Hifi activities date back to 1958, when they introduced the world's first all solid-state stereo (Simulcast) FM/AM tuner and the first all-solid state portable TV, so it is to be expected, that there were also Sony amplifiers around this time.
Regarding solid state in General the Delco Chevrolet radios (around 1955) are probably the very first (and very unreliable) all solid-state implementations.
Here is what a Sony fan has to say:
The 1967 Sony STR-6060F was the first Japanese all-Silicon Receiver.
The All-Silicon Sony TA-1120 integrated amp pre dates the Trio Supreme 1 (1965), but is certainly not Japan's first solid state amp.
Sonys first Home Hifi activities date back to 1958, when they introduced the world's first all solid-state stereo (Simulcast) FM/AM tuner and the first all-solid state portable TV, so it is to be expected, that there were also Sony amplifiers around this time.
Regarding solid state in General the Delco Chevrolet radios (around 1955) are probably the very first (and very unreliable) all solid-state implementations.
Hallo Mirko,

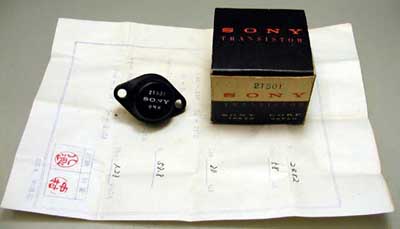

regarded the first "solid State" (transistorized) products from Sony I have found this:
Sony History
TransistorArchive: ????SONY ????? (Overview)
SONY Transistor (Overview)
Transistoren, erste und Transistor-Radios, Halbleitertechnik
(in German, scroll down at the botton from post #1)
http://www.astrosurf.com/luxorion/Radio/sony-tr-55.jpg (First SS receiver launched April 1955)
Sony TR-55 "wanted" on Flickr - Photo Sharing!
Sony TR-33 (successor)
Sony TR-72 on Flickr - Photo Sharing! TR-72 successor in CDN)
Sony TR-6 ivory, restored on Flickr - Photo Sharing! (TR-6, second successor)

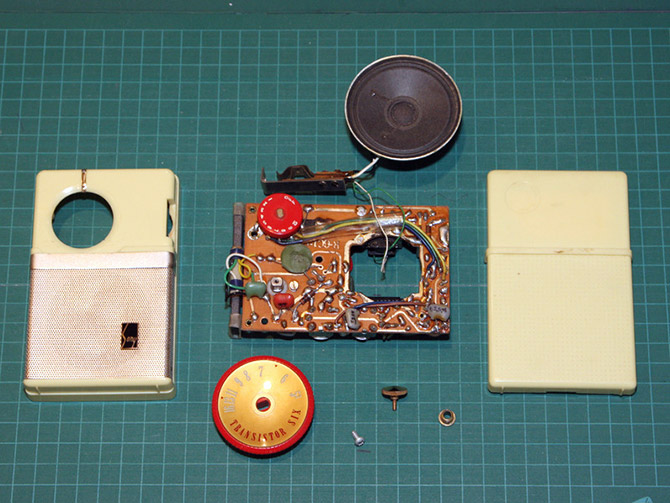

Retro Thing: Beautiful 1957 Sony TR-63 Transistor Radio Up For Grabs (March 1957)
TRANSISTOR RADIO DESIGN | Focusing on the design of pocket transistor radios manufactured during the 1950's & 1960's! (successor TR63)
http://www.roetta.it/ik3hia/transistor/sony_tr610/sony-TR610-schema.jpg
Sony TR-610
the first SS receivers in general
Radio_Transistor
Guest Column: Collecting Vintage Transistor Radios of the 1950s and 60s | Collectors Weekly
an interesting Sony thread:
Sony ES SS-3300 vintage speakers 1968 - Agoraquest - Sony Forum, News, Reviews
for me it is hard to believe that the Sony model STR-6060F was really the first Japanese all transistor (SS) receiver, because the first power devices in germanium was launched much earlier, e. g. the "2T501" 10 years earlier, as to see about
SONY Transistor
regarded the first "solid State" (transistorized) products from Sony I have found this:
Sony History
TransistorArchive: ????SONY ????? (Overview)
SONY Transistor (Overview)
Transistoren, erste und Transistor-Radios, Halbleitertechnik
(in German, scroll down at the botton from post #1)
http://www.astrosurf.com/luxorion/Radio/sony-tr-55.jpg (First SS receiver launched April 1955)
Sony TR-55 "wanted" on Flickr - Photo Sharing!
Sony TR-33 (successor)
Sony TR-72 on Flickr - Photo Sharing! TR-72 successor in CDN)
Sony TR-6 ivory, restored on Flickr - Photo Sharing! (TR-6, second successor)
Retro Thing: Beautiful 1957 Sony TR-63 Transistor Radio Up For Grabs (March 1957)
TRANSISTOR RADIO DESIGN | Focusing on the design of pocket transistor radios manufactured during the 1950's & 1960's! (successor TR63)
http://www.roetta.it/ik3hia/transistor/sony_tr610/sony-TR610-schema.jpg
Sony TR-610
the first SS receivers in general
Radio_Transistor
Guest Column: Collecting Vintage Transistor Radios of the 1950s and 60s | Collectors Weekly
an interesting Sony thread:
Sony ES SS-3300 vintage speakers 1968 - Agoraquest - Sony Forum, News, Reviews
for me it is hard to believe that the Sony model STR-6060F was really the first Japanese all transistor (SS) receiver, because the first power devices in germanium was launched much earlier, e. g. the "2T501" 10 years earlier, as to see about
SONY Transistor
Attachments
Last edited:

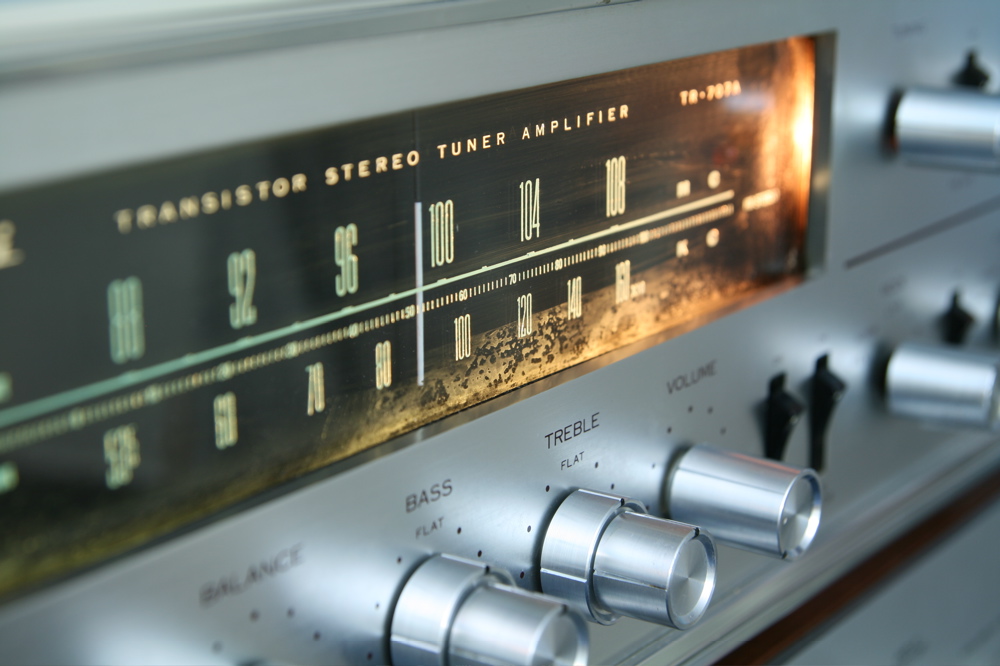

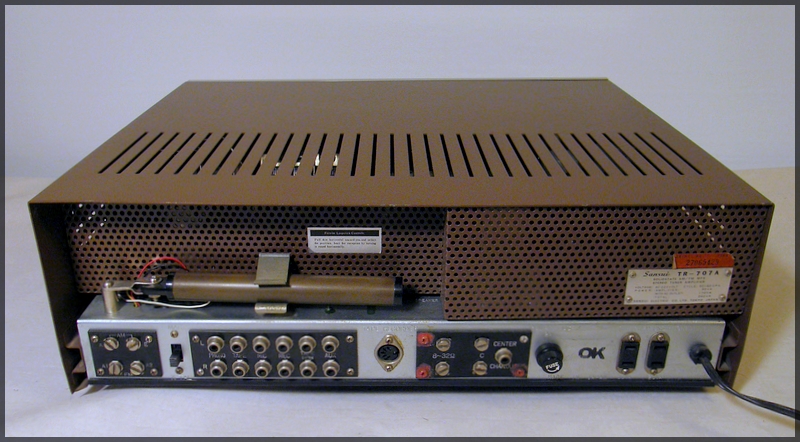

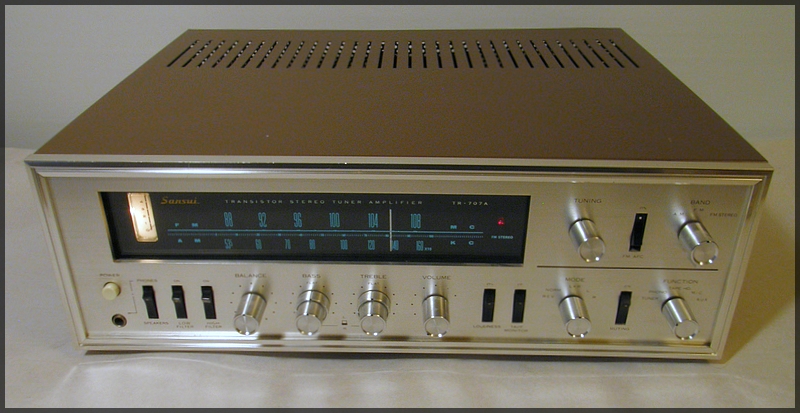

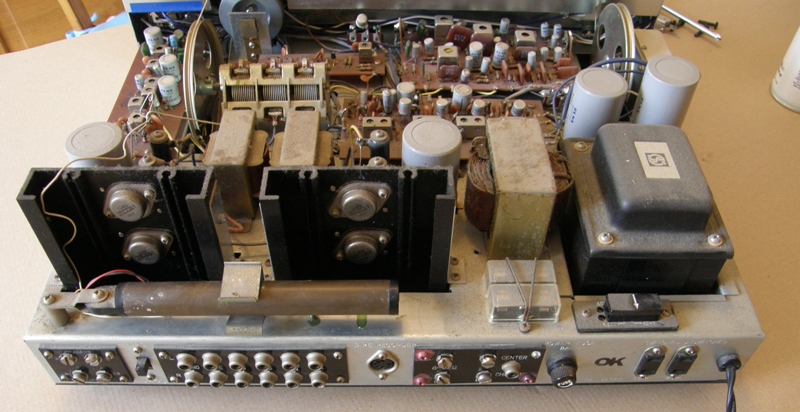

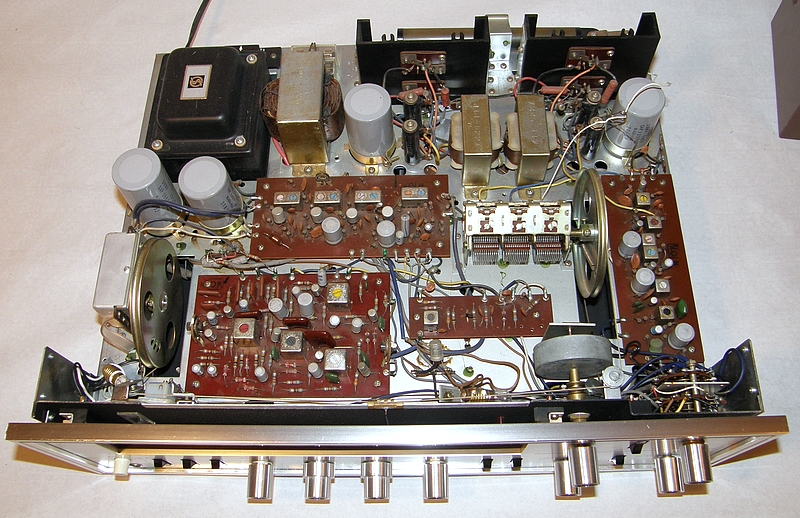

Sansui's first Solid State Receiver TR-707A (TR707A)
approximately six years later than Pioneer's SX-1000TW first SS Receiver follows Sansui's first solid state model TR-707A with the output power devices 2SC2261 from Sanken and output/driver transformers.
Who can post the schematic?
approximately six years later than Pioneer's SX-1000TW first SS Receiver follows Sansui's first solid state model TR-707A with the output power devices 2SC2261 from Sanken and output/driver transformers.
Who can post the schematic?
Attachments

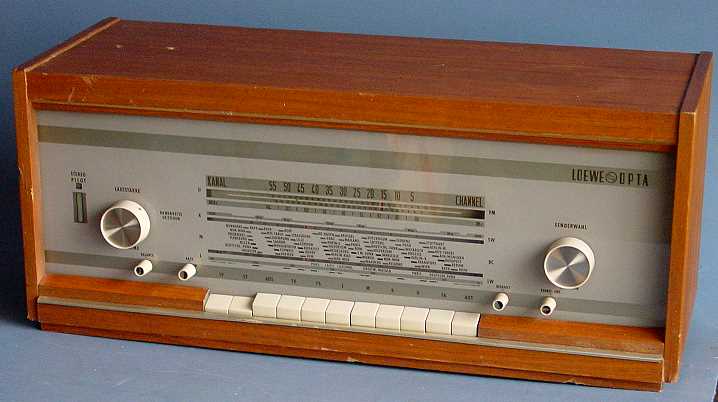

Loewe Opta Receiver LO-40 and Siemens Receiver "Klangmeister 50" (RS-50)
Both Receivers are mixed tube and transistor (solid state) instead "all transistor"
The "LO40" and the Siemens RS50 uses tubes in the UKW-FM front end and the FM-IF/demodulator amplifier stages.
http://www.radiomuseum.org/r/loewe_opta_stereo_luxus_steuergerae_4.html
http://www.radiomuseum.org/r/siemens_klangmeister_50_rs50_1.html

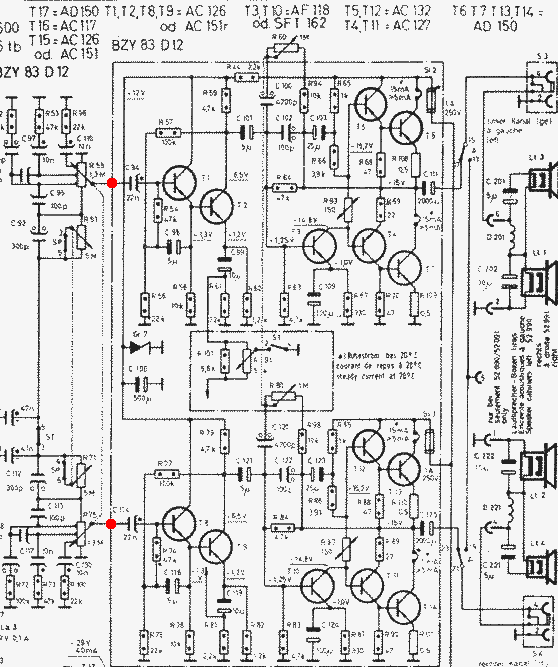

The power amp sections from both receivers uses quasi complementary OTL stages equipped with 4xAD150
German explicit description are to find in the "Funkschau" magazine 4/1965 page 85/86 (Book-version from 1965: 241/242) and 2/1965, page 33-36 (Book-version from 1965: 97-100)
Loudspeakers for the Loewe receiver and high resolution pics you will
find about the ebay item No 150423377149
Both Receivers are mixed tube and transistor (solid state) instead "all transistor"
The "LO40" and the Siemens RS50 uses tubes in the UKW-FM front end and the FM-IF/demodulator amplifier stages.
http://www.radiomuseum.org/r/loewe_opta_stereo_luxus_steuergerae_4.html
http://www.radiomuseum.org/r/siemens_klangmeister_50_rs50_1.html
The power amp sections from both receivers uses quasi complementary OTL stages equipped with 4xAD150
German explicit description are to find in the "Funkschau" magazine 4/1965 page 85/86 (Book-version from 1965: 241/242) and 2/1965, page 33-36 (Book-version from 1965: 97-100)
Loudspeakers for the Loewe receiver and high resolution pics you will
find about the ebay item No 150423377149
Attachments
Last edited:

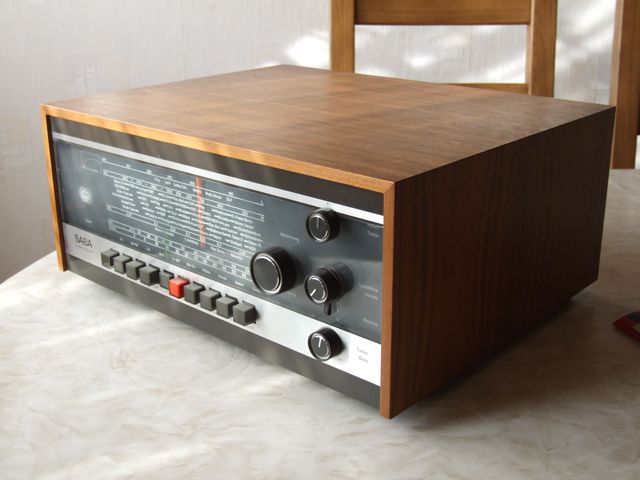

Saba Stereo Studio II (T11 T 11 TII T-II)
Very fine sounded receiver after performed service.
Each amp uses OTL-free dc coupled output stage equipped with 2xAD152. For the phase shifting a driver transformer is in use
Here an URL:
Hi-Fi-Studio II-Stereo (2-Stereo) Radio SABA; Villingen
In the German magazine "Funkschau" (Franzis/Weka) about follow editions you will find explicit papers about this receiver:
1) the whole receiver: 9/1965, page 239-242 and
2) only the here used power amp modul with measure results: 16/1965, page 434-435
If you order copies from the related book from 1965, go to the pages 699-702 and 1229-1231
Very fine sounded receiver after performed service.
Each amp uses OTL-free dc coupled output stage equipped with 2xAD152. For the phase shifting a driver transformer is in use
Here an URL:
Hi-Fi-Studio II-Stereo (2-Stereo) Radio SABA; Villingen
In the German magazine "Funkschau" (Franzis/Weka) about follow editions you will find explicit papers about this receiver:
1) the whole receiver: 9/1965, page 239-242 and
2) only the here used power amp modul with measure results: 16/1965, page 434-435
If you order copies from the related book from 1965, go to the pages 699-702 and 1229-1231
Attachments
-

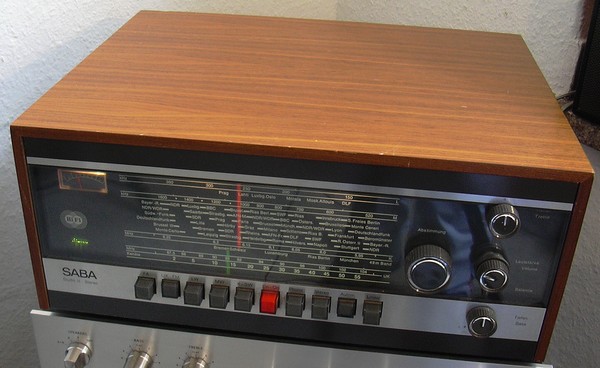

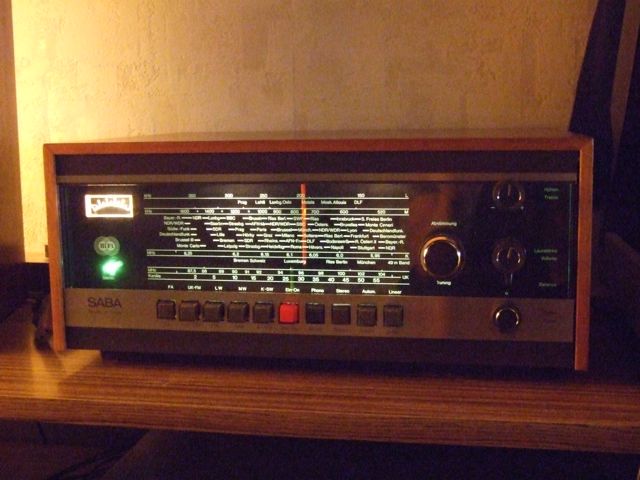

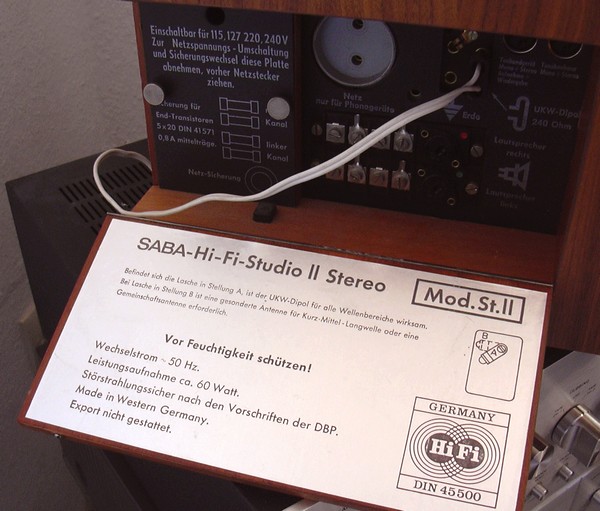

Saba Stereo Studio II front.jpg -
Saba Stereo Studio II front right.jpg -

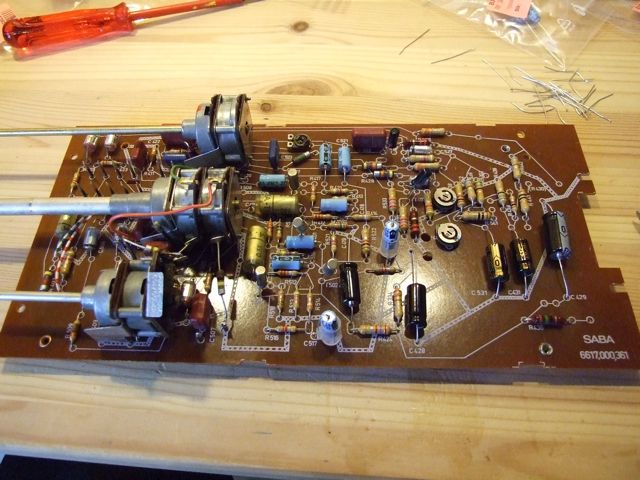

Saba Stereo Studio II preamp section.jpg -

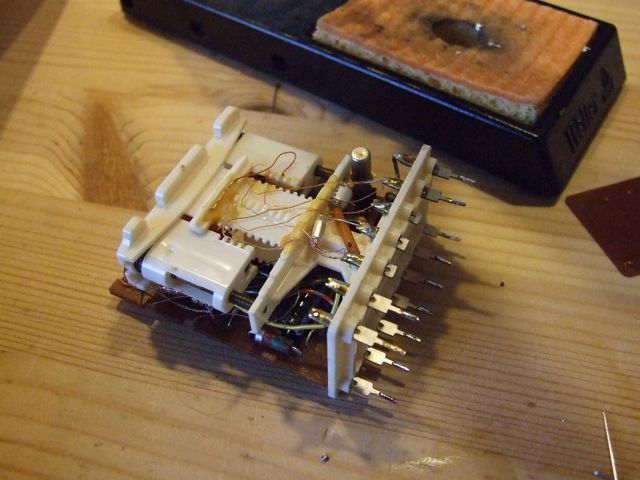

Saba Stereo Studio II IF filtermodule.jpg -
Saba Stereo Studio II front operating status.jpg -

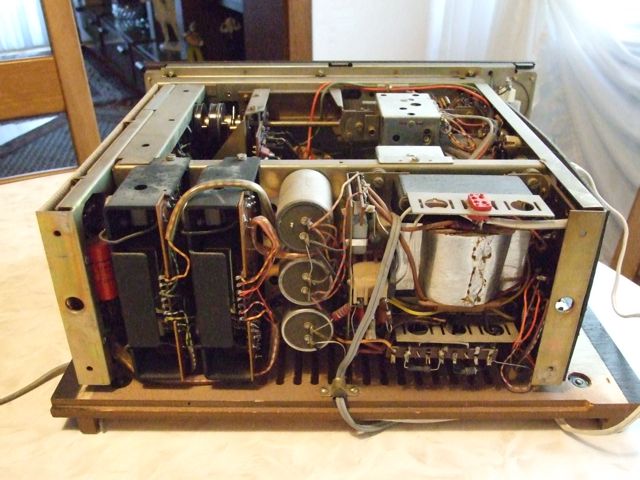

Saba Stereo Studio II rear open.jpg -
Saba Stereo Studio II terminal-II.jpg -

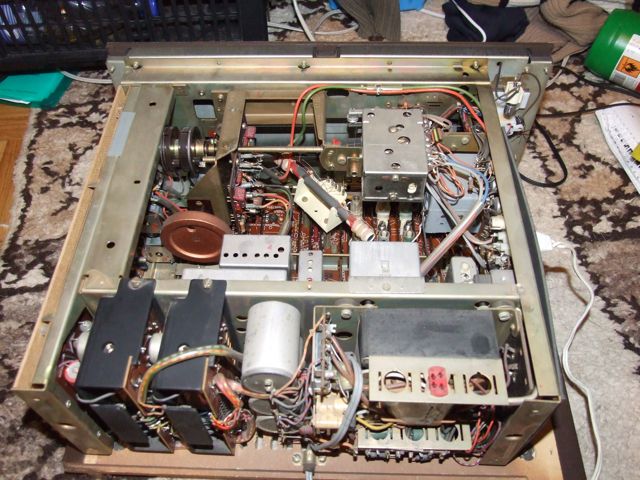

Saba Stereo Studio II top open.jpg -

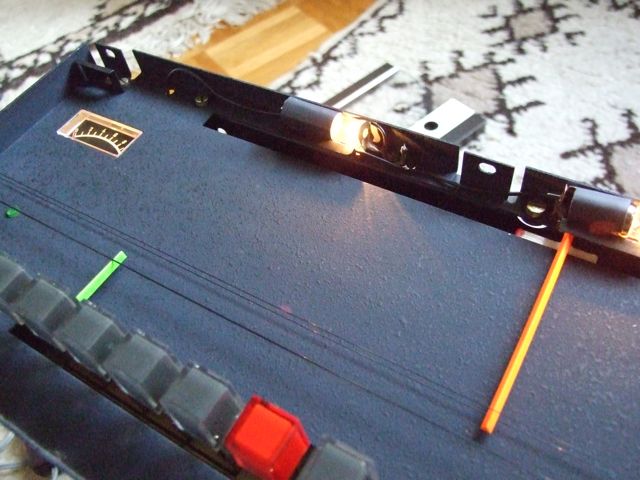

Saba Stereo Studio II front lamp aera.jpg -
Saba Stereo Studio II terminal.jpg
Last edited:

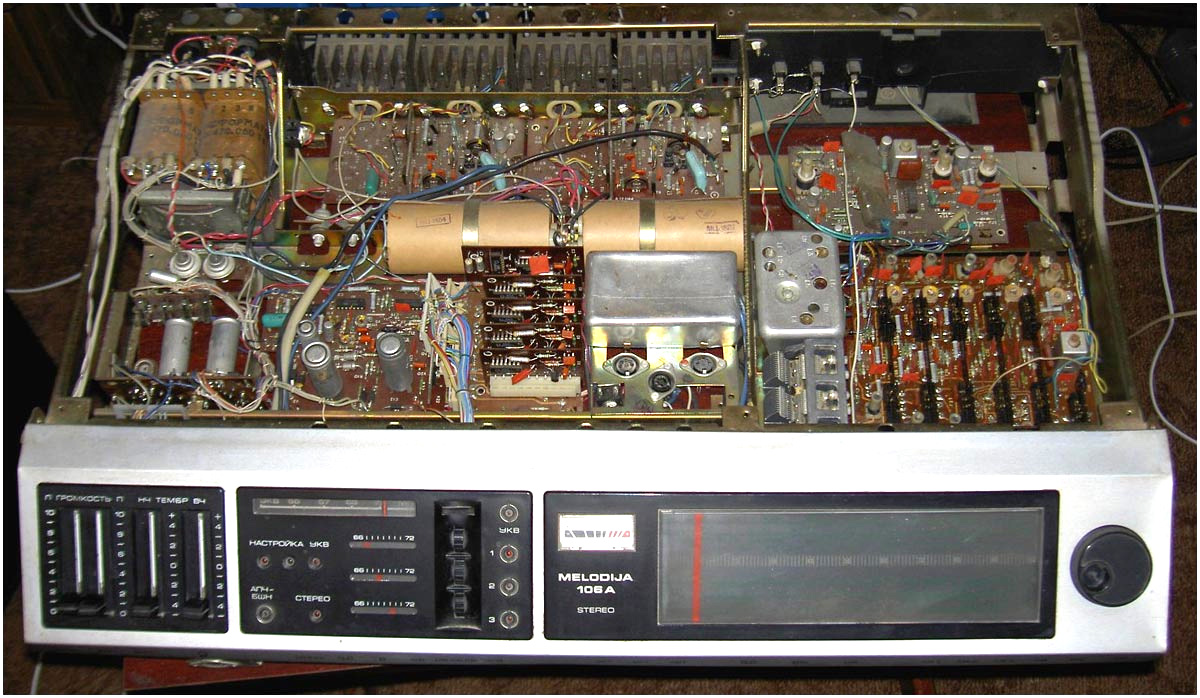

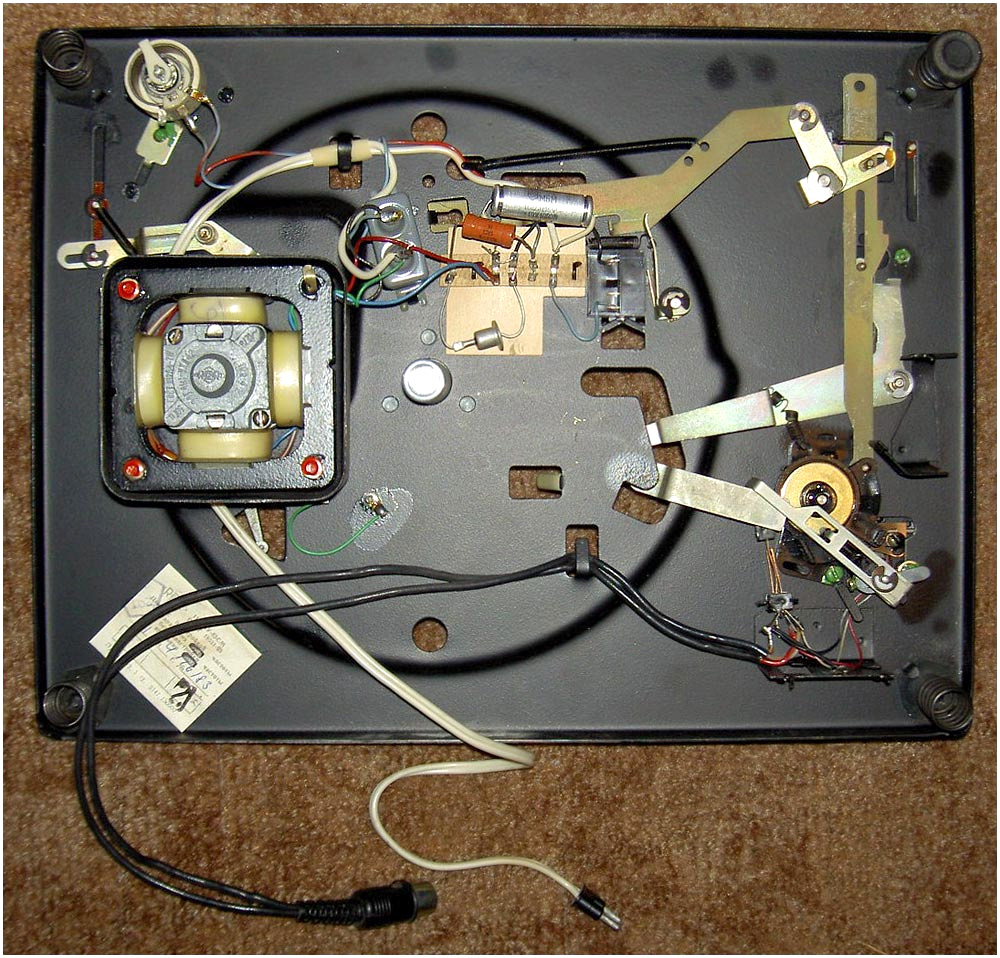

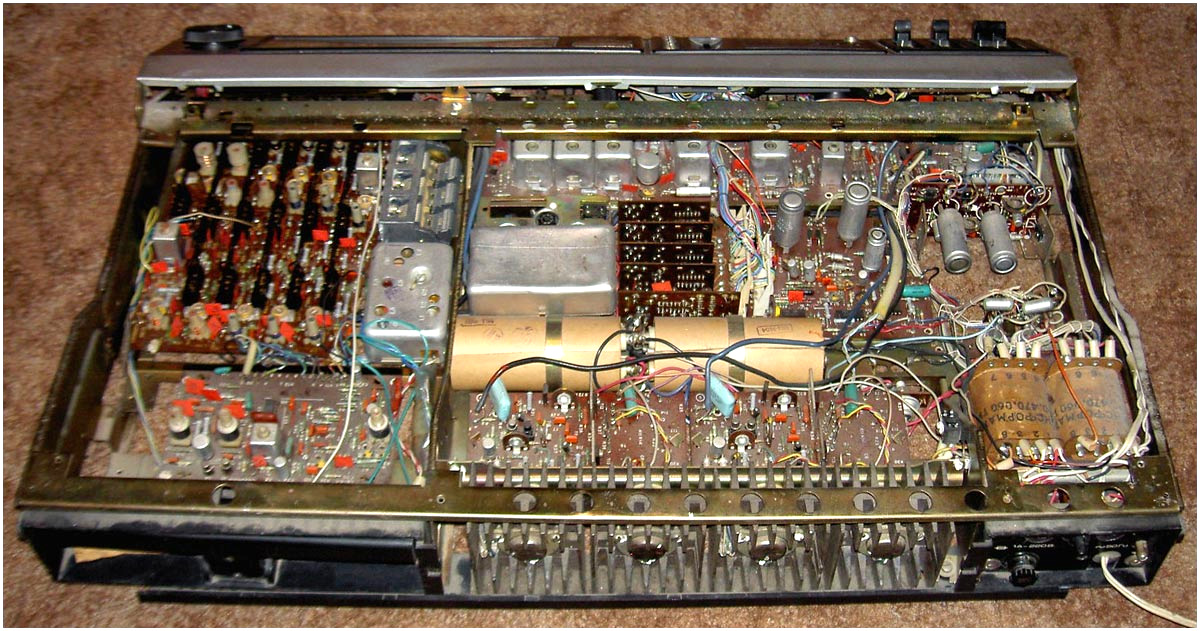

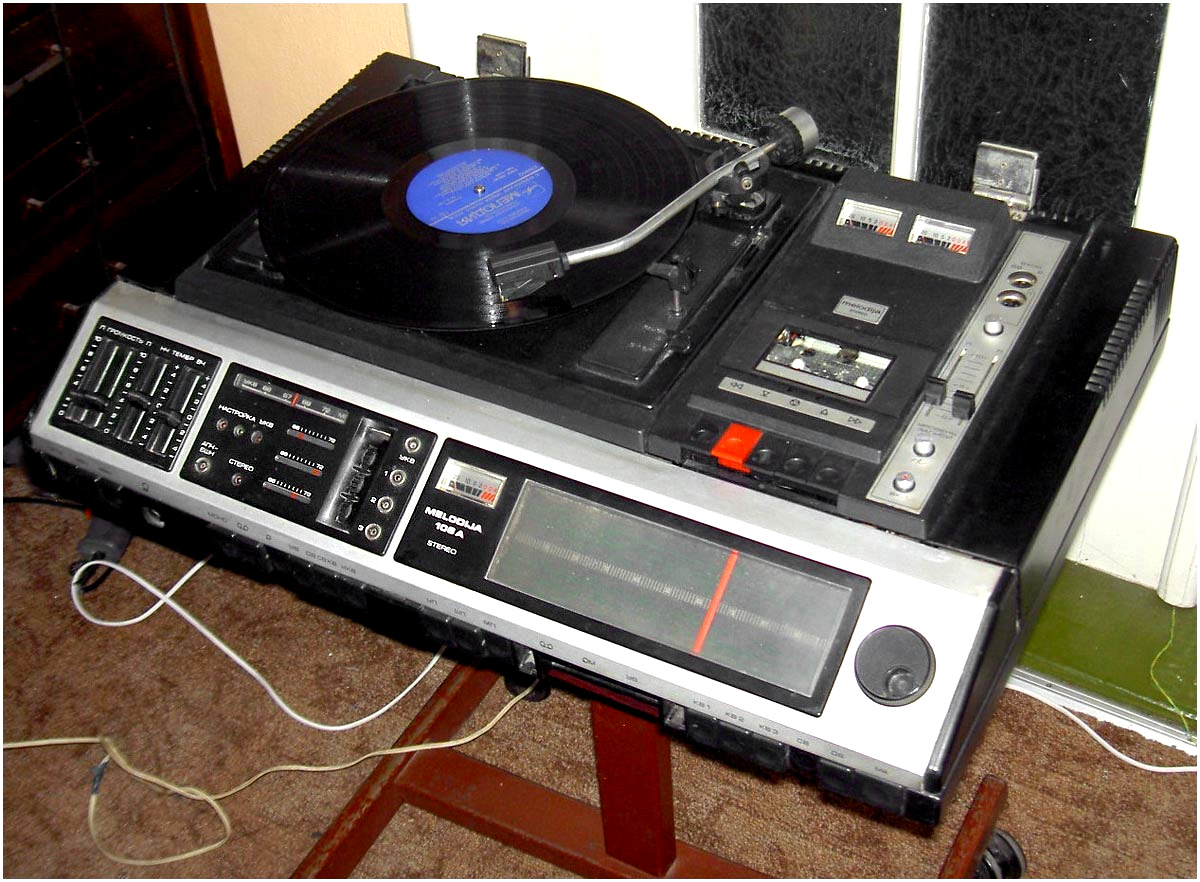

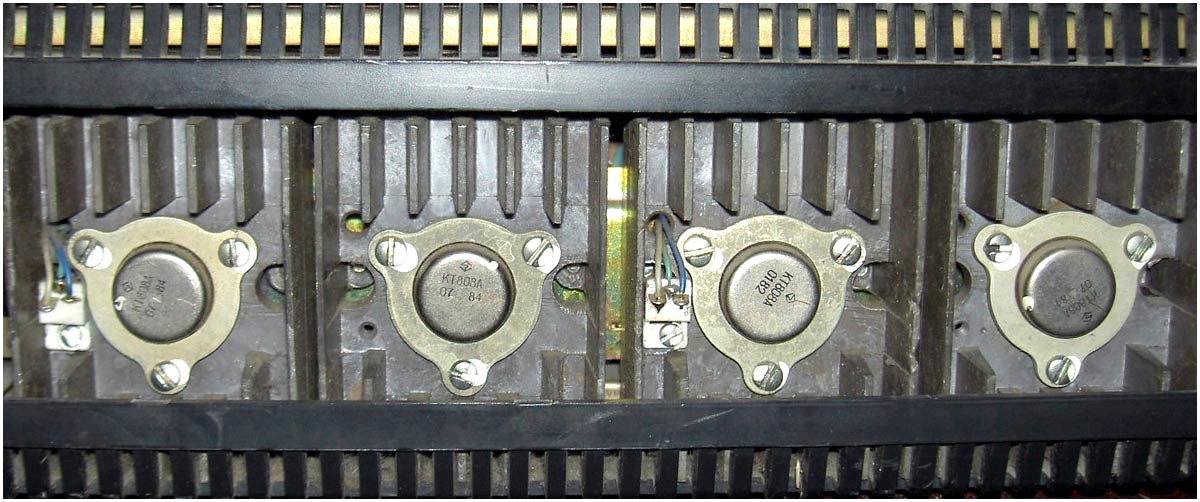

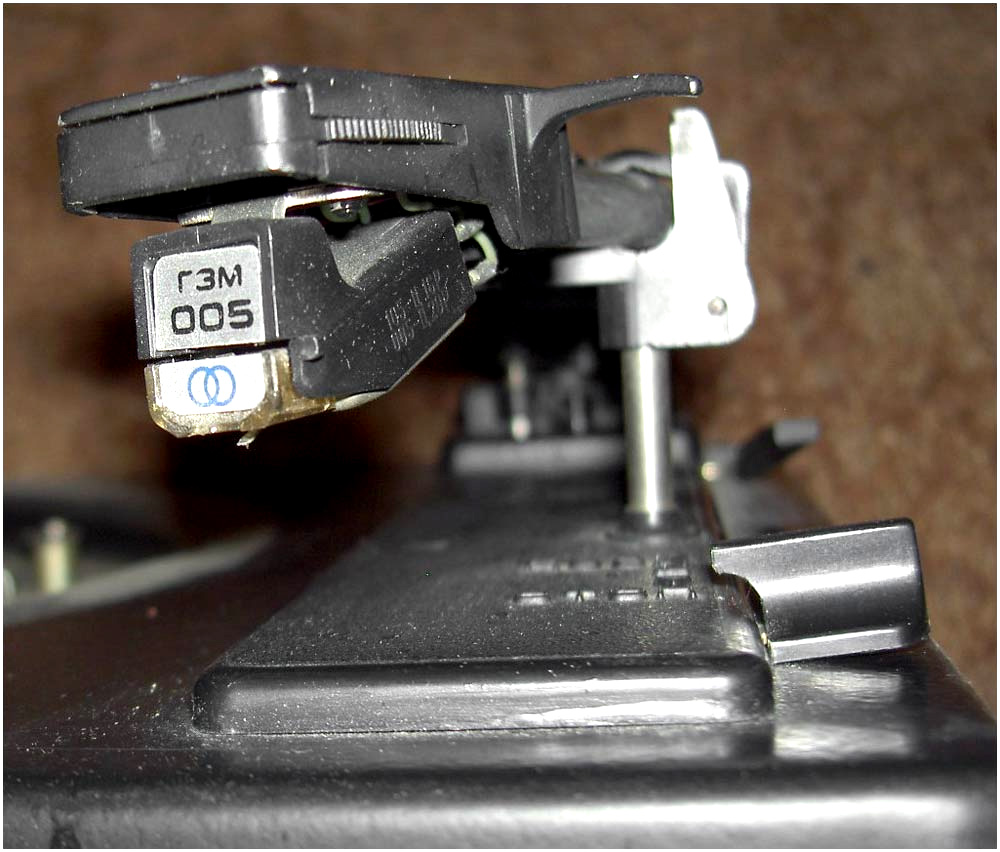

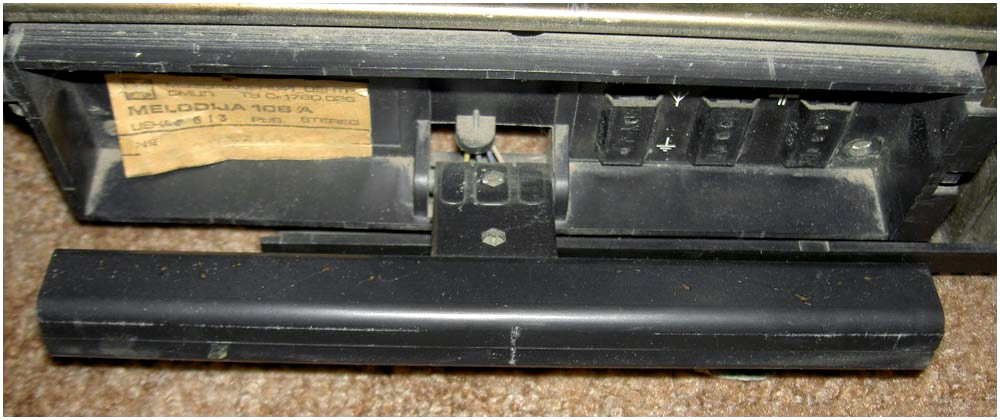

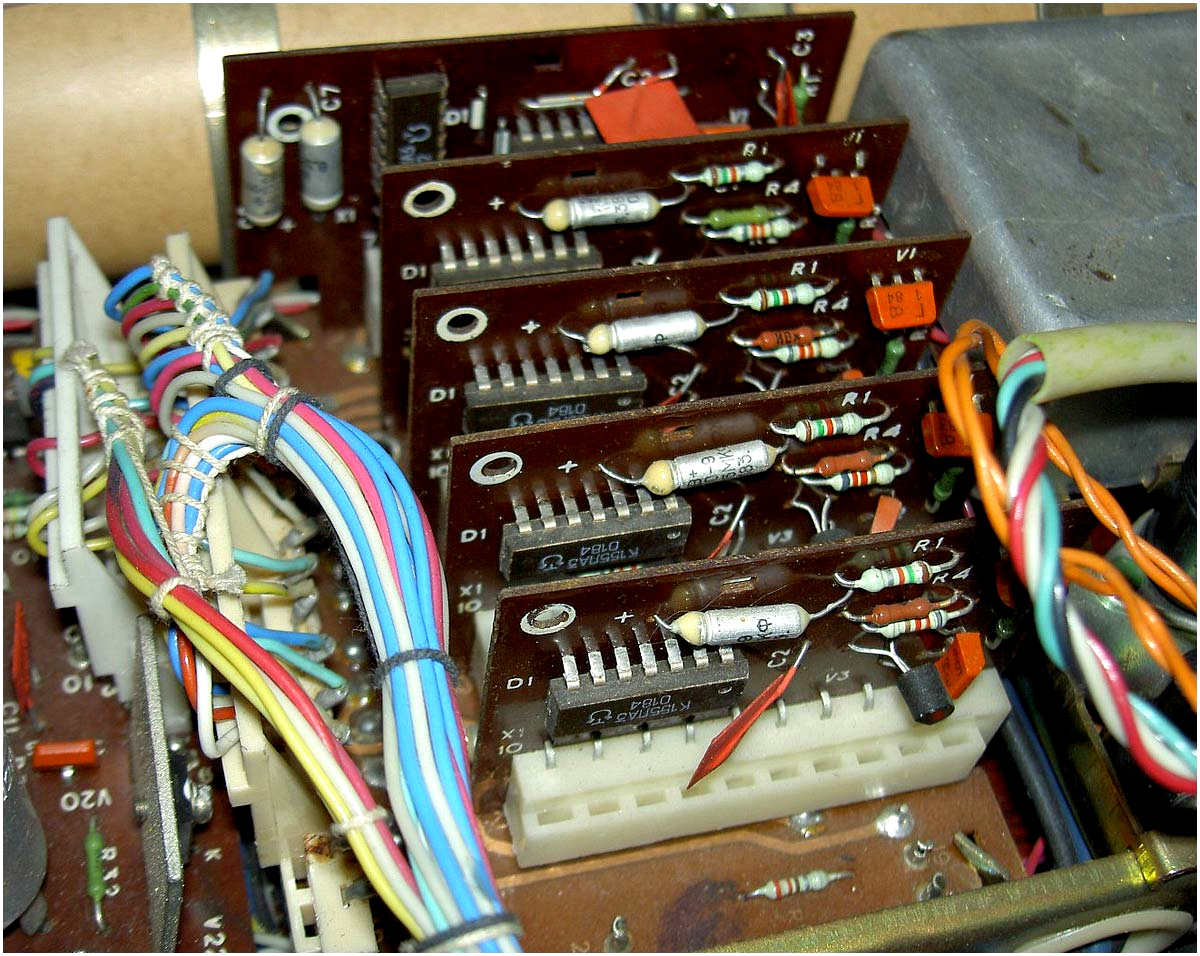

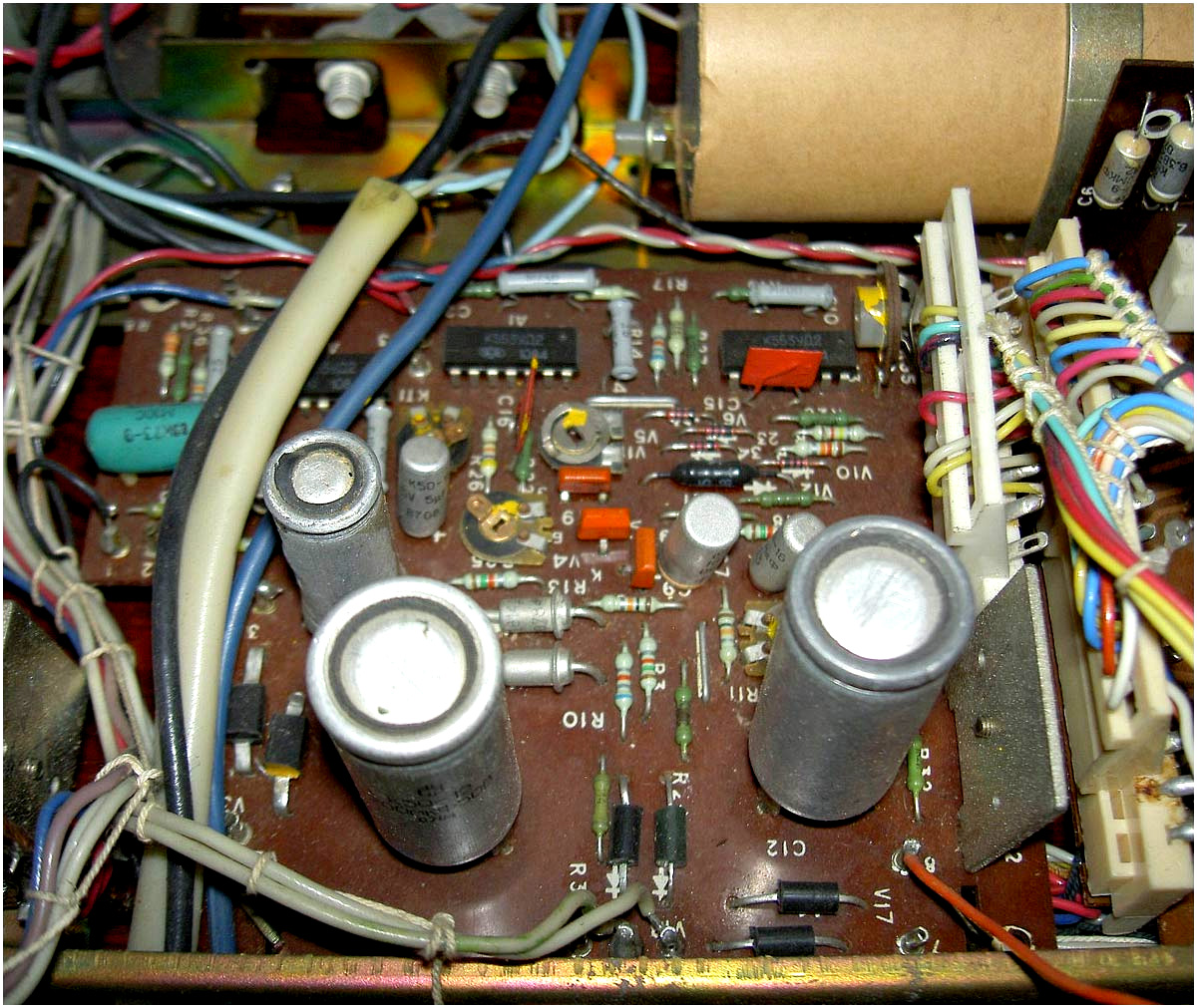

Melodija 108A Stereo equipped with KT808A from V / O ЭЛЕКТРОНОРГТЕХНИКА
here a compact stereo system with integrated record player from Russia:
here a compact stereo system with integrated record player from Russia:
Attachments
Last edited:

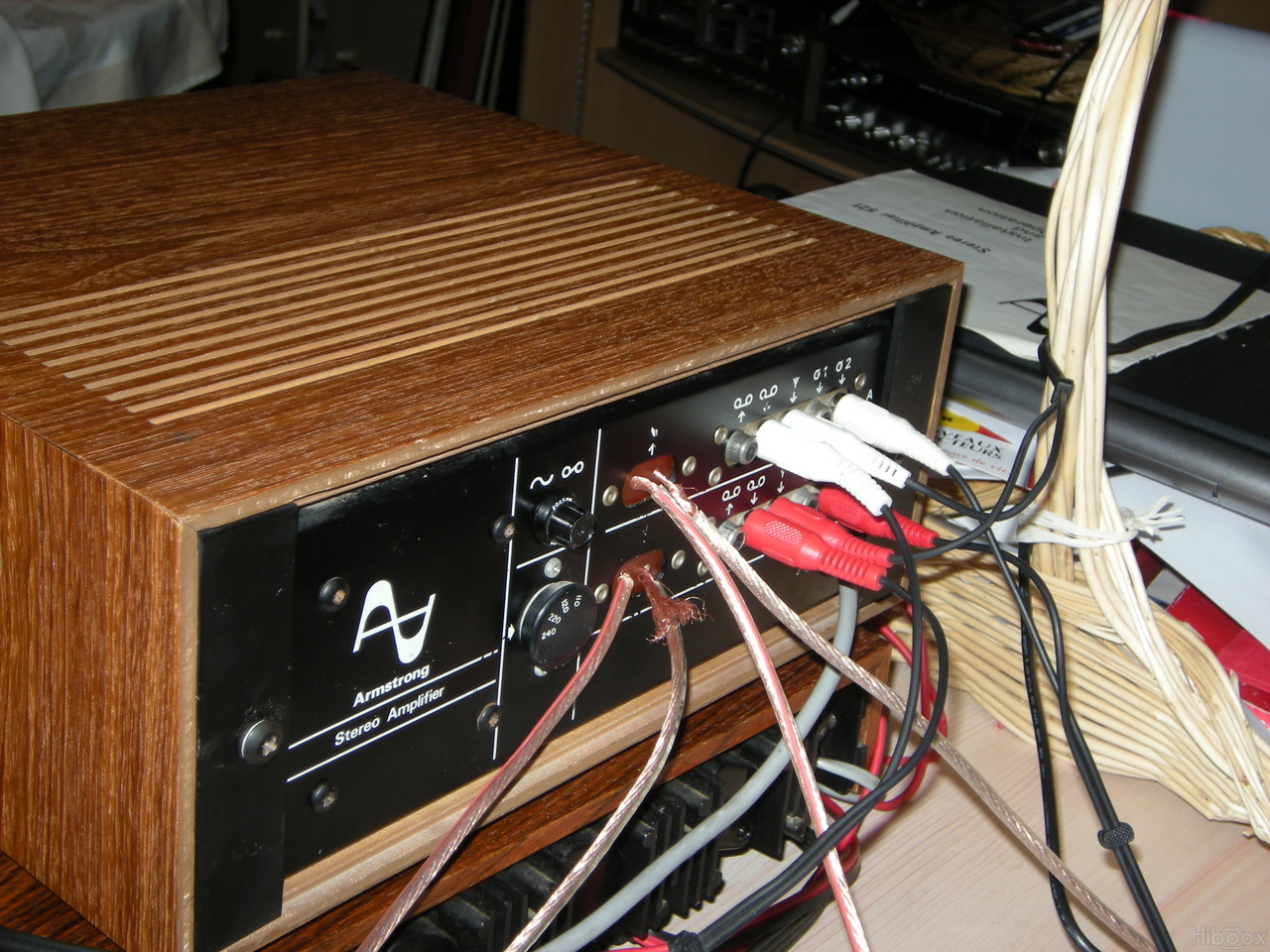

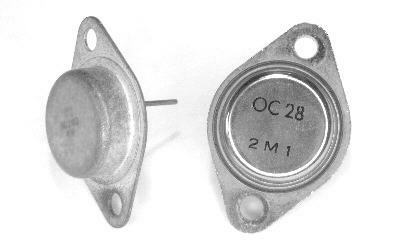

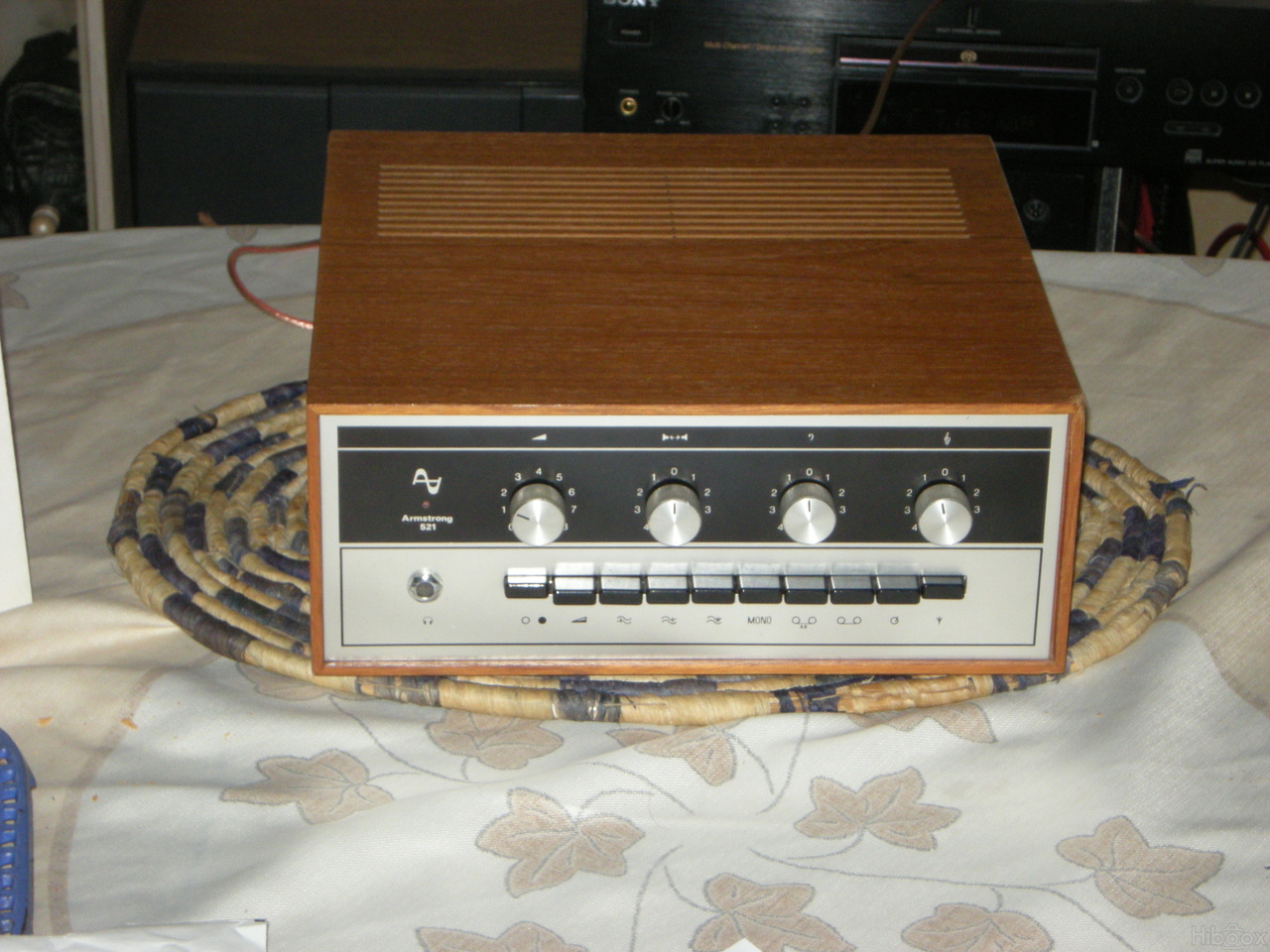

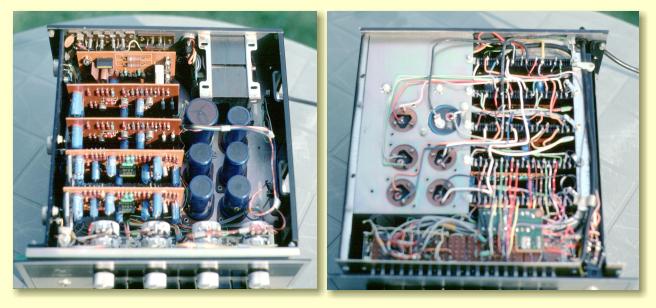

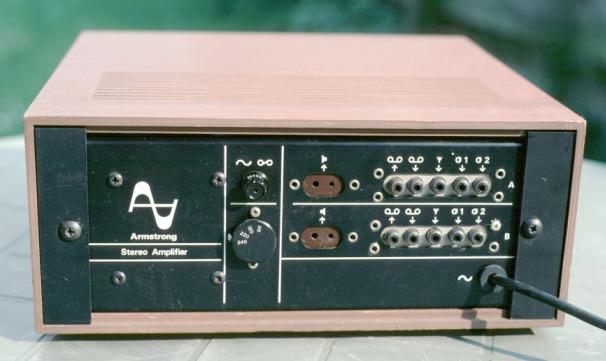

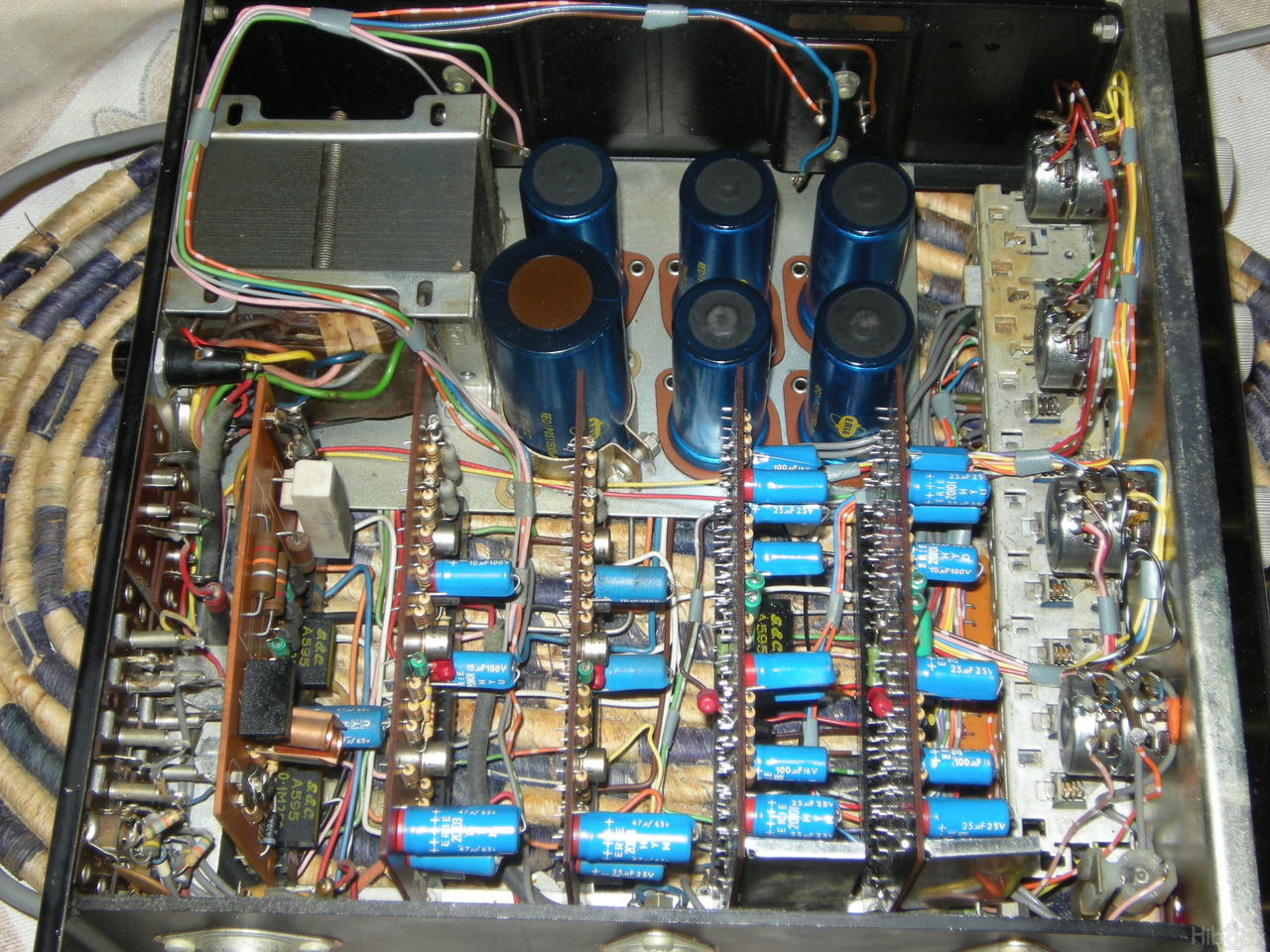

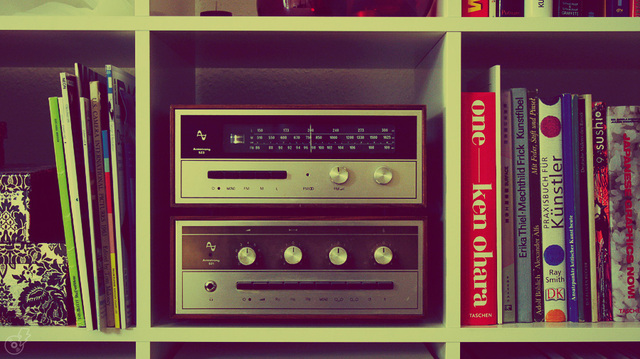

Amstrong 521 Integrated Amp equipped with OC26 or AL103
I don't find schematics. Here some URLs:
The Armstrong 500 Series - page 2
HI-Fi (sroll down to OC26-AL103)
The Armstrong 500 Series - page 3
AUDIOKLASSIKS | HIFI VINTAGE OF THE 60's & 70's
Audio Vintage Le forum - Afficher le sujet - ARMSTRONG 521
I don't find schematics. Here some URLs:
The Armstrong 500 Series - page 2
HI-Fi (sroll down to OC26-AL103)
The Armstrong 500 Series - page 3
AUDIOKLASSIKS | HIFI VINTAGE OF THE 60's & 70's
Audio Vintage Le forum - Afficher le sujet - ARMSTRONG 521
Attachments
Last edited:

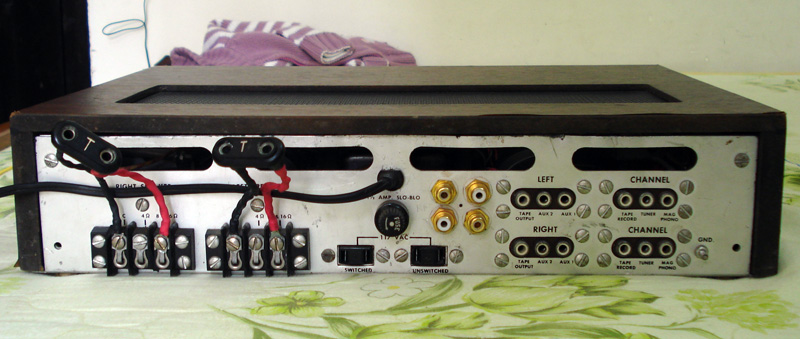

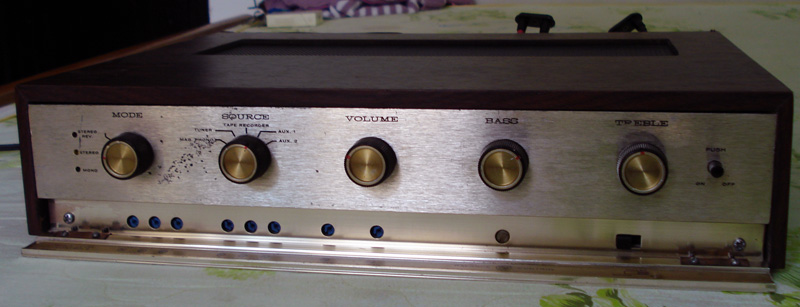

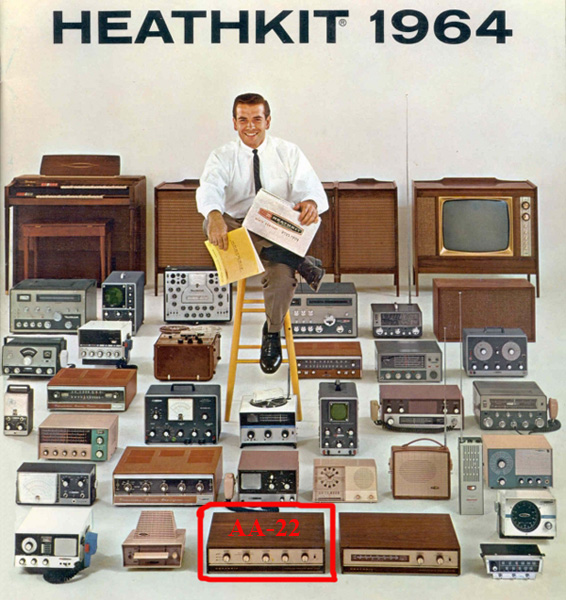

Heathkit AA-22 (AA-22E) Stereo Amplifier equipped with 2N2147
The AA22E and A22 uses OTL output but transformer for driving and phase shifting for the lower half. Exact description and schematic you will find about the German magazine "Funkschau", edition 18/1965, page 499-502 (1465-1468) and the follow URLs:
AA-22E (AA22E) Radio Heathkit (Brand)
Heathkit Educational Systems
Heathkit Circuits
Heathkit Manuals from Vintage Manuals, Inc.
Heathkit Schematic Diagram Archive
HEATHKIT intergrated Amp model AA-22 - AVForums.com
Needs help about information of HEATHKIT intergrated Amp model AA-22 - AudioKarma.org Home Audio Stereo Discussion Forums
Radio Attic's Archives - Heathkit AA-22
Ramblings of a Long Retired Hi-Fi Retailer (stevesstuffproject)
The AA22E and A22 uses OTL output but transformer for driving and phase shifting for the lower half. Exact description and schematic you will find about the German magazine "Funkschau", edition 18/1965, page 499-502 (1465-1468) and the follow URLs:
AA-22E (AA22E) Radio Heathkit (Brand)
Heathkit Educational Systems
Heathkit Circuits
Heathkit Manuals from Vintage Manuals, Inc.
Heathkit Schematic Diagram Archive
HEATHKIT intergrated Amp model AA-22 - AVForums.com
Needs help about information of HEATHKIT intergrated Amp model AA-22 - AudioKarma.org Home Audio Stereo Discussion Forums
Radio Attic's Archives - Heathkit AA-22
Ramblings of a Long Retired Hi-Fi Retailer (stevesstuffproject)
Attachments
Last edited:

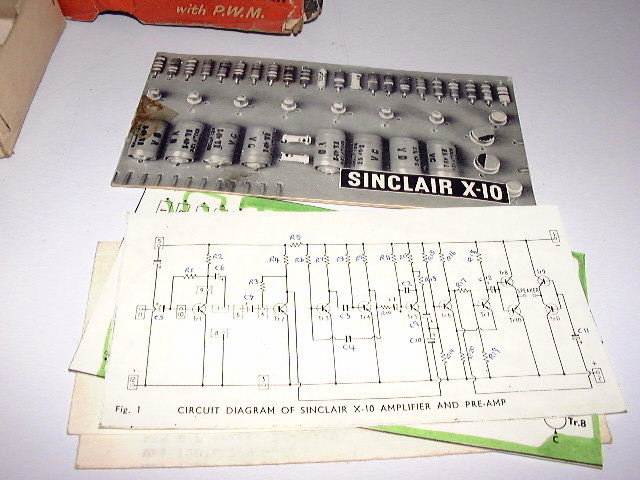

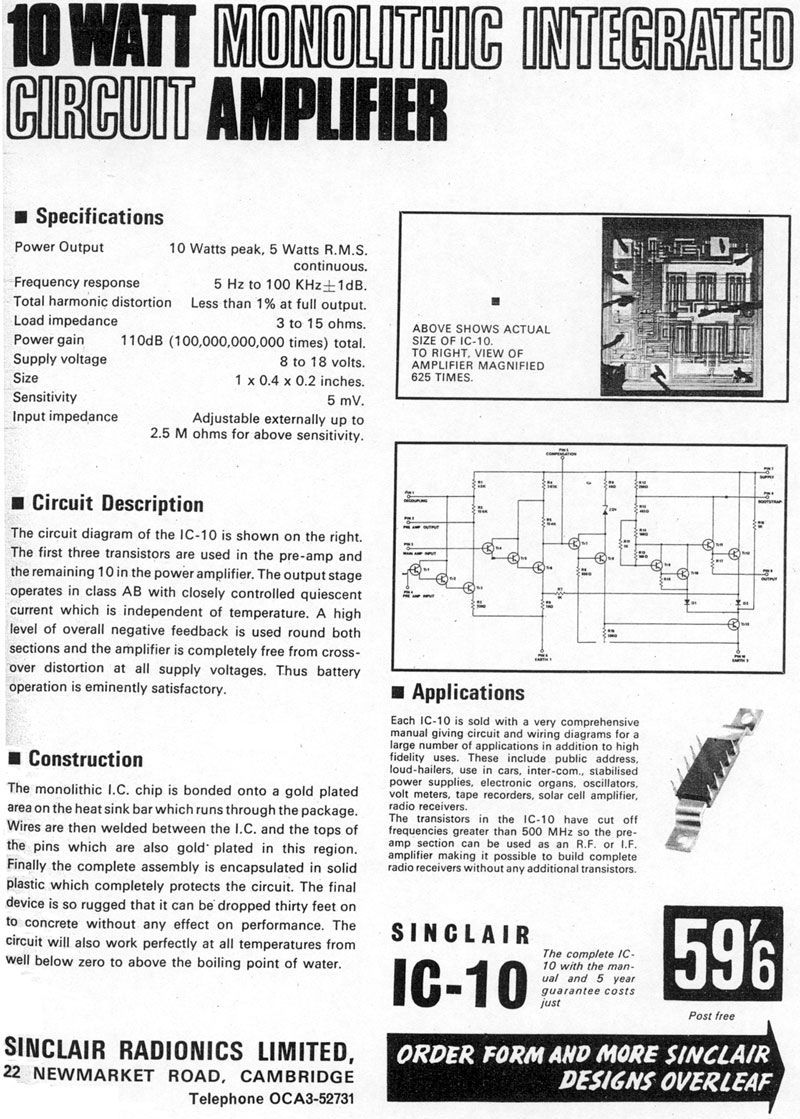

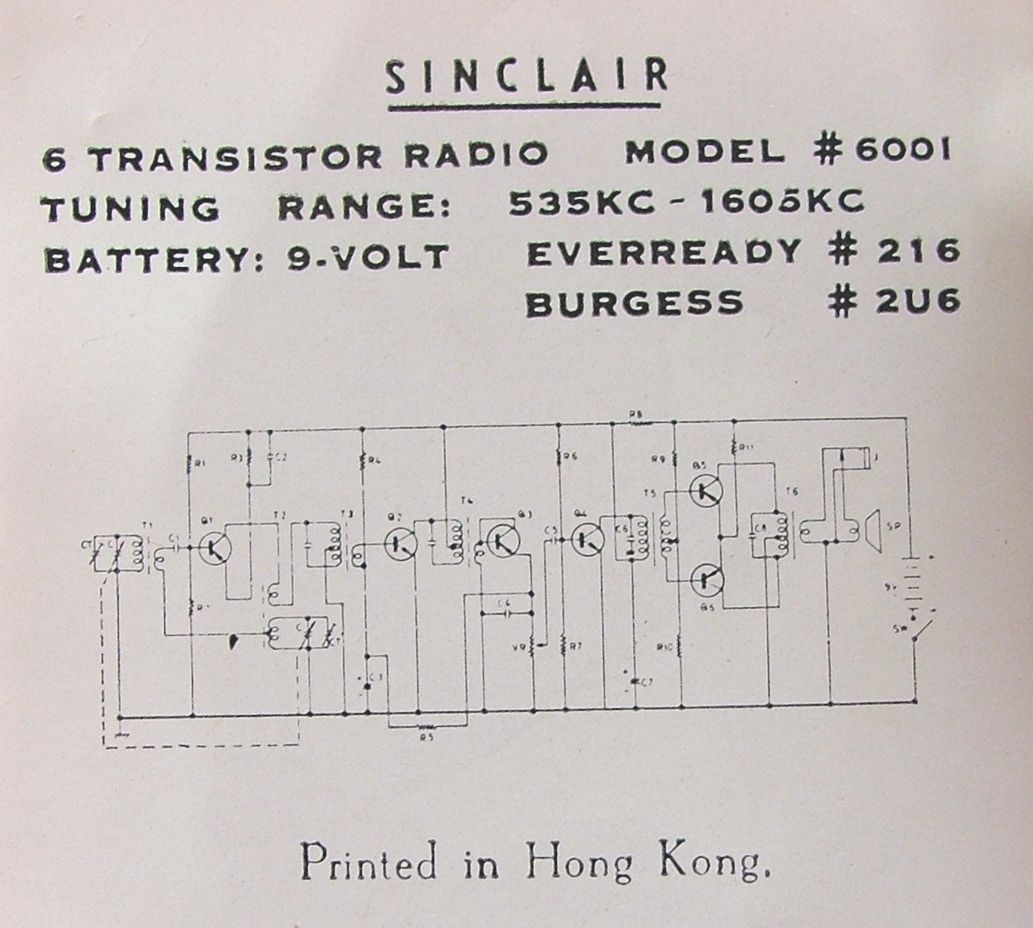

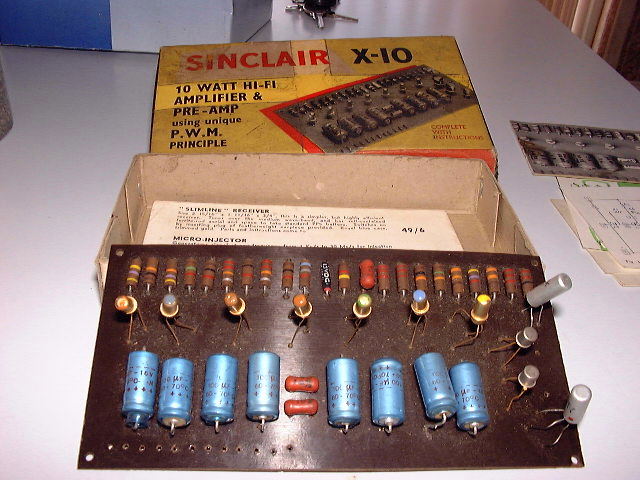

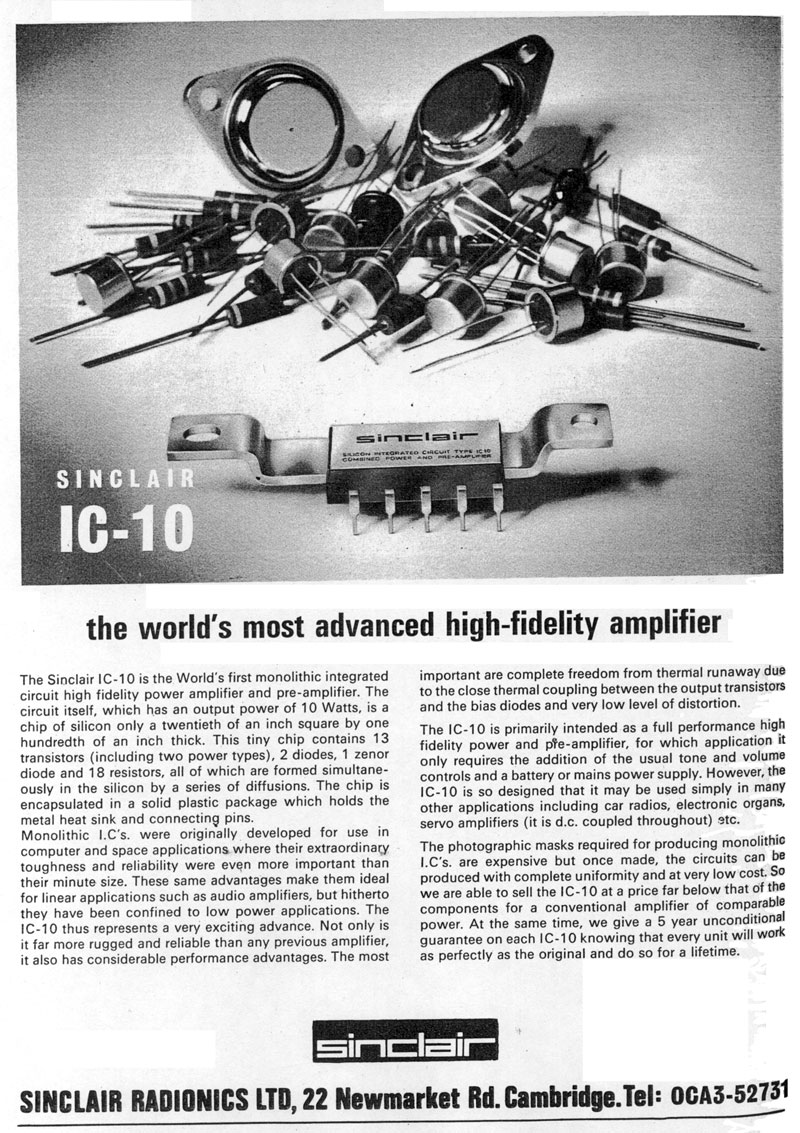

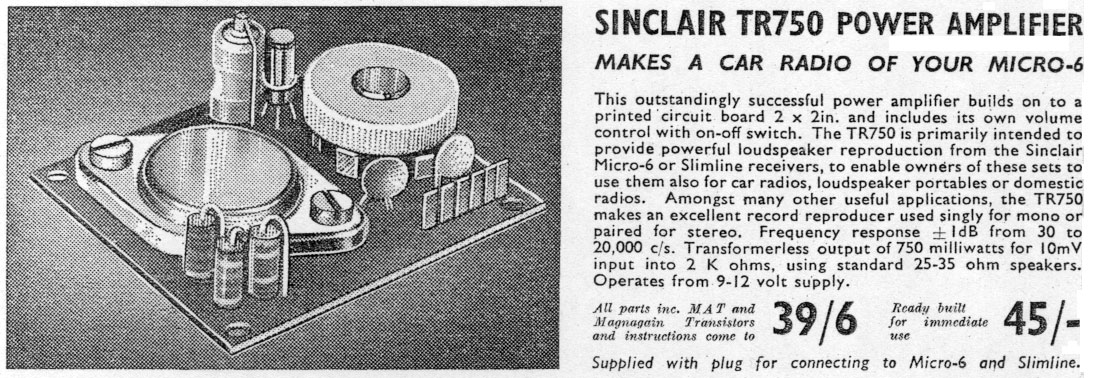

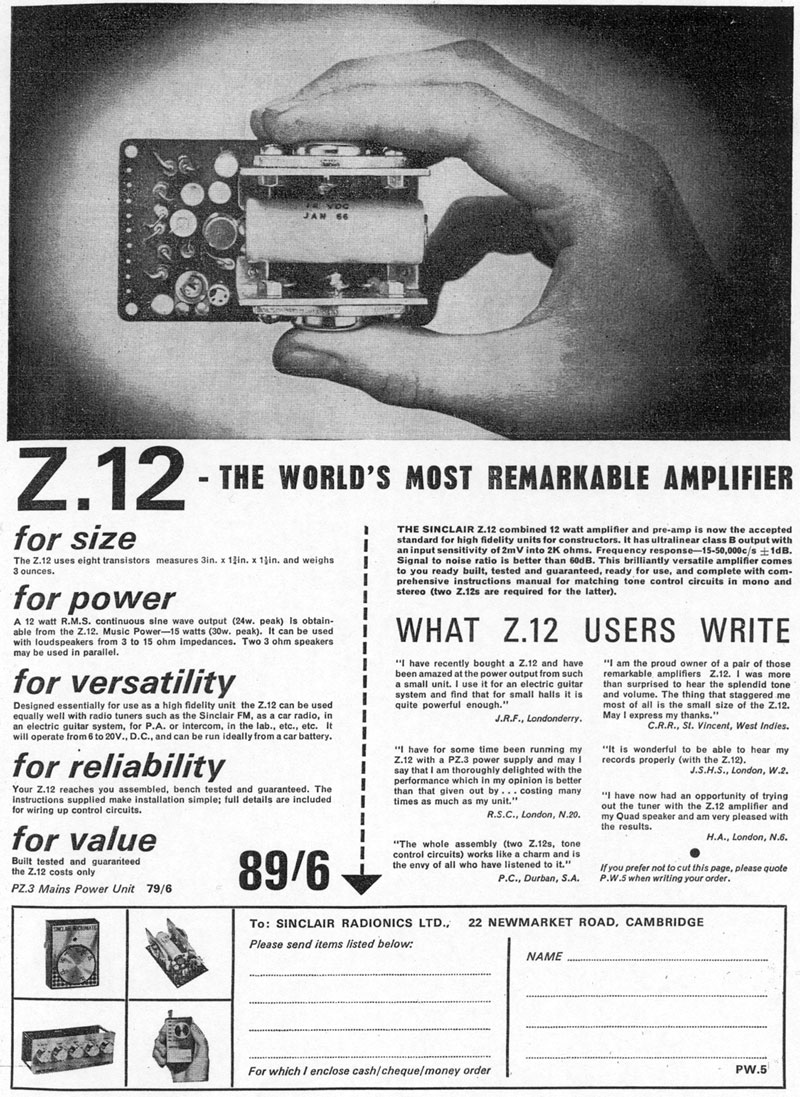

Sinclair X10, Z12, TR750, IC10 (IC-10) and 6001
Sinclair's first solid state power amplifier:
Ramblings of a Long Retired Hi-Fi Retailer (stevesstuffproject)
Planet Sinclair: Audio: Amplifiers
Planet Sinclair: Sinclair: Chronology, 1960s
Amplificador HiFi 20w rms +-20v con transistores - Página 7 - Foros de Electrónica
Amplificador HiFi 20w rms +-20v con transistores - Página 7 - Foros de Electrónica
Planet Sinclair: Audio

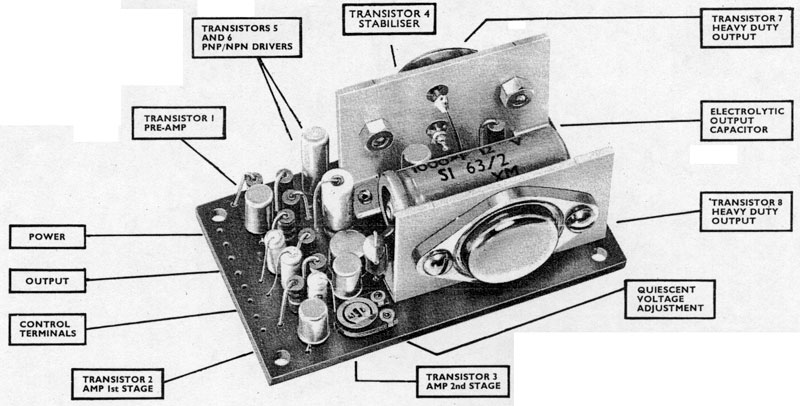

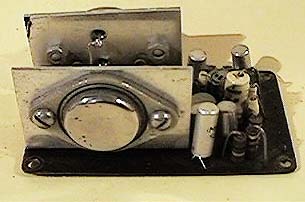

Which type was the TO-3 power devices from Z-12 ??
Sinclair's first solid state power amplifier:
Ramblings of a Long Retired Hi-Fi Retailer (stevesstuffproject)
Planet Sinclair: Audio: Amplifiers
Planet Sinclair: Sinclair: Chronology, 1960s
Amplificador HiFi 20w rms +-20v con transistores - Página 7 - Foros de Electrónica
Amplificador HiFi 20w rms +-20v con transistores - Página 7 - Foros de Electrónica
Planet Sinclair: Audio
Which type was the TO-3 power devices from Z-12 ??
Attachments
Grundig SV-80M/SV-80 Integrated Amp Supplement post #16
In the output stage of later versions are the 2N2148 or the AD166 in the transformer less output stage for higher reliability
here a additional URL:
http://drm-berlin.de/ausstellung-radiogeraete-3-10700.html
Exact documentation and schematic you will find on page 111-115 about the German magazine "Funkschau" number 4 from the year 1965
In the output stage of later versions are the 2N2148 or the AD166 in the transformer less output stage for higher reliability
here a additional URL:
http://drm-berlin.de/ausstellung-radiogeraete-3-10700.html
Exact documentation and schematic you will find on page 111-115 about the German magazine "Funkschau" number 4 from the year 1965
Attachments
Last edited:

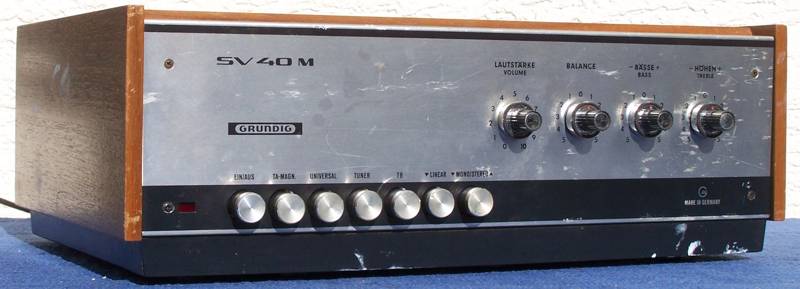

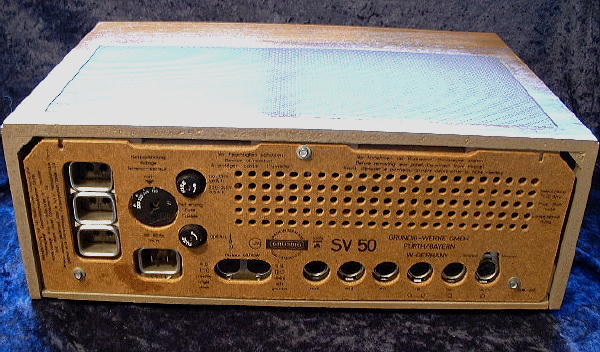

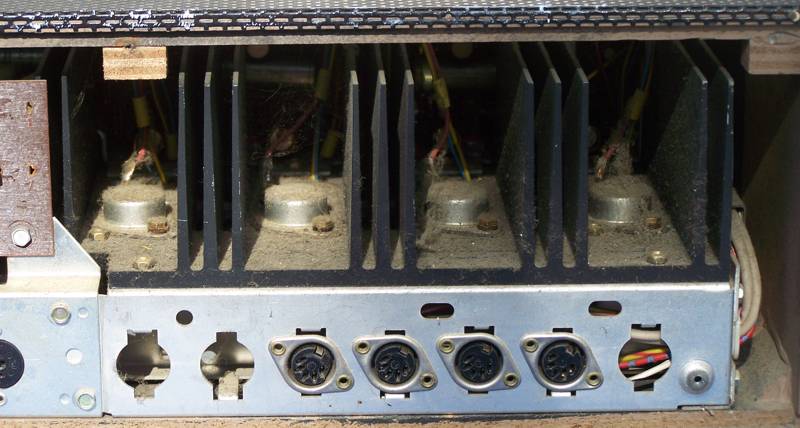

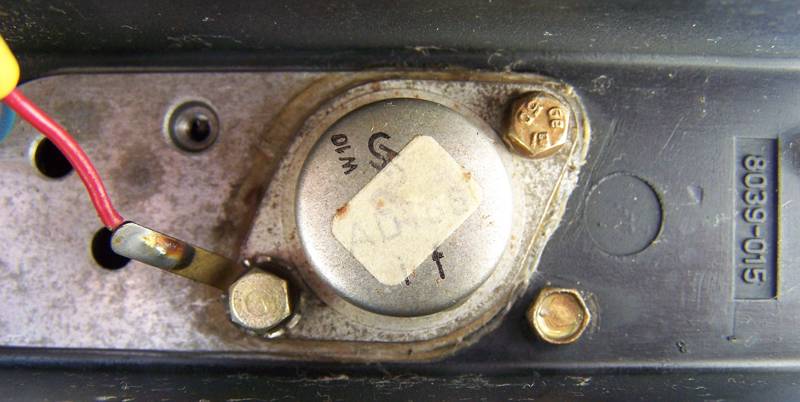

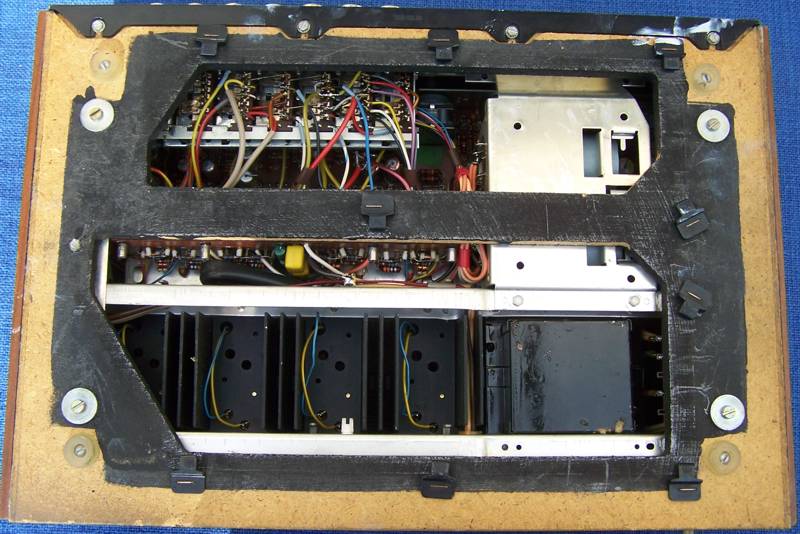

Grundig SV40 and SV50 Integrated Amplifier

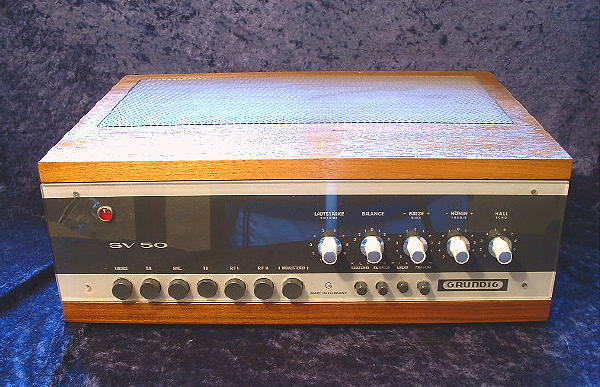

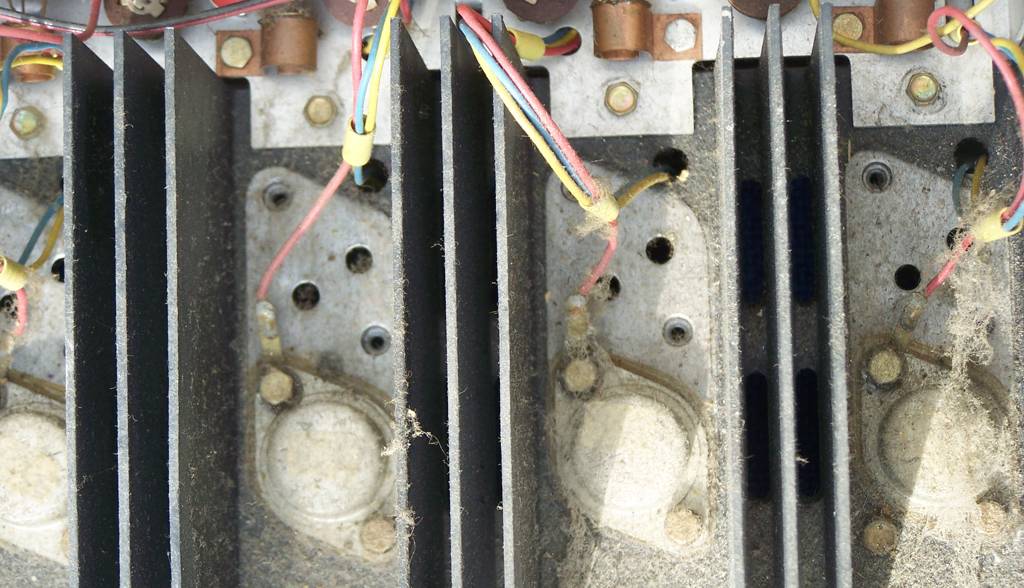

The SV-40M (launched 1965) is equipped with AD166 and the SV-50 (first German's All-Transistor integrated amp launched 1963) equipped with OTL power stage AD-131, driving by transformer for phase shifting.
hifimuseum.de - Sie sind im Bereich : Grundig SV40M
The "SV 50" was tested in the German's Magazine "Funkschau" number 4/1965, page 95-98 include schematic diagram
The SV-40M (launched 1965) is equipped with AD166 and the SV-50 (first German's All-Transistor integrated amp launched 1963) equipped with OTL power stage AD-131, driving by transformer for phase shifting.
hifimuseum.de - Sie sind im Bereich : Grundig SV40M
The "SV 50" was tested in the German's Magazine "Funkschau" number 4/1965, page 95-98 include schematic diagram
Attachments
Last edited:
Attachments
Last edited:
