XXV Sampson power up issues

[Perry Babin]

If you're looking at the PS drive waveform, you need to be on 10us, not ms.



[beatnbronco]

let's try that again, with the amp powered on...lol



[beatnbronco]

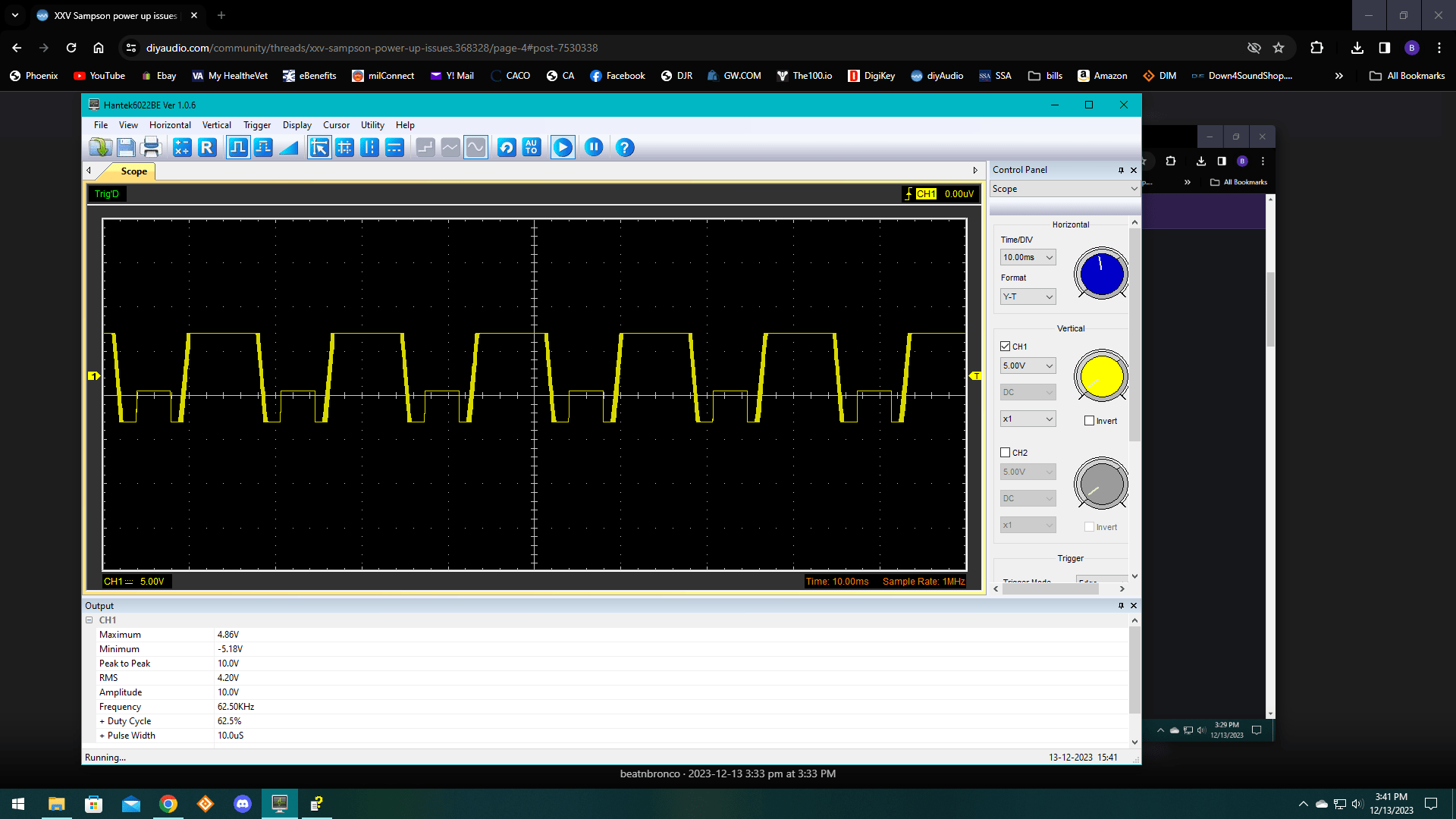

this is connected to the amp pos and neg input terminals



[Perry Babin]

I can make no sense of what this is. What does the scope show with the ground connected to the tip of the probe?



[beatnbronco]

on 10us is difficult to catch it, it's bouncing from flat to a dome type waveform



[beatnbronco]

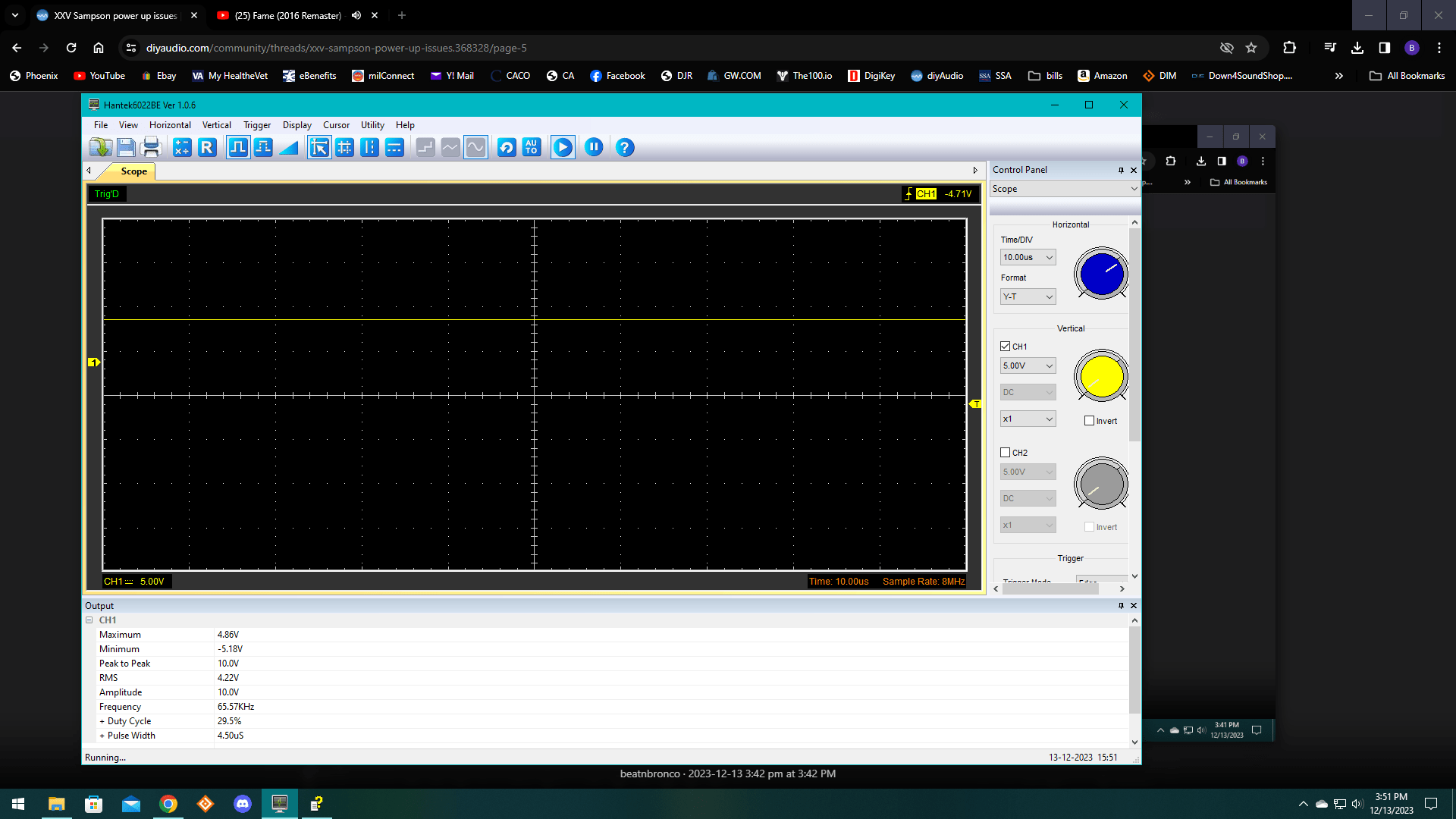

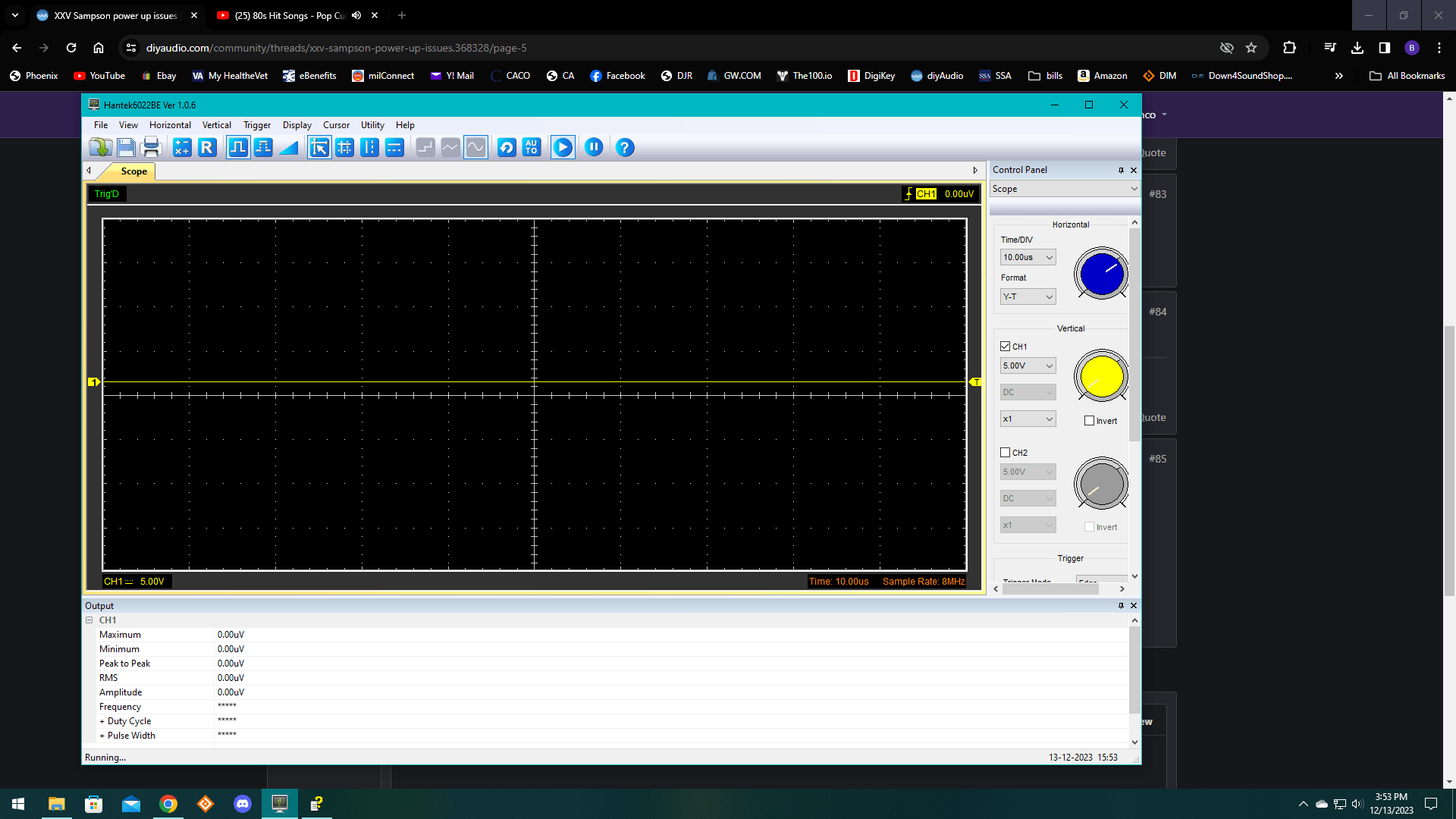

probe tip to probe ground



[Perry Babin]

Do you have a battery that you could test the scope on?



[beatnbronco]

what voltage? 12v, 9v



[beatnbronco]

i have a small 12v battery you use for a home alarm system. I believe it needs to be charged though



[Perry Babin]

It can be any voltage. I don't know what's causing the odd waveform you were getting. The battery will take the supply out of the equation.



[beatnbronco]

i've got a 9v battery from my other DMM, things are so crazy around here.



[Perry Babin]

Connect the scope across the battery and post what you get on your scope.



[beatnbronco]

brand new 9v battery



[Perry Babin]

What does that battery read with a multimeter?



[beatnbronco]

9.57v



[Perry Babin]

If your scope has a 'cal' or 'var' control, set it to cal. Repost the display.



[beatnbronco]

just curious but does it matter or not if the rail transistors are in play? during the testing of the power supply section that is, not the 9v battery..lol



[Perry Babin]

I'm not sure what you're asking regarding output (rail?) transistors.

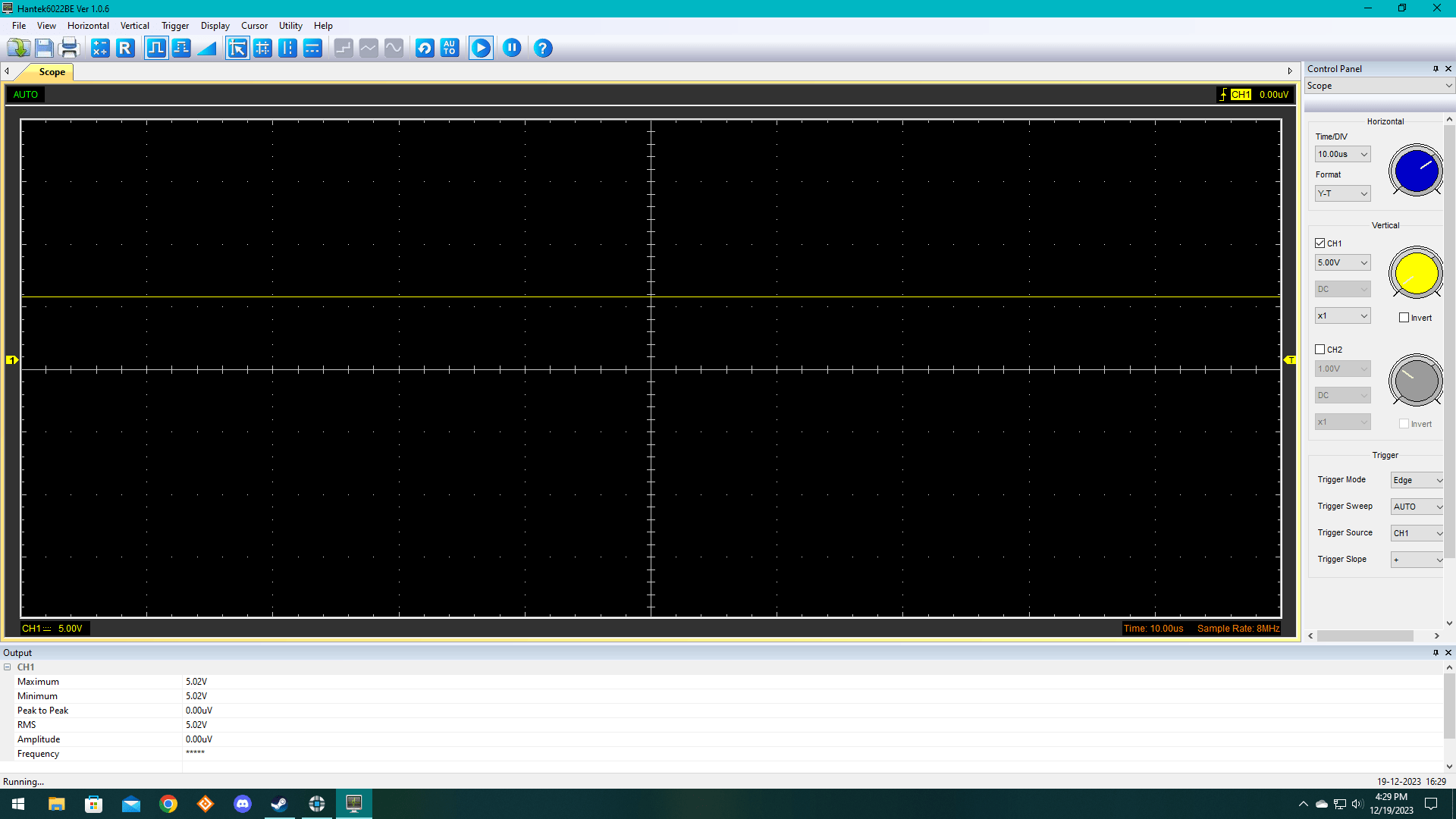

You must determine why your scope is reading 9.5+v as 5.02v.



[beatnbronco]

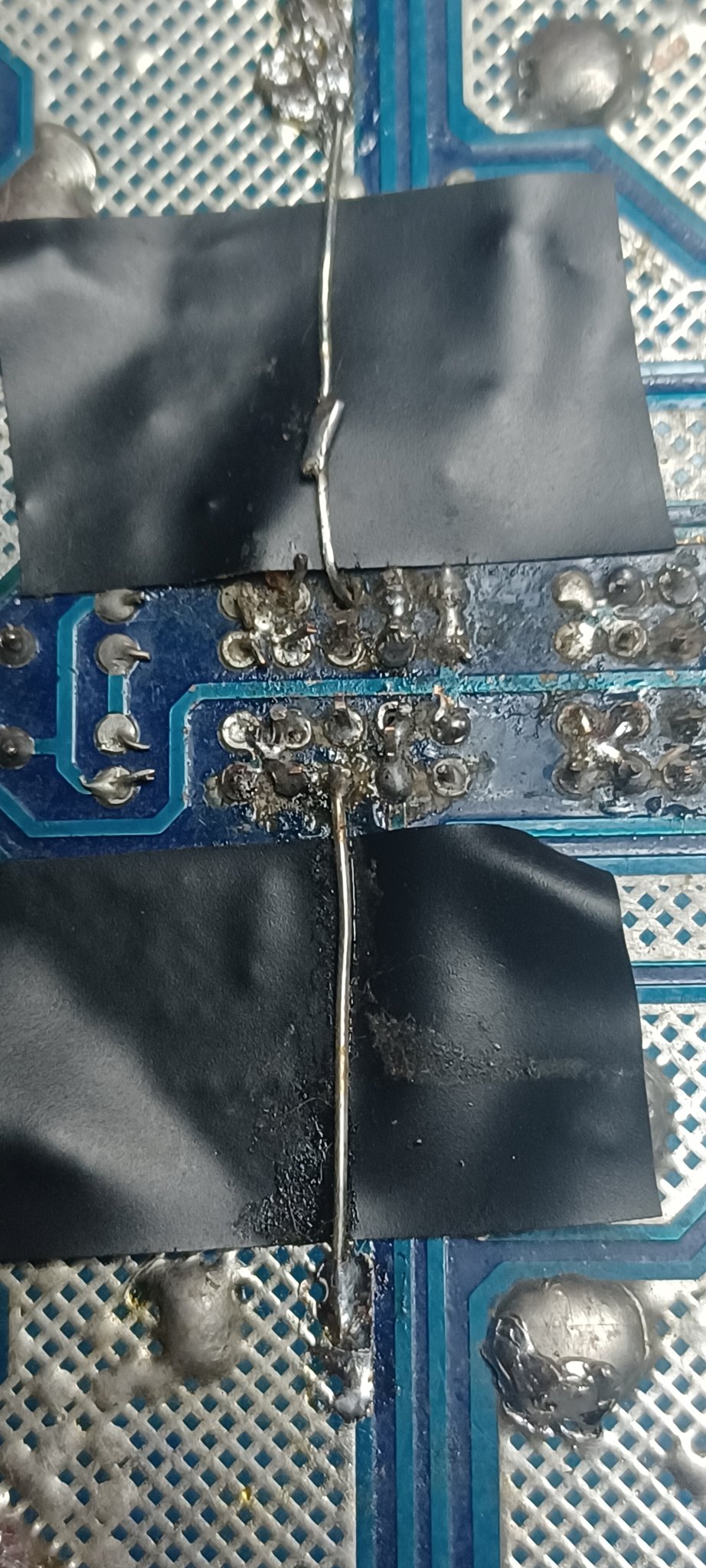

the output relays are clicking and I'm getting voltage to the power supply fet pads. How does this pass for jumpers on the input drivers? Or should I use kapton tape under the jumpers? I'm not sure on the insulation.



[Perry Babin]

Input? Are you referring to the power supply driver transistors?

Input typically means audio input.
