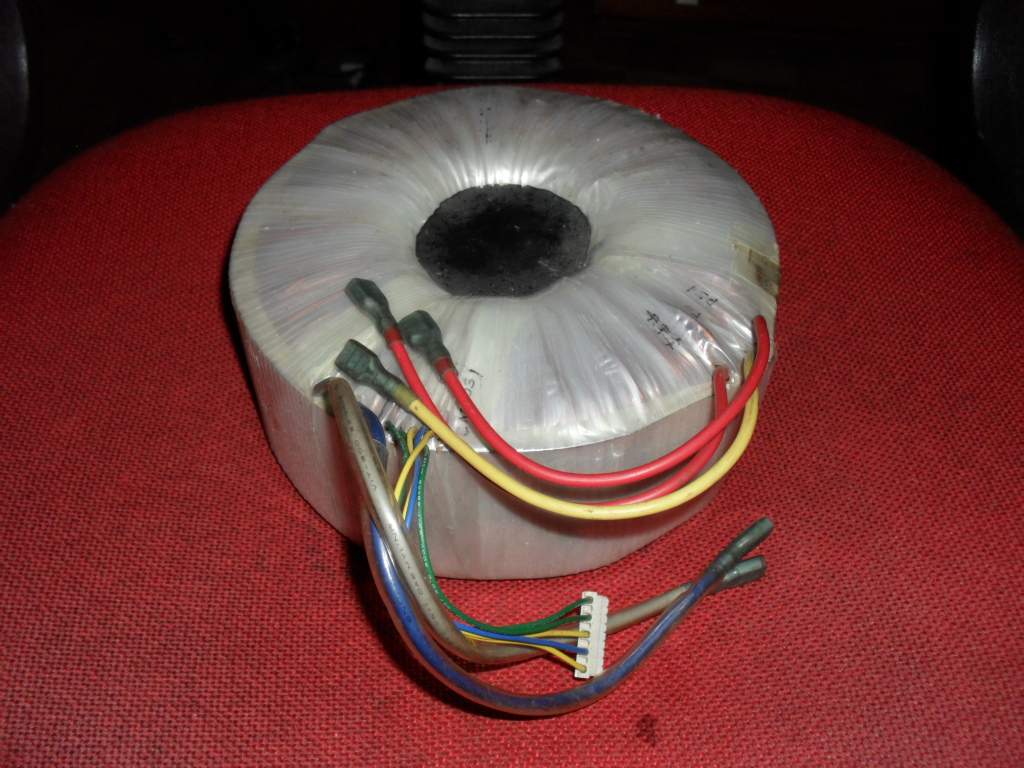

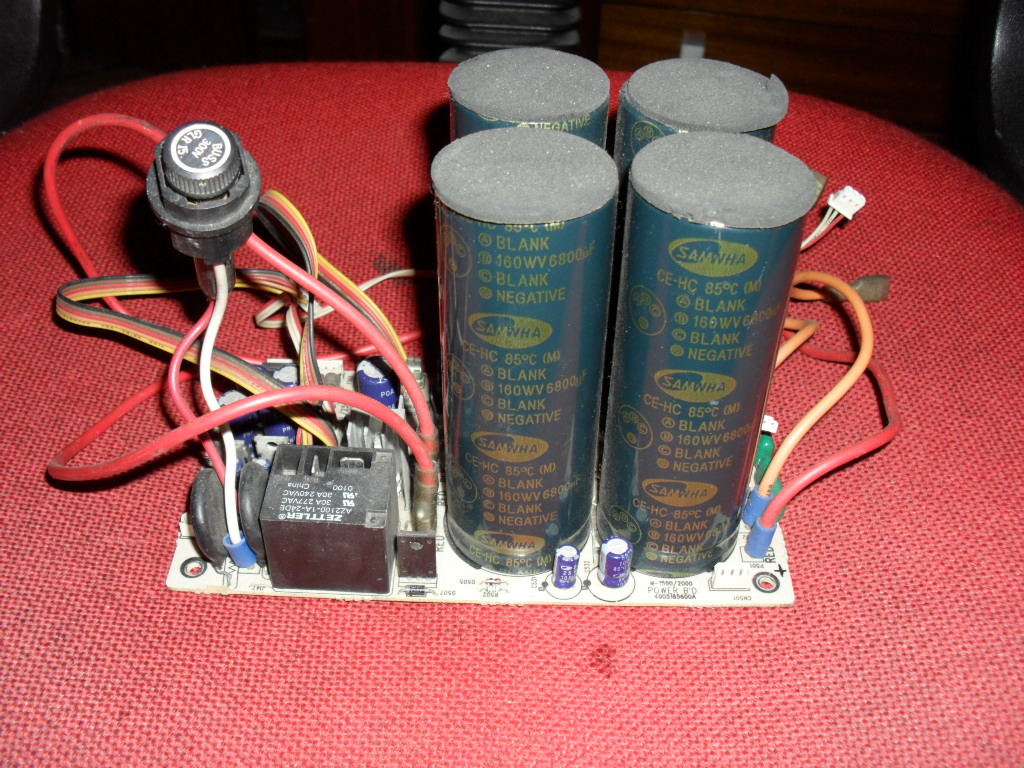

P { margin-bottom: 0.21cm; } [FONT=Verdana, sans-serif]I Mister Mile, I Have a power suply from an old Inter M amplifier CM20.5, this unit give +135 VDC / -135 VDC. Can I do the Apex B2000 ? If I can, tel me please the volts of blue, red and green condensers. Thanks in advance.[/FONT]


[FONT=Verdana, sans-serif]Pozdrav[/FONT]



[kandimba]

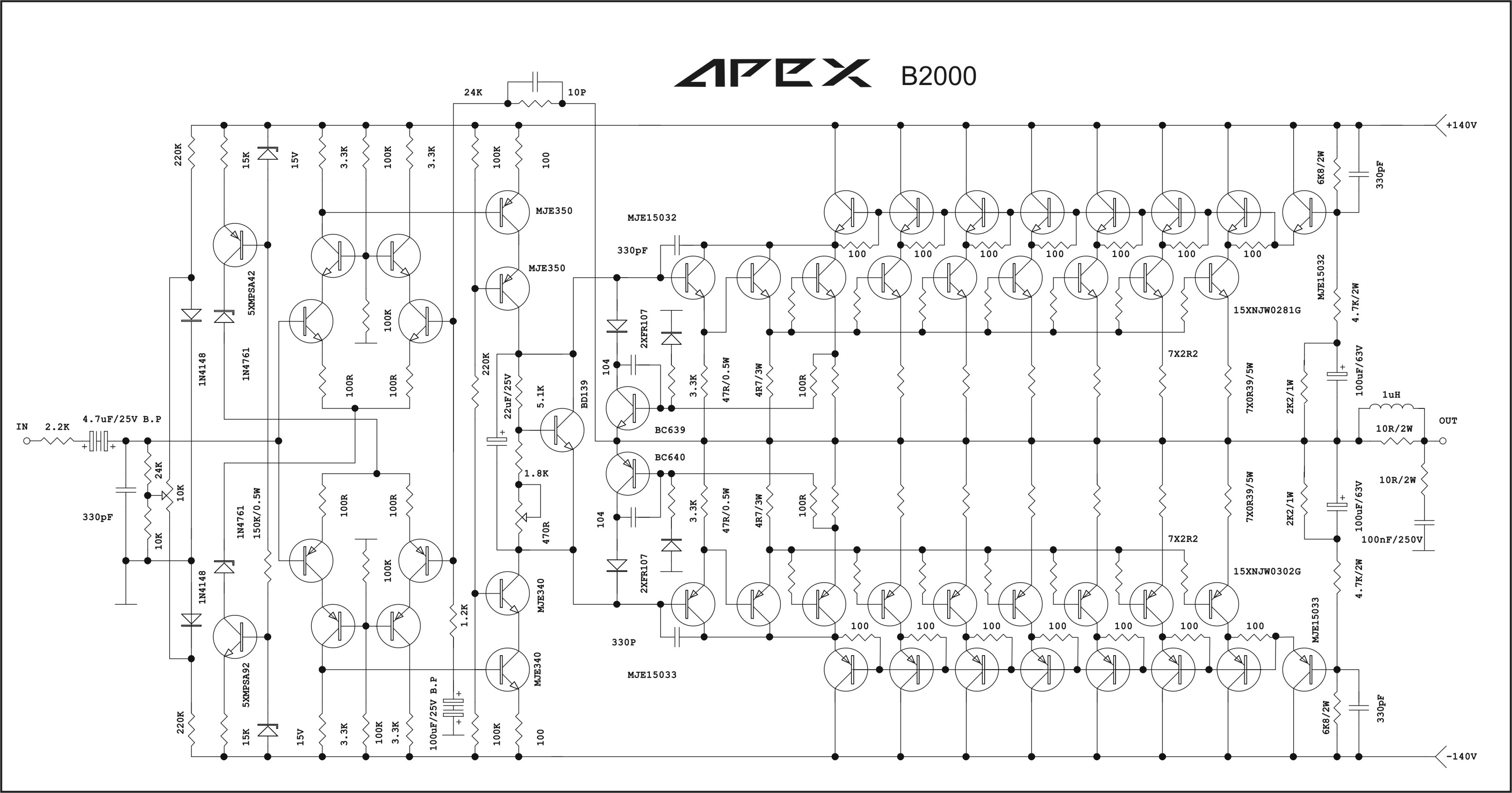

Escuse me, I forgot the electronic diagram

Regards



[apexaudio]

Escuse me, I forgot the electronic diagram

Regards



[kandimba]

Thanks for your reply Regards



[masood]

dearsir
in.my/area/4.7micro.bi.polar.cap.is.not.available.which..type,of.other.cap.i.can.use
thanks



[sajti]

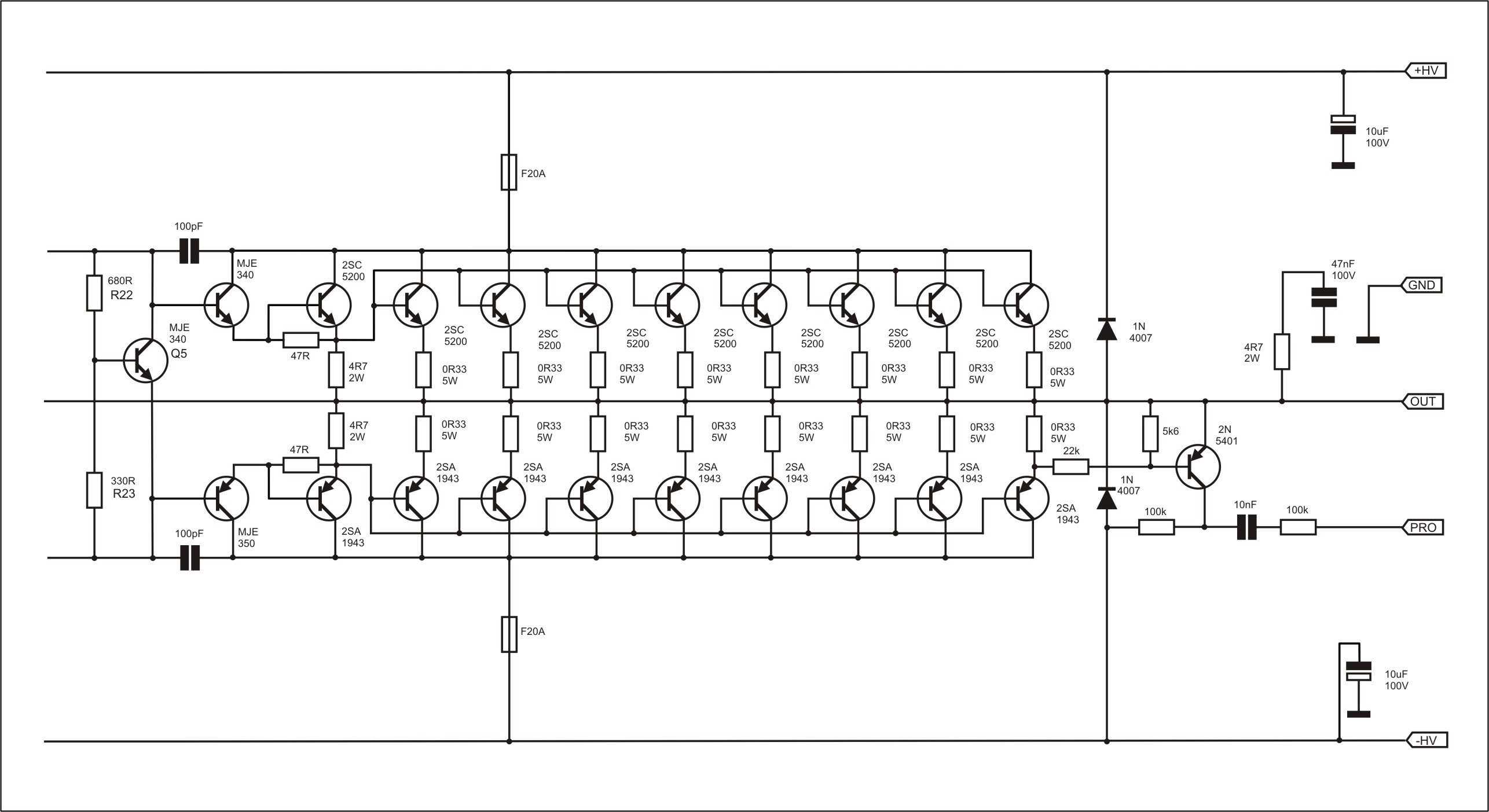

This is just idea,
Regards

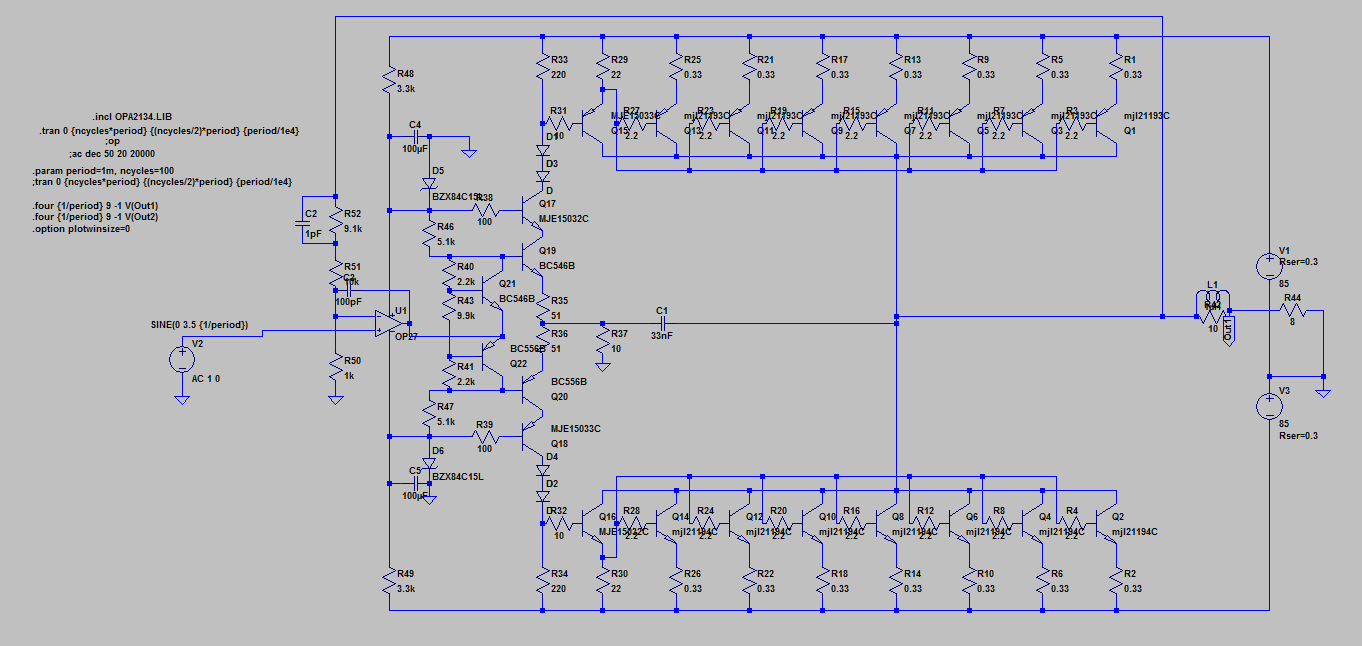

B700 simulation was succesfully done. I will work with some fine tuning...

Sajti



[John Cory]

B700 simulation was succesfully done. I will work with some fine tuning...

Sajti

Any Idea what the projected supply rails will be?



[sajti]

Any Idea what the projected supply rails will be?

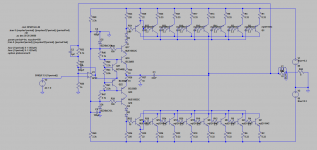

The simulation was done with +/-85V. I think this is the maximum safe voltage with 100V psu capacitors. The simulation gives about 1000-1100W/2ohms.

Sajti



[John Cory]

Any way that it can be run off +/- 96v rails. I only need a minimum 4Ohm load? I already have the PSU from an old amp. are there PCB's / PCB designs available?



[sajti]

Any way that it can be run off +/- 96v rails. I only need a minimum 4Ohm load? I already have the PSU from an old amp. are there PCB's / PCB designs available?

You can try it, of course, but I would not recommend.

Sajti



[totski]

ba1200 xlr input

good day mr. mile, can BA1200 xlr input be use in b500? if can, any changes?



[apexaudio]

good day mr. mile, can BA1200 xlr input be use in b500? if can, any changes?

Yes it can be use without any changes.



[totski]

Yes it can be use without any changes.

thanks, mr mile.



[xplod03]

Good day,,newbie here..
Sir apex, what specs of psu and no of pairs of trannis to be use to produce a 500 watts. I backread but im confused...i like to build your amp..TIA.



[Jonsen]

apex 500tef

hi apex sir,can b500 tef with 8 pairs face 2 ohm load with +-85v dc.i need 2 ohm amp and how much watte. please suggest me



[apexaudio]

hi apex sir,can b500 tef with 8 pairs face 2 ohm load with +-85v dc.i need 2 ohm amp and how much watte. please suggest me

About 1000W/2R with 8 pairs.



[xplod03]

Good day to all,,can anybody tell me were to connect the a and b in the input side of the b500 circuit? Thank you very much.



[totski]

Good day to all,,can anybody tell me were to connect the a and b in the input side of the b500 circuit? Thank you very much.[/QUOTE

when you plan to bridge the power amp then use the a and b, there is schematic for bridging power amp read to understand from the start of this thread.



[Foreground]

Hello sir , I build b500 with psu7 56V AC but noise from fan. I use another psu -24Vdc no noise

. Thanks Apex.



[desertstorm]

ONCE AGAIN THANKS TO SIR APEX AND SIR WILLY MY B500 TEF... GREAT SOUND ...

B500 tef 8 pairs

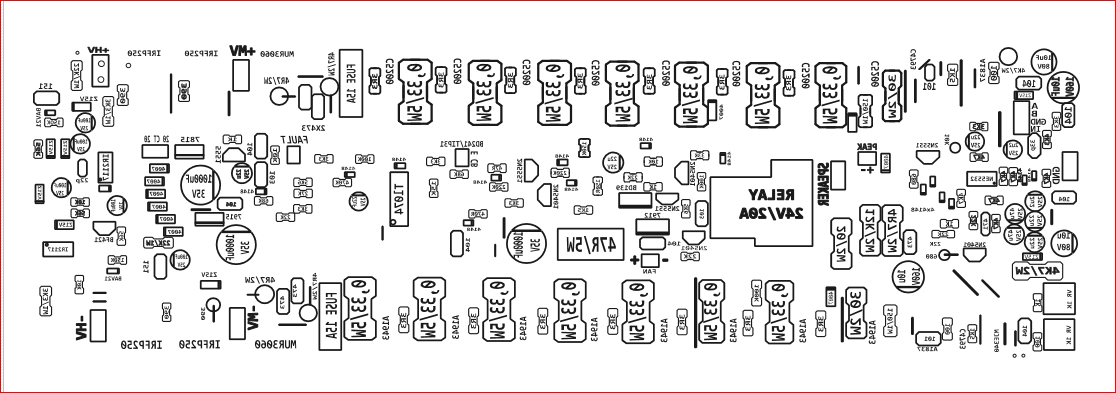

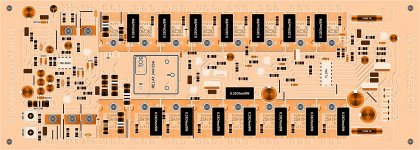

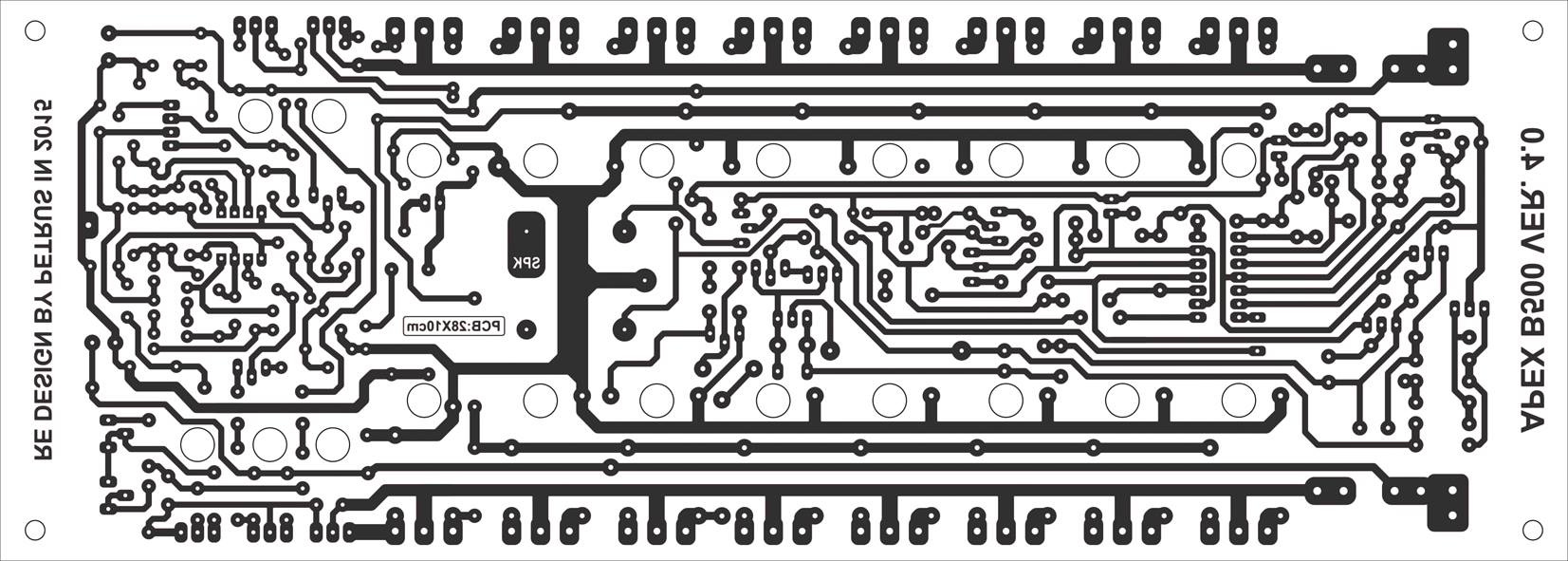

Sir mile iwant to build B500 TEF 8 PAIRS Sir this layout is ok sir? thank you so much sir Mile Advance merry x mas sir..
