Hello Mr. MILE, I have some questions:

NOTE ANY ERRORS IN THE DESIGN.
WATT RMS IN 8R AND 4R, WITH 300VA 50V-0-50V DC TRANSFORMER. WITH A PAIR OF 2SC2922/2SA1216 TRANSISTORS

I WOULD APPRECIATE IT MR. MILE

APEX AX-14



[vex]

Hello friends,

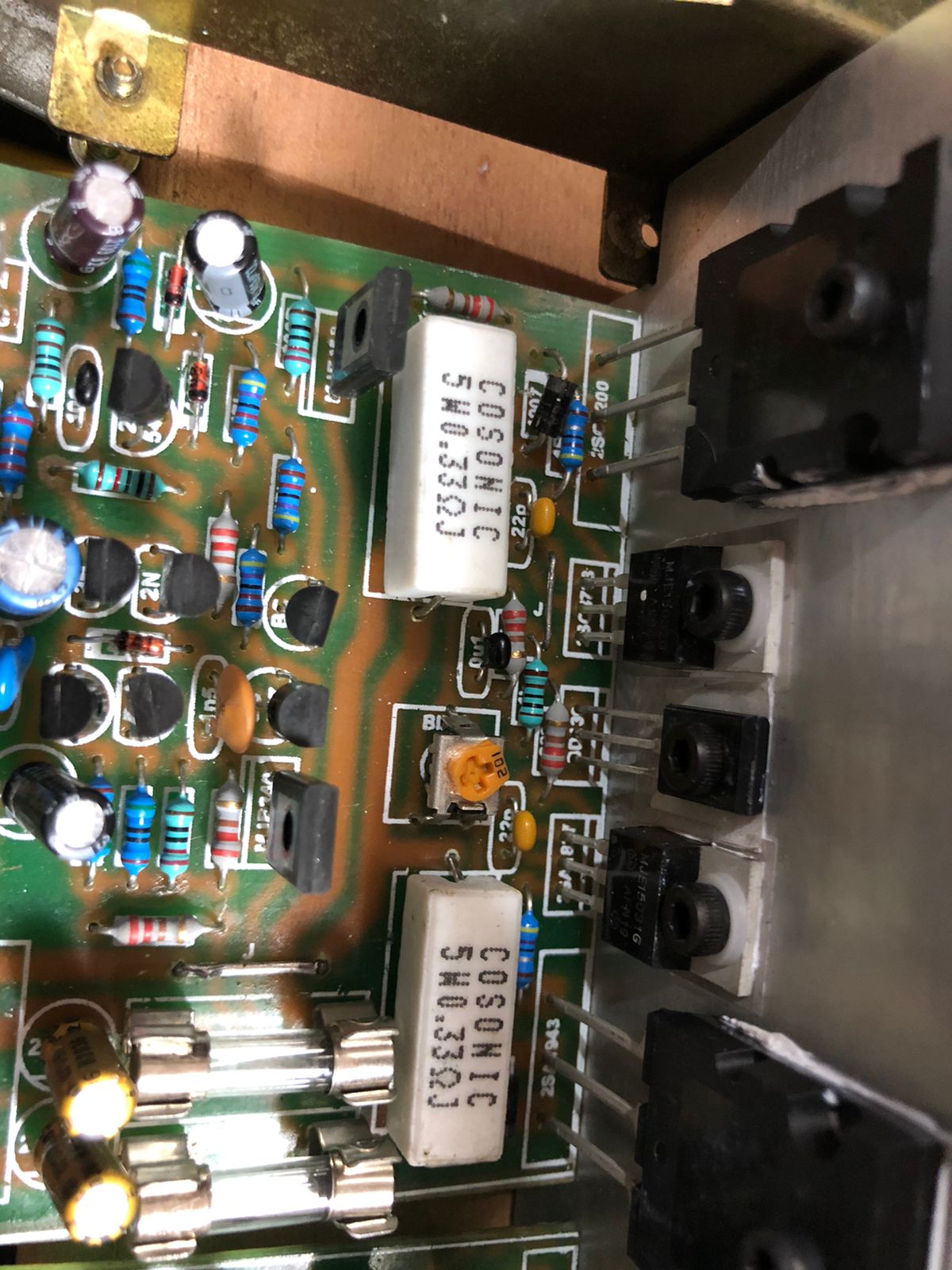

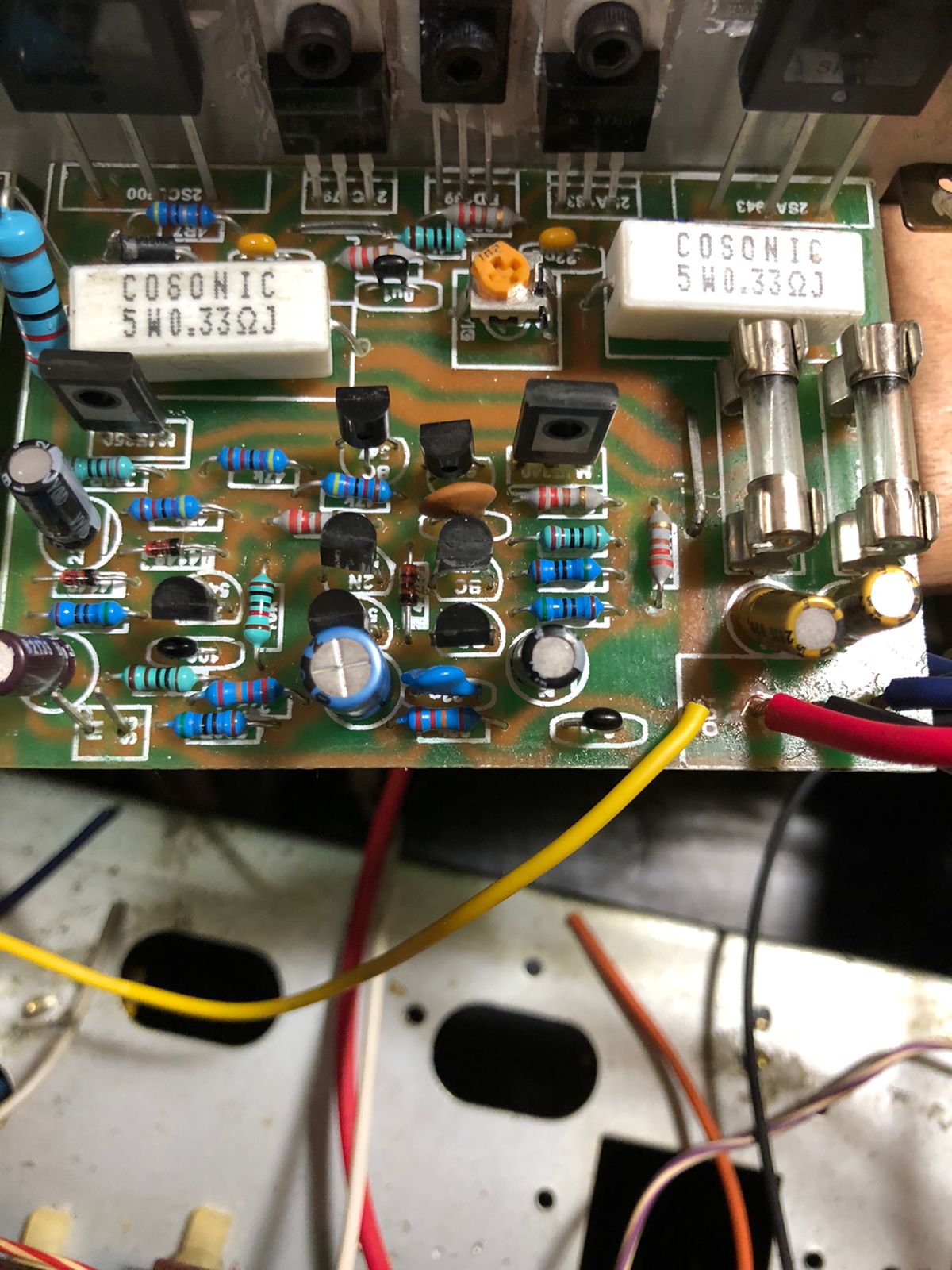

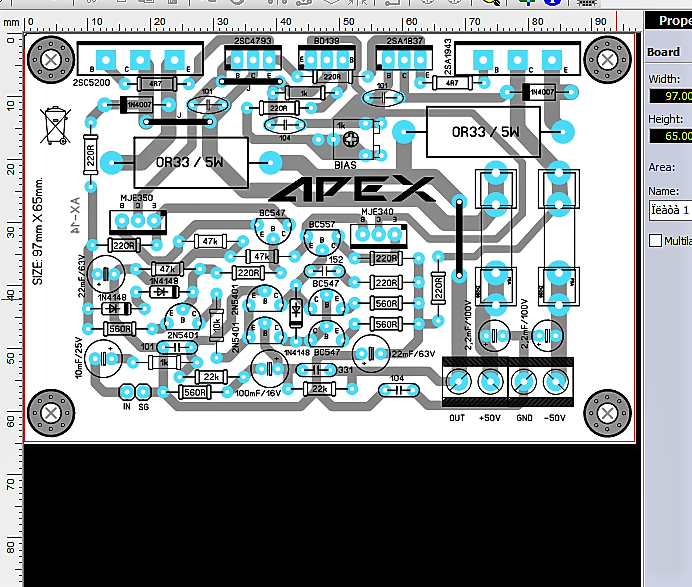

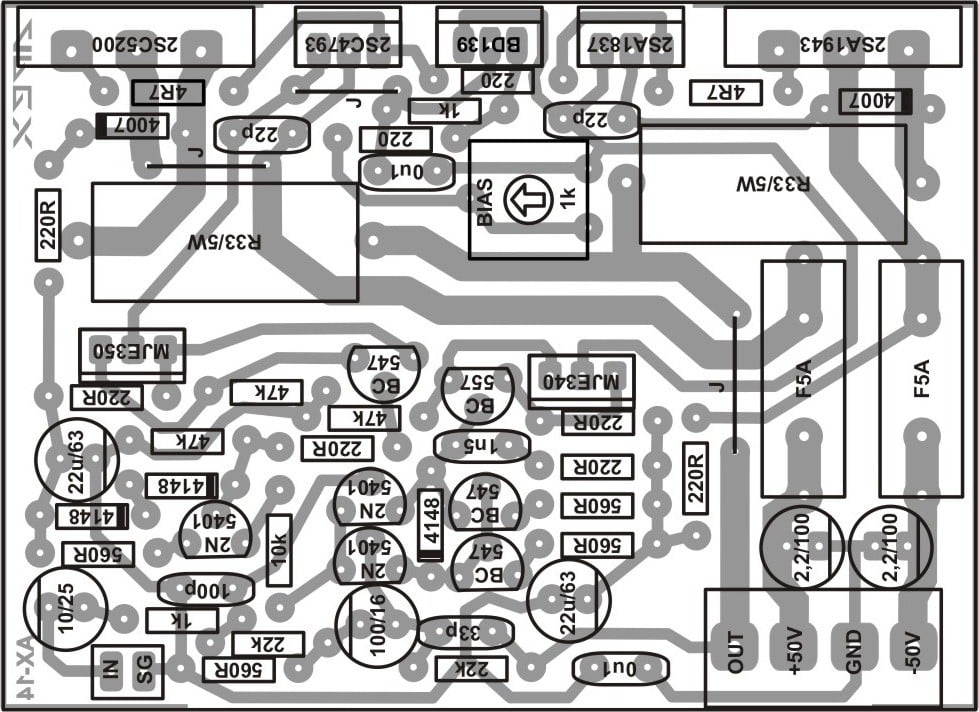

I have a problem, I put together the AX14 and I have DC current at the output. I attached a photo, please I need help, I already measured all the transistors and they are fine, I checked all the resistors and diodes, everything is fine, please I need help, I don't know what else to check.


Los transistores de salida mjl4281a mjl4302a
driver mje15032G y mje15033G

Greetings



[prasi]

Hello Vex,
pl check if you have connected input ground (SG in your layout) to psu ground.
use a separate wire from SG to make connection to psu ground.



[HRDSTL]

Hi everyone,
Very interesting thread even in 2022, I went through almost all of it 🙃

I want to ask about a replacement ksc1845. It would also be possible to use NTE electronic's type NTE2696 in this position?

Thank You!



[bullittstang]

Hi everyone,
Very interesting thread even in 2022, I went through almost all of it 🙃

I want to ask about a replacement ksc1845. It would also be possible to use NTE electronic's type NTE2696 in this position?

Thank You!

@HRDSTL I have quite a few ksc1845 and ksa992 if you want to PM me. I personally would not trust a NTE without comparing the datasheet very closely, the specs tend to be generic and not specific to the task like ksc1845 would be



[HRDSTL]

Gerber attached, Board have been tested....

Very nice, ...
Can you also provide a schematic?

https://www.diyaudio.com/community/...delity-amplifier.164093/page-634#post-6175562

THank You!



[Hicoco]

Sure, Attached last versions.
Version 3.1 with Schurter DD22 inlet in the right side and Version 4.1 with the Schurter DD22 inlet in the left side. just a Reminder this board DOESN'T HAVE SOFT START.

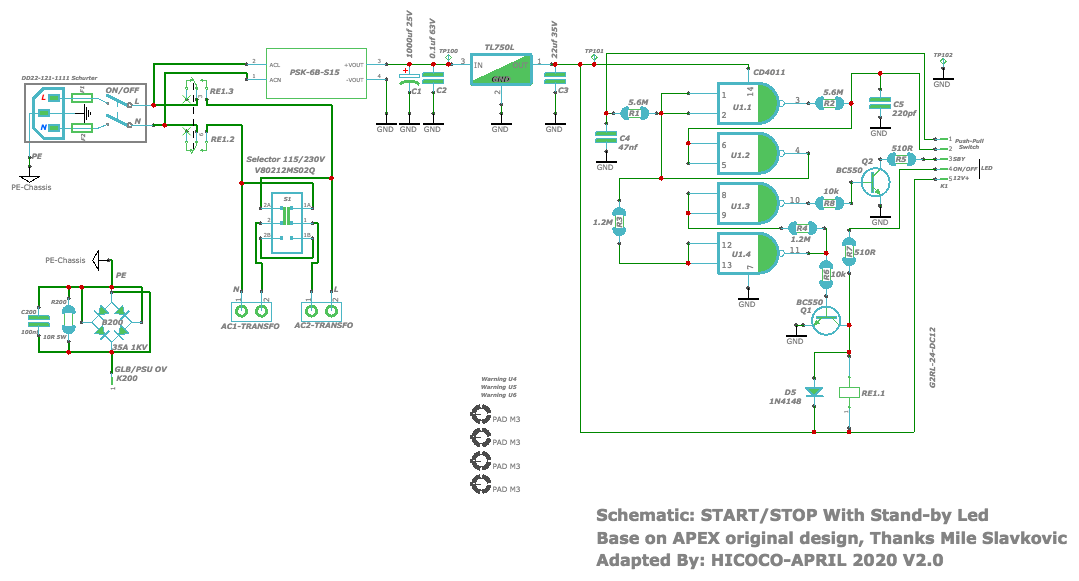

If You would like Soft Start You should choose this one low voltage On-Off switch drives AC mains relay \ includes soft start .. H9KPXG or this one conform to EU regulations i have an update that i can PM if you like



[vex]

Hi
Sorry for my ignorance, but I built the AX14, I love the beautiful sound, but I notice that it is a fairly flat amplifier, is there any way to make the low frequencies stand out more?



[HRDSTL]

Hello,
What copper thick would you recommend for the FH9-XRK MOD amplifier? I'll have it made in JLCPCB.

• 1OZ
• 2OZ

Thank You!



[HRDSTL]

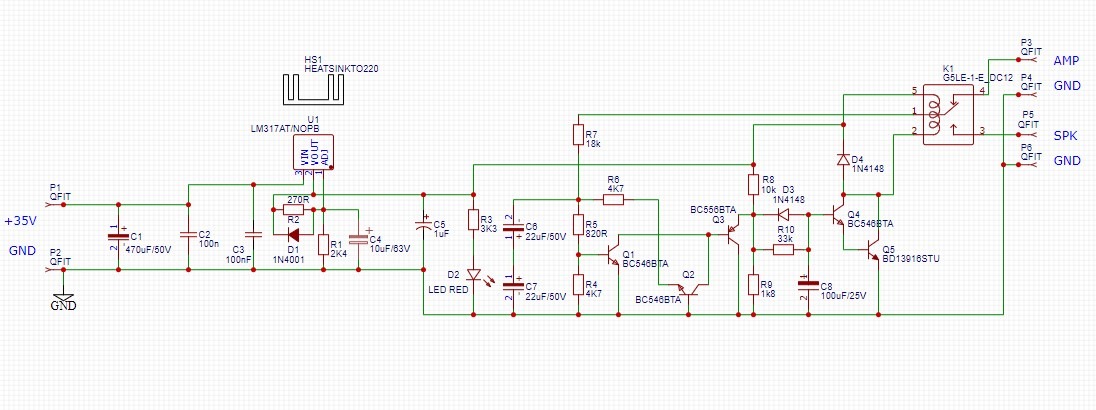

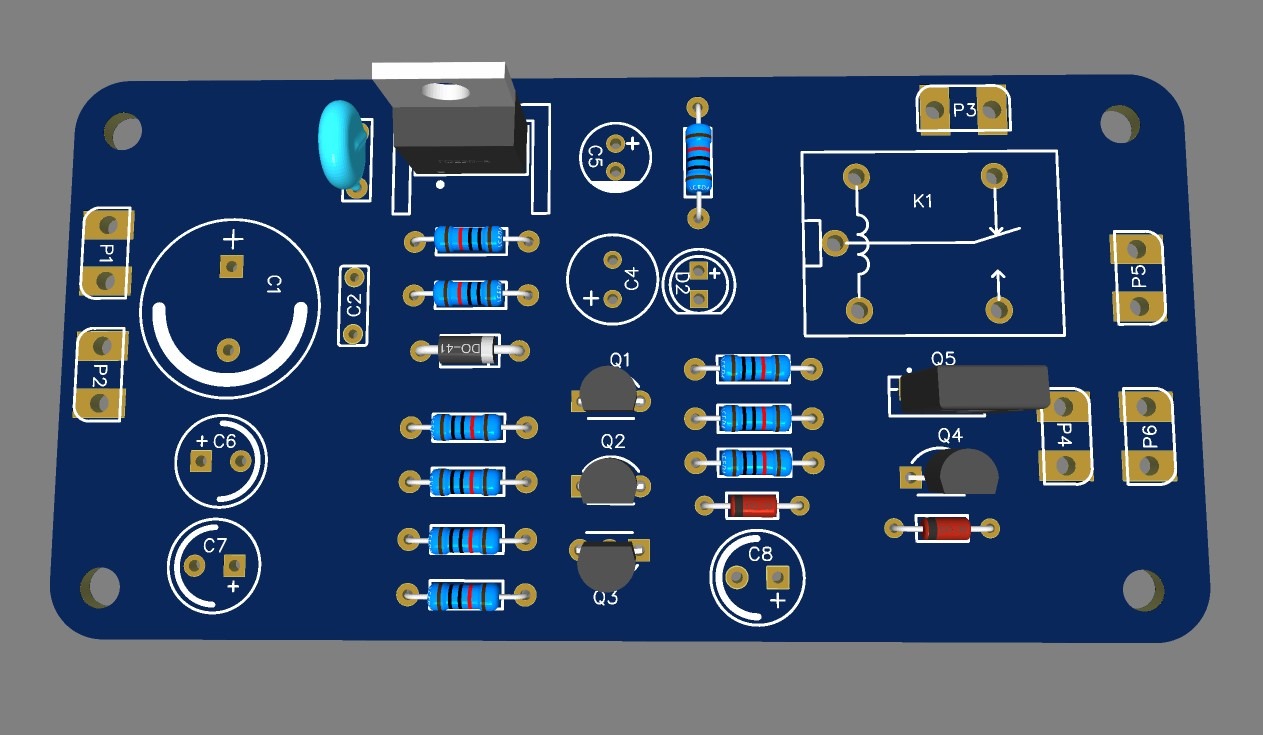

SSR protections to the amplifier look fine, but I decided to design classic protections with relays. This is how I envision the protections for my future APEX amplifier.



[HRDSTL]

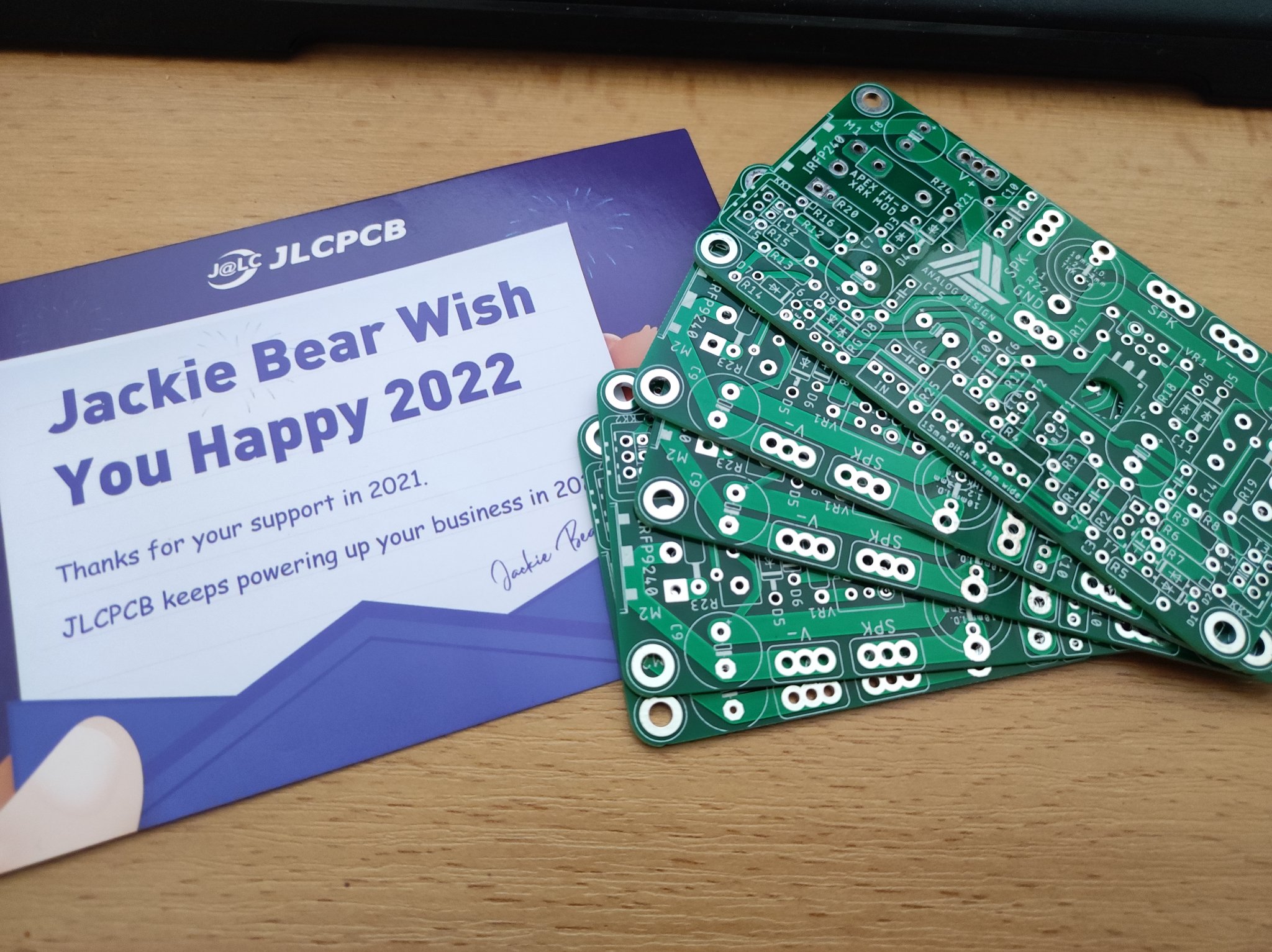

So the boards for the FH-9 XRK-MOD (2oz cooper) are already at home. Today I'll get to work and mount something...

Thank you all for the excellent work you have done.



[clpk]

P40

Hello, I found it interesting, but what is the philosophy behind putting so many transistors in a pre amp. Don't get me wrong, it's just the curiosity of a little sailor in the DIY world.
Greetings



[jimk04]

On FH9VHX Prasi 2 channel square board. The small 104 caps, are 35v ceramic or tantalum OK.?
Thankyou



[svinx]

hello, can I replace njw4562 with upc4570 in the a17, ax9 amplifier?



[svinx]

theme is dead



[Prohodimez]

hello, can I replace njw4562 with upc4570 in the a17, ax9 amplifier?

bad idea



[svinx]

why?



[Prohodimez]

why?

Slew rate 20

v.s 7

. Different specification. 4570 not for audo applications. The best OPAMP for sound: OPA1641, OPA1611 (single) OPA1656, LME49710 (dual) IMHO.



[xrk971]

So the boards for the FH-9 XRK-MOD (2oz cooper) are already at home. Today I'll get to work and mount something...

Thank you all for the excellent work you have done.

Looking forward to hearing how you like the sound. I am not sure as I may have missed it, I have not seen anyone build this board yet, maybe you are the first?

Good luck!



[xrk971]

On FH9VHX Prasi 2 channel square board. The small 104 caps, are 35v ceramic or tantalum OK.?
Thankyou

Generally, 0.1uF or 100nF bypass caps can be ceramic X7R or MKS/MKP is fine. No need for expensive (and polarized) tantalum here.
