Just some random stuff - a round waveguide ⌀260 mm

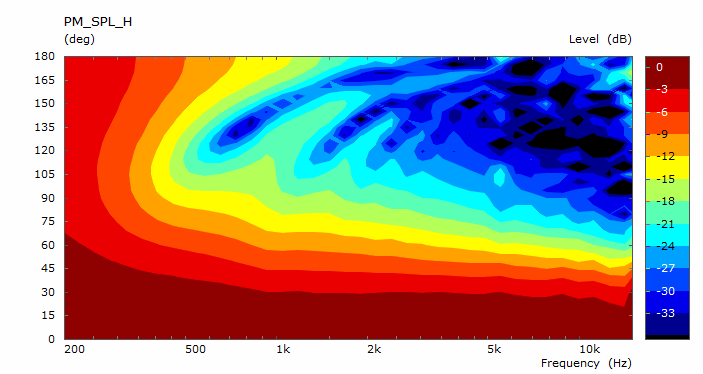

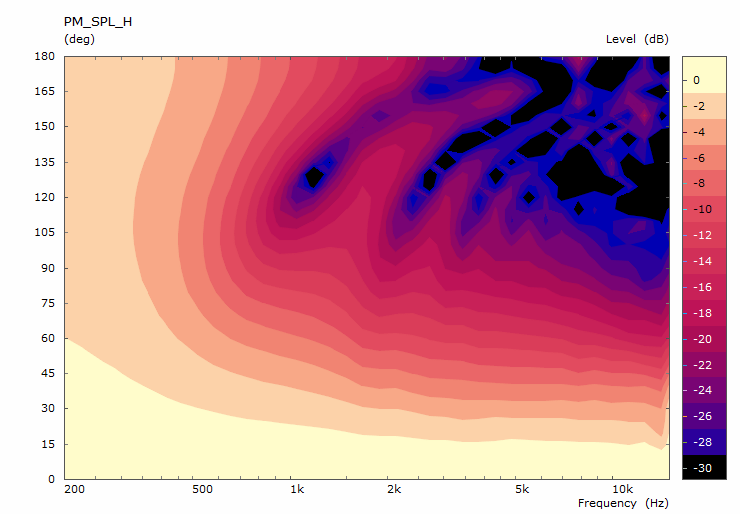

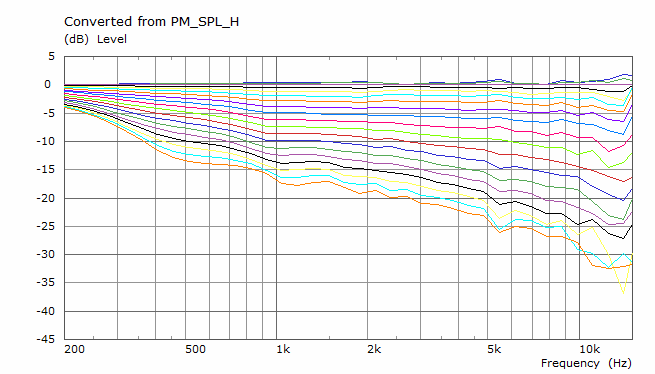

Horizontal polar map:



[mabat]

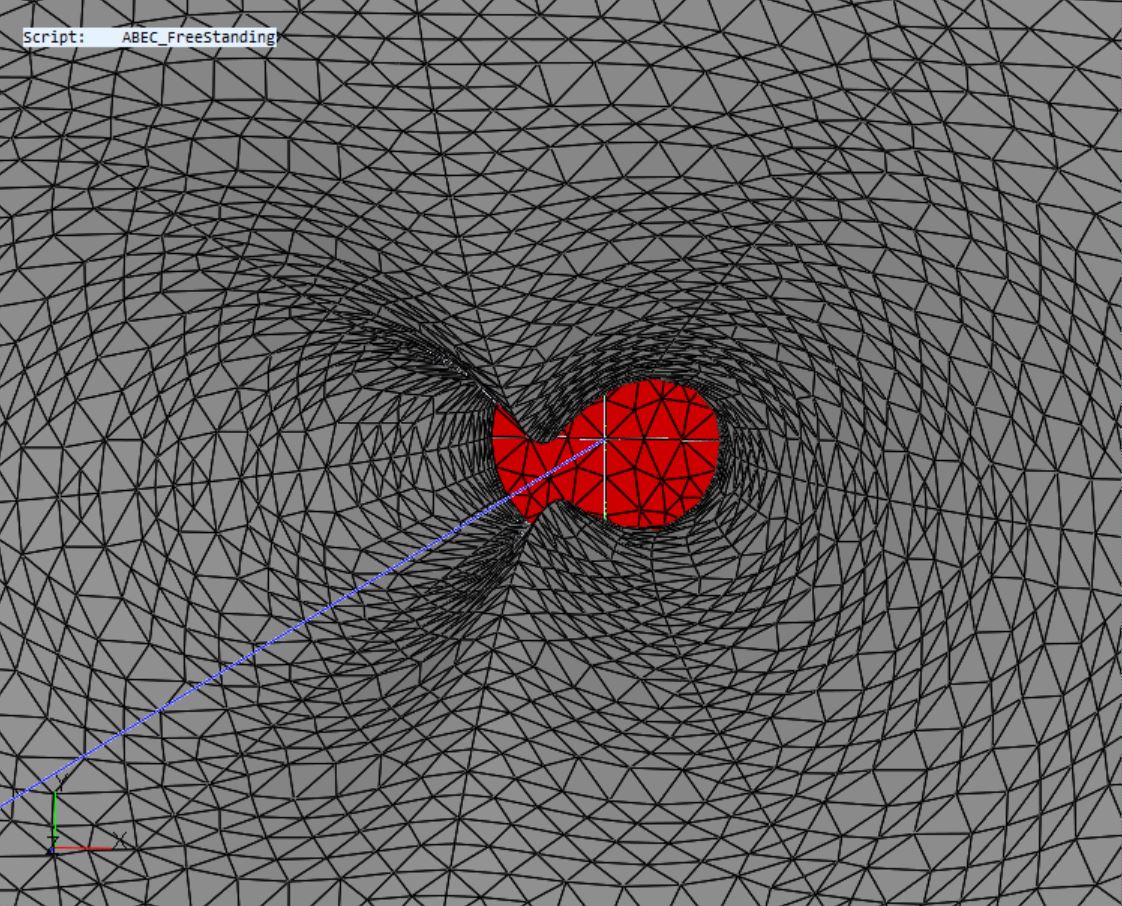

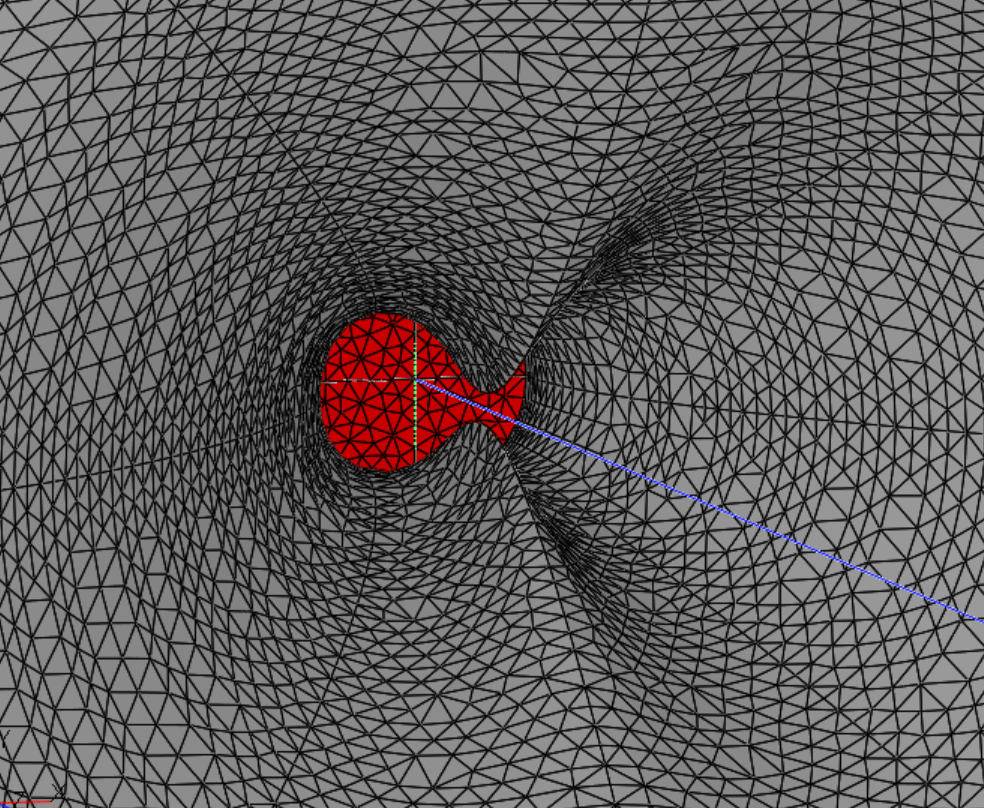

1.4" throat version, ⌀480 x 240 mm (already a too low-resolution mesh):

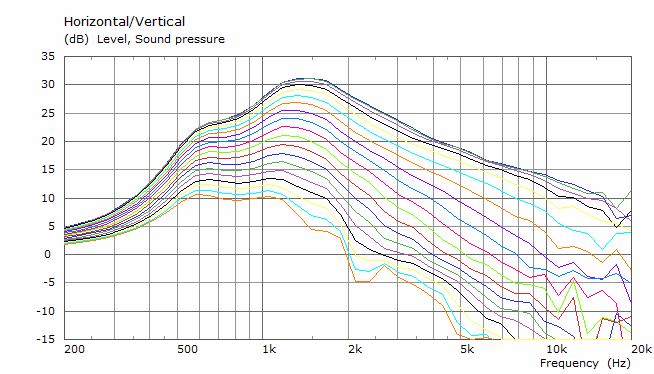

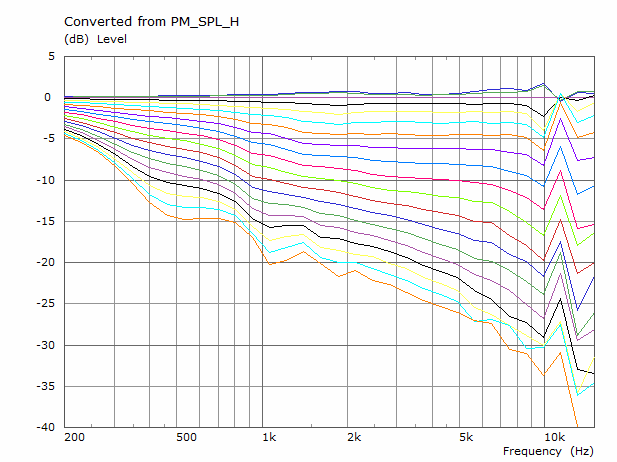

Horizontal, vertical:

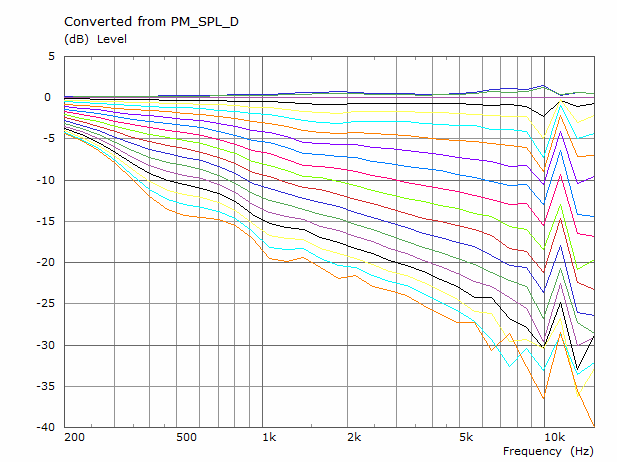

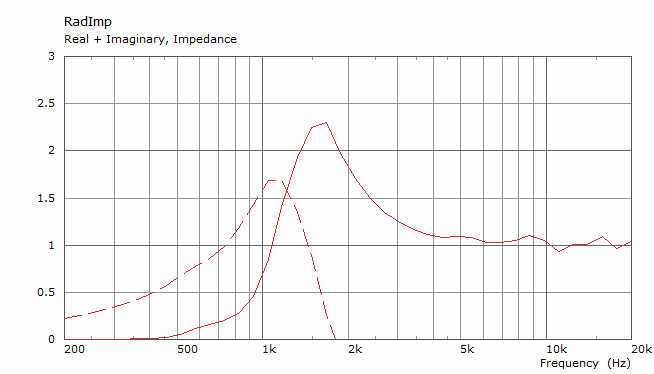

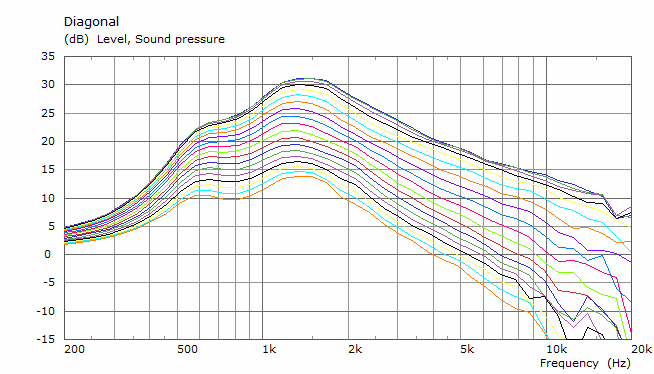

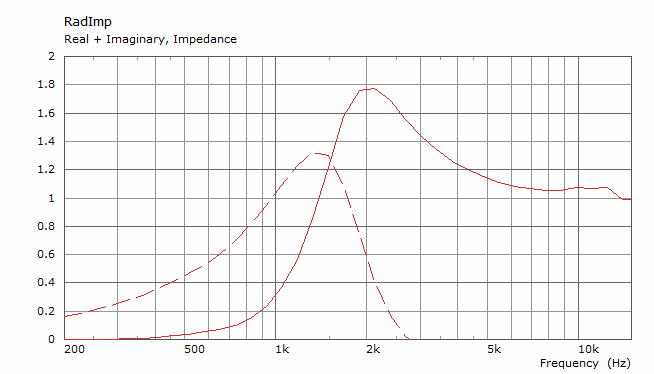

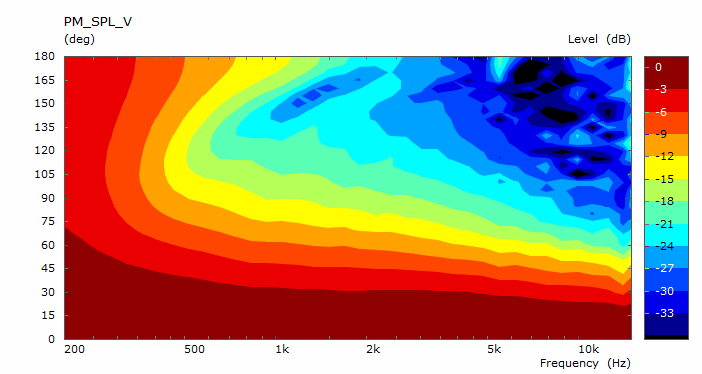

Diagonal at 30deg inclination, throat impedance:



[mabat]

1" throat, ⌀360 -



[TNT]

Did you ever do a constant low directivity WG? A real "spreader" ...

Can we see one please?

//



[turk 182]

wow i really have to learn to use ATH...
i'm assuming that the 'guides in post #10,463 finish in a round rolled over mouth horn...(?)



[vineethkumar01]

I 3D printed the ST260 KVAR horn and was able to do a few measurements before my measurement setup was damaged. Here are some results I got.
The compression driver I used along with this horn is Peerless DFM 2544R00-8 1 inch throat driver. This is a gated measurement with 4.06ms gate width and mic at 1m away from horn mouth. Measurement mic used in Dayton EMM-6.
I could get measurements only up to 60 degrees off axis in the horizontal plane before the horn and driver fell down and the horn was damaged.

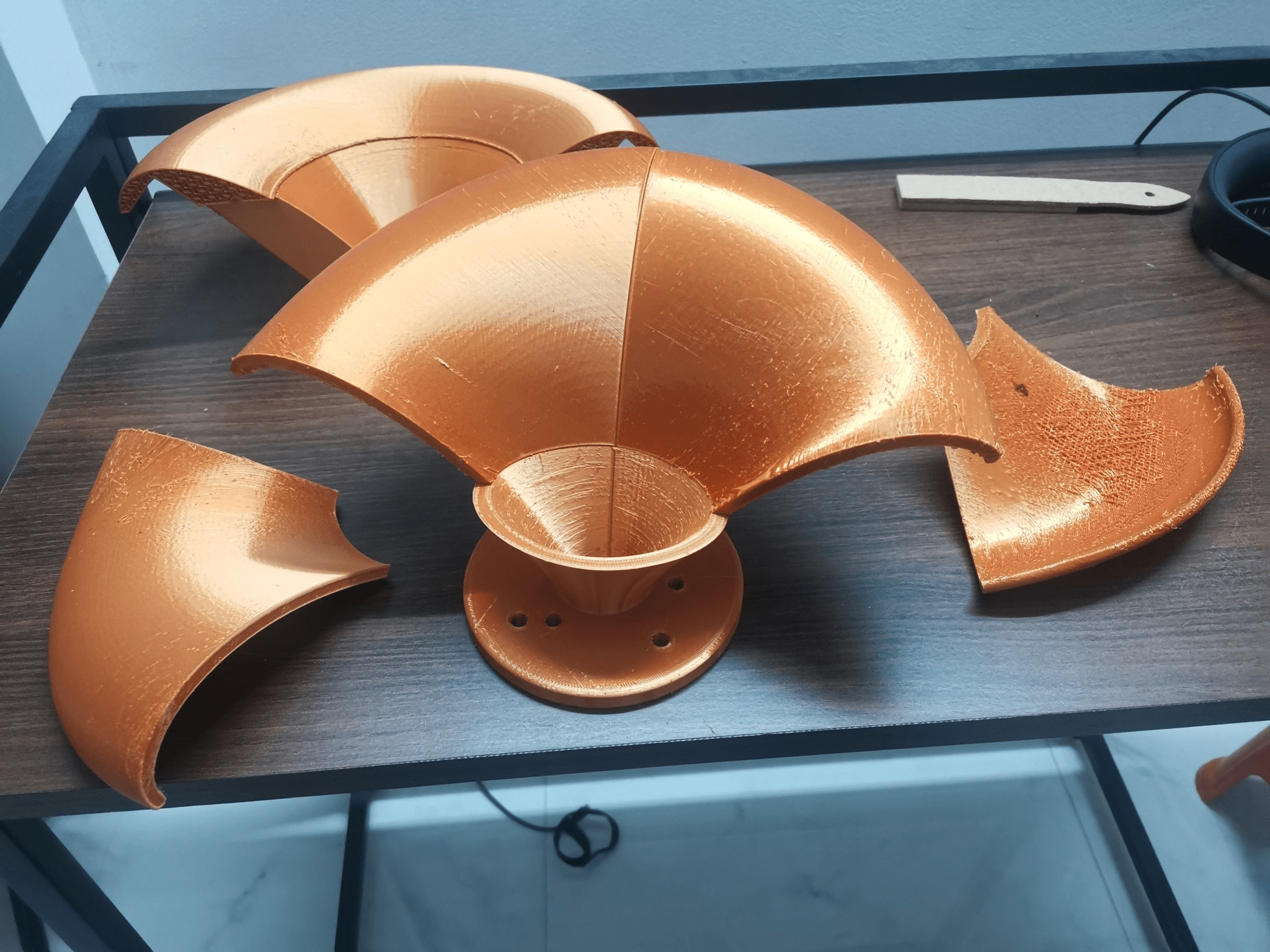

I just used the files mabat had posted in a previous post in this thread (Thanks a lot for that) to print out the horn and assemble it like this:

Measurement setup

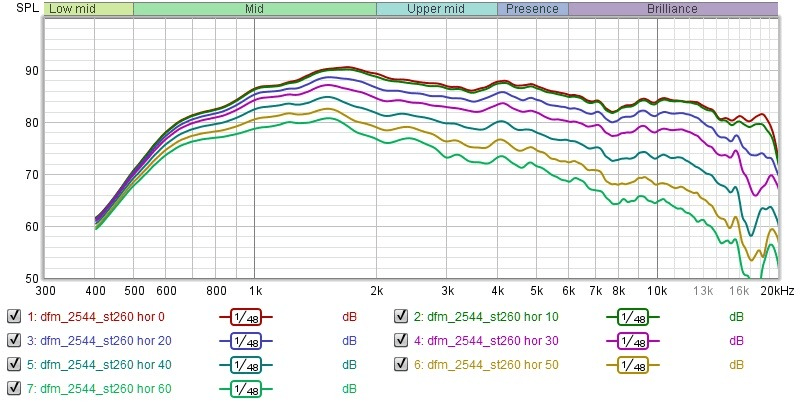

Raw measurements

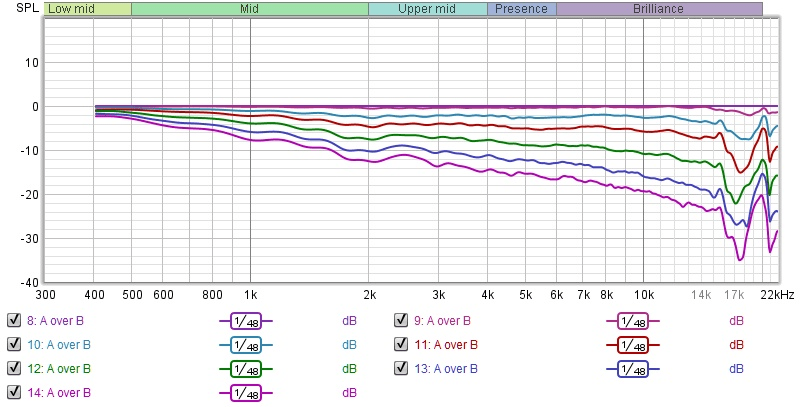

Measurements normalized to ON-axis measurement

Thanks
Vineeth



[kipman725]

superb results!



[mabat]

It's always nice to see someone actually doing something real. Good job.
I still have many my own pieces (one of them being a 1.4" KVAR version already mounted to the HF1440) waiting to be measured properly...

- In the meantime, a variation on the above theme (#10,461 etc.):
1" throat, ⌀480 x 190 mm:

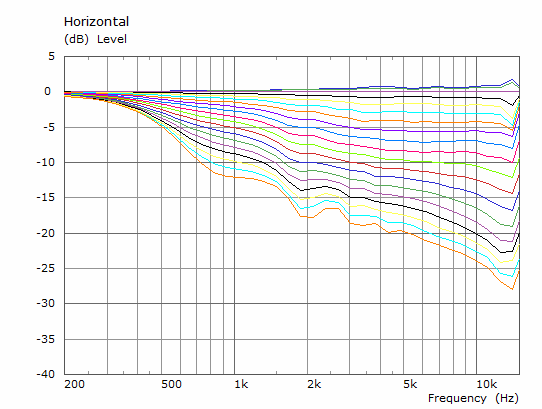

Horizontal 0-90/5 deg:

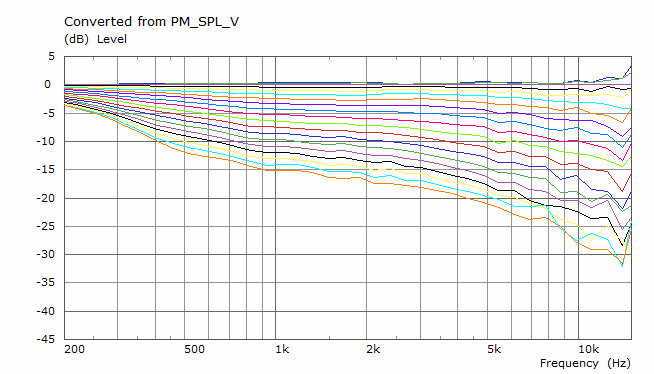

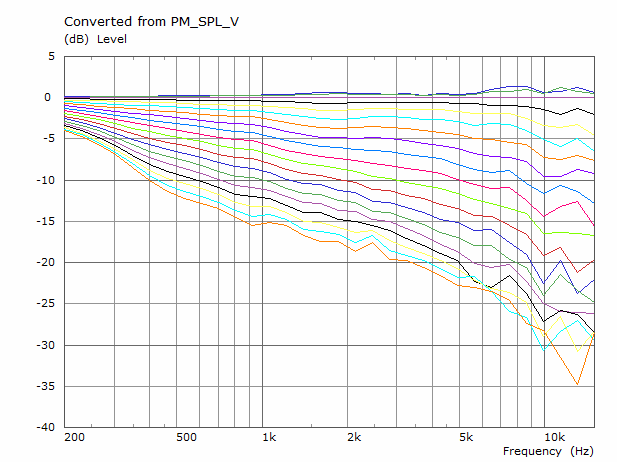

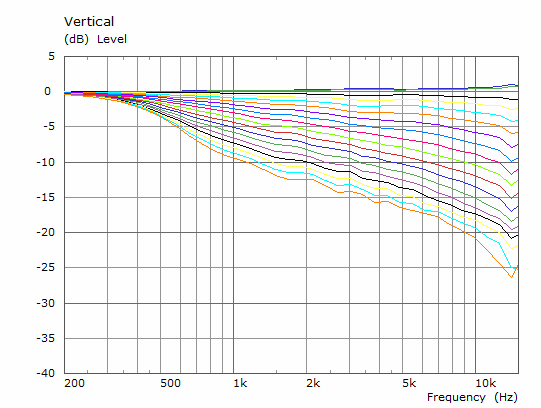

Vertical:

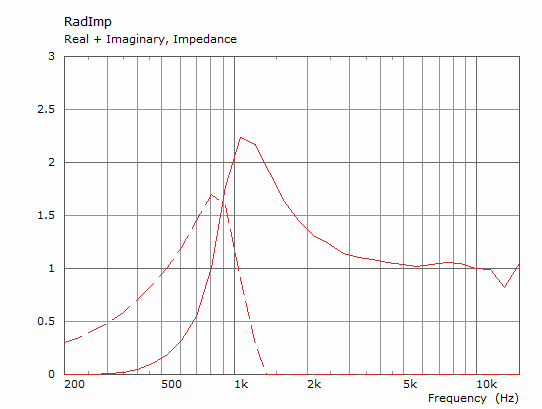

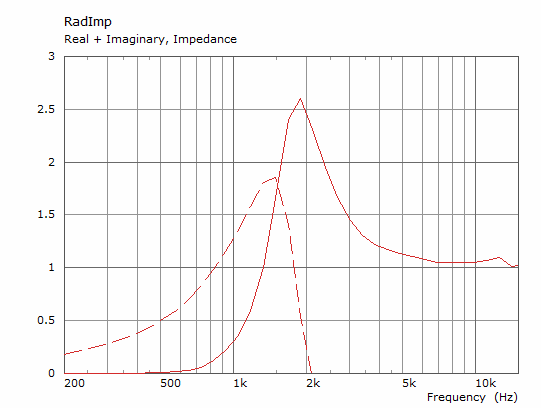

Throat impedance:

There's no need for a spherical source in this case, I think.
It's hard to say how does it really work but the horizontal polars are among the best (if not the best) I've seen.



[mabat]

i'm assuming that the 'guides in post #10,463 finish in a round rolled over mouth horn...(?)

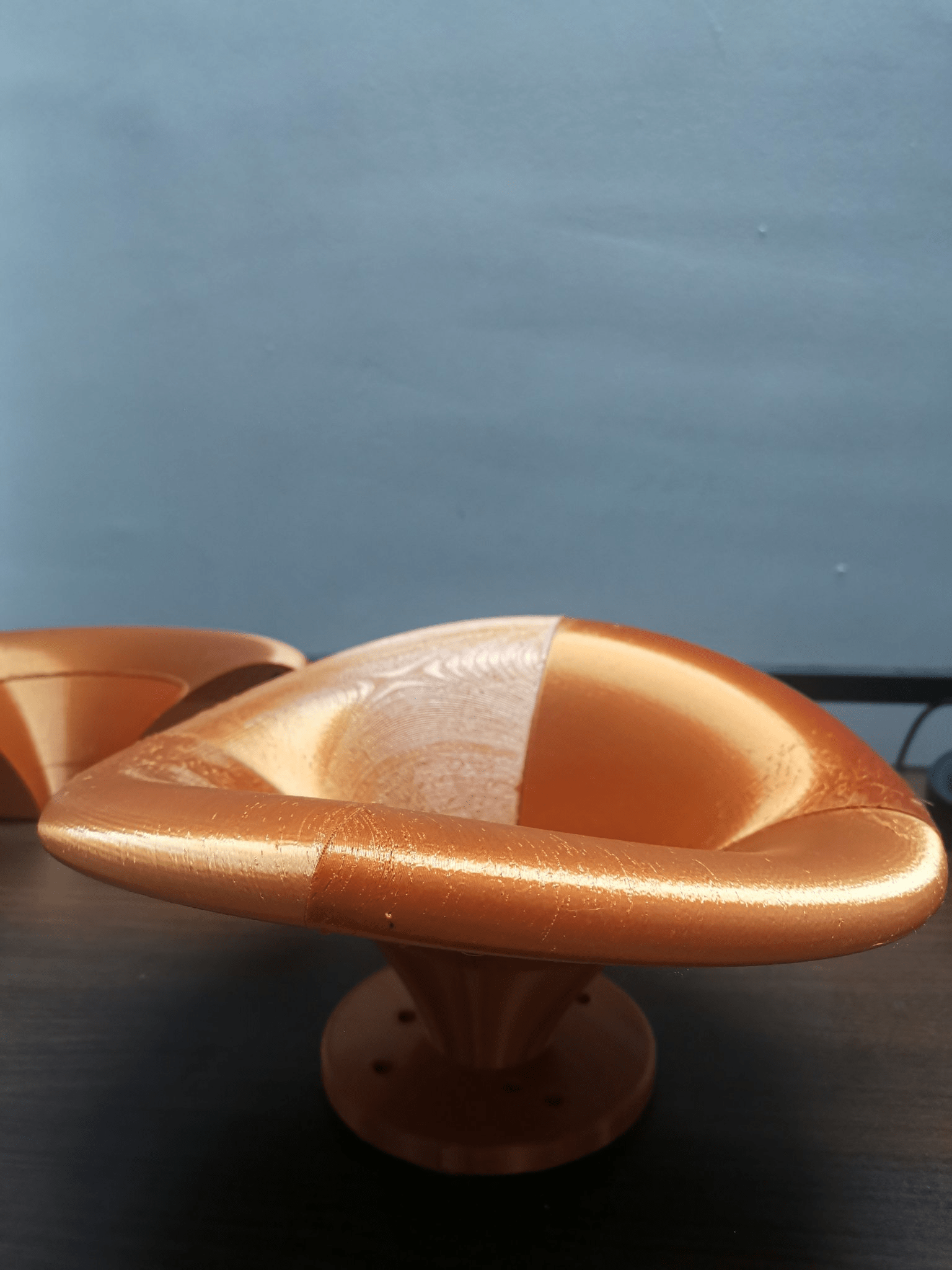

Yes. It could also be morphed into a rectangle for a box mounting. Haven't tried that yet.



[mabat]

Did you ever do a constant low directivity WG? A real "spreader" ...

Can we see one please?

No and no (I don't think it's feasible)



[mabat]

For a test, maybe such radial "blades" could be inserted even into an existing waveguide.



[pelanj]

These remind me waveguides by Patrick Bateman - which were inspired by the image control waveguide by JBL. Do I see correctly, that the blades are vertically asymmetrical? Or is that only an optical illusion?



[mabat]

No, they are symmetrical. They almost divide the volume of air in front of the throat into two (or more) parts.



[mabat]

A look into the throat from the driver side:



[Arnandsway]

What could be the benefit of these exotic throats? Or are you just having fun?



[mabat]

It has an exceptionally well-behaved directivity with no noticeable diffraction.
BTW, the above graphs are all for free standing devices (no infinite baffles). I didn't mention that.



[mabat]

It may not be without issues though. This is for a 2" throat:

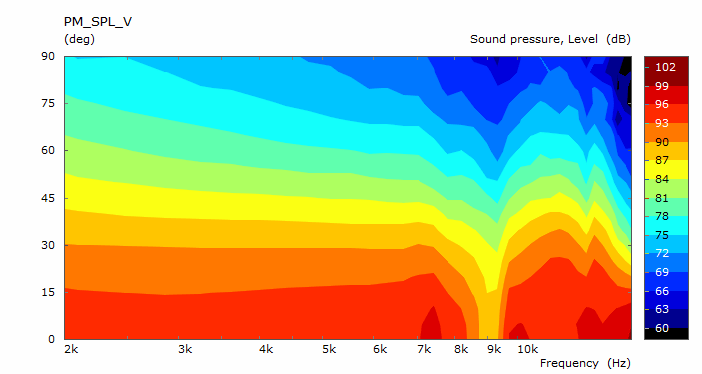

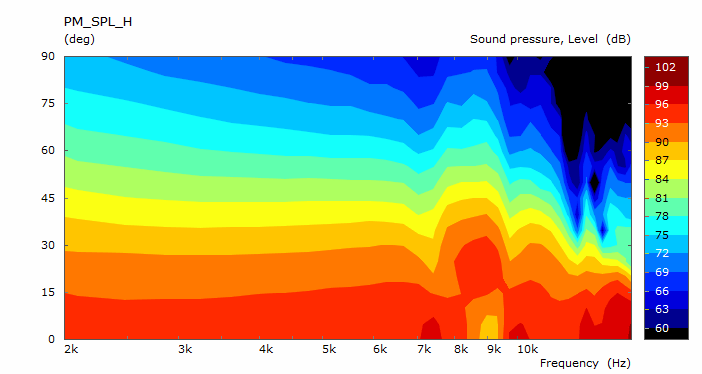

Horizontal (0-90/5):

Vertical:

It's hard to say if this can be further improved. 7 kHz still seems to be a kind of a limit for a 2" throat (and 14 kHz for a 1").



[mabat]

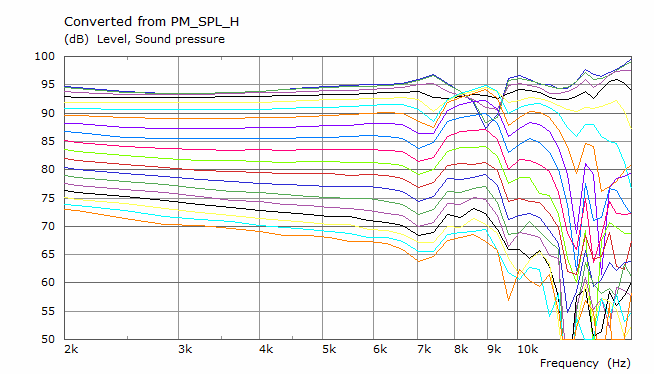

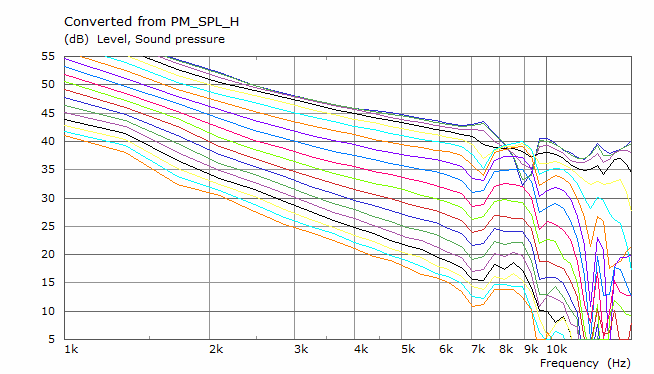

Non-normalized (constant acceleration) horizontal data:

It's not very nice any more above 7 kHz but it still has a manageable output to at least 11 kHz. Then it just narrows to nothing, as usual.



[turk 182]

stands to reason a 7khz wave is 1.937 inches so beyond that diffraction has a field day....

(2 inch throat right?)



[mabat]

Sure. It's just seems to hold true no matter what we do.
Anyway, at 15° off-axis horizontally it's flat to at least 15 kHz (not that the ears are not already pretty directional that high)
