I use a DIY HPA-1 for a preamp, which can deliver a very hot signal. So the 21dB of gain I'm getting is plenty.
The noise issue is not good, though. Probably better to drop the feedback voltage divider and just put in some bigger resistors....
I bumped up the gain a bit on both Beefcake and SixPack (now 25dB).
Lowering the feedback required compensation changes to both designs: more phase lead comp for Beefcake, and more feedback current for SixPack.
The greater feedback current requires paralleling a bunch of resistors (under the assumption that metal oxide and wirewound aren't appropriate here). But it has the twin side benefits of making the offset adjustment less finicky and dropping the distortion by 1/2.
Lowering the feedback required compensation changes to both designs: more phase lead comp for Beefcake, and more feedback current for SixPack.
The greater feedback current requires paralleling a bunch of resistors (under the assumption that metal oxide and wirewound aren't appropriate here). But it has the twin side benefits of making the offset adjustment less finicky and dropping the distortion by 1/2.

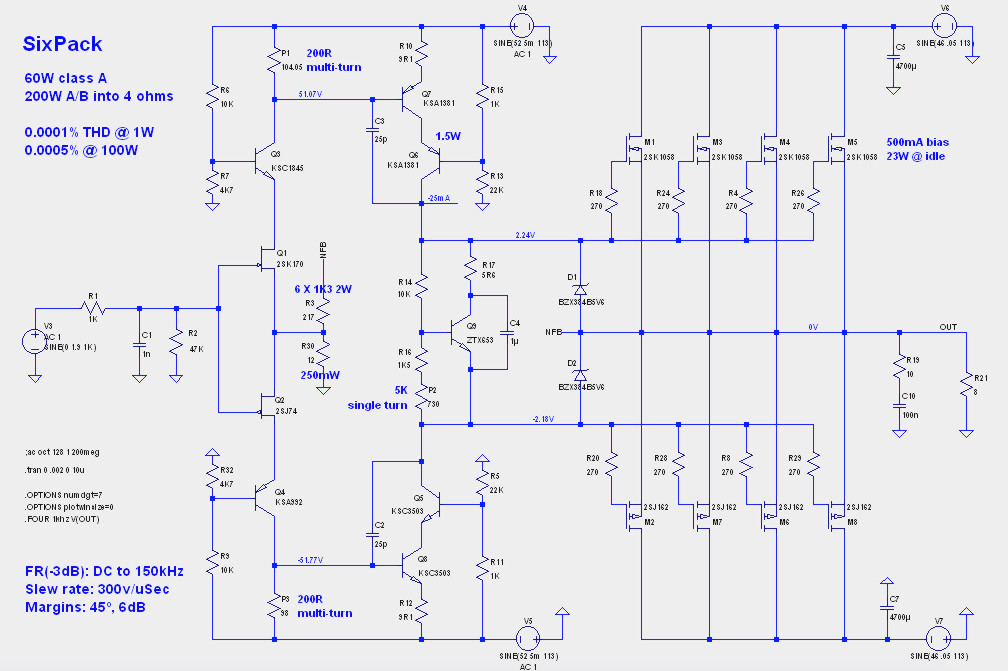

Hmmm... SixPack doesn't really fit into a stereo chassis. With shunt regs on the front end we're looking at having to dump 200W a channel.
Going to a mono-block design doesn't fit well with having 3 pairs of output devices (as one side would have to have 1 and the other side 2). The obvious answer would be to go to 4 pairs of outputs, but EightPack doesn't have the same ring.
Pass XA-style heatsinks on a large stereo chassis might be another option....
Going to a mono-block design doesn't fit well with having 3 pairs of output devices (as one side would have to have 1 and the other side 2). The obvious answer would be to go to 4 pairs of outputs, but EightPack doesn't have the same ring.
Pass XA-style heatsinks on a large stereo chassis might be another option....
That's funny
This is one of the most entertaining threads. Thanks for letting us spectate and I'm super curious to see how it turns out (and sounds).
Jeff,
That is kinda toasty............
Depending on the rails I would start with about 100mA per output pair and increase the bias slowly till you find a point where the is little sonic difference and stop. (not to exceed 50 deg.C)
The cascode output stage as a problem in perceived compression in listening tests that being said bipolar cascodes work best if you have to use them.
My humble opinion is to avoid a cascoded output stage and add more devices in parallel if you have to.
Jam
That is kinda toasty............
Depending on the rails I would start with about 100mA per output pair and increase the bias slowly till you find a point where the is little sonic difference and stop. (not to exceed 50 deg.C)
The cascode output stage as a problem in perceived compression in listening tests that being said bipolar cascodes work best if you have to use them.
My humble opinion is to avoid a cascoded output stage and add more devices in parallel if you have to.
Jam

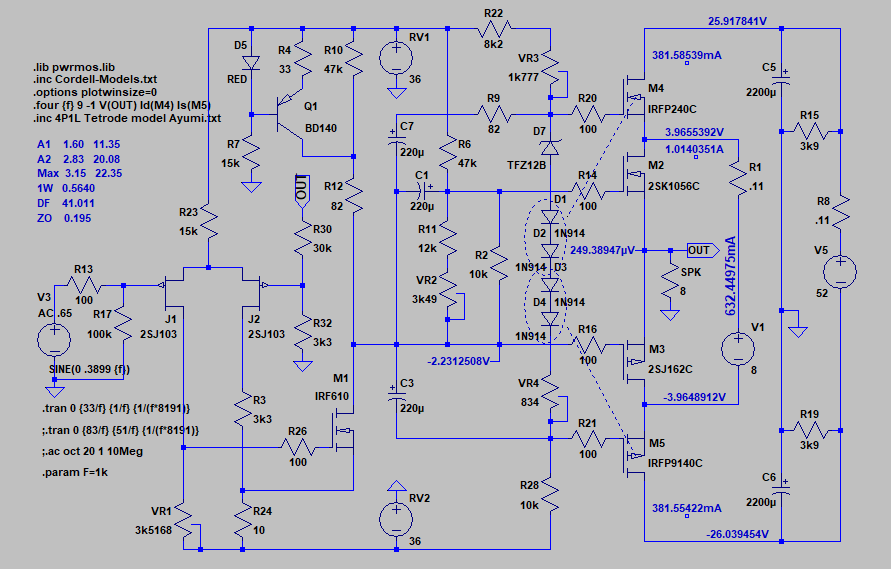

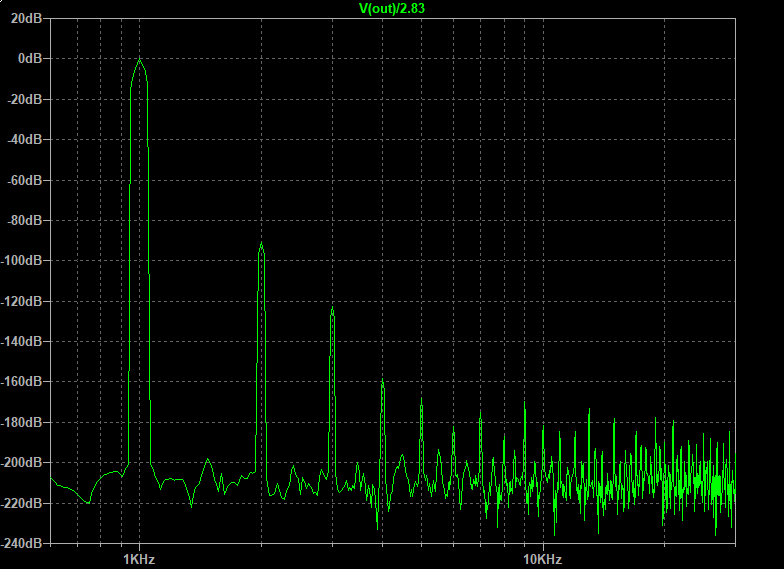

Attachments
Last edited:
Ditto, been thinking about Jung's GLED431 + opamp, add a shunt output transistor, make R2 & R4 adjustable, temp stability wouldn't an issue, a thermistor is needed anyway. It would then be a matter of finding a suitable opamp to work over a 3V to 12V range.
The junction of R3 & R4 present the opportunity to servo the dc offset... I know, it's getting messy.
You could keep the name if you went 6 deep.
An update.
Corrected the Vbe bypass cap (the bypass should not include the Hawksford compensation resistor).
Added current limiting.
Increased the bias adjustment range. (I'll say one thing: the TL431 is a damn sight easier to adjust....)
Added another output pair and lowered the target bias. Not nearly as much as Jam suggested because I'm still trying to get into Pico's FAB club.
Tempted, I am.
Cheers,
Jeff.
Corrected the Vbe bypass cap (the bypass should not include the Hawksford compensation resistor).
Added current limiting.
Increased the bias adjustment range. (I'll say one thing: the TL431 is a damn sight easier to adjust....)
Added another output pair and lowered the target bias. Not nearly as much as Jam suggested because I'm still trying to get into Pico's FAB club.
Tempted, I am.
Cheers,
Jeff.
Attachments
The new adjustment range will cover Jam's suggestion.
One of the reasons I like designing with the higher point in mind is that without temp compensation the output stage could theoretically run away up to the negative temp-co point (which is roughly 625mA). If that's within my design envelope then no worries....
Cheers,
Jeff.
indra,
This effect is more apparent in orchestral climaxes, you can still detect it during low level passages.....while it does not sound bad it makes the music sound more polite for want of a better word to describe it's effects. There was also the issue of stability.

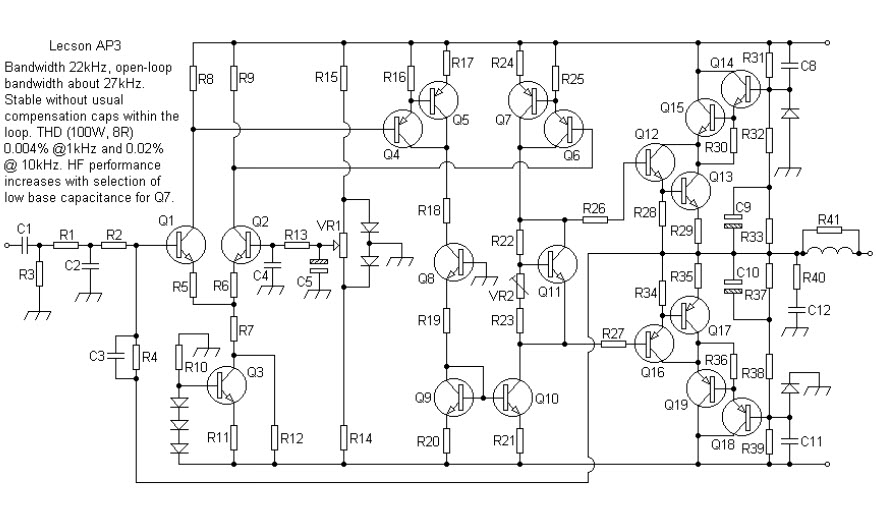

My first instance of running across a cascoded output stage was a Lecson amplifier designed by Stan Curtis (I owned one) and was used to limit the dissipation of the output devices because they weren't that good back in the day.

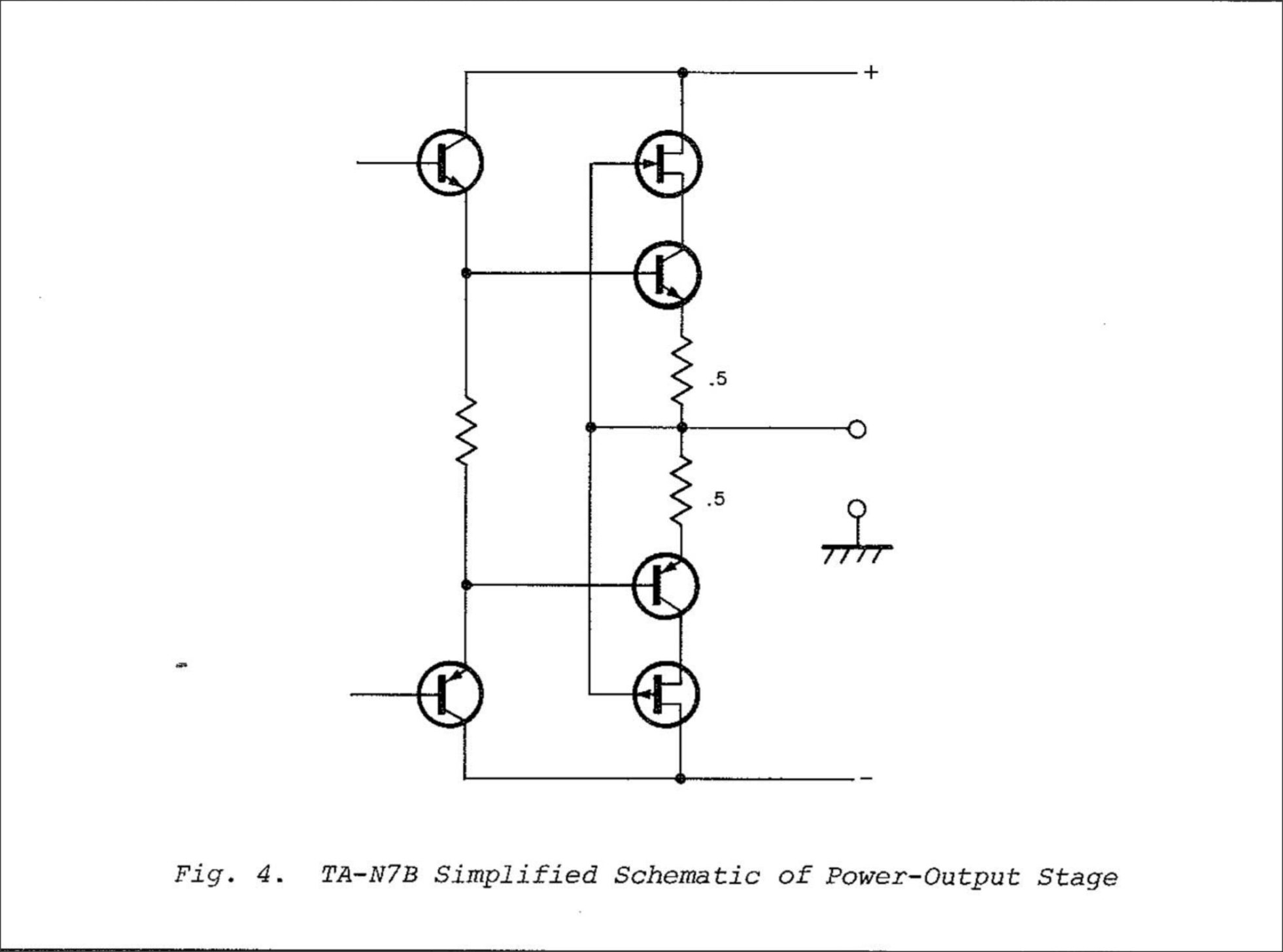

Sony later used it (for different reasons) and Nelson Pass used it in the Threshold 800.
The idea never really caught on except in some high power applications.
Jam
This effect is more apparent in orchestral climaxes, you can still detect it during low level passages.....while it does not sound bad it makes the music sound more polite for want of a better word to describe it's effects. There was also the issue of stability.
My first instance of running across a cascoded output stage was a Lecson amplifier designed by Stan Curtis (I owned one) and was used to limit the dissipation of the output devices because they weren't that good back in the day.
Sony later used it (for different reasons) and Nelson Pass used it in the Threshold 800.
The idea never really caught on except in some high power applications.
Jam
