Because I have the power supply in another box entirely, one thing I’m missing from my Scryer is an appropriately tinted LED glowing from within the chassis per channel. Are there good spots on Scryer’s PCBs to tap for an LED, or should I just add a resistor and LED off of the DC supply inlets?
should I just add a resistor and LED off of the DC supply inlets?
yup
ZM's Thumb of Rule (them all) - 1K for each supply voltage - nowaday's LEDs are happy with 1mA
1K for each V of supply voltage1K for each supply voltage
example : 22V5dc rail, resistor 0207 size, 18K-22K
Tonight just a good cava before and during. After no coffee I am afraid, need our sleep. But a pitty, Italy and post meal espressos and Limoncello is one of my favourite things in the dining department. 🇮🇹Delicious!!
And an after dinner espresso
Enjoy Andy
But must admit Spain isn’t bad either.
Last edited:
Perfect time to update the Scryer thread!
My Scryer is back in the main system today.
PLUS, I made my signature Frutti Di Mare dinner for me and my son.

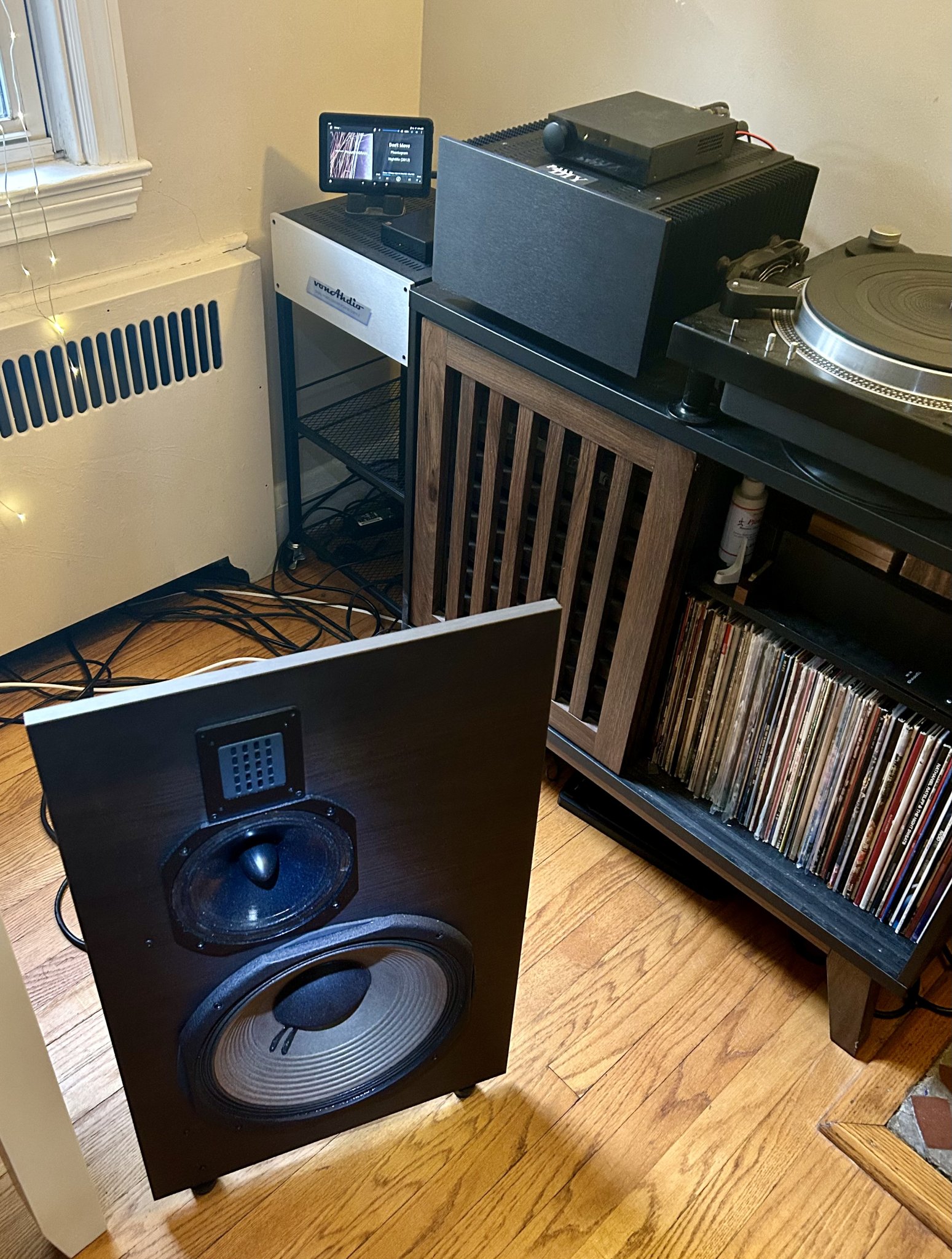

Now enjoining the Scryer and my updated OB speakers after the gustatory delight. Life is good. Cheers.
My Scryer is back in the main system today.
PLUS, I made my signature Frutti Di Mare dinner for me and my son.
Now enjoining the Scryer and my updated OB speakers after the gustatory delight. Life is good. Cheers.
Attachments
just be sure that SIT gate resistor position on pcb is populated with 0R (short) and mount flying gate resistor ditto on SIT gate, neatly heatshrinked (wire, resistor, gate pin)
do not twist GDS wires, just route them normally together
Doublechecking this ZM... R138 (and R238) = 0R, and 100R wired inline (shrink-wrapped and such) with wire feeding gate on my Tokins?
