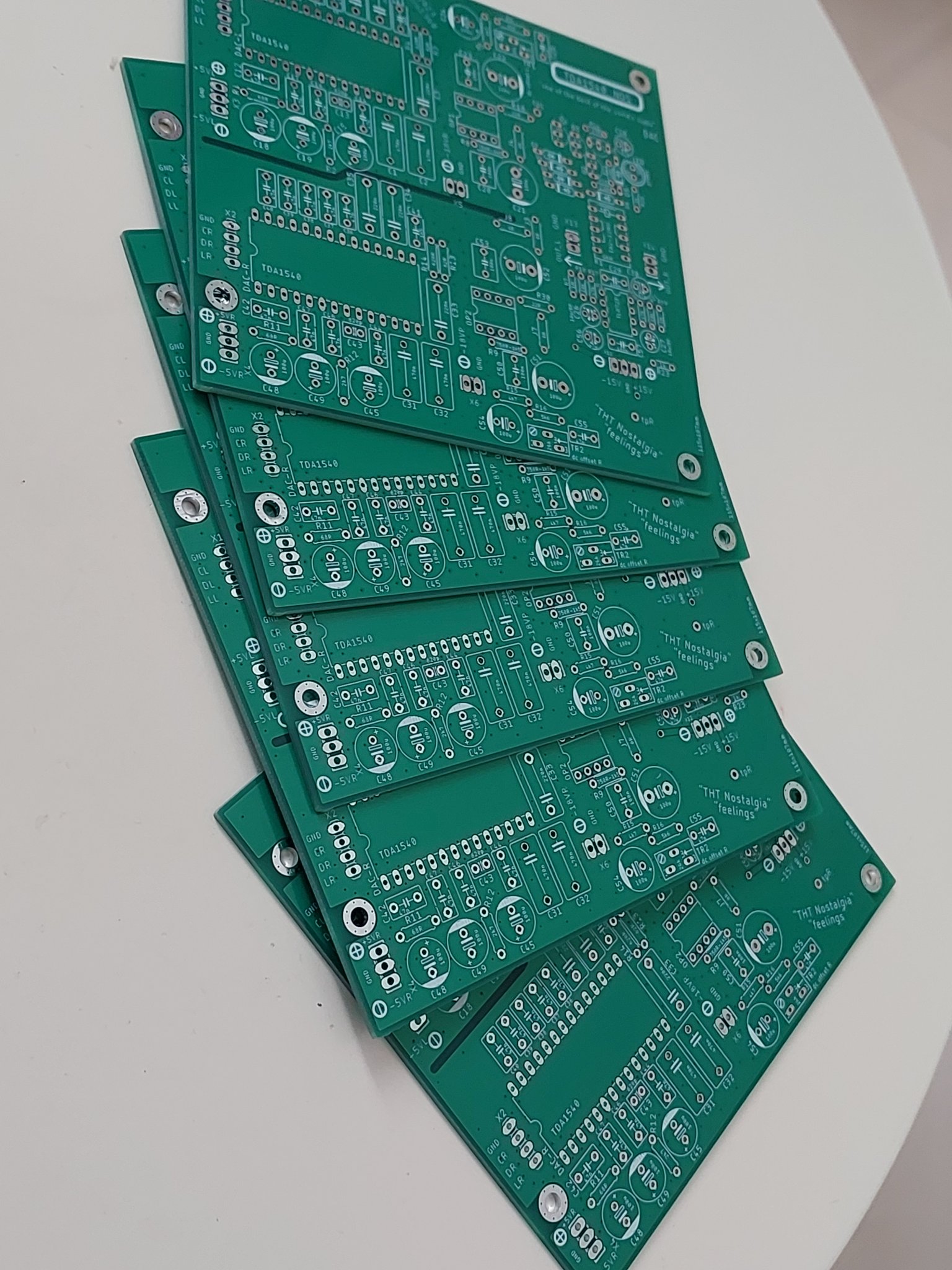

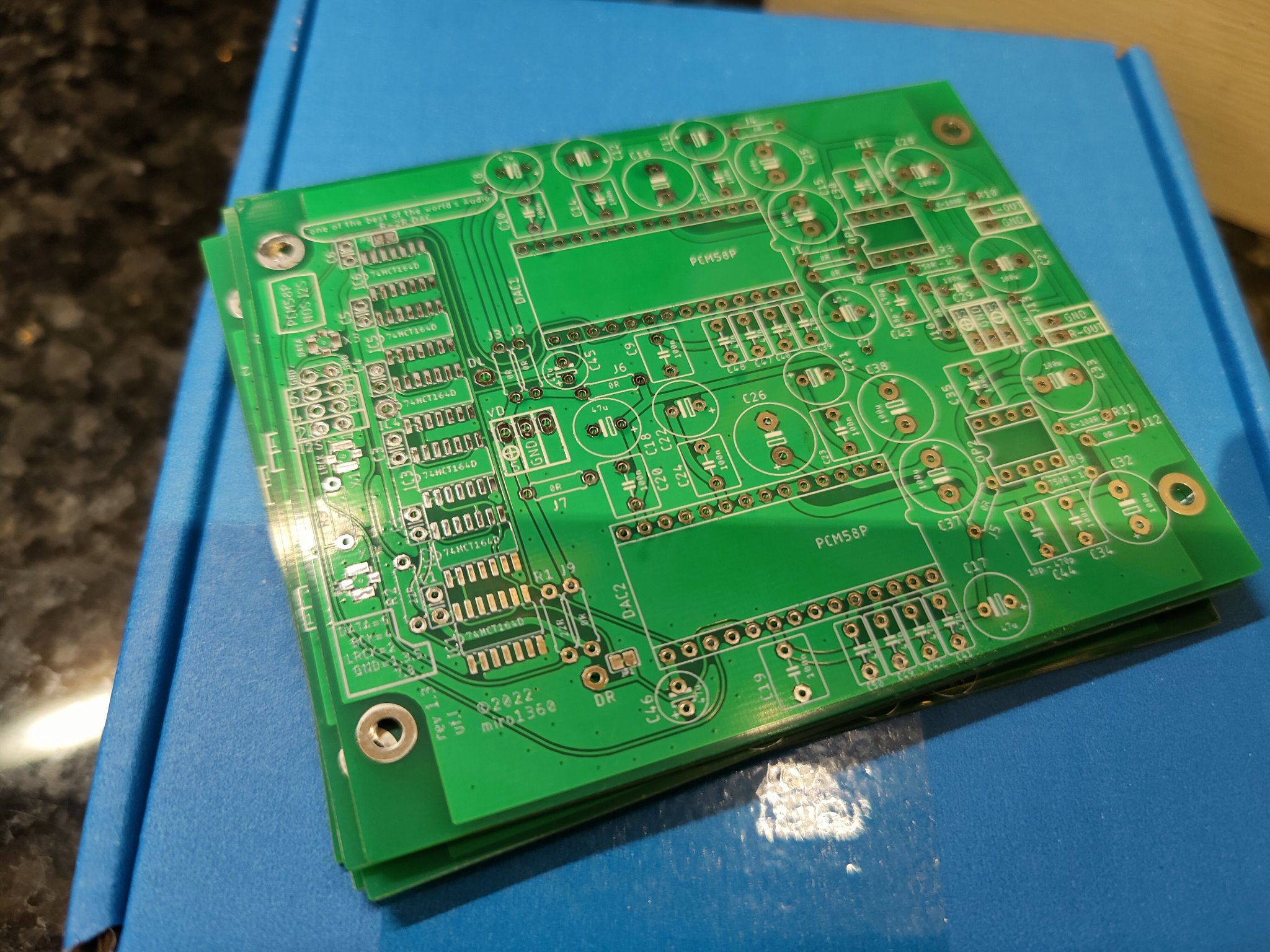

@NIXIE62 , you don't really need that when the protection board is connected to DAC outputs. I faced the 'problem' because I tested the protection board by itself. Hence anyone who wish to test if the protection board will smoke or bang before connecting to the DAC outputs should know that C1 and 2 need to be discharged by shorting the inputs to ground.
@jimk04 I did follow the the statement in datasheet from PCM63
"FILTER CAPACITOR REQUIREMENTS As shown in Figure 4, various size decoupling capacitors can be used, with no special tolerances being required. The size of the offset decoupling capacitor is not critical either, with larger values (up to 100µF) giving slightly better SNR readings"
"FILTER CAPACITOR REQUIREMENTS As shown in Figure 4, various size decoupling capacitors can be used, with no special tolerances being required. The size of the offset decoupling capacitor is not critical either, with larger values (up to 100µF) giving slightly better SNR readings"

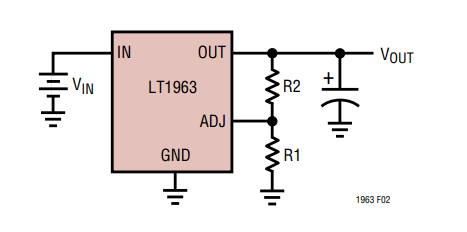

I made a little calculator at this google sheet based on the PSU2 schematic #1,549 and the LT1963/LT1964 data sheets that might be interesting to other noobs trying to understand how Vout is set.
Are the constraints on PSU2's "R1" and "R2" values:
Also these questions may be very open-ended but any hints to understand them would be super appreciated:
Any insights into this or links to resources are super appreciated!
I figured it would be polite to inline the things I'm referencing while asking for help. Please let me know if this is not the case.
Are the constraints on PSU2's "R1" and "R2" values:
- keeping the trimmer in the +/- 1V range, though I'm guessing I can make this range smaller or larger at the expense of precision / flexibility?
- Making sure "R1" is less than the max values in the datasheets (4.17k and 50k)?
- Keeping V_out between +/- 1.2V to 20V?
Also these questions may be very open-ended but any hints to understand them would be super appreciated:
- what is the purpose of C17,C18... ?
- Does the R19, R20... + LED do something for the signal, or is just for the led?
Any insights into this or links to resources are super appreciated!
I figured it would be polite to inline the things I'm referencing while asking for help. Please let me know if this is not the case.
@cibo You can be inspired by my calculator from the post #1549
Nobody knows about the R1, but as long as the datasheet specifies it, it should be fine
C17, C18 should improve the stability.
R19, R20 is only for the LED (sets the minimum current) and R+led works as a minimum load for the regulator that should existn
Nobody knows about the R1, but as long as the datasheet specifies it, it should be fine
C17, C18 should improve the stability.
R19, R20 is only for the LED (sets the minimum current) and R+led works as a minimum load for the regulator that should existn
