Posted 2nd May 2015 at 05:30 AM byrjm (RJM Audio Blog)
Updated 2nd May 2015 at 05:33 AM byrjm
You input the headphone sensitivity and impedance, and it spits out what I think is the ideal amplifier gain.
Even if you disagree (personal preference, difference input levels, etc.), the difference will be consistent regardless of headphone as long as the specified parameters are correct.
The gain value setting is tailored to normal line level input and listening fairly loud with the volume control at 9~10 o'clock. The output series resistance is assumed to be zero ohms.
Adjust as desired, and note that 3~6 dB either way will still be a usable. If your amp has a large output series resistance the gain Av should be scaled up as,
Posted 22nd February 2015 at 02:24 AM byrjm (RJM Audio Blog)
Updated 28th February 2015 at 07:17 AM byrjm
I've added an additional RC filter stage (R3, C4 in the schematic below) before the Zener diode, substantially reducing the amount or ripple on the transistor base by cleaning up the voltage applied to the Zener reference. (The original Z-reg is described here.)
Circuit shows C2 with a value of 300 uF. Typically much larger values are used. I kept the filter capacitance to a minimum here to show circuit working with a reasonably high ripple (1 V p-p) on the input. The rectifier diodes used here are of no particular consequence, I just wanted the simulation to generate a realistic sawtooth for the input.
***
OK, this doesn't do as much as I originally thought. The improvement is mostly below 100 Hz, whereas the ripple is mostly in the 100Hz-1kHz band. There's perhaps 3 dB less output ripple, but that's about it. You can verify this yourself in LTSpice, just cut the wire between C4 and the junction or R1-R3 and rerun the sim.
Posted 31st January 2015 at 01:28 PM byrjm (RJM Audio Blog)
Updated 18th March 2015 at 01:52 AM byrjm(add photo of finished amp)
A couple of years ago I built a standard op amp + diamond buffer headphone amplifier, called the Sapphire.
My original circuit (Sapphire 1.x) was the simple four transistor four resistor diamond buffer of the LH0002. Later small resistors (Sapphire 2.0) were added to the emitters of the driver transistors to boost the output bias current.
In this next go-round (Sapphire 3.0), I've replaced the emitter resistors with current sources. This provides a significant improvement in PSRR, over 20 dB in simulation. The output pair has been reinforced in a Sziklai configuration for lower distortion, and the primary output transistors five-way paralleled for improved thermal stability. The output impedance is 1~2 ohms, limited primarily by the output resistor.
It simulates to <-100 dB harmonics for 0 dB (1 V rms) output into 60 ohms. The total circuit standing current is less than 50 mA per channel.
Posted 3rd October 2014 at 12:40 AM byrjm (RJM Audio Blog)
Updated 3rd October 2014 at 09:27 AM byrjm

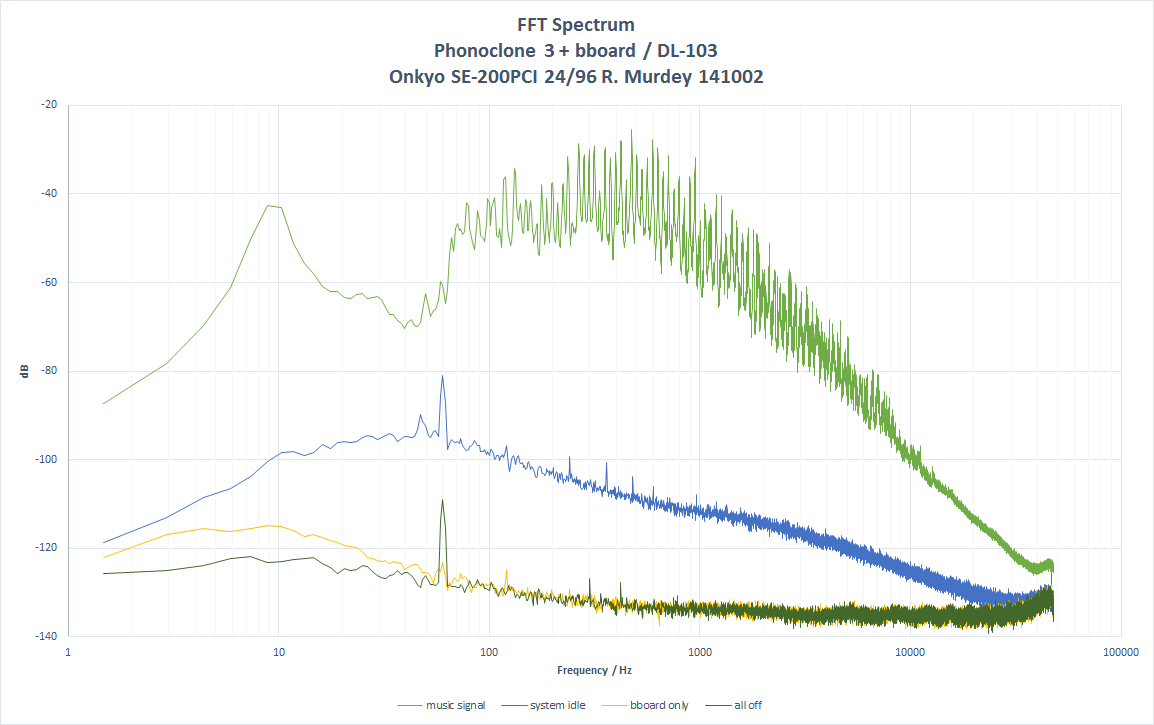

What we are looking at here is the Fast Fourrier Transform (FFT) of the line output from my b-board buffer recorded at 24 bit, 96 kHz by an Onkyo SE-200PCI sound card. Upstream from the b-board is the Phonoclone 3 MC phono stage, connected to a Denon DL-103. The tonearm is Denon DA-307, and the deck is a Denon DP-2000.
Four recordings, taken 1) with music playing, 2) with the tonearm raised 3) with the phonoclone powered off and 4) with the b-board and all upstream components powered off.
True 24/96 data was obtained, measurements out to 48 kHz are possible, with -130 dB noise floor. (I was using Digionsound 6 to do the recording as Audacity truncates 24 bit recordings to 16 bit in Windows due to licensing issues. The FFT was generated in Audacity however.)
The soundcard's line input may have an impressive-looking low noise floor, but it's still useless for measuring line level audio devices like the b-board because the noise of the preamp/ADC...
Posted 23rd August 2014 at 11:33 AM byrjm (RJM Audio Blog)
Updated 6th July 2016 at 12:34 AM byrjm
I suppose everyone has at one point or another adjusted the volume sliders in Windows. The ones that go from 0-100, and you are never quite sure what whether its a boost, or an attenuation, or what.
Some years ago I measured the outputs and inputs using a fixed amplitude .wav file created in audacity and played back through the Onkyo SE-200PCI. I've taken another look at the worksheet I made and I've noticed that the volume settings correspond to very logical, even steps, namely:
100 0 dB
90 -1 dB
80 -2 dB
70 -3 dB
60 -4.5 dB
50 -6 dB
40 -8 dB
30 -10 dB
20 -14 dB
10 -20 dB
or for the mathematically inclined: 20*log(volume/100)
This scale is the same for both the output master volume and the line input, so its probably maintained throughout the operating system.
Posted 20th May 2014 at 12:01 AM byrjm (RJM Audio Blog)
Updated 20th May 2014 at 02:15 AM byrjm
The Technics SU-9070 is a 2U rack mount stereo preamplifier from 1977, matched to the SE-9060 amplifier. The preamp was sold as the SU-9070II in Japan.
The circuit is shown below, for educational purposes.
The power supply regulation is quite elegant, I hope to get to that in a future post. Here, just note that there are separate regulated lines for the MC stage, the input/VAS sections of the MM and line amps, and the output sections of the MM and line amps.
Posted 19th May 2014 at 12:04 AM byrjm (RJM Audio Blog)
Updated 19th May 2014 at 11:58 PM byrjm
There was a series of relatively slim (2U chassis rather than 4U), upmarket audio separates put out by Technics in 1977: the ST-9030T tuner, SU-9070 preamplifier, and SE-9060 amplifier. They are two degrees of separation from the top of the line models at the time, the range went 9600>9200>90x0.
I recently acquired the tuner (more on that some other time) and have the others in my sights.
For educational purposes, the amplifier schematic for the SE-9060 is shown below. The input stage and voltage amplifier was driven from regulated 55 V supplies (Va+ Va-), while the driver stage was powered directly by the rectified DC at about 50 V (Vb+ Vb-) filtered with 18,000 uF per rail per channel.
Note that there were 9060 and 9060II as well as 9070 and 9070II models in Japan, but the export model of the preamp which sold as the 9070 was actually the 9070II rather than the 9070 domestic version. Likewise the SE-9060 shown below (from a European...
Posted 25th April 2014 at 10:13 PM byrjm (RJM Audio Blog)
Updated 26th April 2014 at 07:19 AM byrjm
As a companion post to the GeminiPS I thought I'd throw the amplifier circuit out there too...
It's not something you'd have any reason to built today I think, but some of the ideas are worth revisiting.

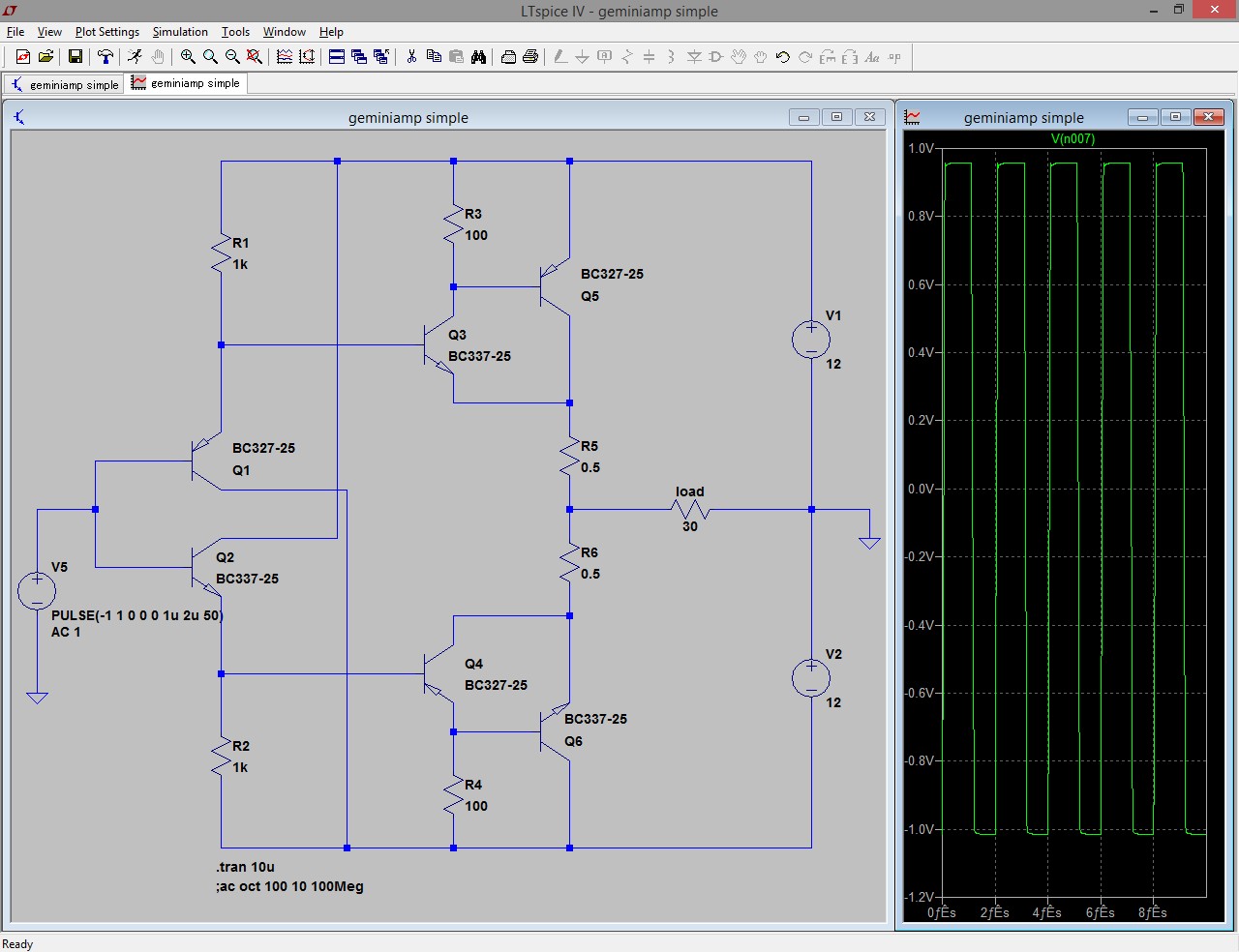

The output stage is what is normally referred to as a complimentary Sziklai pair. The LTSpice circuit below uses the same output, but with the diamond buffer type bias, with it all scaled down to headphone-amplifier voltages and loads. It would be interesting to compare it against i.e. the conventional diamond buffer used in the Sapphire headphone amp. Maybe I'll get around to it. The simulation shows a bit more transient peaking than the straight diamond buffer, ideally there could be some way of adding compensation / reducing the bandwidth to more reasonable levels.

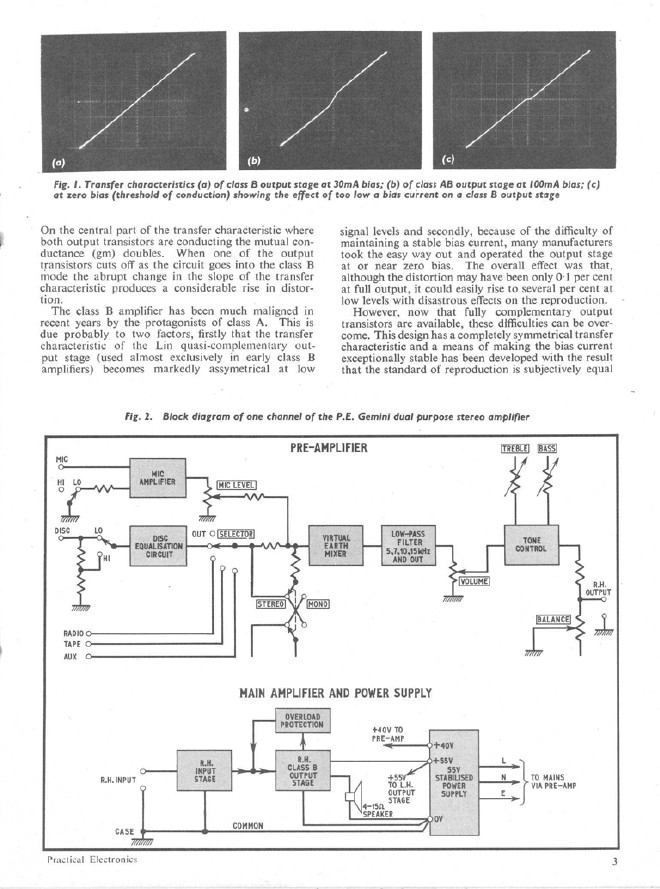

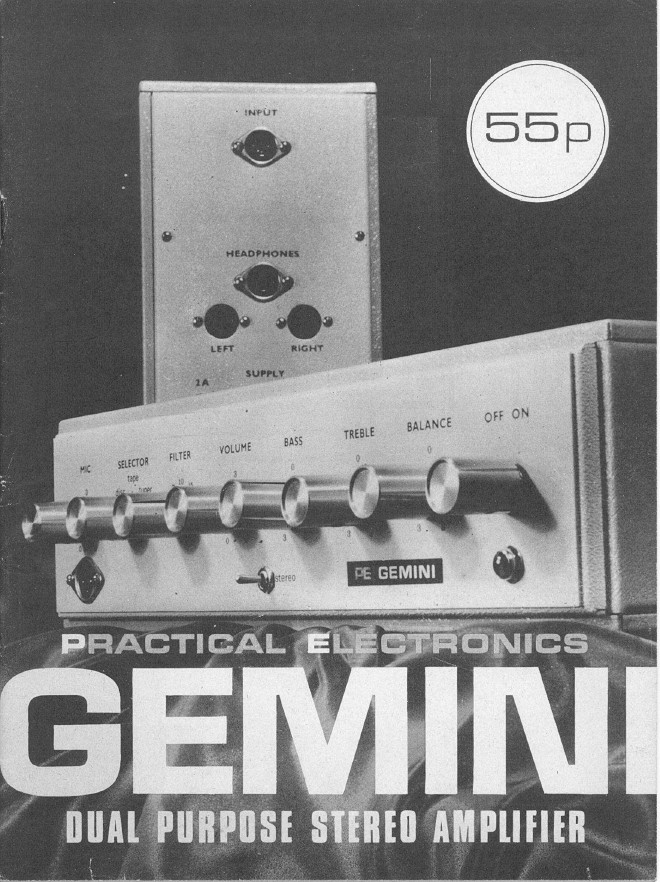

The GeminiPS is another discrete series voltage regulator, with a Zener reference and bipolar pass transistor. It's an old circuit, published in Practical Electronics in 1970-71, and written by D.S. Gibbs and I.M. Shaw. I happen to have a reprint, but there's a nice overview here.
For reference it might be worth checking back to the two transistor regulator. The GeminiPS circuit is related in the sense that it is a more sophisticated take on the same basic principle. With just a handful of components we have a stabilized, 30 W output with soft turn on and short circuit protection. The circuit can be scaled up and down relatively easily, and the complimentary (negative output) version is an easy modification.
The pass transistor (TR2/3, Q2/3) is between the circuit common and the rectifier anodes. This may seem odd, but it was relatively common back in the day when high voltage transistors were both expensive and rare. The...
I've been meaning to take up shunt regulators for some time. I've never got around to building one myself to try, so I'll have to make do by playing in simulation.
Today's circuit is the shunt analog of the Z-reg series regulator: no feedback, Zener reference, single transistor regulation. The output impedance and ripple rejection-characteristics are similar too, with about 40 dB of RR and an output impedance of just a few ohms. It can be built equivalently from either an pnp or pnp transistor. (See attached LTSpice .asc files.)
The difference between shunt and series regulation can best be explained by considering the upstream power supply: In a series regulator an increase in current demand by the load causes the regulator to increase the current to compensate. In a shunt regulator an increase in current demand by the load causes the regulator to decrease the shunt current to balance, so there is no net change in current flowing...
