I'm building a hybrid open baffle 2way over top of a vented woofer box. The woofer box will cover the low frequency while the mid range and the tweeter placed at top as OB, that is my plan so far. My question it leveling the output energy ; will the midrange (being a cone) loose energy or rather not gain energy broad casting from a open baffle rather than an enclosure?

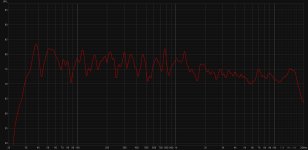

I finally took some individual driver measurements of my OB 3-way build.

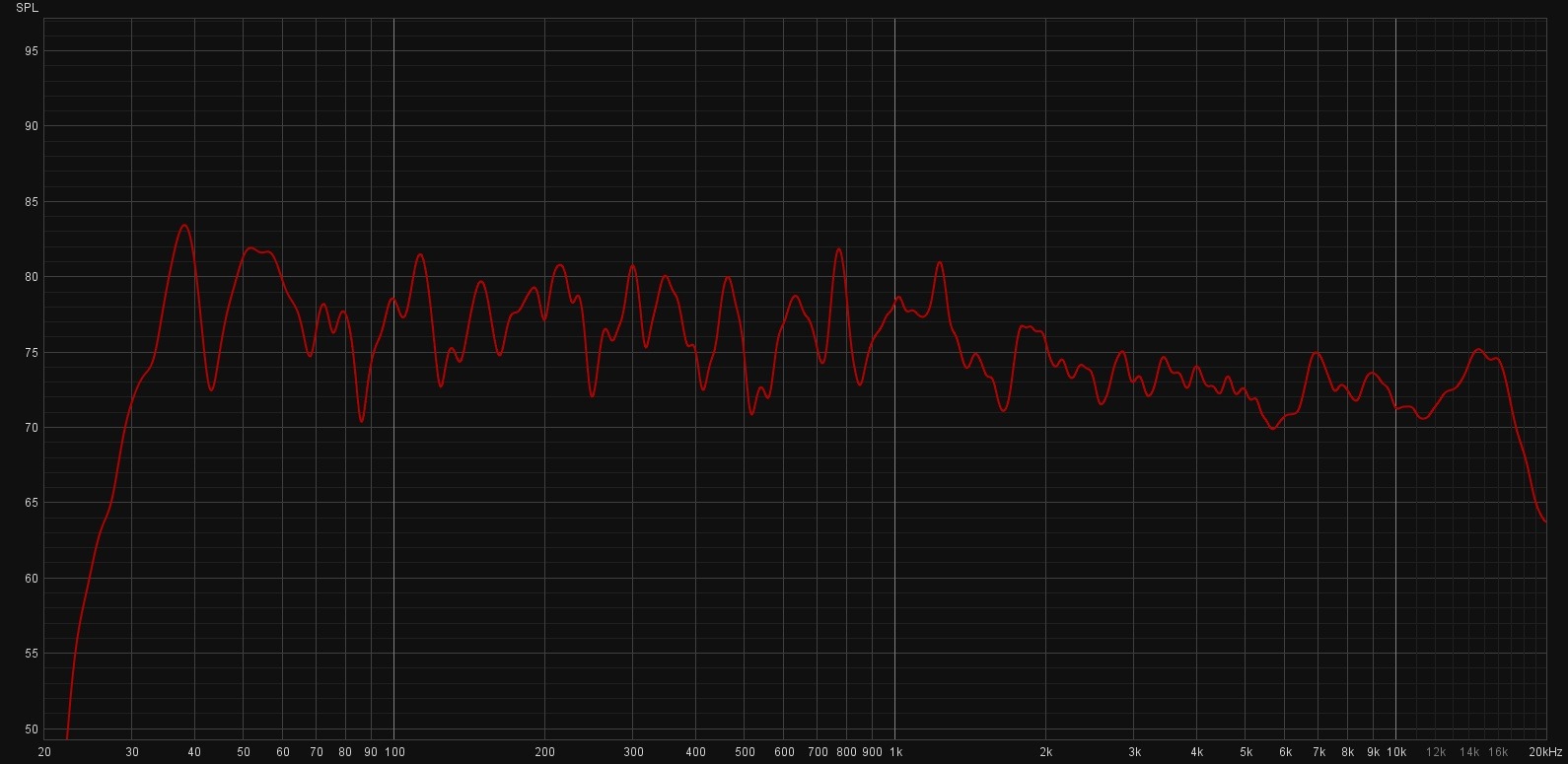

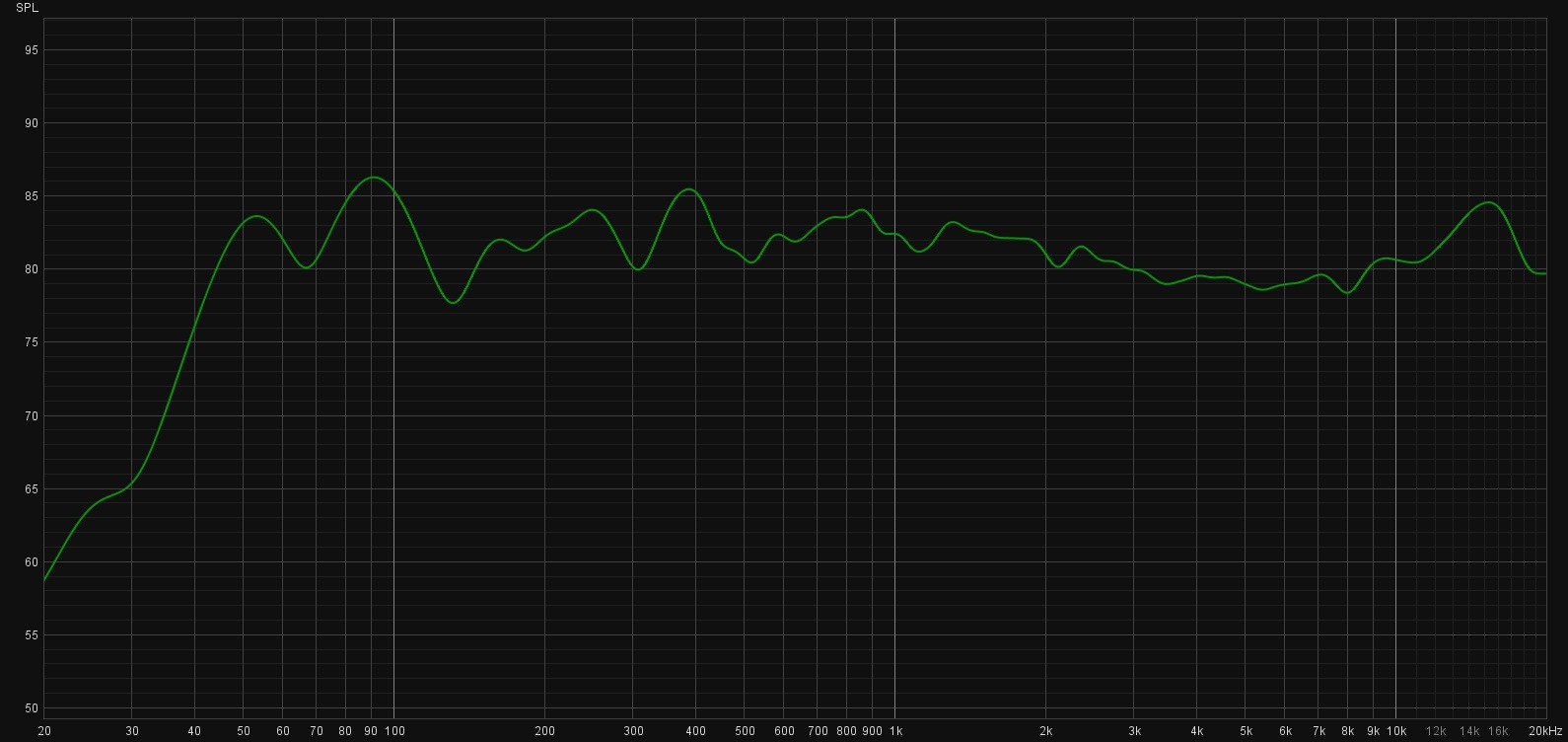

I had lived with the 3-way DSP build for a while and enjoyed it. The result of moderate DSP tweaking was the first picture attached. That was with 1/12 octave smoothing, taken a few months ago. It sounded good, but the complexity was a bit much. Three amps and a MiniDSP Flex Eight required.
Then I went back to the Manzanitas with just one amp as I had a new build to play with... Naturally, overall, the expert-designed two-way Manzanita has won out for a while and sounds great.

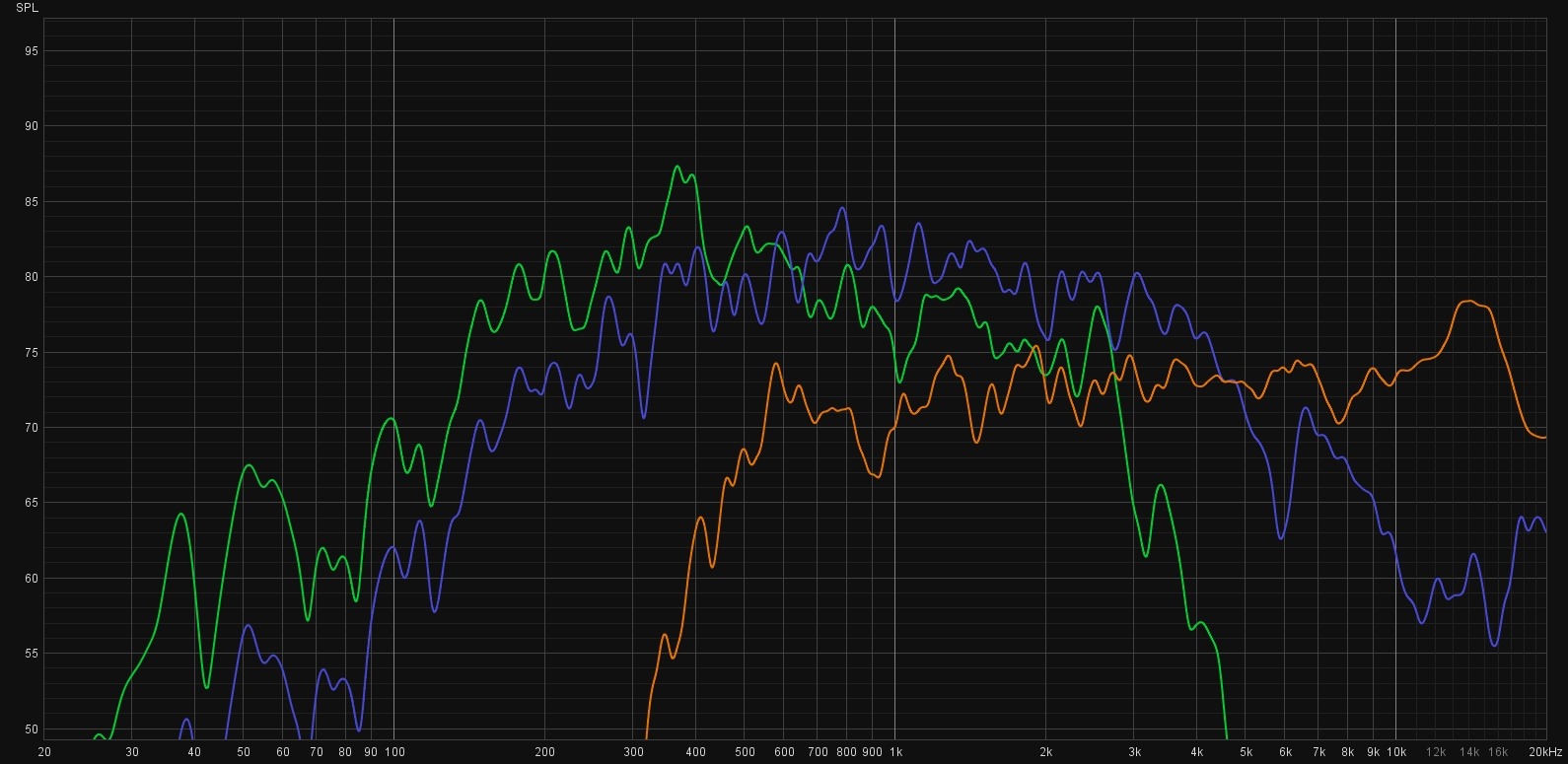

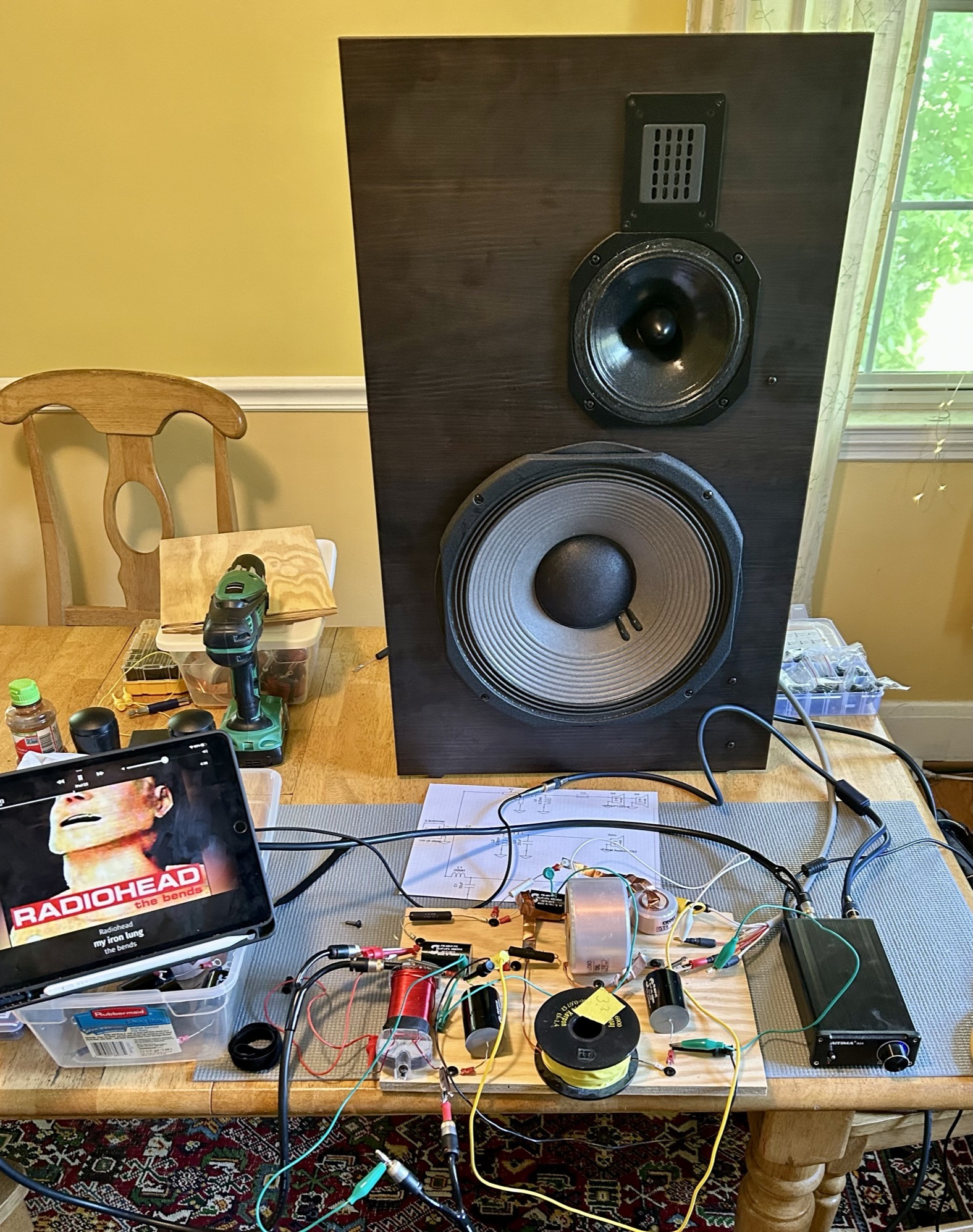

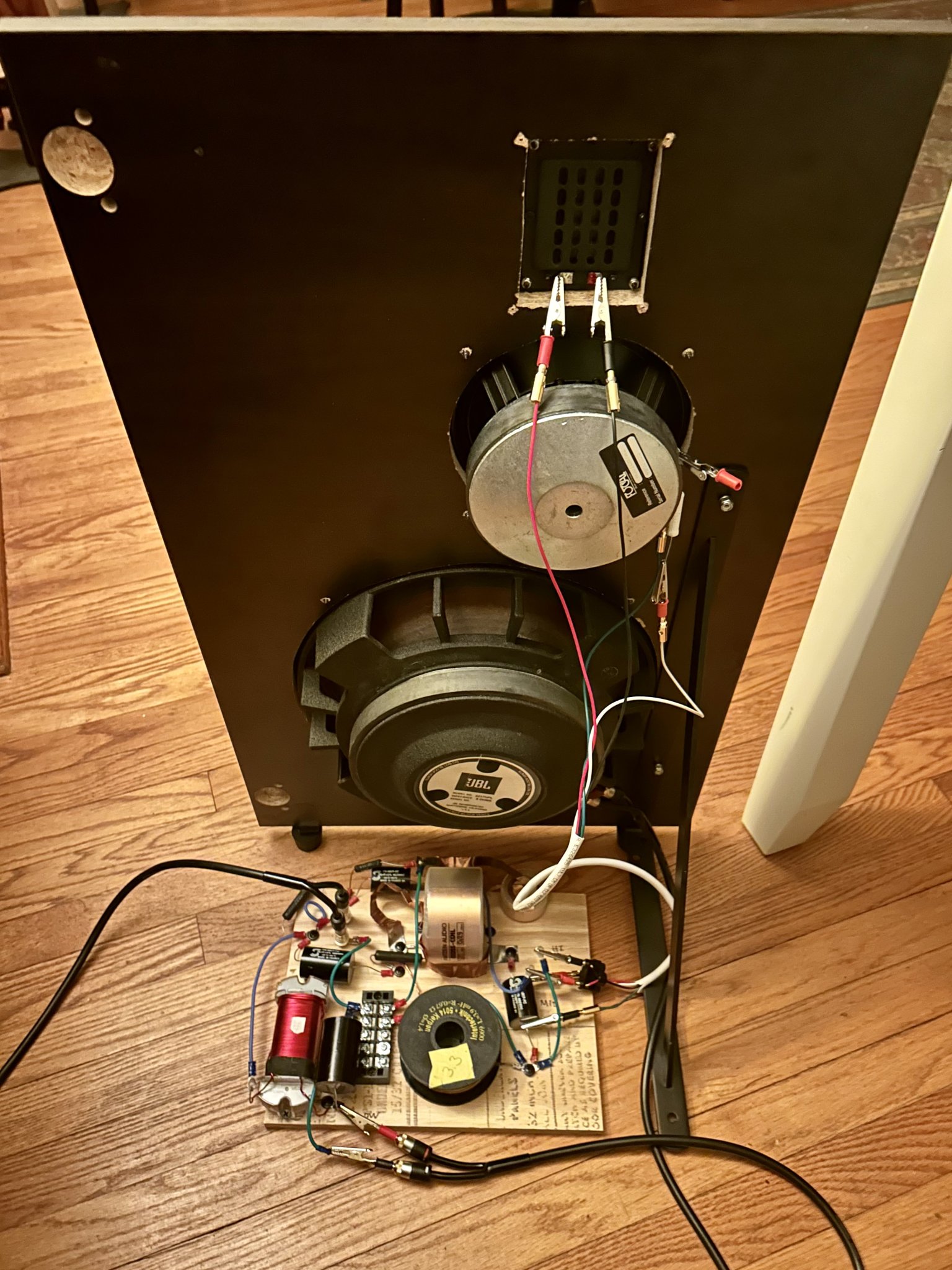

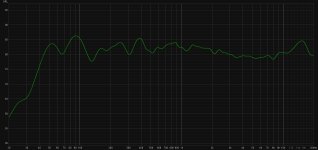

So, I still want to make a go of developing a passive 3-way crossover for my OB 3-way, and the second attached picture contains the three measurements of the woofer (JBL 2217HPL), mid (Focal Audiom 7A2), and tweeter (GRS PT2522-4) at my listening position. Also with 1/12 octave smoothing. No DSP filtering. I included a 30uF cap to protect the tweeter.
I sincerely tried to figure out Vituixcad, but hit a few cognitive roadblocks trying to get it to import my simple REW measurements.
Moving forward, I am going to start with concepts from the Manzanita thread to build my 3-way passive crossover. I have a couple big 18mH inductors and a bunch of other available crossover parts that should suit.
I imagine my next LOGICAL step would be to take WT3 measurements for each driver...
Regardless, I will play with passive components and iterative measurements of the 3-way to see if I can get close to the satisfaction I get with the Manzanita.
I had lived with the 3-way DSP build for a while and enjoyed it. The result of moderate DSP tweaking was the first picture attached. That was with 1/12 octave smoothing, taken a few months ago. It sounded good, but the complexity was a bit much. Three amps and a MiniDSP Flex Eight required.
Then I went back to the Manzanitas with just one amp as I had a new build to play with... Naturally, overall, the expert-designed two-way Manzanita has won out for a while and sounds great.
So, I still want to make a go of developing a passive 3-way crossover for my OB 3-way, and the second attached picture contains the three measurements of the woofer (JBL 2217HPL), mid (Focal Audiom 7A2), and tweeter (GRS PT2522-4) at my listening position. Also with 1/12 octave smoothing. No DSP filtering. I included a 30uF cap to protect the tweeter.
I sincerely tried to figure out Vituixcad, but hit a few cognitive roadblocks trying to get it to import my simple REW measurements.
Moving forward, I am going to start with concepts from the Manzanita thread to build my 3-way passive crossover. I have a couple big 18mH inductors and a bunch of other available crossover parts that should suit.
I imagine my next LOGICAL step would be to take WT3 measurements for each driver...
Regardless, I will play with passive components and iterative measurements of the 3-way to see if I can get close to the satisfaction I get with the Manzanita.
Attachments

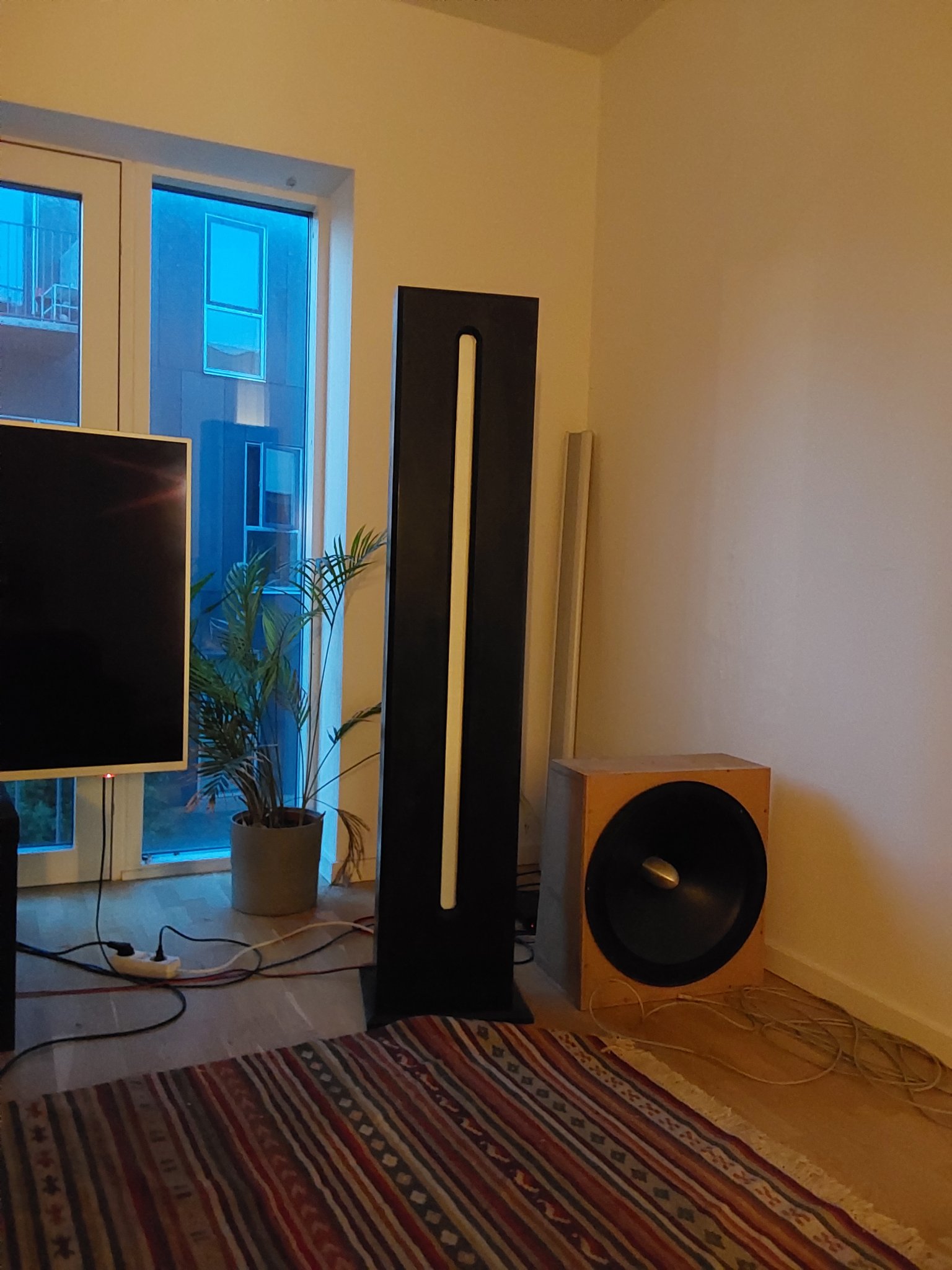

My open baffle loudspeaker
https://www.diyaudio.com/community/threads/corner-horn-meets-open-baffle-cfa.398842/post-7339578
https://www.diyaudio.com/community/threads/corner-horn-meets-open-baffle-cfa.398842/post-7339578
I have to admit.

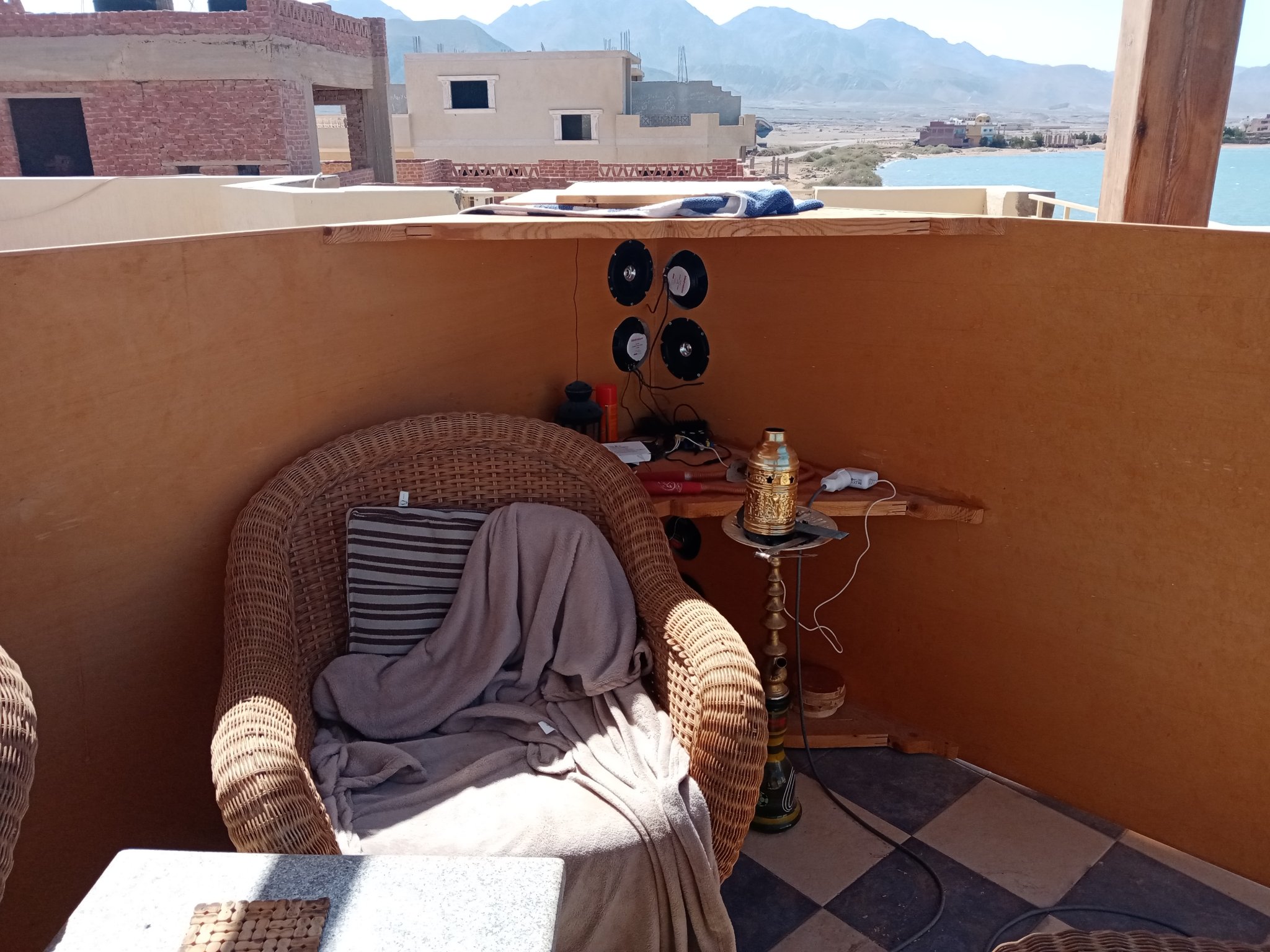

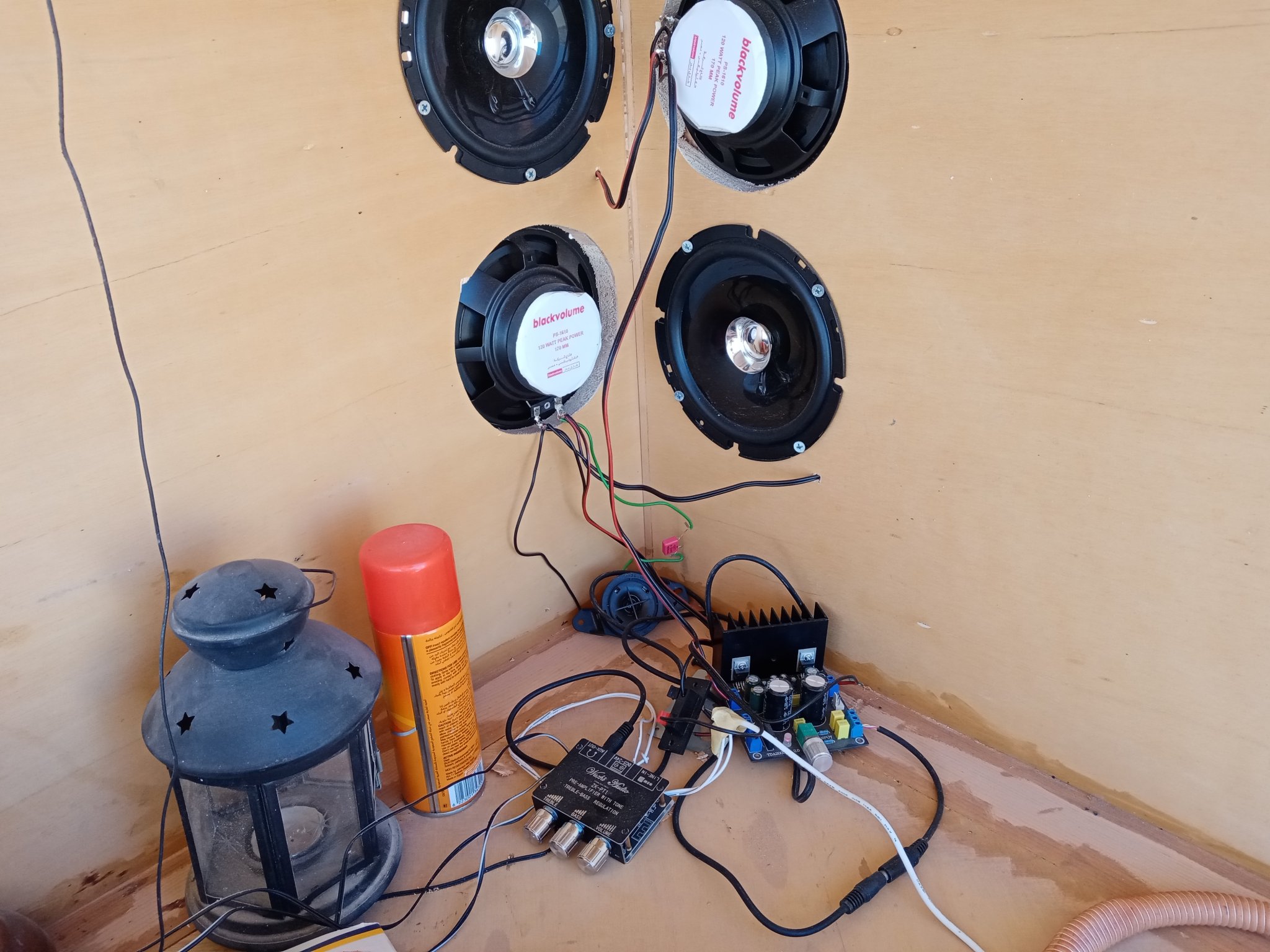

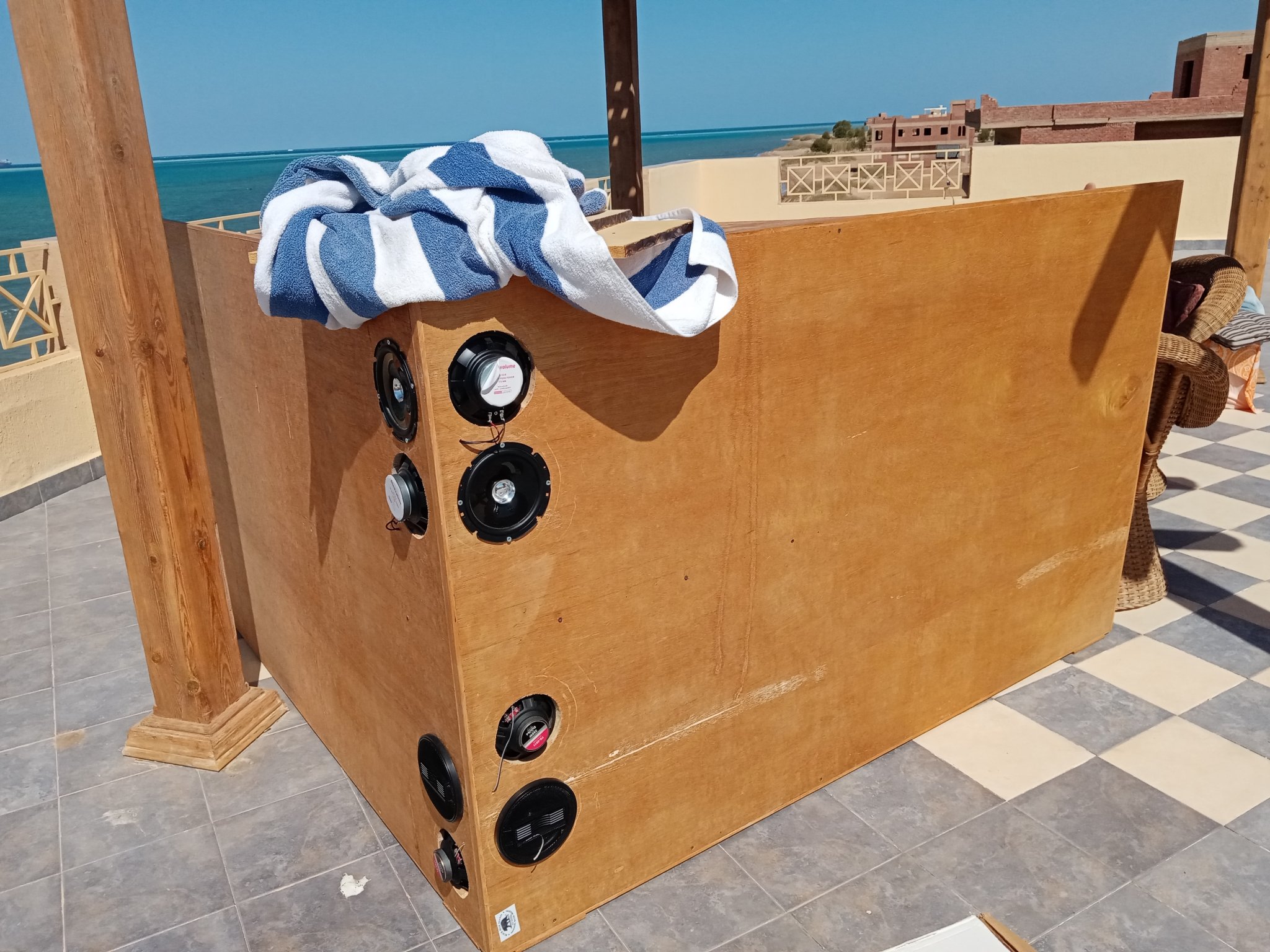

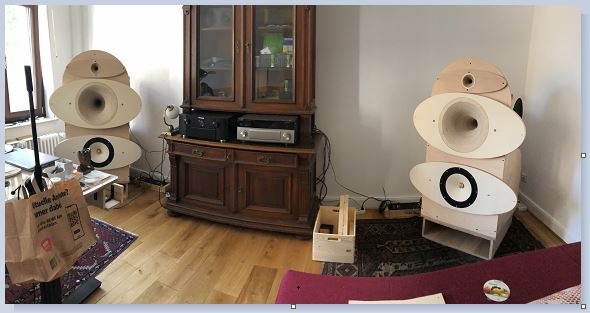

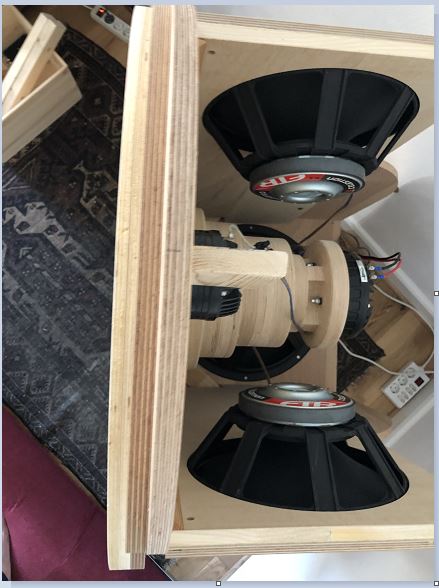

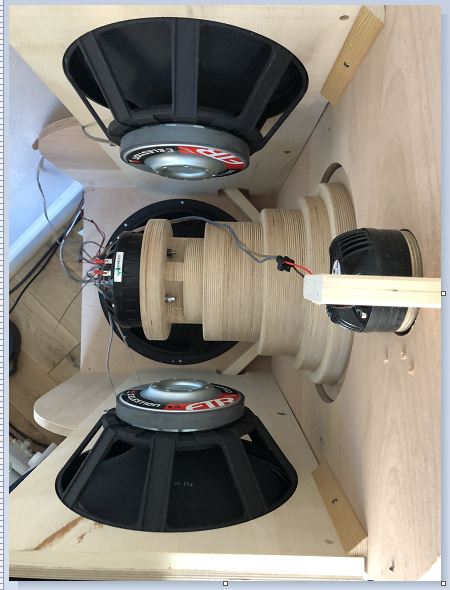

Especially this open air construction sounds great on the side where the "corner" is.
You hear with the same speakers in comparison on the other side the gain of 10db due to construction. Only by walking around it.
The current feedback amp does a lot to make the fullranges sound great.
Latest listening test with such an amp on other fullrange speakers without any crossover network
https://www.diyaudio.com/community/...fication-to-current-drive.389985/post-7374638
Especially this open air construction sounds great on the side where the "corner" is.
You hear with the same speakers in comparison on the other side the gain of 10db due to construction. Only by walking around it.
The current feedback amp does a lot to make the fullranges sound great.
Latest listening test with such an amp on other fullrange speakers without any crossover network
https://www.diyaudio.com/community/...fication-to-current-drive.389985/post-7374638
I had 2x rain in two years, only for two minutes just very slight dripping. Nearly nothing. Bringing all in was work in vain. I was joking want my money back for the house from the former owner because the sun was away.
But after some years it can rain heavily the face of the house getting damaged as it is not prepared to be wet.
But after some years it can rain heavily the face of the house getting damaged as it is not prepared to be wet.

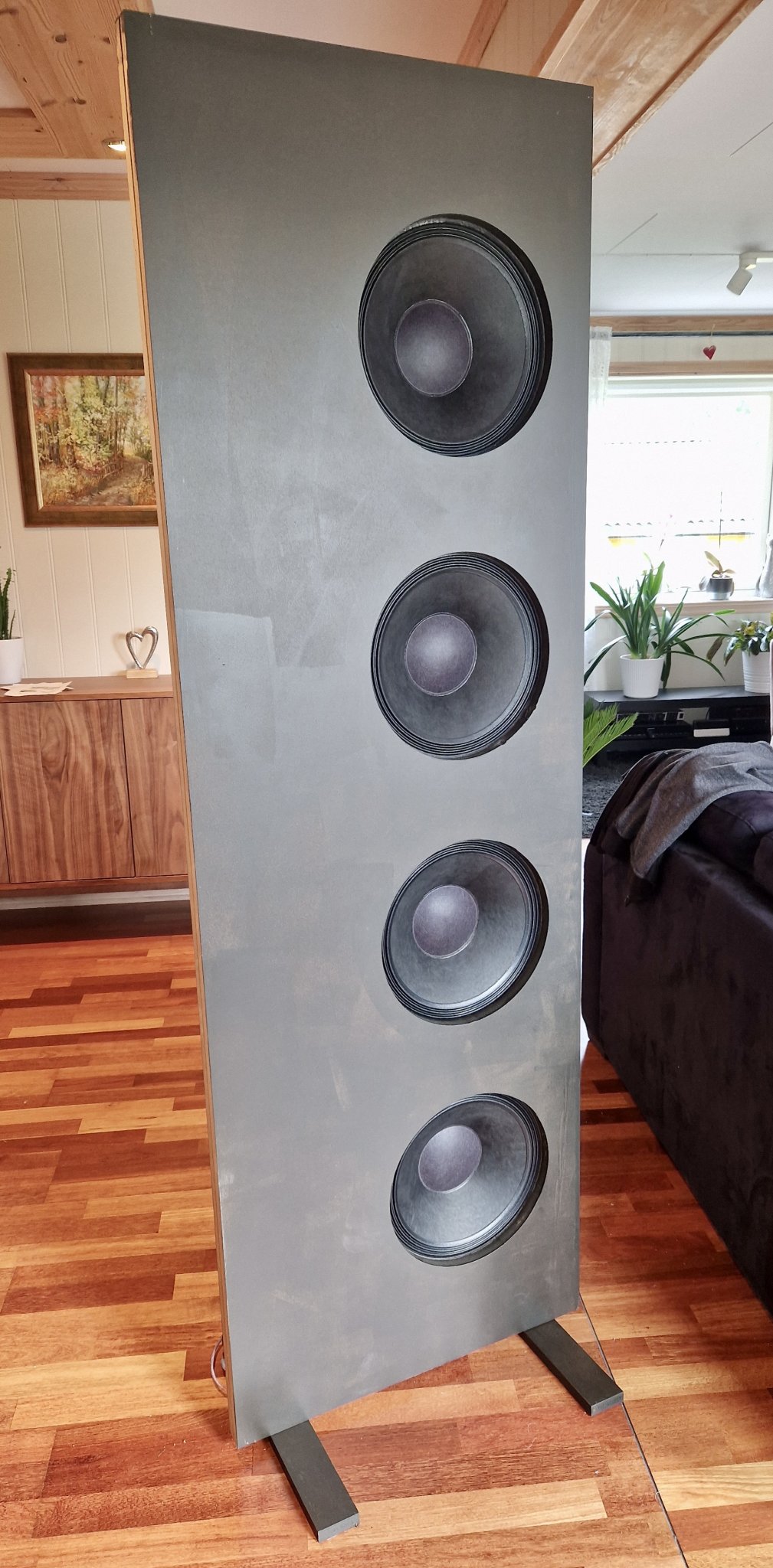

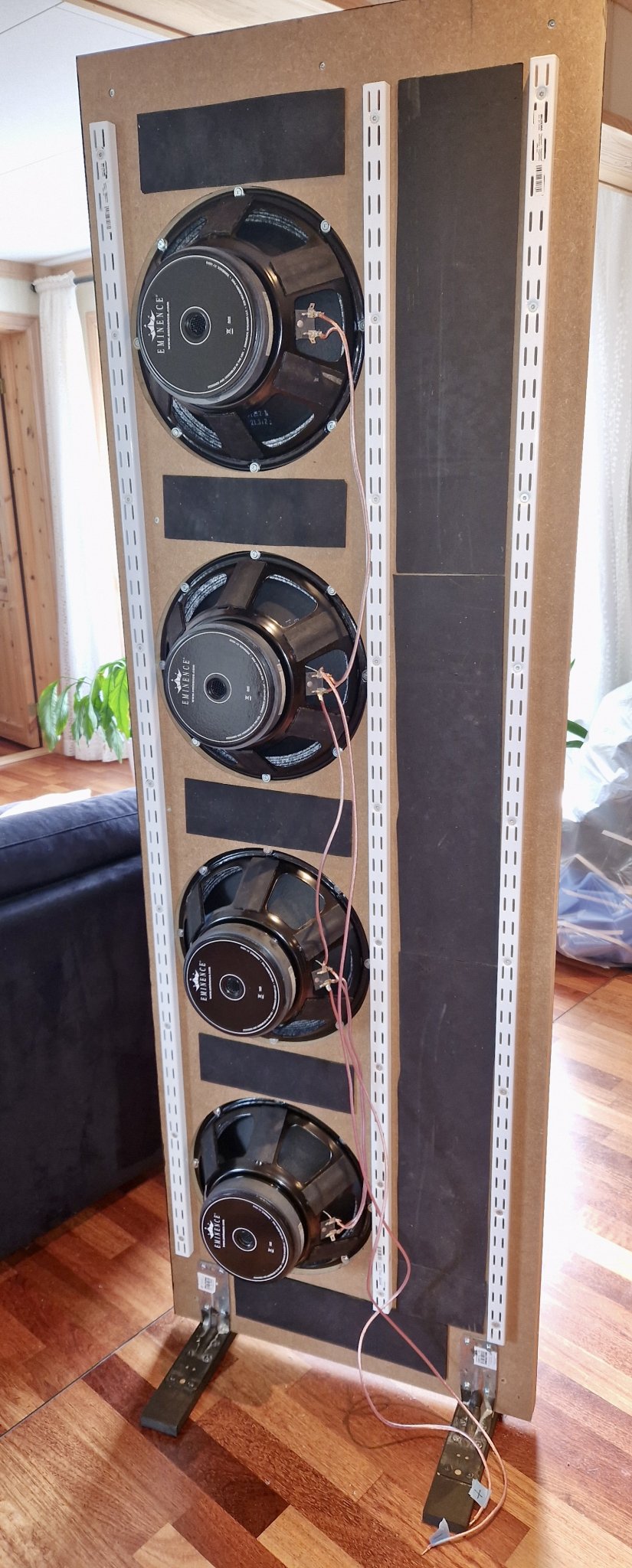

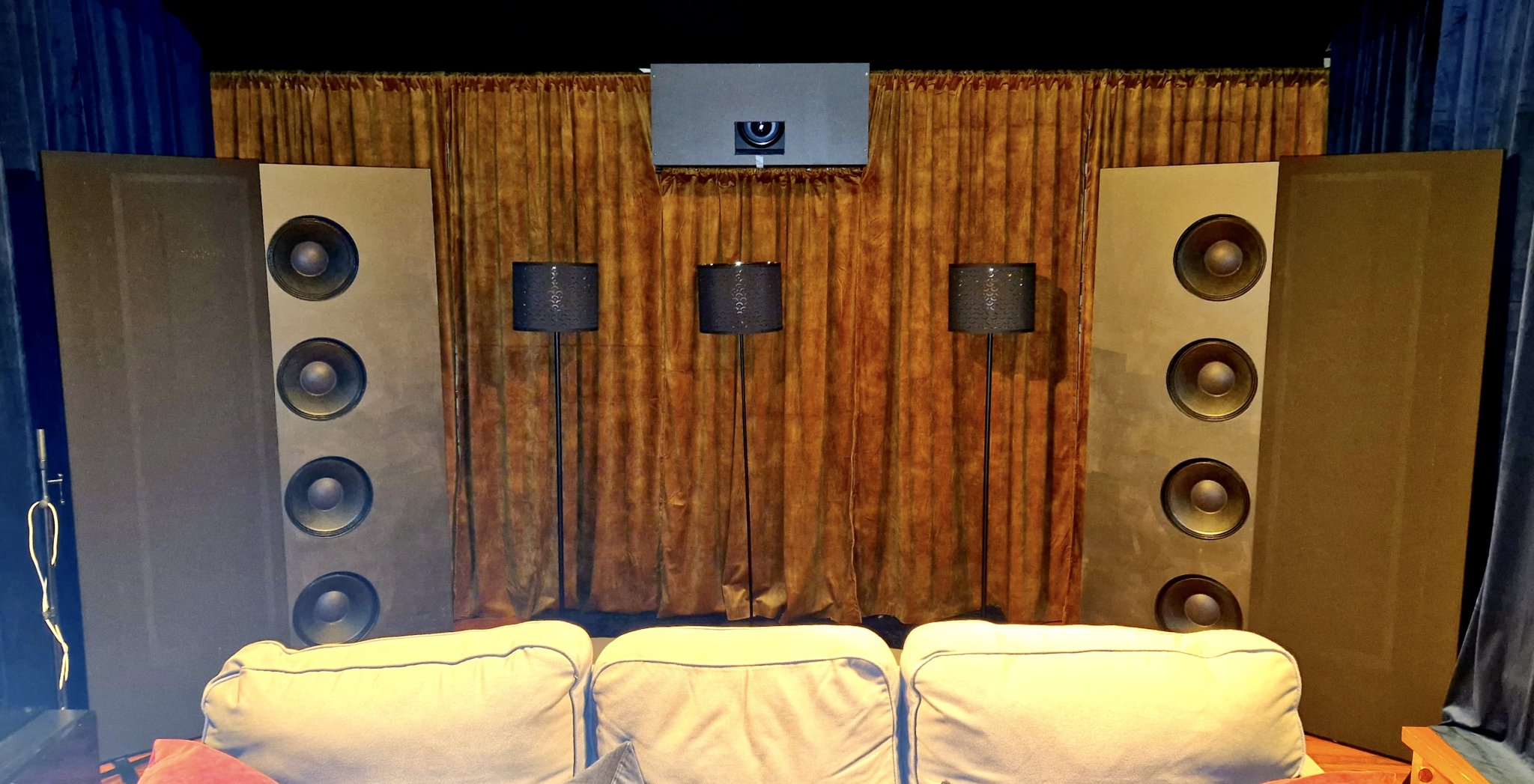

My latest creation - dipole mid bass for my more or less butchered Magnepan 3.7s. The baffles are 600x1800 mm, and are using the Magnepan to extend the effective baffle width. Drivers are Eminence Delta 12A. I have four of these puppies, for the L and R front speakers, and the L and R surrounds. The centre channel has something similar. Crossover points for the mid bass dipoles are 80 and 450 Hz.
